Liquid Crystal Display (LCD) technology has become one of the most prevalent forms of display technology in modern electronics. From computer monitors and televisions to smartphones and industrial control panels, LCDs provide clear, energy-efficient, and compact screens that have revolutionized how we view digital content. This comprehensive article explores what an LCD display unit is, how it works, its types, advantages, disadvantages, applications, and troubleshooting tips, enriched with detailed explanations.

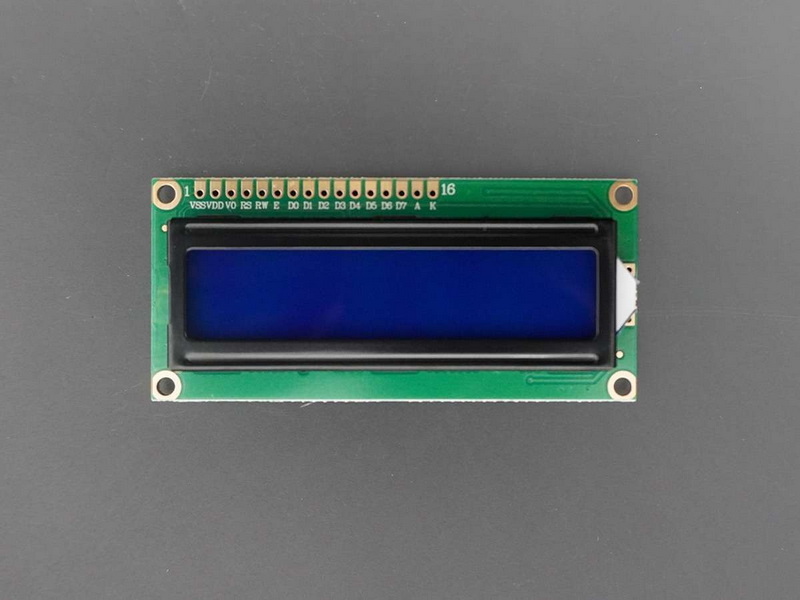

An LCD display unit is a flat-panel electronic visual display device that uses the light-modulating properties of liquid crystals combined with polarizers to produce images. Unlike older display technologies such as cathode-ray tubes (CRT), LCDs do not emit light directly; instead, they manipulate light from a backlight or reflector to display images in color or monochrome.
- Liquid Crystal Layer: A thin layer of liquid crystal molecules sandwiched between two glass substrates. These crystals have a unique property: they can twist and untwist in response to electrical signals, controlling the passage of light.
- Polarizing Filters: Two polarizers are placed on either side of the liquid crystal layer, oriented at 90 degrees to each other. The liquid crystals' twisting action changes the polarization of light, allowing selective light passage.
- Backlight: Since liquid crystals do not emit light, a backlight (usually LEDs) illuminates the display from behind.
- Color Filters: Each pixel is divided into three sub-pixels with red, green, and blue filters. By adjusting the light intensity through these sub-pixels, the display can produce a full spectrum of colors.
- Electrodes and Driver Circuits: Transparent electrodes (often made of indium tin oxide) apply voltage to specific areas of the liquid crystal layer, controlling pixel states.
The operation of an LCD display unit revolves around controlling the orientation of liquid crystal molecules to modulate light transmission:
1. Backlight emits white light that passes through the first polarizer.
2. Liquid crystals twist the light's polarization by 90 degrees when no voltage is applied, allowing light to pass through the second polarizer, making the pixel appear bright.
3. When voltage is applied, the liquid crystals align to block the twist, preventing light from passing through the second polarizer, making the pixel appear dark.
4. Color filters then tint the transmitted light into red, green, or blue sub-pixels.
5. By varying the voltage applied to each sub-pixel, different brightness levels and colors are produced, forming the complete image on the screen.
This principle is often described as "blocking light" rather than emitting it, which is why LCDs require a backlight source.
LCD technology has evolved into several types, each with unique characteristics suited for different applications:
| LCD Type | Image Quality | Viewing Angle | Response Time | Cost | Common Uses |
|---|---|---|---|---|---|
| Twisted Nematic (TN) | Moderate | Narrow | Fast | Low | Gaming monitors, budget devices |
| In-Plane Switching (IPS) | High | Wide | Medium | Medium-High | Graphic design, smartphones, tablets |
| Vertical Alignment (VA) | Good contrast | Medium | Medium | Medium | TVs, general-purpose monitors |
| Thin-Film Transistor (TFT) | High | Medium | Fast | Medium | Laptops, smartphones, tablets |
- TN panels are cost-effective with fast response times but suffer from limited viewing angles and color accuracy.
- IPS panels provide superior color reproduction and wide viewing angles, favored for professional and multimedia use.
- VA panels offer better contrast and deeper blacks, balancing cost and image quality.
- Slim and Lightweight: LCDs are much thinner and lighter than CRTs, making them ideal for portable and space-saving applications.
- Energy Efficient: They consume significantly less power, especially modern LED-backlit LCDs, which use as little as 10–25% of the power of comparable CRTs.
- No Screen Burn-in: Unlike plasma or CRT displays, LCDs do not suffer from image burn-in.
- Sharp Image Quality: When operated at native resolution, LCDs provide crisp, clear images without geometric distortion.
- Low Heat Emission: Due to low power consumption, LCDs emit little heat.
- Wide Size Range: Available from small wearable screens to large 80-inch displays.
- Digital Compatibility: LCDs natively support digital inputs like HDMI and DVI, simplifying integration with modern devices.
- Flexible and Transparent Options: Some LCDs can be made flexible or transparent for specialized applications.
- Viewing Angle Limitations: Colors and contrast can shift or invert when viewed from extreme angles.
- Response Time: Some LCDs may show motion blur or ghosting in fast-moving images, though this has improved with newer technologies.
- Backlight Dependency: LCDs require a backlight, which can cause uneven brightness or light leakage.
- Color and Contrast Limitations: Blacks are not as deep as in OLED displays, leading to less contrast.
- Fragility: LCD panels are more fragile than CRTs; physical damage can cause permanent screen defects.
- Cost: High-quality LCDs, especially IPS panels, can be more expensive than some alternatives.
- Temperature Sensitivity: Liquid crystals can malfunction in extreme cold or heat, affecting display performance.
LCD technology is versatile and used across many industries and devices:
- Consumer Electronics: Televisions, computer monitors, smartphones, tablets, digital cameras, and watches.
- Digital Signage: Advertising billboards, informational kiosks, and menu boards.
- Consumer Appliances: Microwaves, refrigerators, washing machines with digital interfaces.
- Automotive: Dashboard displays, infotainment systems, rear-view cameras.
- Medical Equipment: Ultrasound machines, patient monitors, diagnostic devices.
- Industrial: Control panels, instrumentation displays, handheld terminals.
- Education: Interactive whiteboards and projectors.
- Gaming: Consoles and handheld gaming devices.
- Wearables: Smartwatches and fitness trackers.
Common issues with LCD units include:
- Dim Display: Often due to aging backlight LEDs; increasing backlight brightness can help temporarily, but replacement may be needed.
- Broken Glass: Physical damage to the screen or touch panel may require full module replacement.
- Dead Pixels: Non-functioning pixels can appear as black or white dots.
- Image Persistence: Though less common than CRT burn-in, some image retention can occur.
- Connectivity Issues: Loose or damaged connectors can cause display failure.
Proper handling and regular cleaning with appropriate materials can prolong the life of an LCD display. Avoiding exposure to extreme temperatures and direct sunlight also helps maintain optimal performance.
The LCD industry continues to evolve with innovations addressing traditional limitations:
- LED Backlighting: Replacing cold cathode fluorescent lamps (CCFL), LED backlights offer better brightness, energy efficiency, and color accuracy.
- Quantum Dot Enhancement: Quantum dots improve color gamut and brightness by converting LED backlight wavelengths more precisely.
- High Refresh Rates: Modern LCDs can support refresh rates up to 240Hz or higher, reducing motion blur for gaming and video playback.
- Touchscreen Integration: Capacitive and resistive touch layers are integrated with LCD panels for interactive devices.
- Flexible and Foldable Displays: Advances in materials allow LCDs to bend or fold, opening new possibilities in wearable and portable electronics.
- Transparent LCDs: Used in heads-up displays and augmented reality, these allow users to see digital content overlaid on real-world views.
- Low-Temperature Polycrystalline Silicon (LTPS): Enables higher pixel density and faster response times, used in smartphones and tablets.
While LCDs are more energy-efficient than older technologies, their production and disposal have environmental considerations:
- Material Use: LCDs contain glass, liquid crystals, plastics, and rare metals like indium.
- Energy Consumption: Manufacturing LCD panels requires significant energy.
- Recycling Challenges: Proper disposal is essential to recover valuable materials and avoid toxic waste.
- Eco-Friendly Initiatives: Manufacturers are developing recycling programs and using more sustainable materials.
Consumers can contribute by responsibly recycling old LCD devices and choosing energy-efficient models.
An LCD display unit is a sophisticated flat-panel device that uses the unique properties of liquid crystals to control light transmission and produce vivid images. Its combination of slim design, energy efficiency, and image quality has made it the dominant display technology in a wide range of applications—from consumer electronics to industrial and medical devices. While LCDs have some limitations, ongoing advancements in panel technology, backlighting, and materials continue to enhance their performance. Understanding the construction, operation, and types of LCDs empowers users and professionals to select, maintain, and troubleshoot these essential display units effectively.
An LCD works by controlling the orientation of liquid crystal molecules to modulate light passing through polarized filters. The crystals twist or align in response to electrical voltage, selectively blocking or allowing light from a backlight to pass, thus forming images on the screen.
Liquid crystals do not emit light themselves. The backlight provides the necessary illumination, which the liquid crystals then manipulate to create visible images.
The main types are Twisted Nematic (TN), In-Plane Switching (IPS), and Vertical Alignment (VA). TN panels have fast response times but narrow viewing angles; IPS panels offer better color accuracy and wider viewing angles; VA panels provide higher contrast and deeper blacks.
Each pixel contains three sub-pixels with red, green, and blue color filters. By varying the voltage applied to each sub-pixel, the LCD controls the intensity of light passing through, mixing these primary colors to produce a full spectrum of colors.
Common issues include dim displays (often fixed by increasing backlight brightness or replacing the backlight), dead pixels, broken glass (requiring module replacement), and image persistence. Proper handling and maintenance can reduce damage risks.
