Upgrading the LCD display on your electric bike (e-bike) is an attractive idea for many riders looking to enhance their riding experience, unlock new features, and keep up with the latest technology. However, many ask: Is it a simple upgrade, or a job best left to the professionals? In this in-depth guide, we'll explore everything about upgrading your LCD display e-bike—from understanding the fundamentals, compatibility, and common pitfalls, to a practical, step-by-step DIY guide. We'll also show you common display types, technical details, real-world challenges, and provide videos and images to illustrate the process. If you're a rider considering an LCD display upgrade for your e-bike, this article aims to be your complete reference.
The LCD display e-bike serves as the interface between you and your bike's electronic systems. More than just a speedometer, a modern display can show vital information such as:
- Battery life and voltage
- Power assist level (PAS)
- Distance (trip and total)
- Current speed and average/max speed
- Error codes and diagnostics
- Lighting and accessory status
Most e-bike LCD displays use liquid crystal technology for superior clarity in all lighting conditions.
While most factory displays are functional, upgrading can greatly enhance your ride in multiple ways:
- Richer Data: Track more metrics like cadence, wattage output, navigation, or advanced diagnostics.
- Improved Readability: Newer screens provide better brightness, bigger digits, and color coding.
- Modern Features: Bluetooth/ANT+ fitness tracking, GPS navigation, and app integration boost usability.
- Aesthetics: A sleek, modern LCD display can match the high-tech look of your e-bike.
- Modularity: Upgraded displays may unlock features in your controller or integrate with future upgrades.
- Replacement: Your current display might be damaged, outdated, or missing key features.
Understanding the different types can help guide your upgrade decision.

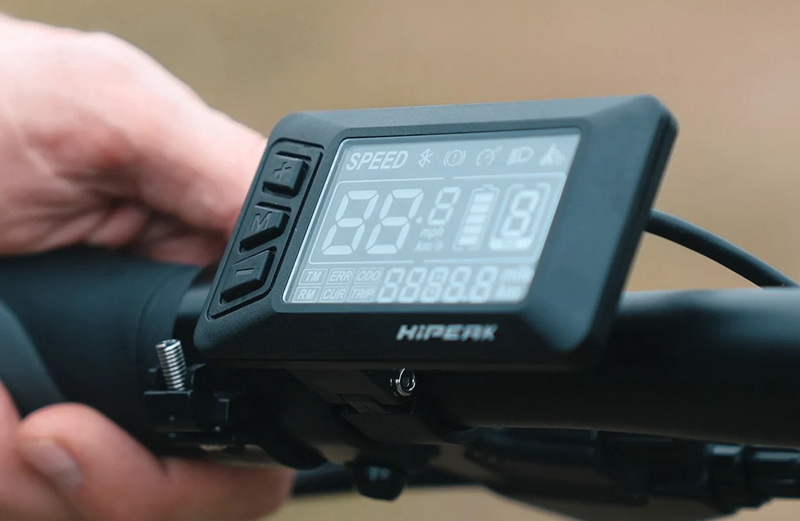

Generally monochrome, these offer fundamental readouts: speed, battery, and PAS levels. Their simplicity means fewer compatibility and integration issues, but also fewer features.

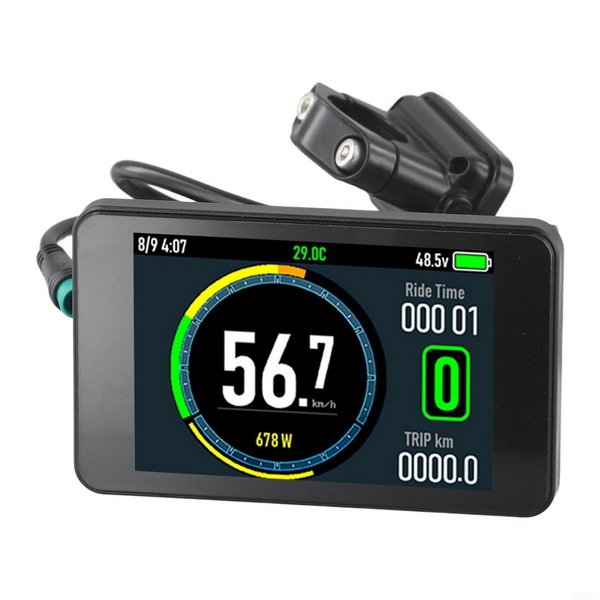

These displays boast rich colors, sharper graphics, and are often larger. They may offer custom layouts, graphical energy usage, and touch or button-based navigation.

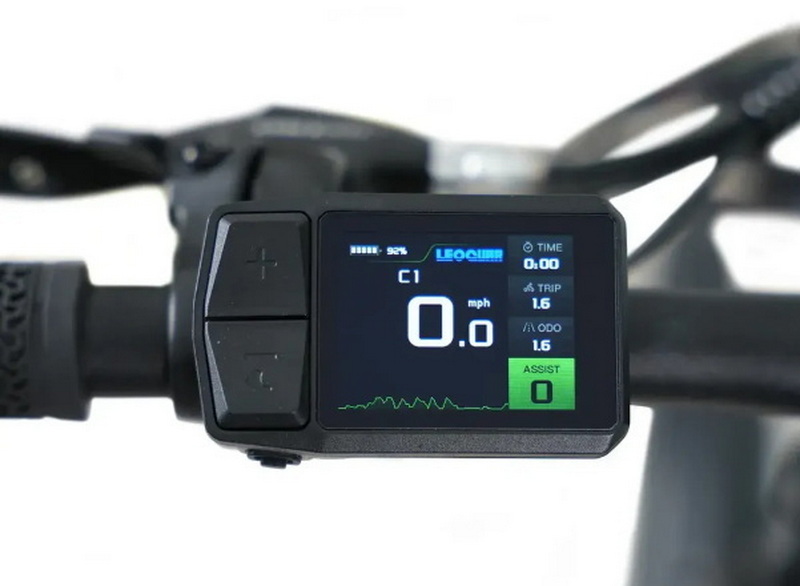

Smart LCDs add connectivity features such as Bluetooth, Wi-Fi, and app integration. They may support:
- Smartphone syncing for ride tracking
- Fitness and health metrics
- Software/firmware updates via app
- GPS navigation and maps
1. Model Compatibility:
Is your new LCD display made for your controller, or is it a universal model?
2. Connector Types:
Connectors must match (JST, HIGO, or proprietary brands).
3. Communication Protocol:
Controllers and LCDs "talk" using specific digital signals—using mismatched ones blocks functionality.
4. Power and Voltage:
Check that the new display is rated for your e-bike's system (e.g., 24V, 36V, 48V).
5. Firmware:
Some controllers require firmware updates or new parameter setups after an upgrade.
6. Your Skill Level:
Basic mechanical and electrical familiarity can make this a straightforward process. More complex jobs may require soldering or special diagnostics tools.
Compatibility is the most crucial aspect of upgrading your LCD display e-bike. Here are the main points:
- Controller Brand/Model: Brands like Bafang, Tongsheng, Bosch, Shimano, and others use their own protocols.
- Display Series: E.g., Bafang's C961 and P850C are not always cross-compatible even within the same brand.
- Connectors: Look closely at the plugs: 5-pin, 6-pin, round, rectangular, etc.
- System Voltage: Never plug a high-voltage display into a lower-voltage system (or vice versa).
You have a generic e-bike with a 48V Bafang motor and a C961 LCD. You're planning to upgrade to a P850C display. Both use 5-pin connectors, and the communication protocol matches. The swap will likely be smooth.
Conversely, if you want to switch from a generic LCD display e-bike to a Bosch Nyon smart system, complete controller and wiring changes are required—a complicated process.
- Check manual or back of the display for model number and specs.
- Photograph wiring and connectors for reference.
- Visit manufacturer's website for compatibility lists.
- Check e-bike forums for “upgrade” success stories for your bike.
- Screwdrivers (Phillips and flathead)
- Allen/hex wrenches
- Electrical tape and cable ties
- Possibly wire stripper/crimper or soldering iron
- Multimeter (for voltage checks)
- Always disconnect power before working on your e-bike's electronics.
- Undo the mounting bracket.
- Carefully disconnect display cables.
- Remove any cable ties retaining wires.
- Connect new display, matching all plugs (check orientation carefully).
- Mount display on handlebar using provided bracket.
- Reconnect battery and turn on system.
- Check that display lights up, all functions work, and no error codes appear.
- Set wheel diameter, units (mph/km/h), PAS levels, or other settings as needed.
- Consult display and e-bike manuals for calibration steps.
| Challenge | Quick Solution |
|---|---|
| Connectors Don't Match | Use matching adapter cables, or rewire carefully with diagrams. |
| Display Powers Up but No Data | Check pinout and protocol; may need compatible firmware. |
| Display Error Codes | Consult manual for meaning; reset by disconnecting battery; check for firmware updates. |
| Partial Functionality | Not all features are supported by every controller. |
| Glare or Low Visibility | Adjust mounting angle, use aftermarket anti-glare films. |
| Firmware Mismatch | Update controller/display if update available, or swap for matched models. |
- Check Connections: Periodically inspect for cable wear, corrosion, or looseness.
- Firmware Updates: Keep your display and controller firmware current for max functionality.
- Environmental Protection: Use a silicone cover or rain guard if riding in wet weather.
- Cleaning: Clean display with a soft, damp microfiber cloth. Avoid harsh chemicals.
- Calibration: Recalibrate after tire changes or firmware updates.
Many newer LCD displays for e-bikes come equipped with:
- Bluetooth & Smartphone Integration: Track rides, set up profiles, get notifications.
- Navigation: GPS route mapping directly on display.
- Customizable Screens: Choose what data you want prominently displayed.
- Diagnostics: Advanced error/warning reporting, and in some models, remote diagnostics with service center access.
When considering an upgrade, ask if the display supports the latest features you want, or whether a more advanced model or system upgrade is warranted.
Upgrading your LCD display e-bike is a practical way to enhance visibility, functionality, and the overall tech level of your ride. With the growing variety of available displays—from simple backlit monochrome to full-color GPS smart displays—there's an upgrade for every budget and need. The process is straightforward for many commercially available bikes thanks to standard connectors and clear manuals. However, challenges can arise with unique brands or heavily customized bikes.
The key determinants for a smooth upgrade are: compatibility (controller, connector, protocol), clear documentation, and a methodical installation approach. With these in hand, most e-bike riders with basic technical confidence can successfully upgrade their displays, enriching their daily commute or weekend adventures with enhanced data, connectivity, and style.
Check your controller brand/model and review the display's compatibility list. Ensure connector pin count, shape, and system voltage match. Consult forums or the bike's manufacturer if unsure.
For straightforward swaps within the same brand or system, the process is generally DIY-friendly. If changing to a different brand or upgrading to a high-end smart display, some electrical knowledge is helpful.
Typically, you'll use basic tools like screwdrivers, Allen wrenches, and possibly wire strippers. For customized systems, a soldering iron or multimeter may be needed.
Most upgrades don't impact battery life, but show battery status more accurately. Premium displays typically consume tiny extra power, negligible compared to the motor.
Yes, many new displays (especially color TFT or smart screens) support Bluetooth or Wi-Fi for syncing with fitness apps, route tracking, or remote diagnostics. Ensure your controller supports these features as well.
