In the ever-evolving world of display technology, the LCD display driver IC plays a pivotal role in determining the performance, efficiency, and versatility of LCD screens. Whether you are building a consumer gadget, an industrial control panel, or an automotive dashboard, choosing the right LCD display driver is crucial for optimal display quality and system reliability. This comprehensive guide explores the fundamentals of LCD display drivers, compares leading ICs and manufacturers, delves into technical considerations, and provides practical advice for selection and integration.

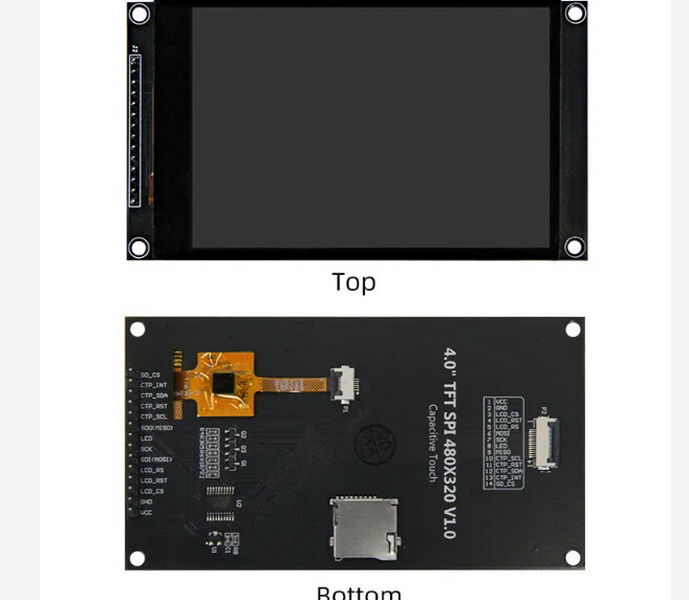

An LCD display driver is an integrated circuit (IC) responsible for controlling the signals that activate and manage the pixels on an LCD screen. It translates digital data from a microcontroller or processor into the analog voltages or currents required to manipulate the liquid crystals within each pixel, thus forming images, text, or graphics on the display.
- Receives image data from the system's CPU or microcontroller.
- Generates precise analog signals to control the orientation of liquid crystal molecules.
- Manages timing, voltage, and current for each pixel or segment.
- Interfaces with the system via protocols like I²C, SPI, or parallel bus.
LCD display drivers are categorized by the type of LCD technology and the application's complexity.
- Used for simple displays (e.g., digital clocks, calculators).
- Control individual segments directly.
- Support static or low multiplex rates.
- Drive dot-matrix displays (e.g., 16x2 or 20x4 character LCDs).
- Include on-chip character generators.
- Commonly use controllers like the Hitachi HD44780 or Sitronix ST7066U.
- Control full graphic LCDs (e.g., 128x64 or 240x320 pixels).
- Handle complex images and animations.
- Require more memory and advanced timing.

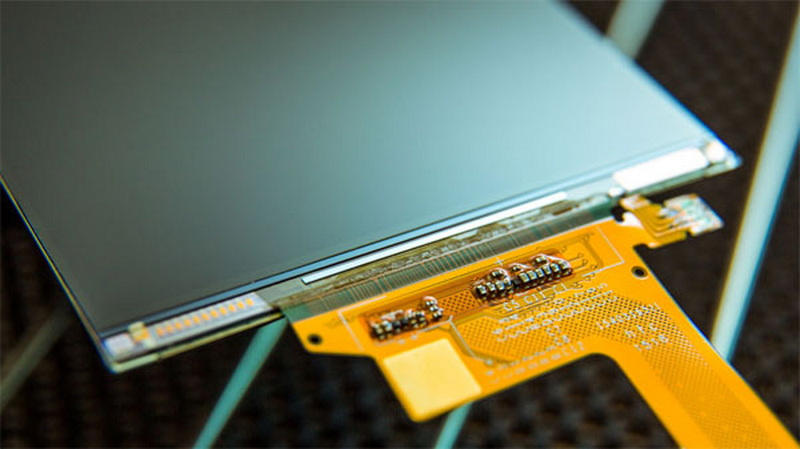

- Source Driver: Controls voltage for each column (pixel).
- Gate Driver: Controls row selection (strobe).
- Essential for high-resolution, color, and large-panel displays.
When selecting the best LCD display driver IC, consider the following:
- Segment: Fewer outputs, simple control.
- Character: Moderate complexity, built-in fonts.
- Graphic/TFT: High pin count, advanced control.
- I²C: Simple wiring, slower speed, ideal for small displays.
- SPI: Faster, supports more data, moderate wiring.
- Parallel: Fastest, but requires many pins.
- Low-power drivers are critical for battery-operated devices.
- Some drivers offer power-down modes and temperature compensation.
- Ensure compatibility with your system's supply voltage.
- For automotive or industrial use, wide temperature tolerance is necessary.
- Chip-on-glass (COG), chip-on-board (COB), or standard IC packages.
- Integration of bias generation, oscillators, and memory reduces external components.
- Choose widely used, well-supported ICs to avoid obsolescence.
- Consider long-term supply and manufacturer reliability.
The global market for LCD display drivers is dominated by several key players known for innovation, reliability, and broad product portfolios:
Manufacturer | Notable Series/ICs | Application Focus |
---|---|---|
Samsung | S6E3FC1, S6E3HA6 | Mobile, TV, VR, automotive |
Novatek | NT39xxx, NT36xxx | TVs, monitors, notebooks, automotive |
Himax | HXxxxx series | Mobile, tablets, automotive |
Raydium | RMxxxx series | Consumer electronics |
Sitronix | ST7066U, ST7565 | Character/graphic LCDs |
Texas Instruments | TPS65100, TPS65105 | TFT, OLED, industrial |
NXP | PCA85xxx, PCF85xxx | Segment, character, graphic LCDs |
Solomon Systech | SSD13xx, SSD12xx | Large-size, high-performance LCDs |
IC Model | Max Segments | Interface | Voltage Range | Special Features |
---|---|---|---|---|
HD44780 | 80 | Parallel | 2.7–5.5V | Standard for char LCDs |
ST7066U | 80 | Parallel | 2.7–5.5V | Compatible with HD44780 |
PCA85132 | 160–640 | I²C | 1.8–8.0V | Cascadable, automotive |
PCF2119x | 32 chars | I²C/Par | 1.5–5.5V | Icon support, low power |
IC Model | Resolution | Interface | Voltage Range | Application |
---|---|---|---|---|
SSD1306 | 128x64 | I²C/SPI | 1.65–3.3V | Monochrome OLED/LCD |
ILI9341 | 240x320 | SPI/Par | 2.5–3.3V | TFT LCD, dev boards |
NT35510 | 480x800 | RGB/MIPI | 2.5–3.3V | Smartphones, tablets |
HX8357 | 320x480 | SPI/Par | 2.5–3.3V | TFT LCD, touch panels |
- I²C: Best for simple, low-speed displays; minimal wiring.
- SPI: Balances speed and wiring complexity; common in embedded systems.
- Parallel: Used for high-speed, high-resolution displays; requires many pins.
- RGB/LVDS/MIPI: Used for large, high-resolution TFT LCDs; supports fast data rates and long cable runs.
- Pin Mapping: Ensure compatibility between microcontroller and LCD display driver.
- Firmware Support: Use libraries (e.g., LiquidCrystal for Arduino) to simplify control.
- Power Sequencing: Follow manufacturer guidelines for powering the LCD and driver IC to prevent damage.
Wiring Steps:
1. Connect LCD VSS to GND, VDD to 5V.
2. RS to digital pin (e.g., 12), RW to GND, Enable to another pin (e.g., 11).
3. Data pins D4–D7 to digital pins 5–2.
4. Use a potentiometer for contrast adjustment.
5. Use the LiquidCrystal library for programming.
- If the display shows only blocks, check contrast and wiring.
- For garbled characters, verify data pin connections and initialization code.
- Use pull-up resistors for I²C lines to ensure reliable communication.
- Problem: Discontinuation of popular LCD display drivers can disrupt production.
- Solution: Choose widely adopted ICs and maintain firmware flexibility for easy migration.
- Problem: High power usage in portable devices.
- Solution: Select low-power drivers with sleep modes and temperature compensation.
- Problem: Long traces or cables can introduce noise.
- Solution: Use differential interfaces (e.g., LVDS), proper PCB layout, and shielding.
- Problem: Increased pin count and complexity.
- Solution: Use dedicated source and gate drivers, or integrated controller-driver ICs for TFT LCDs.
Electromagnetic interference (EMI) and electromagnetic compatibility (EMC) are critical in environments with strict regulatory requirements. Select LCD display drivers with built-in EMI suppression features or support for spread-spectrum clocking.
Many modern LCDs feature integrated touch panels. Some LCD display drivers offer built-in touch controller functionality, simplifying system design and reducing component count.
For applications requiring unique display formats or custom graphics, choose drivers that support flexible memory mapping, custom font storage, and programmable display parameters.
In automotive or industrial settings, multiple LCDs may be driven from a single controller. Look for drivers supporting cascading or daisy-chaining to simplify wiring and synchronization.
Next-generation LCD display drivers are integrating more functions, such as power management, touch control, and gamma correction, into a single chip, reducing board size and BOM cost.
While LCD remains dominant, drivers are increasingly supporting hybrid displays (LCD + OLED) and advanced features like HDR (High Dynamic Range) and adaptive refresh rates.
Emerging LCD display drivers may incorporate AI-powered features, such as adaptive brightness, local dimming, and predictive maintenance alerts, enhancing user experience and reliability.
With the rise of IoT and wearable devices, ultra-low-power LCD display drivers are being developed, featuring deep sleep modes, dynamic refresh, and on-chip voltage regulation.
Selecting the best LCD display driver IC depends on your application's requirements, including display type, resolution, interface, power constraints, and long-term availability. For simple segment or character displays, industry standards like the HD44780 or PCA85xxx series offer reliability and ease of use. For advanced graphic or TFT LCDs, ICs from Novatek, Himax, or Solomon Systech provide high performance and integration. Always match the LCD display driver's features to your system's needs, and consider manufacturer support and future-proofing in your design.
An LCD display driver IC is a chip that converts digital data from a microcontroller into the analog signals needed to control the pixels or segments of an LCD screen. It is essential for accurate image rendering, efficient power usage, and reliable display operation.
Choose I²C for simple, low-speed displays with minimal wiring; SPI for higher speed and moderate wiring; and parallel or RGB/LVDS for high-resolution, high-speed applications. The choice depends on your display's complexity and system requirements.
Popular ICs include the HD44780 and ST7066U for character LCDs, SSD1306 for graphic OLED/LCDs, ILI9341 for TFT LCDs, and Novatek or Himax drivers for large, high-resolution panels.
Select ICs from reputable manufacturers with a history of long-term support. Avoid niche or obsolete drivers and design your firmware to be adaptable to alternative ICs if needed.
Challenges include managing power consumption, ensuring signal integrity, handling high pin counts in large displays, and dealing with potential obsolescence. Careful selection and design can mitigate these issues.
