The 7 segment LCD display is a staple of digital electronics, instantly recognizable from clocks, calculators, meters, and countless devices. While its primary function is to display numbers, many users wonder: Can a 7 segment LCD display show letters as well as numbers? This article explores the capabilities, limitations, and creative uses of 7 segment LCD displays, providing technical explanations, visual examples, and practical insights for enthusiasts and professionals alike.

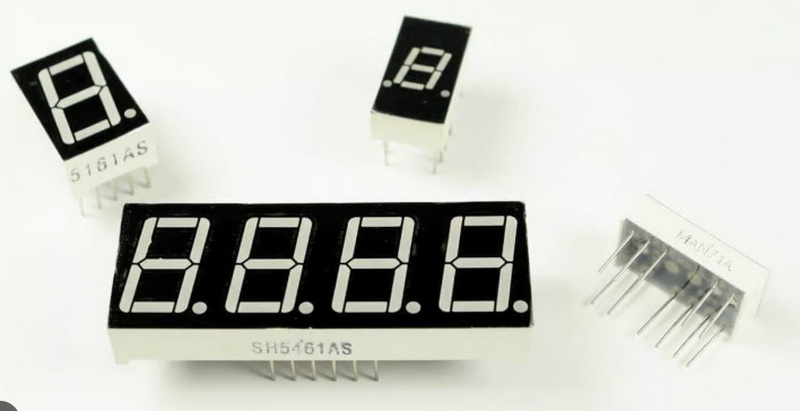

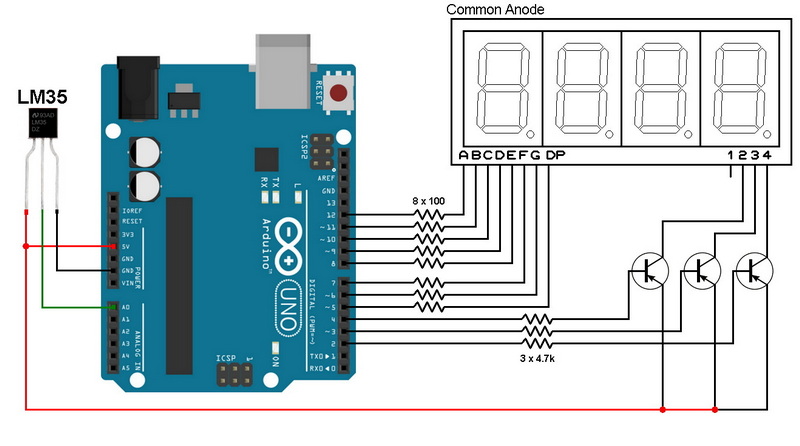

A 7 segment LCD display is a type of electronic display device that uses seven individual segments arranged in a figure-eight pattern. By selectively activating these segments, the display can represent numbers and, to a limited extent, letters and symbols.
- Seven segments: Labeled A to G, each segment is an individual LCD element.
- Simple numeric display: Designed primarily for digits 0–9.
- Low power consumption: Ideal for battery-powered devices.
- High visibility: Clear contrast in bright environments.
The 7 segment LCD display operates by controlling the alignment of liquid crystal molecules in each segment. When voltage is applied to a segment, it changes its optical properties, making it appear dark or light against the background.
- Glass substrate: Base layer with patterned electrodes.
- Segment electrodes: Seven shaped electrodes for each segment.
- Liquid crystal material: Fills the space between glass layers.
- Polarizing filters: Enhance contrast.
- Optional reflector: Improves visibility in ambient light.

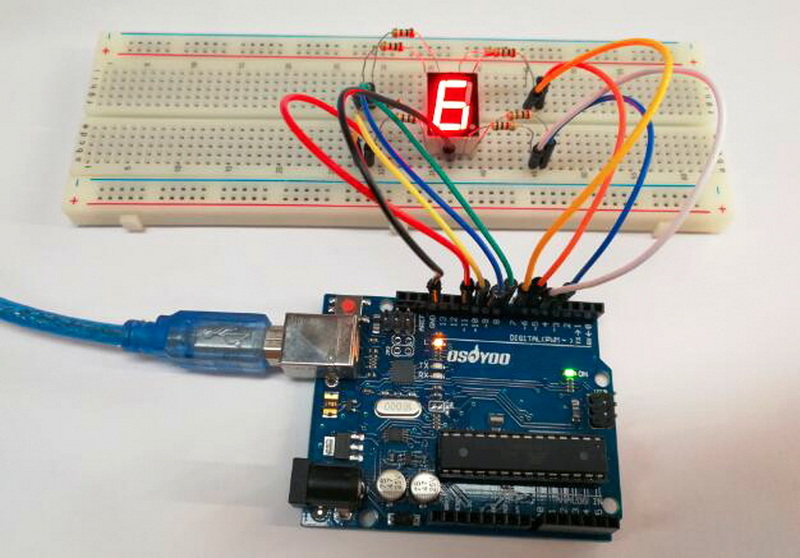

The primary use of a 7 segment LCD display is to show numbers. Each digit from 0 to 9 is represented by a unique combination of illuminated segments.
Digit | Segments Lit |
---|---|
0 | A, B, C, D, E, F |
1 | B, C |
2 | A, B, G, E, D |
3 | A, B, C, D, G |
4 | F, G, B, C |
5 | A, F, G, C, D |
6 | A, F, E, D, C, G |
7 | A, B, C |
8 | All |
9 | A, B, C, D, F, G |
This straightforward mapping makes the 7 segment LCD display ideal for numeric readouts in a wide range of devices.
Yes, a 7 segment LCD display can show certain letters, but with significant limitations. The design of the display, with only seven straight segments, restricts the range of recognizable alphabetic characters.
Some letters are easily represented, while others are ambiguous or impossible. Here are commonly supported letters:
- A, b, C, d, E, F, H, I, J, L, n, o, P, r, S, U, y, Z
Letters with diagonal strokes (K, M, V, W, X) or complex shapes are generally not possible to display clearly.
Letter | Segments Lit | Readability |
---|---|---|
A | A, B, C, E, F, G | Good |
b | C, D, E, F, G | Good |
C | A, D, E, F | Good |
d | B, C, D, E, G | Good |
E | A, D, E, F, G | Good |
F | A, E, F, G | Good |
H | B, C, E, F, G | Good |
I | B, C | Good |
J | B, C, D | Fair |
L | D, E, F | Good |
n | C, E, G | Fair |
o | C, D, E, G | Good |
P | A, B, E, F, G | Good |
r | E, G | Fair |
S | A, C, D, F, G | Good |
U | B, C, D, E, F | Good |
y | B, C, D, F, G | Fair |
Z | A, B, D, E, G | Fair |
While the 7 segment LCD display is versatile for numbers and a few letters, it has notable limitations:
- Limited alphabet: Many letters cannot be represented clearly.
- No lowercase/uppercase distinction: Only one form per letter.
- Ambiguity: Some letters may look like numbers or other letters (e.g., S and 5).
- No diagonal lines: Letters with diagonals (K, M, V, W, X) are not possible.
- No complex symbols: Cannot display punctuation or special characters well.
- No font styles: Only a fixed style is possible, limiting aesthetic flexibility.
Despite these limitations, engineers and designers have developed creative techniques to improve the representation of letters on a 7 segment LCD display.
By combining multiple 7 segment digits, more complex words can be spelled out, increasing clarity. For example, a 4-digit display can show "HELP" by lighting appropriate segments on each digit.
Some devices use custom segment mapping or add extra segments (such as a decimal point or an eighth segment) to represent additional letters or symbols.
Scrolling text or blinking segments can help convey messages that are otherwise ambiguous when static.
Using different colors for segments can help differentiate letters from numbers or highlight important information.
Combining 7 segment displays with LEDs or icons can communicate more complex information.
Display Type | Letters | Numbers | Symbols | Power Use | Cost | Complexity |
---|---|---|---|---|---|---|
7 segment LCD display | Limited | Full | Few | Very Low | Very Low | Simple |
14 segment display | Full | Full | Many | Low | Moderate | Moderate |
16 segment display | Full | Full | Many | Low | Moderate | Moderate |
Dot matrix LCD | Full | Full | Full | Moderate | Higher | Complex |
TFT/Graphic LCD | Full | Full | Full | Moderate | High | Complex |
7 segment LCD displays are used in a variety of devices due to their simplicity and efficiency:
- Digital clocks and watches
- Calculators
- Measuring instruments (scales, voltmeters)
- Timers
- Consumer electronics (microwaves, ovens)
- Fuel dispensers
- Industrial control panels
- Elevator floor indicators
- Vehicle dashboards
Their low power consumption and clear numeric display make them ideal for battery-powered and portable devices.
The 7 segment LCD display is a marvel of simplicity and efficiency, perfectly suited for displaying numbers and a handful of letters. While its ability to represent the full alphabet is limited, creative use allows for the display of essential messages and basic words. For applications requiring more complex text, other display technologies such as 14-segment, 16-segment, or dot matrix LCDs are preferable. However, for clear, low-power, and cost-effective numeric displays, the 7 segment LCD display remains unmatched.
No, a 7 segment LCD display can only show a limited set of letters, such as A, b, C, d, E, F, H, L, P, S, U, y, and Z. Letters with diagonal lines or complex shapes cannot be represented clearly.
They are chosen for their simplicity, low power consumption, high visibility in bright environments, and cost-effectiveness, especially in devices where only numbers or basic information are needed.
Only a few basic symbols, such as the dash (-) and decimal point, can be displayed. Most punctuation and special symbols are not possible due to the limited number of segments.
They are commonly used in digital clocks, calculators, measuring instruments, timers, and many consumer and industrial electronic devices.
By using only the letters that can be represented (H, E, L, O, R), you can display simple words. However, some letters may look ambiguous, so words are usually limited to those with easily recognizable characters.
