Views: 222 Author: Tina Publish Time: 2025-07-14 Origin: Site
Content Menu
● Understanding Your E-Bike LCD Display
● Key Symbols and Their Meanings
>> Speedometer
>> Error Codes and Warning Icons
>> Headlight and Light Indicators
● How to Operate and Customize Your LCD Display
● Advanced Settings and Features
● Troubleshooting Common Display Issues
>> Blank or Flickering Display
>> Incorrect Speed or Distance
● Maintenance Tips for Your E-Bike LCD Display
● Upgrading or Replacing Your E-Bike LCD Display
● FAQ
>> 1. What should I do if my e-bike LCD display shows an error code?
>> 2. How do I reset the trip meter or odometer?
>> 3. Can I change the speed units from km/h to mph?
>> 4. Why does my display show the wrong speed or distance?
>> 5. What is PAS and how do I adjust it?
The e-bike LCD display is your electric bike's command center, providing real-time feedback and control over your ride. Understanding the symbols and functions shown on your e-bike LCD display manual is crucial for safety, efficiency, and maximizing your e-bike's potential. This comprehensive guide explains every symbol, icon, and menu option you might encounter, with detailed explanations, practical tips, and illustrative examples to help you master your e-bike LCD display.

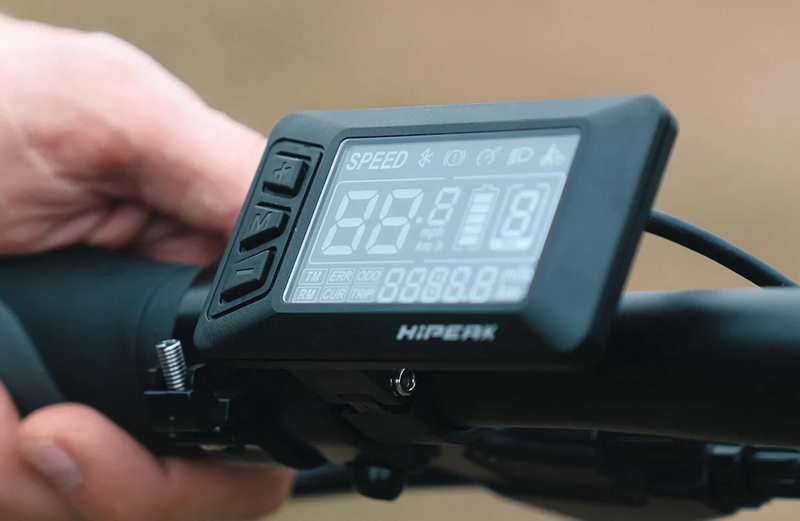

The e-bike LCD display manual is your primary reference for understanding the digital dashboard on your electric bicycle. Most modern displays are designed to be intuitive, offering a wealth of information at a glance, such as:
- Battery level
- Current speed
- Odometer (total distance)
- Trip meter (distance per ride)
- Pedal assist level (PAS)
- Error or warning codes
- Headlight status
- Cruise control
- Temperature and time (on advanced models)
Modern e-bike LCD displays are energy-efficient, easy to read in all lighting conditions, and often customizable to suit different rider preferences.
The battery icon is usually found in the upper left corner of the display. It shows the remaining battery charge, often as a segmented bar or percentage.
- Full bars: Fully charged
- Half bars: Medium charge
- Low bars or flashing: Recharge soon

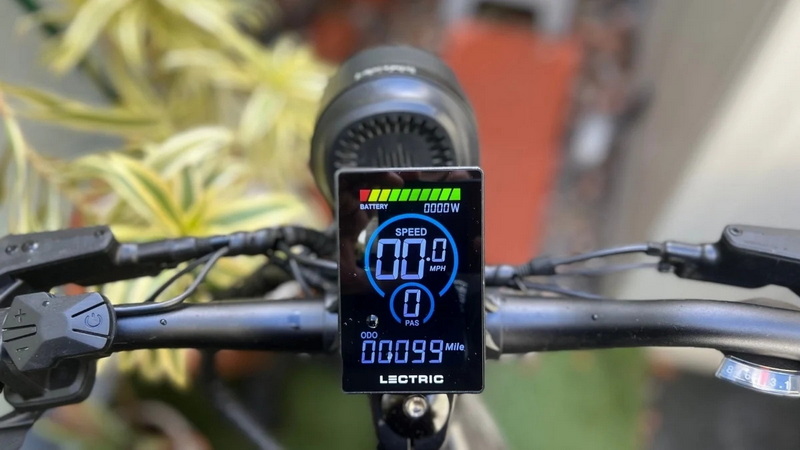

Displays your current speed, typically in km/h or mph. Some displays allow toggling between units in the settings menu.
- Current speed: Shown in large digits
- Average/Max speed: Accessible via menu or button combinations
- Odometer (ODO): Total distance the e-bike has traveled.
- Trip Meter (TRIP): Distance covered during the current ride.
Resetting the trip meter is usually done by holding specific buttons as outlined in your e-bike LCD display manual.
Indicates the level of electric assistance provided while pedaling. Most systems offer 0-5 or 0-9 levels:
- 0: No assist (manual pedaling)
- 1-5/9: Increasing levels of assistance
Higher levels provide more power but reduce battery range.
Modern e-bike LCD displays feature error codes or warning icons to alert you to issues such as:
- Motor error
- Throttle error
- Controller error
- Brake sensor activation
- Low battery
Refer to your e-bike LCD display manual for a full list of error codes and their meanings. Most manuals include a table like the one below:
| Error Code | Meaning |
|---|---|
| 2 | Brake activated |
| 3 | PAS sensor failure |
| 6 | Low battery |
| 7 | Motor failure |
| 8 | Throttle failure |
| 9 | Controller failure |
A light bulb or headlight symbol shows if your bike's lights are on. Turning lights on/off is often done by holding the “+” button for several seconds.
- Walk Mode: A person walking, indicating push-assist mode.
- Cruise Control: A speedometer with an arrow, showing cruise is active.
- Lock Icon: Indicates anti-theft or lock mode.
- Temperature: A thermometer symbol (on some models).
- Bluetooth/Connectivity: Indicates wireless pairing with your phone or other devices.
- Power On/Off: Hold the power button.
- Change PAS Level: Press “+” or “-” buttons.
- Toggle Information: Press the “M” or “Mode” button to cycle through speed, trip, ODO, and more.
- Turn Lights On/Off: Hold “+” for 3 seconds.
- Enter Settings Menu: Hold “+” and “-” together for several seconds.
- Adjust backlight brightness
- Switch between km/h and mph
- Set wheel size for accurate speed
- Configure sleep timer and auto-off
- Set speed limit
- Reset ODO and trip meters
Consult your e-bike LCD display manual for exact button combinations and settings.
Many e-bike LCD display manuals include advanced features for those who want more control:
- PAS Sensitivity and Start Strength: Fine-tune how quickly and strongly the motor assists when you start pedaling.
- Throttle Modes: Choose between pedal-assist only, throttle only, or both.
- Cruise Control: Maintain a set speed without holding the throttle.
- Wheel Size and Speed Magnet: For accurate speed and distance readings.
- Auto Sleep: Set how long the display stays on without input.
- Background Luminance: Adjust display brightness for day/night riding.
- Current Limiting: Set the maximum current for the controller to manage power output.
- Check battery connections
- Ensure display cable is securely connected
- Restart the system
- Verify wheel size and magnet settings in the menu
- Check for firmware updates
- Consult your e-bike LCD display manual for code meanings
- Reset the display or power cycle the bike
- Contact support if issues persist
- Inspect for dirt or water ingress around buttons
- Try a soft reset (refer to your manual)
- If unresponsive, seek professional repair
- Keep the display clean: Use a soft, dry cloth to wipe the screen. Avoid harsh chemicals.
- Protect from water: Most displays are water-resistant, but avoid direct high-pressure sprays.
- Avoid extreme temperatures: Store your e-bike in a moderate environment to prevent LCD damage.
- Check for firmware updates: Some advanced displays can be updated via USB or Bluetooth for improved features or bug fixes.
- Inspect connections regularly: Loose or corroded connectors can cause display malfunctions.
If your display is outdated, damaged, or you want new features, upgrading is possible:
- Compatibility: Ensure the new display matches your e-bike's controller and wiring.
- Installation: Most displays are plug-and-play, but some may require professional installation.
- Calibration: After installation, set wheel size, speed units, and other parameters as per your e-bike LCD display manual.
- Data transfer: Note that odometer and trip data may not transfer to the new display.
Understanding the symbols and functions on your e-bike LCD display manual transforms your riding experience—making it safer, more efficient, and more enjoyable. Whether you're a casual commuter or an avid cyclist, mastering your e-bike LCD display ensures you get the most from your electric bike. Always refer to your e-bike LCD display manual for model-specific instructions and troubleshooting tips. Ride smart, stay informed, and enjoy the journey!
Check your e-bike LCD display manual for the specific error code meaning. Most errors can be resolved by checking connections, resetting the display, or contacting customer support if the issue persists.
Usually, you can reset the trip meter by holding down the “M” or “Mode” button for a few seconds. Refer to your e-bike LCD display manual for the exact procedure, as it may vary by model.
Yes, most e-bike LCD displays allow you to switch between kilometers and miles in the settings menu. Consult your e-bike LCD display manual for step-by-step instructions.
Incorrect readings are often due to the wrong wheel size or magnet settings. Enter the settings menu and ensure these values match your bike's specifications, as described in your e-bike LCD display manual.
PAS stands for Pedal Assist System. You can adjust the level of motor assistance using the “+” or “-” buttons. Higher levels provide more power but drain the battery faster. Always check your e-bike LCD display manual for detailed instructions.
