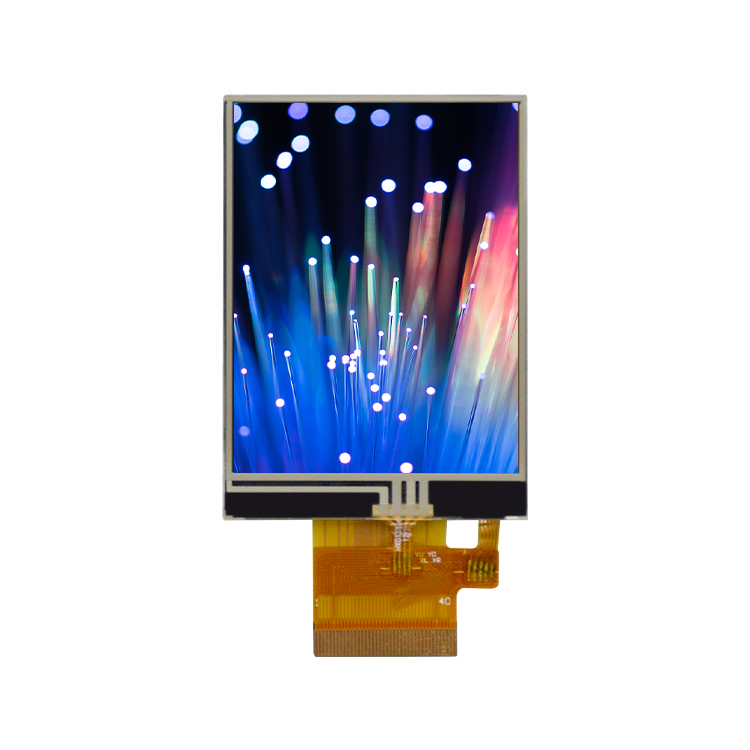

Item name | 2.4 inch 240*320 LCD display Module |
Item No. | / |
Resolution | 240*320 dpi |
Active area | 42.72*60.26mm |
Brightness | 380 nits |
Interface type | MIPI /RGB etc |
Screen Type | 5:3 |
Touch panel | Incell |
Driver IC | ST7789V |
The LCD display uses a liquid crystal solution in two polarized materials, so that when an electric current passes through the liquid, the crystals will rearrange to achieve the purpose of imaging. The 2.4 inch 240*320 LCD display module is a color active matrix TFT-ips LCD screen, using amorphous silicon TFT as the active switching device. The resolution of this module is 240*320, and each pixel is divided into dots of red, green and blue. These dots are arranged in vertical bars, which can display 16.7M colors. This product is widely used, and the main application areas are POS payment terminals, video intercoms, portable PDAs, smart home appliances, etc.
Support Custom
Customized several LCD sizes & resolutions(The size from 1.77 inch to 15.6 inch optional)
Customized interface and pins definition (MIPI, IPS, LVDS, RGB, UART, HDMI, and so on)
Customized FPC shape and material
Customized clients’ LOGO
Kelai Electronics has R&D design team and support customization according to every client’s specific requirements. Kelai Electronics’ products meets the highly uniformity and reliability requirement to the display effect of module for many famous brands in Europe, American and Asia pacific. In addition,Kelai Electronics’ products which have reached the extent of excellent quality and reliability could be applied in POS Payment Terminal, Video Intercom, Smart Home, Automotive,Medical,Power station,Transportation,Industrial & Equipment and Office equipment for many famous enterprises in American,France,Italy,Australia,Korea and so on. Our company have passed the ISO 9001,ISO14001 and ISO13485 quality system certification and SGS, RoHS, CE certification, to ensure all of our products and services are in international standard.
Hot tags:2.4 inch 240x320 LCD display module, calculator ct512 lcd display, lcd display for e-bike, touch screen panel lcd display, China, customized, bulk, cheap, factory, suppliers, manufacturer
Item name | 2.4 inch 240*320 LCD display Module |
Item No. | / |
Resolution | 240*320 dpi |
Active area | 42.72*60.26mm |
Brightness | 380 nits |
Interface type | MIPI /RGB etc |
Screen Type | 5:3 |
Touch panel | Incell |
Driver IC | ST7789V |
The LCD display uses a liquid crystal solution in two polarized materials, so that when an electric current passes through the liquid, the crystals will rearrange to achieve the purpose of imaging. The 2.4 inch 240*320 LCD display module is a color active matrix TFT-ips LCD screen, using amorphous silicon TFT as the active switching device. The resolution of this module is 240*320, and each pixel is divided into dots of red, green and blue. These dots are arranged in vertical bars, which can display 16.7M colors. This product is widely used, and the main application areas are POS payment terminals, video intercoms, portable PDAs, smart home appliances, etc.
Support Custom
Customized several LCD sizes & resolutions(The size from 1.77 inch to 15.6 inch optional)
Customized interface and pins definition (MIPI, IPS, LVDS, RGB, UART, HDMI, and so on)
Customized FPC shape and material
Customized clients’ LOGO
Kelai Electronics has R&D design team and support customization according to every client’s specific requirements. Kelai Electronics’ products meets the highly uniformity and reliability requirement to the display effect of module for many famous brands in Europe, American and Asia pacific. In addition,Kelai Electronics’ products which have reached the extent of excellent quality and reliability could be applied in POS Payment Terminal, Video Intercom, Smart Home, Automotive,Medical,Power station,Transportation,Industrial & Equipment and Office equipment for many famous enterprises in American,France,Italy,Australia,Korea and so on. Our company have passed the ISO 9001,ISO14001 and ISO13485 quality system certification and SGS, RoHS, CE certification, to ensure all of our products and services are in international standard.
Hot tags:2.4 inch 240x320 LCD display module, calculator ct512 lcd display, lcd display for e-bike, touch screen panel lcd display, China, customized, bulk, cheap, factory, suppliers, manufacturer
