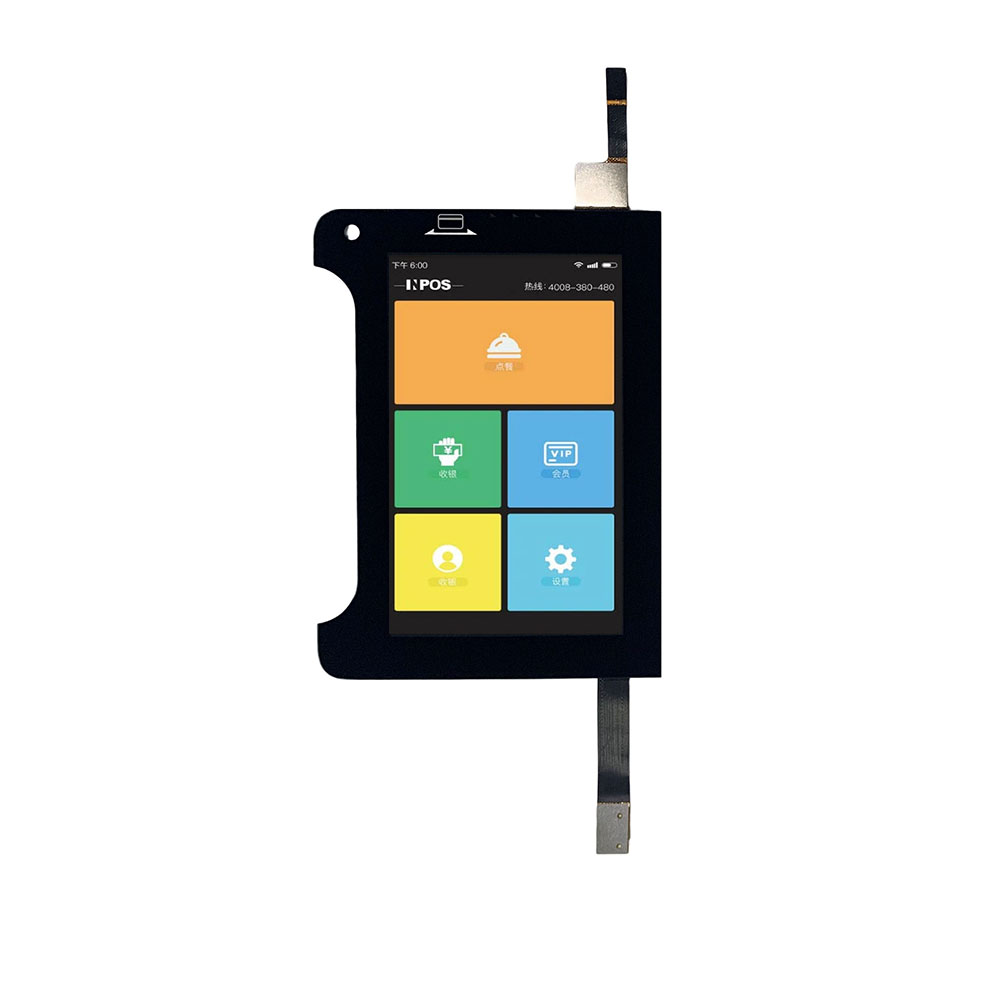

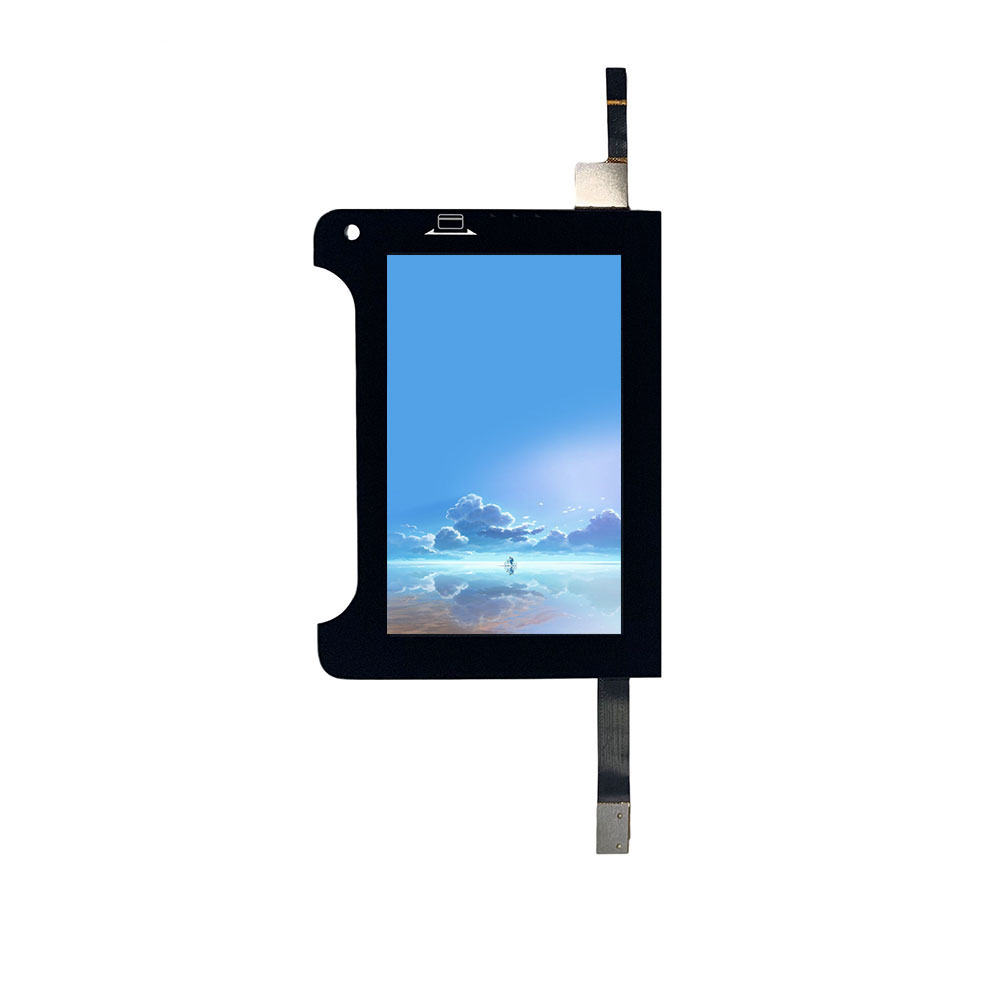

Item name | 4 inch 480*800 TFT LCD display |
Item No. | KTD-WVP40139BTTB-V0 |
Resolution | 480*800 dpi |
Active area | 93.9*55.44 mm |
Brightness | 400 nits |
Interface type | MIPI 2L |
Pins | 20 pin |
Touch panel | Incell |
Driver IC | ST7701S-G5 |
KTD-WVP40139BTTB-V0 is a color active matrix TFT LCD module using amorphous silicon TFT (Thin Film Transistors) as an active switching devices. This module has a 4 inch diagonally measured active area with resolutions (480 horizontal by 800 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT LCD panel used for this module is adapted for a low reflection and higher color type. This product is frequently used on the POS machine, portable PDA, and other home appliances.
Support Custom
Customized LCD size & resolution (1”~15.6” available)
Customized interface and pins definition (MIPI, IPS, LVDS, RGB, UART, HDMI, etc)
Customized FPC shape and material
Our products meets the highly uniformity and reliability requirement to the display effect of module for many famous brands in Europe, American and Asia pacific. In addition,our products which have reached the extent of excellent quality and reliability could be applied in Automotive,Medical,Power station,Transportation,Industrial & Equipment and Office equipment for many famous enterprises in American,France,Italy,Australia,Korea and so on. Our company have passed the ISO 9001,ISO14001 and ISO13485 quality system certification and SGS, RoHS, CE certification, to ensure all of our products and services are in international standard.
Hot tags:4 inch 480x800 TFT LCD display, lcd window display, lcd mobile display, electric bike lcd display, lcd display for ebike, China, customized, bulk, cheap, factory, suppliers, manufacturer
