Availability: | |
---|---|
Item name | 5” 480*960 CTP LCD screen |
Item No. | KTD-FYP50621BTTB-V0 |
Resolution | 480*960dpi |
Active area | 118.52*58.56 mm |
Brightness | 430nits |
Interface type | MIPI |
Pins | 30 pin |
Touch panel | Incell |

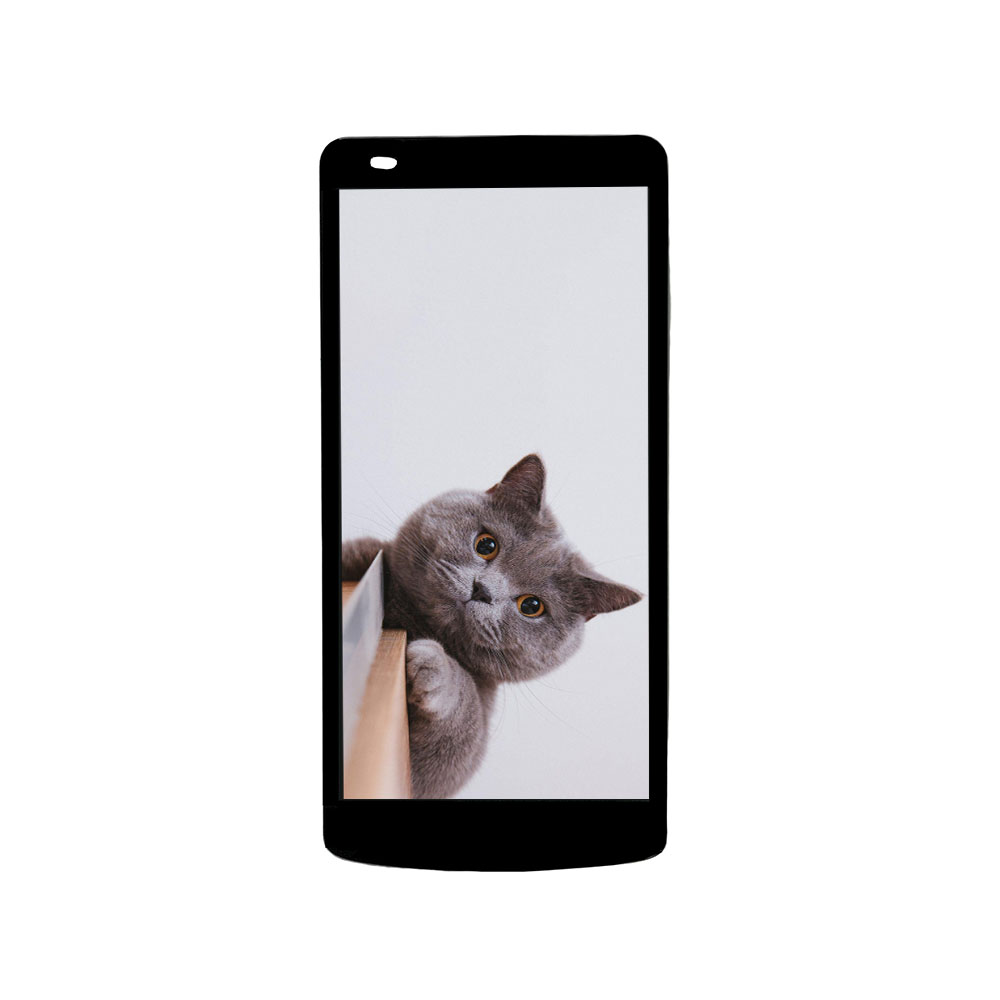

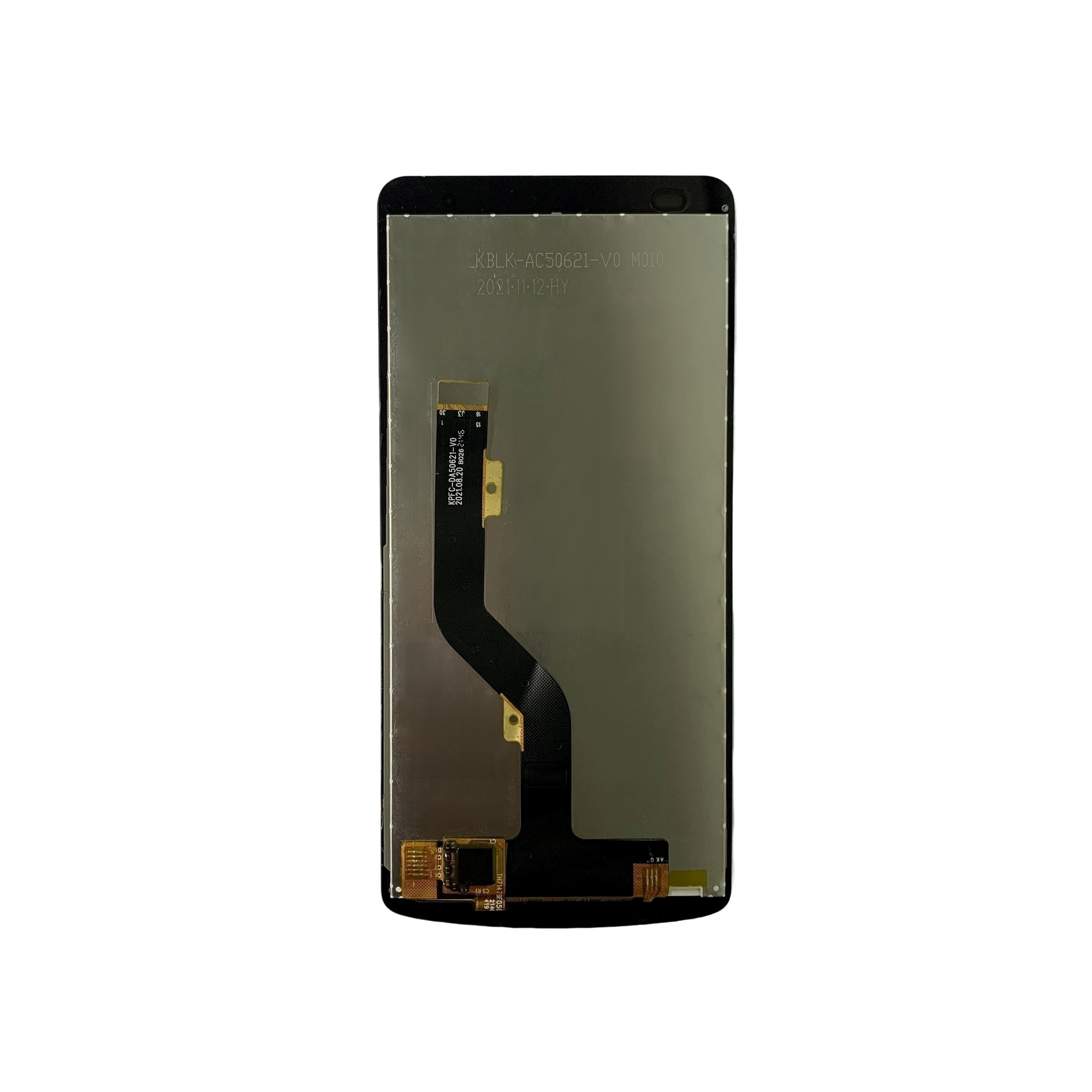

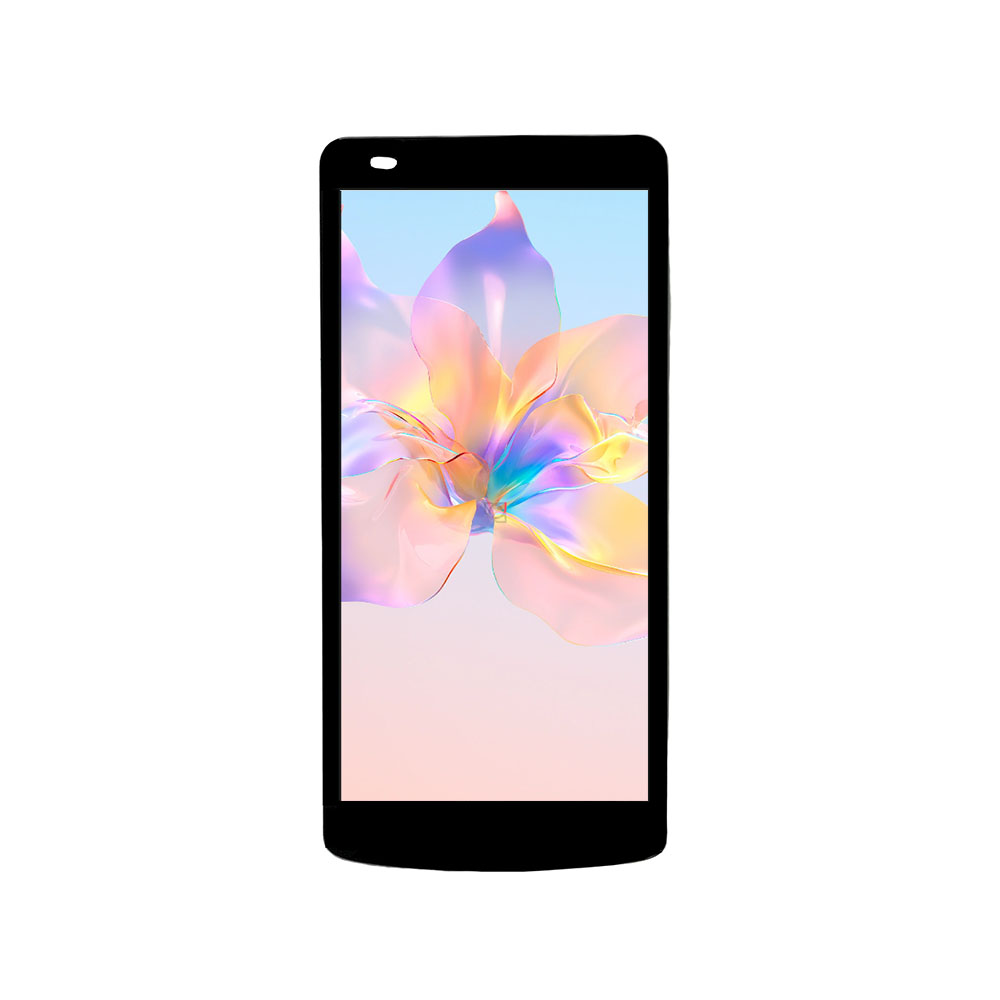

KTD-FYP50621BTTB-V0 is the LCD screen using amorphous silicon TFT (Thin Film Transistors) as an active switching devices. This screen has a 5 inch diagonally measured active area with resolutions (480 horizontal by 960 vertical pixel array). The brightness is 430 nits. The display area is 118.52*58.56mm with a MIPI interface. For this 5” 480*960 CTP LCD screen, the screen glass is from BOE or Panda, which is the best supplier in China. The whole panel is Light weight and thin. Our TFT IPS LCD screens are widely used in the following industries:
1.For Medical Equipment
B-ultrasound, anesthesia machine, laryngoscopic surgical in ICU,automatic injection equipment, gas station equipment and etc
2.For Industrial Control Equipment
equipment control panel,elevator,test instrument, energy storage equipment, car electricity charger, ATM, vending machine and etc.
3.For Smart Home
thermostat, HVAC,water dispenser, smart audio, soap dispenser, smart 8-6 houses and etc.
4.For Handheld Devices
POS, PDA, test meter, alcohol tester, logic device, and etc
5.For Automobile Equipment
GPS, car radio, car black box, agricultural tractor, forklift, E-bike, electrical motor cycle and etc
Support Custom
Customized LCD size & resolution (1”~15.6” available)
Customized interface and pins definition (MIPI, IPS, LVDS, RGB, UART, HDMI, SPI, etc)
Customized FPC shape and material
Our company have passed the ISO 9001, ISO 14001, ISO13584 quality system certification and SGS, RoHS, CE certification, to ensure all of our products and services are in international standard.
