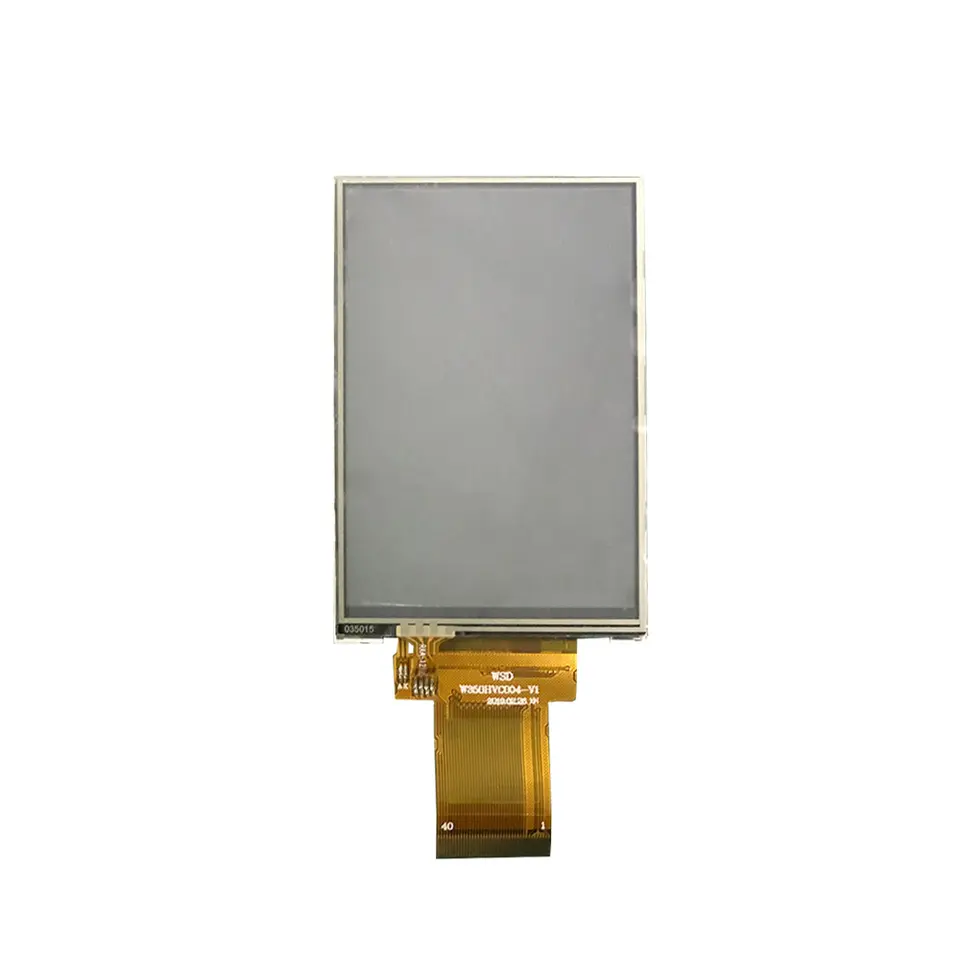

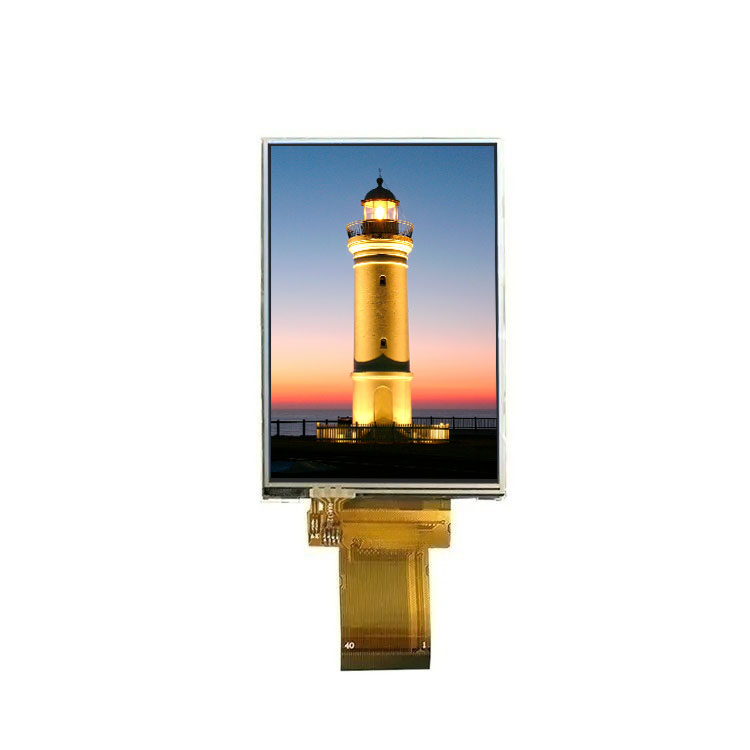

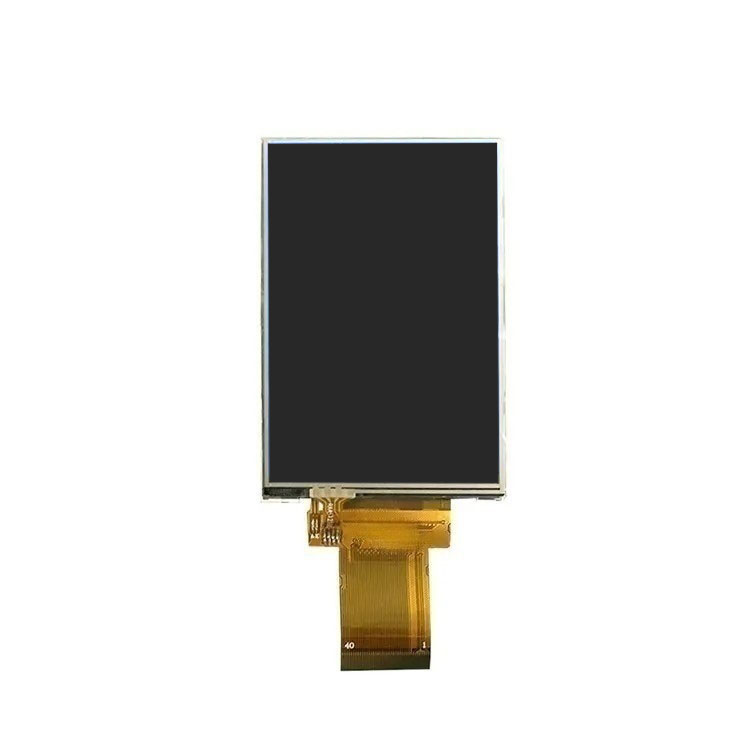

Item | 3.5" 320*480 RTP panel screen |
Type | TFT |
Display Size | 54.5(H)*83.0(V)*3.20(T) |
Supplier Type | Manufacturer |
Place of Origin | China, Guangdong |
Brand Name | Chance |
Resolution | 320*480 |
Interface | SPI+RGB |
Display Mode | Normal White |
Active Area | 48.96 (H)*73.44 (V) |
Pixel Pitch | 0.153X0.153 |
Pixel Configuration | RGB Stripe |
Backlight | White LED |
Luminance | 400 cd/m2 |
Driver IC | ILI9488 |
Viewing Direction | 12 o'clock |
KTD-HVN35591TTKX-V2023 is the LCD screen module using amorphous silicon TFT (Thin Film Transistors) as an active switching devices. This screen has a 3.5 inches diagonally measured active area (48.96*73.44mm) with SPI+RGB interface. We can do customization according to your specification. For this 3.5" 320*480 RTP panel screen, it is hit in North America. Our TFT IPS LCD screens are widely used in the following industries:
1.For Medical Equipment
B-ultrasound, anesthesia machine, laryngoscopic surgical in ICU,automatic injection equipment, gas station equipment and etc
2.For Industrial Control Equipment
equipment control panel,elevator,test instrument, energy storage equipment, car electricity charger, ATM, vending machine and etc.
3.For Smart Home
thermostat, HVAC,water dispenser, smart audio, soap dispenser, smart 8-6 houses and etc.
4.For Handheld Devices
POS, PDA, test meter, alcohol tester, logic device, and etc
5.For Automobile Equipment
GPS, car radio, car black box, agricultural tractor, forklift, E-bike, electrical motor cycle and etc
Support Custom
Customized LCD size & resolution (1”~15.6” available)
Customized interface and pins definition (MIPI, IPS, LVDS, RGB, UART, HDMI, SPI, etc)
Customized FPC shape and material
Our company have passed the ISO 9001, ISO 14001, ISO13584 quality system certification and SGS, RoHS, CE certification, to ensure all of our products and services are in international standard.
Hot tags:3.5 inch 320x480 RTP panel screen, 320x480 lcd display for washing machine, 3.5 inch lcd screen for white goods display, best seller lcd, lcd touch panel, 3.5 inch lcd price, 3.5 inch lcd free sample, 3.5 inch lcd screen in stock, discount lcd panel, China, customized, bulk, cheap, factory, suppliers, manufacturer
