Backpack LCD displays have revolutionized the way developers and hobbyists interact with microcontrollers, Raspberry Pi boards, and other embedded systems. Compact and efficient, these displays simplify wiring by integrating communication backplanes—often over I2C or serial interfaces. However, like any electronic component, backpack LCD displays can encounter a gamut of issues ranging from simple miswiring to hardware defects. This article provides a thorough, step-by-step guide for identifying, diagnosing, and fixing the most common backpack LCD display problems, reinforcing every concept with visuals and actionable advice, so users can restore their projects quickly and confidently.
Backpack LCD displays typically combine:
- A character or graphic LCD (such as 16x2 or 20x4)

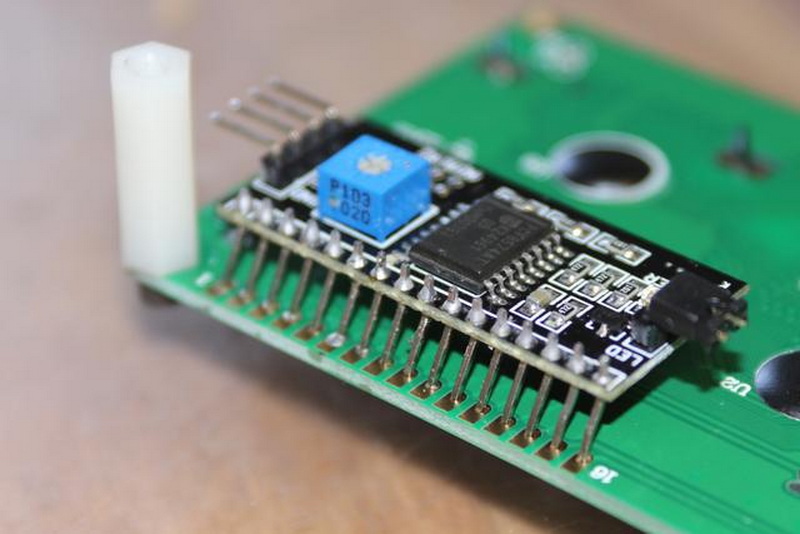

- A protocol conversion "backpack" that attaches to the LCD's pin header
The backpack takes care of translating microcontroller instructions sent via I2C or UART (serial) into the parallel signals required by the LCD panel. This drastically reduces wiring: instead of up to 16 connections, you might only need 4 (VCC, GND, SDA, SCL).
Features:
- Easy interface with Arduino, ESP32, Raspberry Pi, and other controllers
- Displays text, sensor data, system status, and debug info
- Available in backlit and non-backlit variants
- Supported by many open-source libraries
Backpack LCD display modules are widely used for:
- Environmental monitoring (temperature, humidity sensors)
- Robotics (feedback, motor status)
- User interfaces (menu navigation, device settings)
- Home automation
- Maker projects (clocks, timers, power meters)
- Educational kits
By leveraging these displays, complex setups can be monitored or controlled without needing a computer screen or terminal.
- Power delivery problems (loose connection, insufficient current)
- Incorrect wiring (wrong pin mapping, misconnected SDA/SCL)
- Contrast turned down (trimpot set incorrectly)
- Mismatched display parameters in your initialization code (e.g., specifying 20 columns instead of 16)
- Firmware version conflicts
- Electrical interference/noisy power rails
- Incompatible backpack module
- Loose or burned-out LED
- Backlight resistor on the backpack failing
- Partially detached ribbon cable
- Broken solder joints
- Physical damage from over-tightening screws or flexing the display
- Incorrect I2C address (commonly 0x27 or 0x3F, but varies by manufacturer)
- Duplicate I2C addresses on the same bus
- Unstable ground reference or noisy data lines
- Serial configuration errors if using an RS232 backpack
- Low-quality clones: Many inexpensive backpacks use poorly manufactured voltage regulators or chips that fail prematurely.
- Shorts or microcracks after repeated plugs/unplugs
- Inspect the backpack LCD display module for visible damage (burn marks, cracked solder, missing components).
- Check connector orientation: The module and backpack should be joined in the correct direction.
- Verify power connections: Red wire to 5V (or 3.3V on some modules), black (or blue) to GND.
- Use a multimeter to confirm voltage at the LCD's pins.

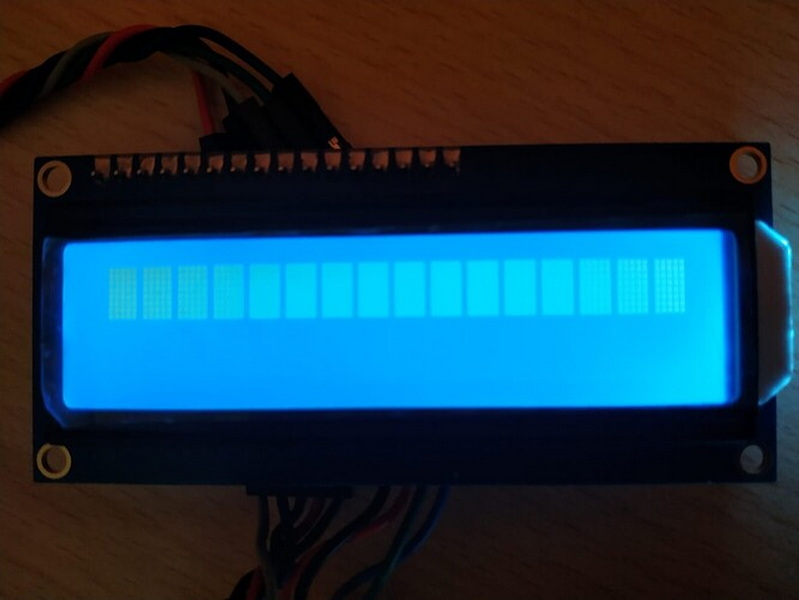

- Adjust the contrast potentiometer: With a small screwdriver, turn the trimpot gently while the display is on—most screens will show dark rectangles (blocks) on the first row when the contrast is correct.
- For I2C: Confirm correct connections—SDA and SCL should not be swapped.
- For Serial: Ensure TX/RX are not reversed and ground is shared with the controller.
- Check jumper settings on the backpack; some have solder bridges for address selection.
- Library Initialization: Ensure the library you're using matches both the display and the backpack.
- Example for Arduino: `LiquidCrystal_I2C lcd(0x27, 16, 2);`
- Scan for I2C addresses using an I2C scanner script to discover the correct one (upload and run, check serial monitor).
- Confirm the number of rows and columns matches your physical display.
- Try another backpack LCD display in the same setup.
- Test the suspect module in a previously working project or breadboard.
- Check for overheating: Some modules get hotter than normal when there's a short or voltage mismatch.
- Restore dead rows/columns: Gently heat the LCD edge where the flexible ribbon meets the PCB (use a low setting on a hot air rework station).
- Apply even pressure with a hard rubber eraser to re-establish the connection.
- Warning: Overheating can melt the plastics or delaminate the glass—work slowly and carefully.
- Desolder the old backlight LED
- Check or upgrade the current-limiting resistor (marked on backpack or main PCB)
- Install a new backlight element (sourced from similar scrap modules, or purchase replacements)
- Power down the display for several hours; this often clears stuck patterns.
- If persistent, the display glass may be faulty—consider replacing the panel.
- If two devices share the same address, communication will fail.
- Change address selections on one backpack (if possible), or switch to an I2C multiplexer.
- Secure your module to the chassis using spacers to minimize vibration.
- Avoid flexing or twisting the backpack board during installation.
- Use quality jumper cables and connectors to avoid intermittent faults.
- Store spares in dry, antistatic environments.
- Power down before making adjustments to prevent accidental shorts.
- Handle the display and backpack by the edges, not by the glass or solder joints.
Unreliable or malfunctioning backpack LCD displays can disrupt any embedded project, but most issues trace back to wiring errors, insufficient power, improper coding, or minor manufacturing faults. A systematic troubleshooting approach will resolve the bulk of issues: start with basic wiring and power verification, check contrast and configuration, and move to deeper hardware diagnostics only if necessary. With patience—and the right tools—almost any backpack LCD display issue can be identified and remedied, making your electronics robust and display outputs dependable for the long term.
This commonly means that the display is powered but not properly initialized. Check your code for the correct I2C address and dimensions, and ensure the contrast trimpot is not set too high or too low.
Flickering can indicate loose power connections, insufficient current, or failing backpack circuits. Try another power supply, retest the wiring, and if possible, replace the backpack.
Run an I2C scanner sketch with your microcontroller. The serial monitor will report any detected devices; use the resulting address in your display library initialization.
Double-check the display dimensions and address used in your new code. Some libraries also require explicit initialization sequences—review the library's documentation and sample sketches.
Yes, but only if each backpack is configured for a different I2C address. Address conflicts will prevent communication; use solder jumpers (if equipped) or add an I2C multiplexer.
