Availability: | |
---|---|

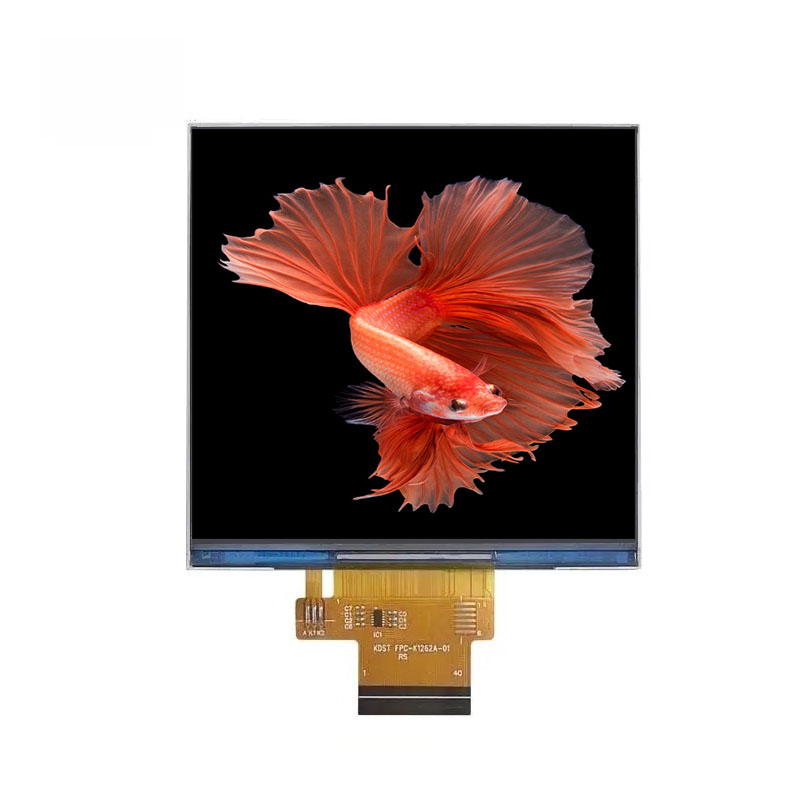

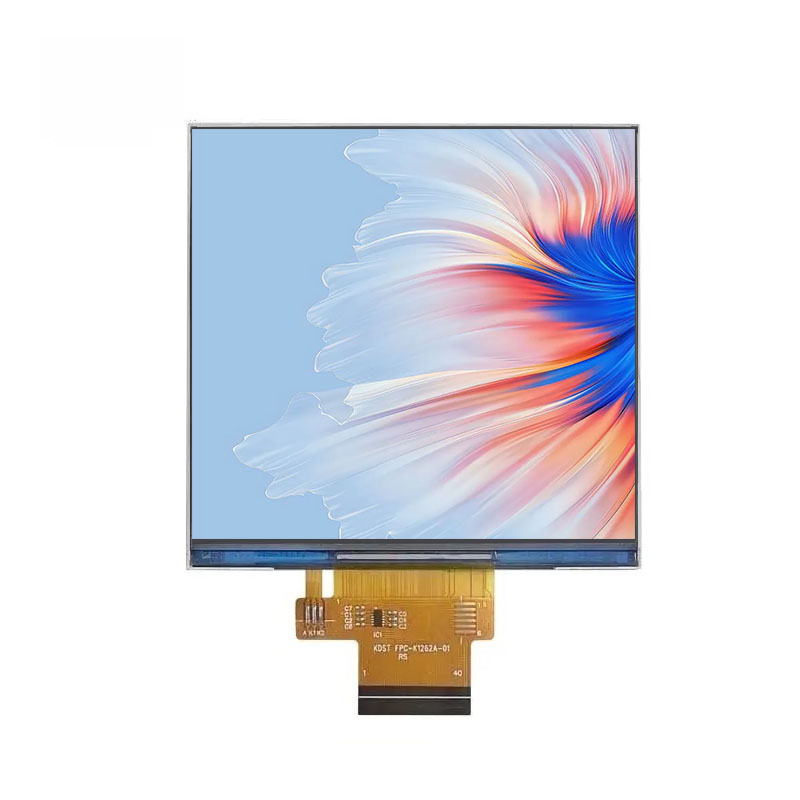

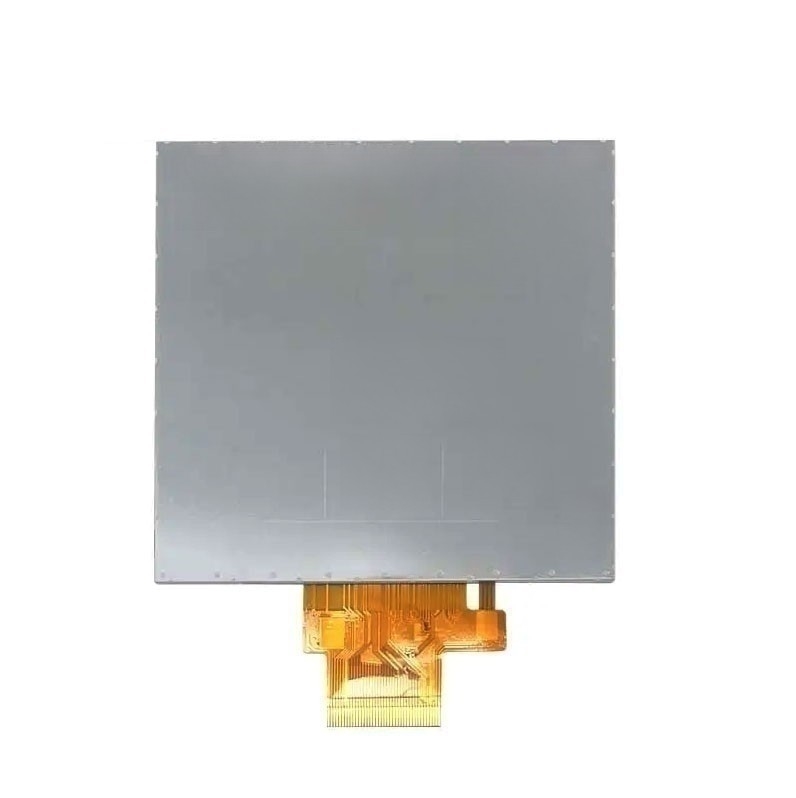

Item | 4.2” 720*672 Square LCD display module |
Type | TFT |
Product Name | KTD-P42R720672 |
Resolution | 720*672 |
Interface | SPI+RGB |
Viewing Angle | ALL |
Brightness | 300cd/m2 |
Driver IC | NV3052 |
Outline Dimension | 81.38x71.68x1.96 |
Active Area | 77.98x72.78 |
Operating Temperature | 20~70 |
Storage Temperature | 30-+80 |
KTD-P42R720672 is a color active matrix TFT LCD module using amorphous silicon TFT (Thin Film Transistors) as an active switching devices. This module has a 4.2 inch diagonally measured active area with resolutions (720 horizontal by 672 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe. The TFT LCD panel used for this module is adapted for a low reflection and higher color type. For this 4.2” 720*672 Square LCD display module, it is frequently used on the POS machine, portable PDA, and other industrial appliances. Screen connector is high grade flex cable, which is stable. The outer frame is unti-rust material. Quality is top priority.
Support Custom
Customized LCD size & resolution (1”~15.6” available)
Customized interface and pins definition (MIPI, IPS, LVDS, RGB, UART, HDMI, SPI, etc)
Customized FPC shape and material
Our products meets the highly uniformity and reliability requirement to the display effect of module for many famous brands in Europe, American and Asia pacific. In addition,our products which have reached the extent of excellent quality and reliability could be applied in Automotive,Medical,Power station,Transportation,Industrial & Equipment and Office equipment for many famous enterprises in American,France,Italy,Australia,Korea and so on. Our company have passed the ISO 9001 quality system certification and SGS, RoHS, CE certification, to ensure all of our products and services are in international standard.
Hot tags:4.2 inch 720x672 Square LCD display module, thin lcd display module, IPS square lcd display, smart watch lcd touch screen, 4.2 inch LCD panel, square lcd display with capacitive touch screen, modul LCD screen, energy meter lcd display voltmeter, lcd clock display, alarm tft lcd display home, China, customized, bulk, cheap, factory, suppliers, manufacturer
