In today's digital era, the LCD display clock has become a staple in homes, offices, and DIY electronics projects. Whether you want a sleek timepiece for your desk or a functional clock for your embedded system, understanding how to set and customize an LCD display clock is a valuable skill. This comprehensive guide will walk you through everything you need to know, from the basics of LCD technology to advanced setup, troubleshooting, and creative customizations. You'll find step-by-step instructions, detailed explanations, and practical tips to ensure you can confidently set up your own LCD display clock.
An LCD display clock is a digital timekeeping device that uses a Liquid Crystal Display (LCD) to show the current time. Unlike analog clocks, LCD display clocks provide clear, precise, and easily readable time information. They are favored for their energy efficiency, modern appearance, and versatility.
LCDs function by manipulating light through liquid crystals sandwiched between two layers of glass or plastic. When an electric current passes through the crystals, they align to either block or allow light, forming numbers and symbols on the display. This technology enables the crisp, low-power displays found in clocks, calculators, and many other devices.

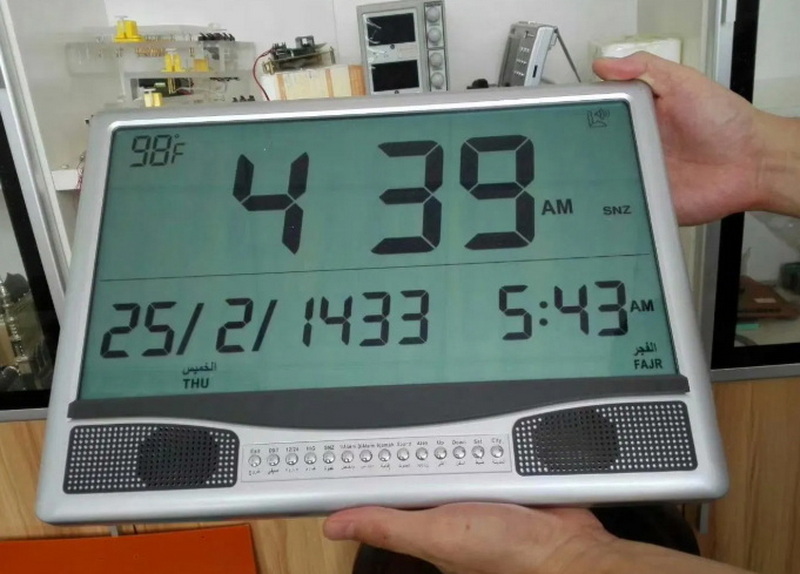

These are ready-made clocks designed for home or office use. They often include additional features such as alarms, temperature displays, and calendars.
A favorite among electronics enthusiasts, these clocks are built using microcontrollers (like Arduino or ESP32), LCD modules, and real-time clock (RTC) chips. They offer endless possibilities for customization and learning.
These advanced clocks integrate features like world time, weather updates, and even smart device connectivity, making them suitable for tech-savvy users.
To set up a DIY LCD display clock, you'll need the following:
- Microcontroller (e.g., Arduino Uno, ESP32)
- LCD display module (commonly 16x2 or 20x4)
- Real-Time Clock (RTC) module (such as DS3231 or DS1307)
- Breadboard and jumper wires
- Potentiometer (for contrast adjustment)
- Push buttons (for setting time)
- Power supply (battery or USB)
- Soldering tools (optional for permanent setups)
| Pin | Function | Typical Arduino Connection |
|---|---|---|
| VSS | Ground | GND |
| VDD | Power | 5V |
| VO | Contrast | Potentiometer |
| RS | Register Select | Digital Pin |
| RW | Read/Write | GND |
| E | Enable | Digital Pin |
| D4-D7 | Data Pins | Digital Pins |
| A/K | Backlight | 5V/GND |
Ensure you have all the necessary parts. For this tutorial, we'll use an Arduino Uno, a 16x2 LCD display, a DS3231 RTC module, and push buttons for time setting.

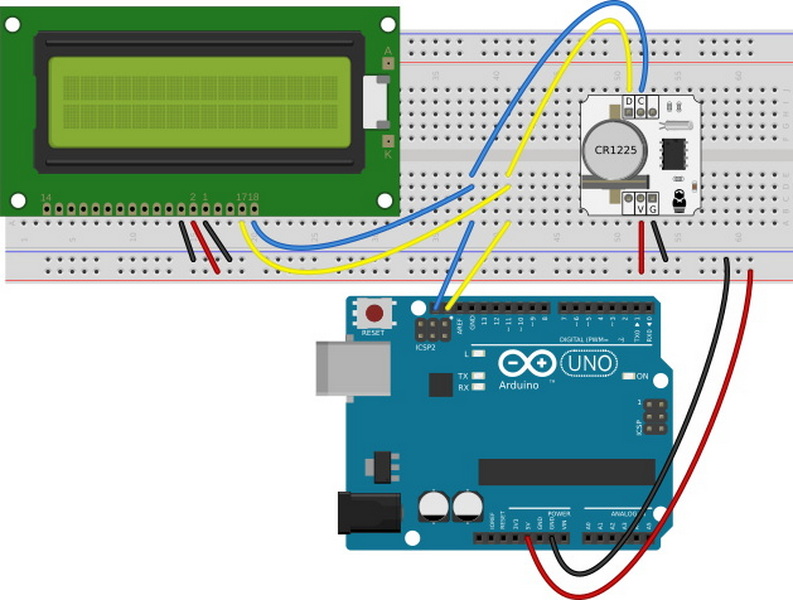

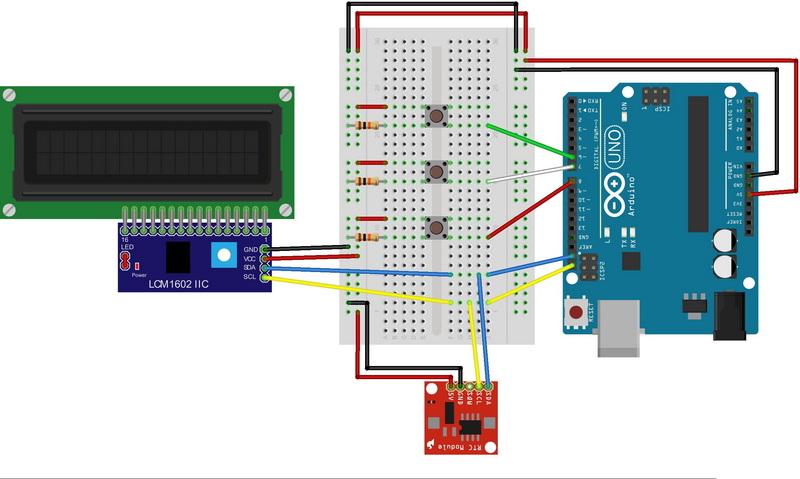

- Connect the LCD's VSS to Arduino GND and VDD to 5V.
- Connect VO to the middle pin of a potentiometer for contrast adjustment.
- Connect RS, E, D4-D7 to digital pins on Arduino.
- Connect the RTC module's SDA and SCL to Arduino A4 and A5.
- Attach push buttons to digital pins for setting hours and minutes.
- LiquidCrystal_I2C: For LCD control.
- RTClib: For RTC module communication.
Install these libraries via the Arduino IDE's Library Manager.
- Manual Method: Use push buttons to adjust hours and minutes. The code should detect button presses and update the RTC module accordingly.
- Serial Method: Set the time via the Arduino Serial Monitor by sending commands.
- Automatic Sync: Some advanced clocks can sync time from the internet using Wi-Fi-enabled microcontrollers.
Power on your LCD display clock. The time should appear on the LCD. Adjust the contrast using the potentiometer for optimal visibility. Test the buttons to ensure you can set the time accurately.
Enhance your LCD display clock to show the date alongside the time. Use the RTC module's date functions and display them on the second row of the LCD. This feature is especially useful for desk clocks and wall-mounted displays.
Add alarm functionality by programming the microcontroller to trigger a buzzer or LED at specific times. You can expand this by allowing multiple alarms or adding snooze features.
With Wi-Fi-enabled microcontrollers (such as ESP8266 or ESP32), fetch weather data or display notifications on your LCD display clock. This requires integrating APIs and parsing data, but it adds significant value and interactivity.
Experiment with various LCD modules, such as round LCDs, larger 20x4 displays, or even color TFT LCDs for a unique look and enhanced readability.
Design and 3D print a custom enclosure for your LCD display clock to match your decor. This not only protects the electronics but also adds a professional touch to your project.
Consider adding a backup battery or supercapacitor to your RTC module to maintain timekeeping during power outages. For portable clocks, use rechargeable batteries and efficient power management circuits.
- Check all wiring and ensure the LCD is powered.
- Adjust the potentiometer for contrast.
- Verify the I2C address in the code matches your LCD module.
- Ensure the RTC module is connected correctly.
- Check if the RTC library is properly installed.
- Replace the RTC battery if needed.
- Confirm button wiring and pin assignments.
- Debounce button presses in code to avoid multiple triggers.
- Use appropriate delays in the code.
- Avoid clearing the LCD too frequently.
- Ensure the RTC module has a working backup battery.
- Use non-volatile memory to store the last set time if needed.
Integrate your LCD display clock with smart home systems. Use it to display notifications, reminders, or even control other devices via relays or wireless modules.
Use LCD display clocks as educational projects to teach programming, electronics, and time management to students and hobbyists.
Combine your LCD display clock with LED lighting, unique enclosures, or artistic backgrounds to create a functional piece of art.
Display multiple time zones on a single LCD by alternating between them or using a larger display. This is useful for international offices or frequent travelers.
Optimize your code and hardware for low power consumption, making your LCD display clock suitable for battery-powered or solar-powered applications.
Setting up an LCD display clock is a rewarding project that combines electronics, programming, and creativity. Whether you're building a simple desk clock or an advanced smart timepiece, mastering the basics of LCD technology and clock setup opens up a world of possibilities. With the right components, clear instructions, and a bit of patience, anyone can create a functional and stylish LCD display clock. Remember to troubleshoot common issues, explore creative customizations, and enjoy the process of bringing your clock to life.
The easiest way is to use push buttons connected to your microcontroller. Program the buttons to increment hours and minutes, and update the RTC module accordingly.
Common reasons include incorrect wiring, insufficient power, or a misconfigured I2C address. Double-check connections and adjust the potentiometer for contrast.
Yes, you can program your microcontroller to trigger a buzzer or LED at specific times, effectively adding an alarm feature to your LCD display clock.
Use a real-time clock module that provides both time and date data. Update your code to display the date on the LCD's second row or alternate between time and date.
Replace the RTC module's battery and ensure the module is not exposed to strong electromagnetic interference. For higher accuracy, use a DS3231 RTC module.
