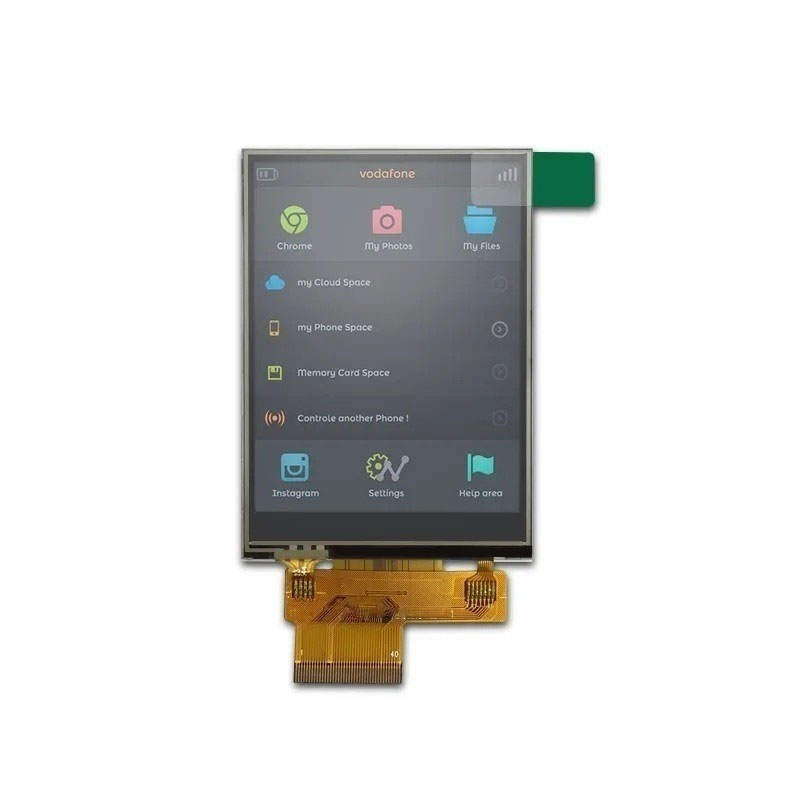

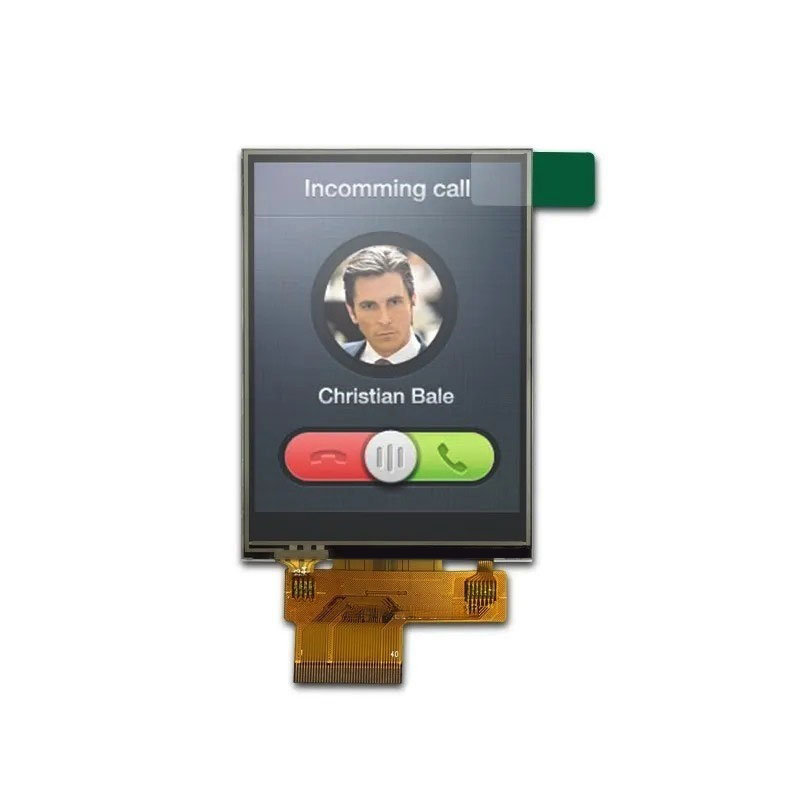

Item | 3.2" 240*320 RTP touch screen |
LCD type | TFT, Transmissive |
Display type | 3.2 inch TFT lcd , 262k color, normal white |
Driver element | a-si TFT Active matrix |
Outline Dimension(mm) | 55.04x77.7x3.77(without touch panel) |
A.A.(mm) | 48.6x64.8 |
Driver IC | ILI9341V |
Resolution(dots)_ | 240*320 |
Viewing Direction | 12H |
Operating temperature(°C) | -20-70 |
Storage temperature(°C) | -30-80 |
Number of Pixel(pixels) | 240(H)x 3RGB x 320(V) |
Dots Pitch | 0.18x0.18 |
Operating Volatge | 3.2v |
Pixel arrangement | RGB Vertical Stripe |
Display mode | Normally white |
Surface treatment | Antiglare, Hard-Coating(3H) |
Weight(g) | TBD |
Backlight | 6LEDs, White |
Weight(g) | TBD |
Interface | MCU 8/16 BIT |
Module lifetime(Hours) | 50,000-100,000 |
KTD-QVN32703HTKX-V2023 is the LCD screen using amorphous silicon TFT (Thin Film Transistors) as an active switching devices. This screen has a 3.2 inches diagonally measured active area (48.6*64.8mm) with MCU interface. We can do customization according to your specification. For this 3.5" 320*240 RTP display screen, the cover glass is from BOA or PANDA. Our TFT IPS LCD screens are widely used in the following industries:
1.For Medical Equipment
B-ultrasound, anesthesia machine, laryngoscopic surgical in ICU,automatic injection equipment, gas station equipment and etc
2.For Industrial Control Equipment
equipment control panel,elevator,test instrument, energy storage equipment, car electricity charger, ATM, vending machine and etc.
3.For Smart Home
thermostat, HVAC,water dispenser, smart audio, soap dispenser, smart 8-6 houses and etc.
4.For Handheld Devices
POS, PDA, test meter, alcohol tester, logic device, and etc
5.For Automobile Equipment
GPS, car radio, car black box, agricultural tractor, forklift, E-bike, electrical motor cycle and etc
Support Custom
Customized LCD size & resolution (1”~15.6” available)
Customized interface and pins definition (MIPI, IPS, LVDS, RGB, UART, HDMI, SPI, etc)
Customized FPC shape and material
Our company have passed the ISO 9001, ISO 14001, ISO13584 quality system certification and SGS, RoHS, CE certification, to ensure all of our products and services are in international standard.
Hot tags:3.2 inch 240x320 RTP touch screen, 3.2 inch lcd quotation, lcd displays, OEM RTP screen, China, customized, bulk, cheap, factory, suppliers, manufacturer
