If you're working on a microcontroller project involving a SPI LCD display, you might have encountered the frustrating problem: the display powers up, the backlight seems to glow, but the screen remains stubbornly blank—or even worse, it outputs garbled characters or random pixels. This is a common issue many makers and engineers face, and fixing it requires a bit of patience and systematic troubleshooting.
This comprehensive guide is designed to help you diagnose why your SPI LCD display isn't responding and explain step-by-step how to get it working again.
SPI, or Serial Peripheral Interface, is one of the most commonly used communication protocols in embedded electronics. SPI is fast, efficient, and widely supported across a variety of microcontrollers and peripherals, including sensors, SD cards, and LCD displays.

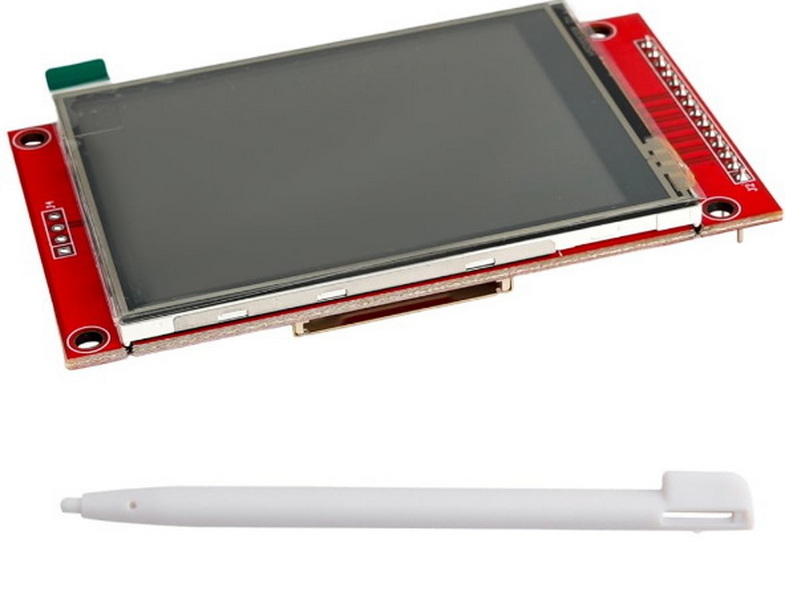

A SPI LCD display typically includes:
- A controller chip (e.g., ILI9341, ST7789, ILI9488)
- A thin-film transistor (TFT) screen
- SPI interface pins: SCK (clock), MOSI (data), CS (chip select), DC (data/command), RST (reset)
- Backlight control (LED)
- Power (3.3V or 5V)
When working properly, your MCU communicates with the display controller over SPI, sending commands and pixel data to render content.
Before diving into the fixes, it's crucial to understand the most common causes of these issues:
- Incorrect wiring or loose hardware connections
- Mismatched logic levels (5V MCU with 3.3V LCD)
- Faulty or unstable power supply
- Incorrect SPI speed or clock polarity settings
- Unsafe or noisy signal routing
- Lack of a proper initialization or reset sequence
- Conflicting use of SPI with other devices
- Wrong driver IC selected in the code
- Using unsupported libraries or outdated firmware
Let's explore each potential cause with practical techniques to detect and resolve them.

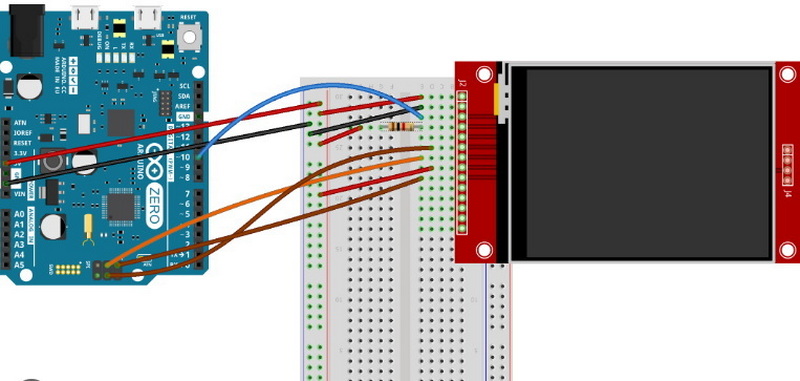

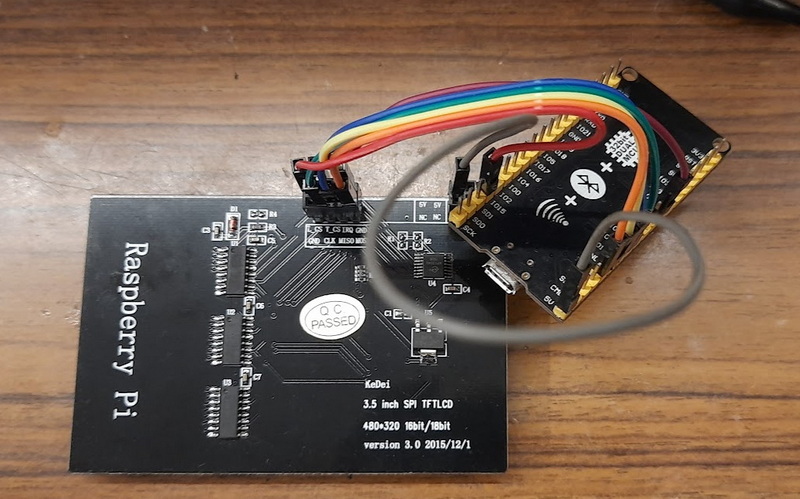

First things first — always double-check your connections.
- Are all your jumper wires making solid contact?
- Are any of your header pins bent, oxidized, or loose?
- Is the LCD module properly grounded?
Even one misplaced connection could cause the entire SPI LCD display to remain unresponsive.
- Use a multimeter to confirm continuity between MCU and SPI pins.
- Print out wiring diagrams and verify each connection pin-by-pin.
Your LCD display might need 3.3V or 5V — and sending the wrong voltage will burn out or fail the device.
- Read the screen's datasheet and label to confirm its voltage requirements.
- Some modules accept 5V input but require a level shifter on data input lanes.
- If you're using a breadboard, make sure power rails are reliable — they can easily become loose or oxidized.
This is *one of the most overlooked faults* when using 3.3V displays with 5V boards like Arduino Uno or Mega.
- Use voltage divider circuits (e.g., with 1 kΩ and 2 kΩ resistors).
- Use proper logic level shifter ICs (e.g., TXS0108E, 74AHCT125).
- Some displays have onboard regulators but not onboard level shifters.
Different microcontrollers have different hardware SPI pinouts. Mistaking even one pin can break communication.
- Arduino Uno:
- MOSI -> D11
- MISO -> D12 (not needed by LCD)
- SCK -> D13
- ESP32:
- Highly customizable, but needs driver library update
- Read board schematic or use a pin mapping table.
- Don't forget CS, DC, and RST pins — they're often configured manually in code.
If your code assumes you're using the wrong LCD driver IC, all bets are off.
- Identify your display driver (written on back, or check datasheet)
- Use verified libraries such as:
- Adafruit GFX + ILI9341
- TFT_eSPI
- Ucglib
Too-fast SPI communication can result in failed responses or noise glitches.
- For ILI9341 displays, start with 4 MHz – 10 MHz and increase only after stable connections.
- For ST7735, SPI rates under 8 MHz are more appropriate.
The Reset Pin is underutilized but crucial. Power-on behavior often needs a reset delay.
- Add control of RESET pin in code
- Hold reset pin low for ~100ms at startup
- Some displays need longer boot time before accepting commands
Running a screen and an SD card or display and sensor on the same SPI bus? You'll need to properly manage them.
- Confirm each device has a separate CS pin, and only one is active at a time.
- Add 10k pullups to CS on some devices if they behave erratically.
Using jumper wires on a breadboard is fine, but when pushing MHz speeds, signal integrity becomes critical.
- Keep MOSI/SCK short.
- Use ground planes in PCBs.
- Add small (~50Ω) resistors inline to reduce ringing.
- Add decoupling capacitors on VCC near the display.
Sometimes, human eyes can't detect issues — but a logic analyzer can.
- Is the SCK line toggling when sending data?
- Are commands actually sent out from the MCU?
- Is the display replying (if applicable)?
If you notice no SPI activity on the logic analyzer when running sample code, the issue is likely in your wiring, configuration, or library.
| Symptom | Possible Cause | Suggested Fix |
|---|---|---|
| White screen | Power but no signal | Check wiring/library |
| Scrambled graphics | Wrong driver or pin mapping | Match display to correct IC |
| Flashing pixels | Electrical noise | Shorten jumper wires |
| Only backlight works | SPI logic mismatch or uninitialized | Add reset/init code |
It can be frustrating when a beautiful 2.4” or 3.2” SPI LCD display remains blank or flickers, but nearly every issue has a fix. Using a structured approach—covering wiring, logic levels, SPI speed, and library setup—can save hours of debugging.
From using a logic analyzer to confirming library compatibility, most display issues root down to a handful of fixable problems. Whether you're building an oscilloscope, dashboard, or game console on a microcontroller, this guide ensures your SPI TFT display responds properly and reliably.
Loose connections, mismatched voltage, incorrect driver IC in code, and wrong SPI pin configuration are the top culprits.
Yes, if your display operates at 3.3V logic and you're using a 5V MCU, level shifters are strongly recommended to prevent damage and unreliable data.
This usually indicates that the power is OK, but the data is not being sent correctly. Check your SPI wiring, library setup, and verify that your display is using the correct driver IC.
Yes. If the chip select (CS) is not managed properly, other devices like SD cards or sensors may interrupt display communication. Ensure only one SPI device's CS is active at any moment.
Look for the display's controller chip number (e.g., ILI9341, ST7735). Match that with the driver in your software library. Wrong drivers produce white screens or garbage display.
