Home » Products » Touch Panel » CTP » 10.1 Inch 800×1280 TFT LCD Touch Screen

10.1 Inch 800×1280 TFT LCD Touch Screen

Model No. KTL-WVP101W303ZCTB-V0

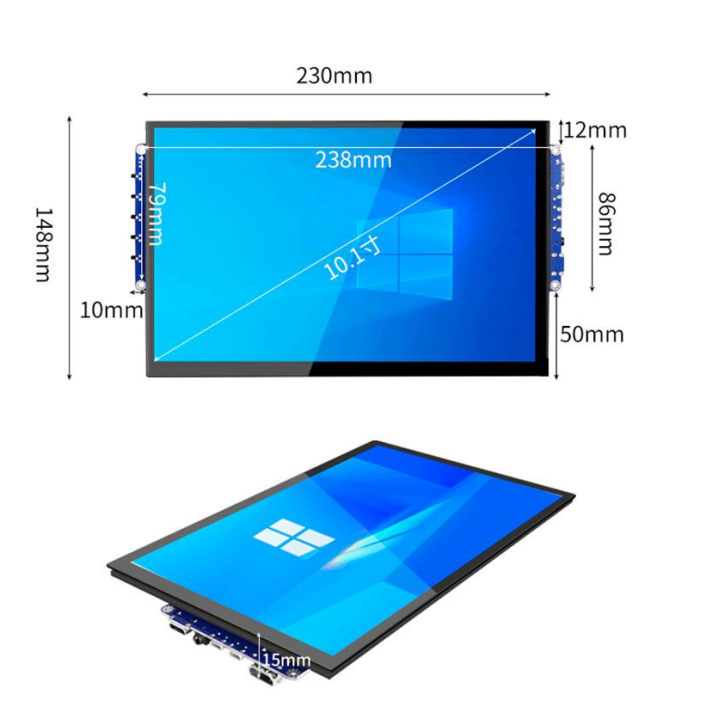

AA Size 135.36(H) X 216.58(W) mm
Resolutions 1280x800

Interfaces Type VGA,HDMI
LCM voltage value 5V
Screen Operating Temperature -20~+70℃
Storage Temperature -30~+80℃
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

AA Size

135.36(H) X 216.58(W) mm
Interfaces TypeVGA,HDMI
VGA Signal Resolution800*480, 800*600 ,1024*600, 1024*768 , 1280*800
LCM Voltage Value5V
Screen Operating Temperature-20~+70℃
Storage Temperature-30~+80℃

Model No. KTL-WVP101W303ZCTB-V0

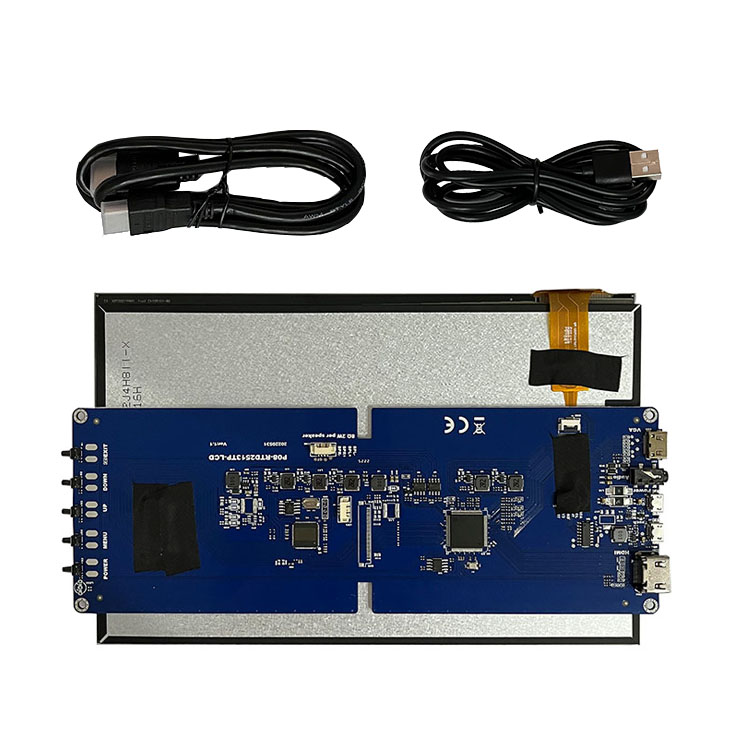

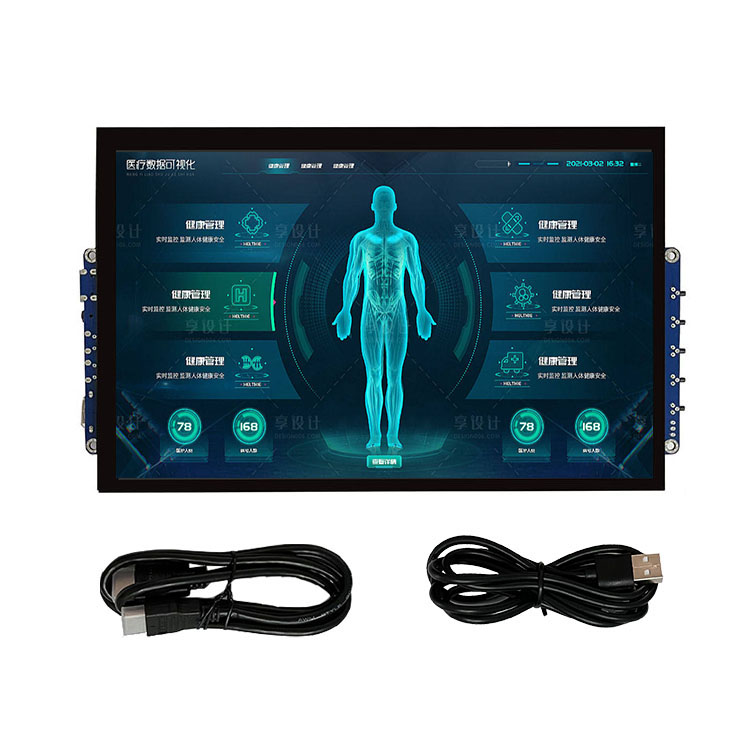

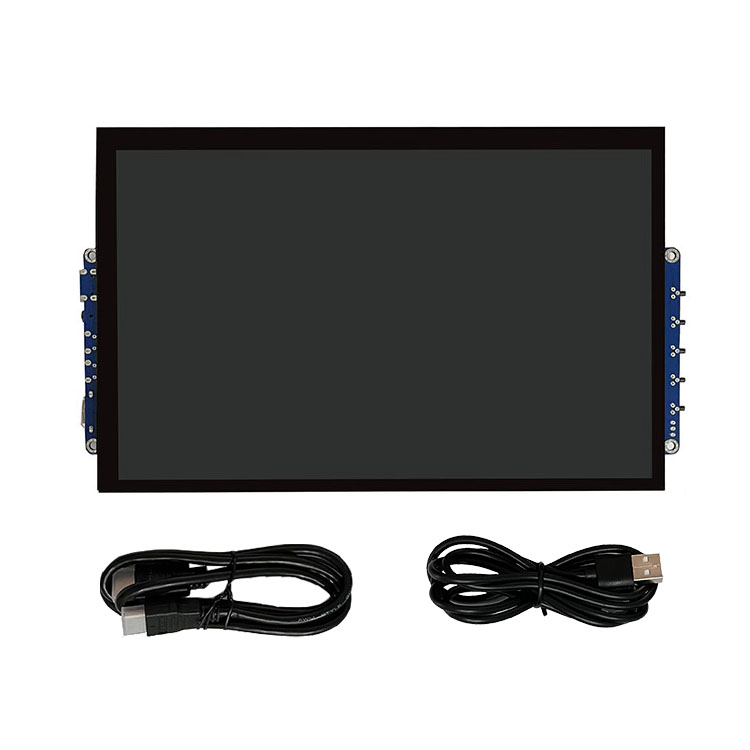

KTL-WVP101W303ZCTB-V0 is a10 -inch HDMI-compatible touch screen. This TFT module uses IPS screen which allows users to see the display clearly at wider angles. Also, this module has 1280x800 resolutions for better image quality. VGA and HDMI interfaces available. The VGA signal supports 800*480 800*600 1024*600 1024*768 and 1280*800 resolution.It has 40 pins.

This 10.1 inch 800×1280 TFT LCD touch screen , AA size 135.36(H) X 216.58(W) mm. LCM voltage value is 5V. Screen operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃. It has 5 basic handling buttons, like POWER, MENU, UP, DOWM, EXIT. Contact us for more specifications.

Hot tags:10.1 inch 800×1280 TFT LCD touch screen, lcd display speedometer, alarm tft lcd display home, digital lcd display, small lcd display, flexible transparent lcd display, stretch lcd displays, hmi lcd display, air conditioner lcd display, rohs lcd display modul, China, customized, bulk, cheap, factory, suppliers, manufacturer
