Replacing the LCD display on a Samsung Galaxy Note 5 can restore your device to full functionality after a cracked screen or display failure. This in-depth guide will walk you through every step of the process, from preparation to reassembly, using detailed instructions, images, and video resources. Whether you're a DIY enthusiast or a first-time repairer, this article will help you confidently tackle the replacement.
The Samsung Galaxy Note 5 is renowned for its vibrant 5.7-inch Super AMOLED display, but like any smartphone, it is vulnerable to drops and accidents. A broken LCD can render your device unusable, but with the right tools and patience, you can replace the screen yourself and save on costly professional repairs. This guide provides a detailed, illustrated walkthrough for replacing the entire LCD + digitizer + glass assembly, which is the recommended method for most users[1][6][8].
Before starting, gather the following tools and replacement parts:
- Replacement LCD + digitizer + glass assembly (for Note 5, model SM-N920)
- Small Phillips head screwdriver
- Plastic prying tools (guitar picks, spudger)
- Tweezers
- Suction cup tool
- Heat gun or hair dryer
- Double-sided adhesive tape or pre-cut adhesive strips
- Isopropyl alcohol (optional, for battery removal)
- Clean, static-free workspace
Tip: Purchase a complete repair toolkit and the correct replacement screen to ensure compatibility with your Note 5 variant[1][8].
- Data Backup: Back up all important data, as repairs may risk data loss.
- Warranty: Opening your device will void any remaining warranty[1].
- Patience: The back glass and LCD are held by strong adhesives—work slowly to avoid damage.
- Safety: Use eye protection and avoid excessive force. Lithium batteries can be dangerous if punctured.
- Power off your Galaxy Note 5 completely.
- Remove the S-Pen and SIM card tray using the SIM ejector tool[3][5][8].
- Heat the edges of the back glass with a heat gun or hair dryer for 1–2 minutes to soften the adhesive[2][3][6][8].
- Use a suction cup to gently lift one edge of the back glass.
- Insert a thin prying tool or guitar pick under the edge, and carefully slide it around the perimeter to separate the glass from the frame. Apply more heat if needed.

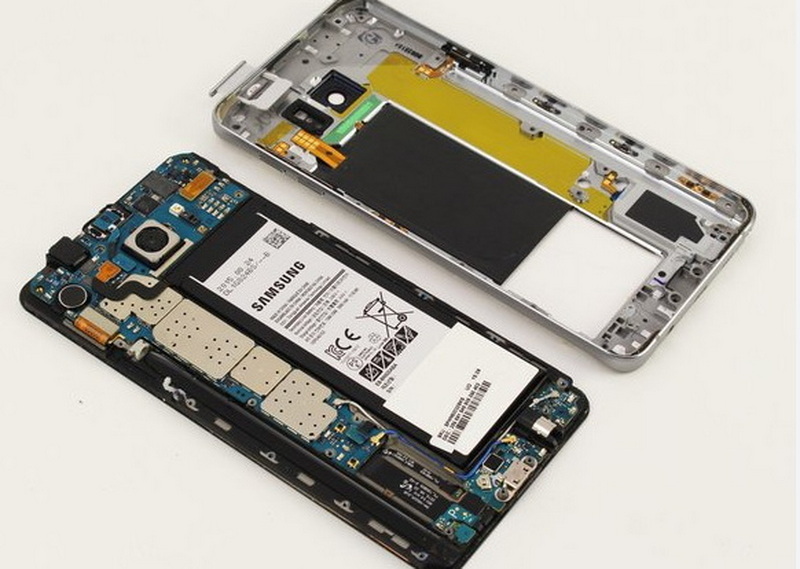

- Remove all 20 Phillips screws securing the mid frame to the phone[3][5][8].
- Carefully pry and lift the mid frame away from the LCD assembly.
- Disconnect the battery connector using a plastic spudger.
- Gently heat the battery area from the back to soften the adhesive.
- Pry up the battery carefully, avoiding punctures. Use isopropyl alcohol if needed to weaken the adhesive[3][8].
- Disconnect all visible flex cables, antenna wires, and connectors from the motherboard[3][5][8].
- Remove the motherboard by lifting it from the top edge.
- Remove any small parts attached to the LCD assembly, such as the earpiece speaker, sensors, and home button, if your replacement screen does not include them.
- Heat the front edges of the phone to soften the adhesive holding the LCD to the frame[6][8].
- Insert a thin pick or prying tool between the LCD and the frame, slowly working around the edges.
- Carefully lift and remove the broken LCD assembly. Clean off any remaining adhesive from the frame.
- Secure the new screen using double-sided adhesive or the pre-installed adhesive on the replacement part[6][7].
- Reinstall all components in reverse order: motherboard, battery, small parts, mid frame, and back cover[2][3][6][8].
- Reconnect all flex cables and ensure all screws are replaced.
- Press the back glass into place with fresh adhesive.
- Reinsert the SIM card tray and S-Pen.
- Cracking the Back Glass: Excessive force or insufficient heat can crack the back glass. Always reheat as needed and work slowly[2][8].
- Damaging Flex Cables: Use plastic tools and avoid metal blades near connectors.
- Battery Damage: Never bend or puncture the battery during removal. If damaged, replace the battery.
- Improper Adhesion: Use high-quality adhesive to ensure the new screen and back cover are securely attached[6][7].
- Touch or Display Issues: If the new LCD does not function, double-check all connectors and ensure the part is compatible.
Replacing the LCD display on a Samsung Galaxy Note 5 is a challenging but rewarding DIY project. With the right tools, careful preparation, and patience, you can restore your device to like-new condition and extend its life. Always follow safety precautions, use quality replacement parts, and consult video resources for additional guidance. If you encounter unexpected issues, consider seeking professional help to avoid further damage.
You will need a small Phillips screwdriver, plastic prying tools (guitar picks or spudger), tweezers, a heat gun or hair dryer, a suction cup, double-sided adhesive tape, and a replacement LCD assembly[1][3][8].
It is not recommended to replace only the glass, as the LCD and digitizer are fused together. Attempting to separate them can damage the touchscreen and S-Pen functionality. Replacing the full LCD + digitizer + glass assembly is safer and more reliable[2][6].
Yes, opening your device and replacing the screen will void any remaining manufacturer or carrier warranty[1].
Double-check all connections, ensure the replacement part is compatible, and confirm that no flex cables are damaged or loose. If problems persist, try reassembling the device or consult a professional repair service[6][8].
Genuine replacement parts can be found from reputable online retailers, repair part suppliers, or authorized Samsung service centers. Always verify compatibility with your Note 5 model (e.g., SM-N920A, N920T, etc.)[1][5].
