IPS, or In-Plane Switching, is a type of LCD (Liquid Crystal Display) technology that offers significant improvements over traditional TN (Twisted Nematic) displays. IPS LCD modules are known for their excellent color reproduction, wide viewing angles, and overall superior image quality.

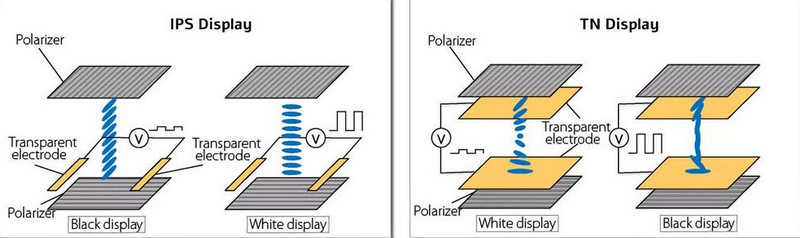

The key difference in IPS technology lies in the arrangement of the liquid crystals. In an IPS LCD module, the crystals are aligned parallel to the panel plane and rotate horizontally when voltage is applied. This configuration allows for better light transmission and more consistent colors across wider viewing angles.
1. Wide viewing angles (up to 178 degrees)
2. Excellent color accuracy and consistency
3. High contrast ratios
4. Minimal color shift and distortion
5. Better performance in bright environments
Selecting the right IPS LCD module for your project involves careful consideration of several factors. Let's explore the key aspects you should evaluate:
The size and resolution of your IPS LCD module will depend on your specific application. Consider the physical dimensions of your device and the viewing distance. Higher resolutions offer sharper images but may require more processing power and increase costs.
For applications requiring accurate color reproduction, such as graphic design or medical imaging, choose an IPS LCD module with higher color depth (e.g., 8-bit or 10-bit) and a wide color gamut (e.g., 100% sRGB or Adobe RGB).
Consider the environment in which your display will be used. For outdoor or bright indoor settings, opt for an IPS LCD module with higher brightness levels (measured in nits) and a good contrast ratio for better visibility.
If your application involves fast-moving images or video, look for an IPS LCD module with a low response time and high refresh rate to minimize motion blur and ensure smooth visuals.
For battery-powered devices or energy-efficient designs, evaluate the power consumption of different IPS LCD modules. Some modules offer power-saving features or low-power modes.
Ensure that the IPS LCD module you choose is compatible with your system's interface (e.g., MIPI, LVDS, RGB) and has the necessary connectors for easy integration.
If your project requires touch input, consider IPS LCD modules with integrated touch panels or choose a separate touch overlay that's compatible with your selected display.
For industrial or outdoor applications, look for IPS LCD modules with extended temperature ranges, high durability, and resistance to factors like humidity, dust, and vibration.
Balance your requirements with your budget and consider the long-term availability of the IPS LCD module, especially for products with extended lifecycles.
While IPS LCD modules offer numerous advantages, it's essential to understand how they compare to other display technologies:
Feature | IPS LCD | TN LCD | VA LCD | OLED |
---|---|---|---|---|
Viewing Angles | Excellent | Poor | Good | Excellent |
Color Accuracy | Very Good | Fair | Good | Excellent |
Response Time | Good | Excellent | Fair | Excellent |
Contrast Ratio | Good | Fair | Excellent | Excellent |
Power Consumption | Moderate | Low | Moderate | Low (variable) |
Lifespan | Long | Long | Long | Moderate |
Cost | Moderate | Low | Moderate | High |
IPS LCD modules find applications in a wide range of industries and devices due to their versatility and superior image quality:
1. Consumer Electronics: Smartphones, tablets, laptops, and monitors
2. Medical Devices: Diagnostic equipment, patient monitors, and imaging systems
3. Industrial Control: HMI panels, instrumentation displays, and control systems
4. Automotive: Infotainment systems, digital dashboards, and rear-seat entertainment
5. Retail: Point-of-sale terminals, digital signage, and interactive kiosks
6. Aviation: Cockpit displays, in-flight entertainment systems, and navigation equipment
As display technology continues to evolve, several trends are shaping the future of IPS LCD modules:
1. Higher Resolutions: The push towards 4K and even 8K displays in smaller form factors
2. Improved Color Performance: Wider color gamuts and HDR (High Dynamic Range) support
3. Faster Refresh Rates: 120Hz and beyond for smoother motion and reduced latency
4. Thinner and More Flexible Designs: Ultra-thin and curved IPS LCD modules
5. Enhanced Energy Efficiency: Lower power consumption and improved backlighting technologies
6. Integration with Advanced Technologies: Combining IPS with quantum dot and mini-LED technologies for improved performance
When integrating an IPS LCD module into your project, consider the following tips:
1. Carefully evaluate your application's specific requirements before selecting a module
2. Ensure proper thermal management to maintain optimal display performance
3. Implement appropriate shielding to minimize electromagnetic interference
4. Optimize your user interface design to take advantage of the IPS LCD module's capabilities
5. Consider using a protective overlay or coating for added durability in harsh environments
6. Work closely with the manufacturer or supplier for technical support and customization options
Choosing the best IPS LCD module for your display needs requires careful consideration of various factors, including size, resolution, color performance, and environmental requirements. By understanding the technology behind IPS LCD modules and evaluating your specific application needs, you can select a display solution that offers superior image quality, wide viewing angles, and excellent color reproduction.
As display technology continues to advance, IPS LCD modules remain a popular choice across various industries due to their versatility and performance. By staying informed about the latest trends and innovations in IPS technology, you can ensure that your chosen display solution remains cutting-edge and meets the evolving demands of your users.
IPS LCD modules use a unique arrangement of liquid crystals that allows for wider viewing angles and better color reproduction compared to traditional TN LCD displays. This technology results in more consistent image quality when viewed from different angles and improved overall visual performance.
Yes, IPS LCD modules can be suitable for outdoor applications, especially when paired with high brightness backlights and anti-glare treatments. However, it's essential to choose modules specifically designed for outdoor use, as they often feature enhanced durability, extended temperature ranges, and better visibility in bright sunlight.
The ideal size and resolution depend on your specific application, viewing distance, and available space. Consider the physical dimensions of your device, the typical viewing distance of your users, and the level of detail required for your content. Higher resolutions offer sharper images but may increase costs and power consumption.
Many IPS LCD module manufacturers offer customization options to meet specific project requirements. This can include custom sizes, resolutions, interface options, and even ruggedization for harsh environments. Work closely with your supplier to explore customization possibilities for your unique application needs.
While both technologies offer excellent image quality, IPS LCD modules generally have longer lifespans, are more cost-effective, and perform better in bright environments. OLED displays, on the other hand, offer superior contrast ratios, faster response times, and the ability to produce true blacks. The choice between IPS LCD and OLED often depends on the specific requirements of your application and budget constraints.
