Liquid Crystal Displays (LCDs) are the most ubiquitous display technology in modern electronic devices, including TVs, smartphones, tablets, computer monitors, and human-machine interfaces (HMIs). Their widespread adoption is due to their relatively low cost, thin profile, and ability to produce vibrant and detailed images. LCDs achieve this by utilizing a complex interplay of liquid crystals, backlighting systems, and color filters to generate a diverse range of colors. Understanding how these components work together is essential to appreciate the sophistication of this technology.

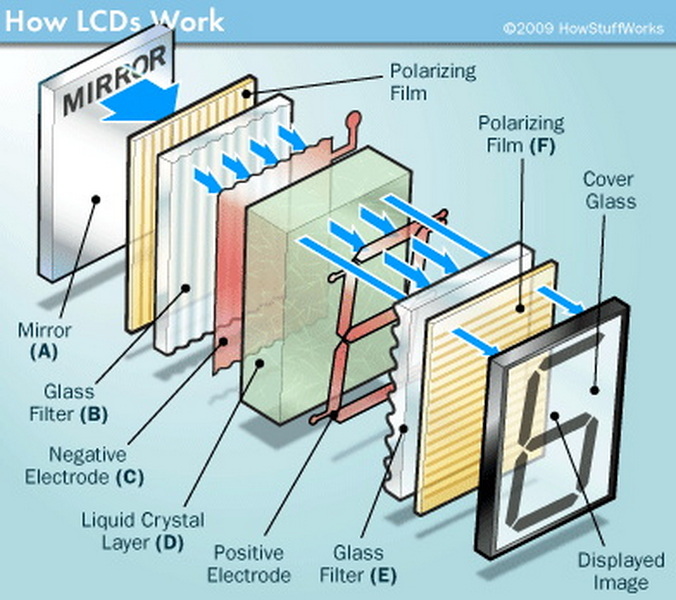

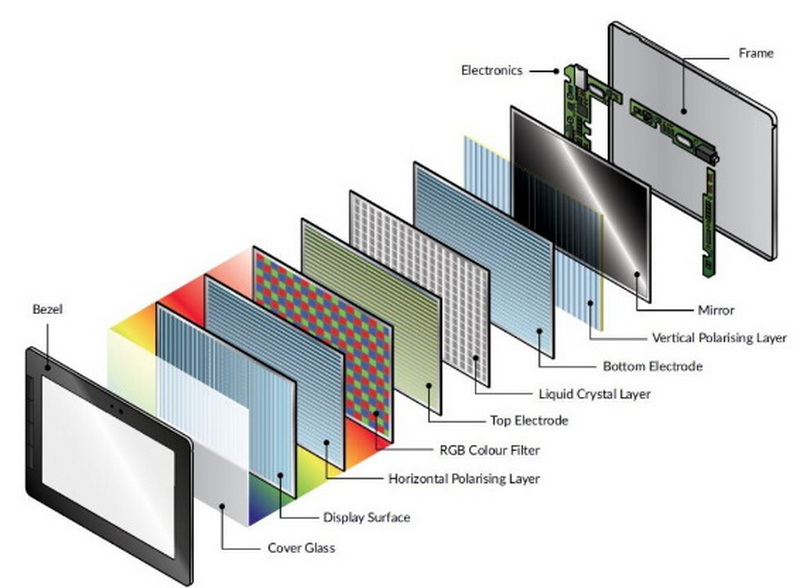

An LCD consists of several key components, each playing a vital role in the display's functionality. These components include:
- Liquid crystal layer: This layer is the heart of the LCD and is composed of liquid crystal molecules precisely aligned between two transparent electrodes. These electrodes, often made of indium tin oxide (ITO), are responsible for applying an electric field to the liquid crystal molecules, thereby controlling their orientation. The alignment of these molecules affects the passage of light through the layer.

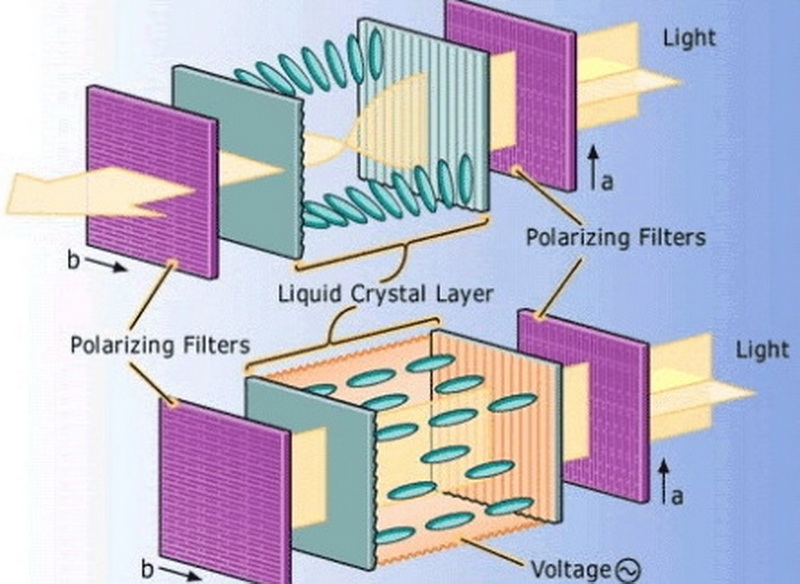

- Polarizing filters: LCDs have two polarizing filters strategically placed, one oriented parallel and the other perpendicular to each other. These filters are crucial for controlling the passage of light through the display. The first polarizer only allows light waves vibrating in a specific direction to pass through. The liquid crystal layer then manipulates the polarization of the light, and the second polarizer either allows or blocks this light, depending on its polarization.
- Backlighting: This system provides the light source for the display, illuminating the liquid crystal layer and enabling the image to be visible. Common types of backlighting include light-emitting diodes (LEDs) and electroluminescent (EL) panels. LEDs have become the dominant choice due to their energy efficiency, brightness, and compact size. Different arrangements of LEDs, such as edge-lit and direct-lit backlighting, offer varying levels of brightness uniformity and contrast.
- Color filters: These filters are indispensable for producing colored images. They are located in front of the backlighting system and selectively filter specific colors of light. A typical color filter consists of an array of red, green, and blue (RGB) subpixels. By controlling the intensity of each subpixel, the LCD can generate a wide spectrum of colors.
- Thin-film transistors (TFT): In high-resolution color displays, a matrix of TFTs is added to the electrodes. Each pixel has its own dedicated transistor to control the voltage applied to the liquid crystal layer. This active matrix addressing scheme allows for precise control of each pixel, resulting in sharper, brighter, and more responsive displays compared to older passive matrix designs.

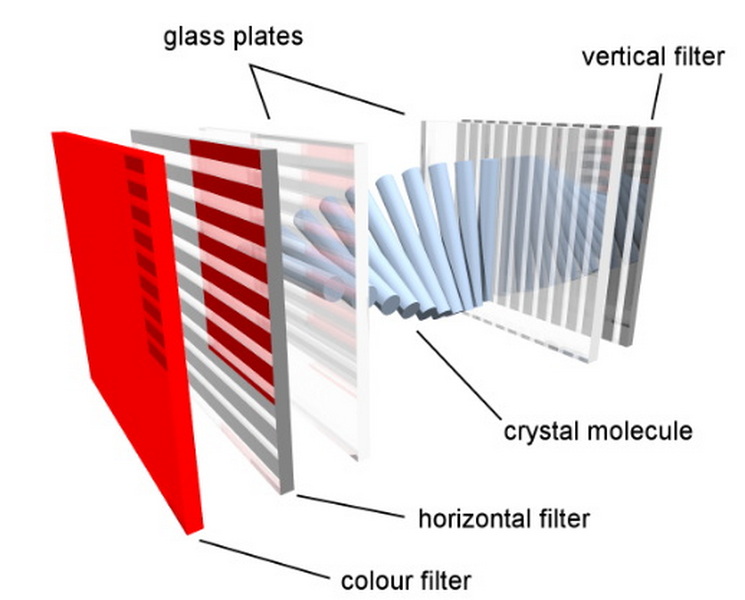

Color filters are a critical component of LCDs, enabling the display to produce a wide range of colored images. These filters consist of multiple layers, typically three, with each layer filtering a specific primary color of light: red, green, and blue. These primary colors are combined in varying proportions to create the full spectrum of colors that the human eye can perceive.
The color filter blocks unnecessary colors as light passes through it, ensuring that only the appropriate colors reach the top layer of the display. This process is essential for creating accurate and vibrant color representation.
The operation of color filters in an LCD can be broken down into several key steps:
1. Backlighting: The backlighting system produces white light. This light is composed of a broad spectrum of colors.
2. Filtering: The white light passes through the color filter, which consists of an array of red, green, and blue subpixels. Each subpixel is designed to transmit only light within a specific wavelength range corresponding to its designated color.
3. Color selection: Each subpixel layer filters out all colors except its own. For example, the red layer allows only red light to pass through, while blocking green and blue light.
4. Image creation: By precisely controlling the intensity of each red, green, and blue subpixel, the LCD can create a wide range of colors. This control is achieved by varying the voltage applied to the liquid crystal layer, which in turn modulates the amount of light that passes through each subpixel.
The human eye perceives the combination of these primary colors as a single color, allowing the display to render complex images with realistic color representation.
Modern LCDs use an active-matrix structure to achieve high-resolution color displays. In this structure, a matrix of thin-film transistors (TFTs) is added to the electrodes in contact with the LC layer. Each pixel has its own dedicated transistor, which allows each column line to access one pixel. During a refresh operation, all row lines are selected in sequence, and voltages corresponding to the picture information are driven onto all column lines.
Active-matrix displays offer significant advantages over older passive-matrix designs, including:
- Brighter and sharper images: The precise control of individual pixels allows for higher contrast ratios and improved image clarity.
- Faster response times: The ability to quickly switch individual pixels on and off results in smoother motion and reduced ghosting effects.
- Wider viewing angles: Active-matrix displays maintain consistent image quality over a broader range of viewing angles.
While the use of RGB color filters is the most common method for generating color in LCDs, alternative techniques exist for specific applications:
1. Field Sequential Color (FSC LCD): Segment LCDs can also use Field Sequential Color (FSC LCD) to produce color. This type of display has a high-speed passive segment LCD panel with an RGB backlight. The backlight changes color quickly, appearing white to the naked eye, and the LCD panel is synchronized with the backlight. FSC LCDs offer advantages in terms of brightness and color gamut but can suffer from color breakup artifacts if not implemented carefully.
2. Super-twisted nematic LCD: In early color PDAs and some calculators, color was generated by varying the voltage in a Super-twisted nematic LCD. The variable twist between tighter-spaced plates causes a varying double refraction birefringence, changing the hue. These displays were typically restricted to three colors per pixel: orange, green, and blue. While simple to implement, this method offered limited color range and accuracy compared to color filter-based LCDs.
The LCD color filters are manufactured using a photolithography process on large glass sheets. Red, green, blue, and black colored photoresists are used to create the color filters. The black resist is applied first, creating a black grid (known as a black matrix) that separates the red, green, and blue subpixels.
The black matrix plays a crucial role in improving the overall image quality of LCDs by:
- Increasing contrast ratios: By blocking light from passing between subpixels, the black matrix enhances the contrast between bright and dark areas of the image.
- Preventing light leakage: The black matrix prevents light from leaking from one subpixel onto surrounding subpixels, which can cause blurring and color inaccuracies.
- Reducing glare: By absorbing ambient light, the black matrix reduces glare and improves the readability of the display in bright environments.
The manufacturing of LCD color filters is a complex process involving multiple steps of photolithography and deposition:
1. Black resist application: The black resist is applied to the glass sheet to create the black matrix.
2. Drying and exposure: The black resist is dried in an oven and exposed to UV light through a photomask.
3. Washing: The unexposed areas are washed away, leaving a black grid.
4. Color resist application: The same process is repeated with the red, green, and blue resists to fill the holes in the black grid with their corresponding colors.
5. Protective coating: A protective layer is applied over the color filter to protect it from damage and contamination.
Quantum dots can be used to enhance the color reproduction of LCD panels. Quantum dots receive blue light from a backlight and convert it to light that allows LCD panels to offer better color reproduction. Quantum dots can also be printed to create displays without color filters.
One limitation of traditional LCD technology is its viewing angle dependency. The color and contrast of an LCD can change depending on the angle at which the display is viewed. This is because the alignment of the liquid crystal molecules affects the polarization of light differently at different angles.
To address this issue, various technologies have been developed to widen the viewing angles of LCDs, including:
- In-Plane Switching (IPS): IPS technology aligns the liquid crystal molecules parallel to the display's surface, which reduces color shift and improves viewing angles.
- Vertical Alignment (VA): VA technology aligns the liquid crystal molecules vertically when no voltage is applied, resulting in deep black levels and high contrast ratios. VA also provides good viewing angles.
- Multi-Domain Vertical Alignment (MVA): MVA technology divides each pixel into multiple domains, each with a slightly different alignment of liquid crystal molecules. This technique further improves viewing angles and reduces color shift.
The refresh rate and response time are two important specifications of LCDs that affect the perceived image quality, particularly for fast-moving content like video games and action movies.
- Refresh rate: The refresh rate is the number of times per second that the display updates the image. A higher refresh rate results in smoother motion and reduced motion blur. Refresh rates are typically measured in Hertz (Hz).
- Response time: The response time is the time it takes for a pixel to change from one color to another. A faster response time reduces ghosting and blurring effects. Response times are typically measured in milliseconds (ms).
Modern LCDs offer high refresh rates and fast response times, making them well-suited for demanding applications.
The field of LCD technology continues to evolve rapidly, with ongoing research and development focused on improving image quality, energy efficiency, and manufacturing processes. Some emerging trends in LCD technology include:
- Mini-LED backlighting: Mini-LED backlighting uses thousands of tiny LEDs to provide more precise control over backlighting, resulting in higher contrast ratios and improved HDR performance.
- Micro-LED displays: Micro-LED displays use self-emissive LEDs, eliminating the need for a backlight and color filters. Micro-LEDs offer superior image quality, energy efficiency, and viewing angles compared to LCDs.
- Foldable and flexible LCDs: Advancements in materials and manufacturing techniques are enabling the creation of foldable and flexible LCDs for use in smartphones, tablets, and other portable devices.
LCDs create different colors through a combination of backlighting, liquid crystals, and color filters. The color filter, comprising red, green, and blue layers, filters the white light produced by the backlight to generate a spectrum of colors. Modern LCDs use active-matrix structures with TFTs to control individual pixels, resulting in sharper and brighter images. Alternative methods such as Field Sequential Color (FSC LCD) and Super-twisted nematic LCDs are also used in specific applications. Ongoing advancements in LCD technology are constantly pushing the boundaries of image quality, energy efficiency, and design flexibility.
LCDs produce color using a combination of backlighting and color filters. The backlighting emits white light, which then passes through a color filter made up of red, green, and blue subpixels. By controlling the intensity of light passing through each subpixel, the LCD can create a wide range of colors.
The black matrix is a grid of black lines that separates the red, green, and blue subpixels on an LCD screen. It serves to increase contrast and prevent light from leaking between subpixels, resulting in a clearer and more defined image.
Thin-film transistors (TFTs) are used in active-matrix LCDs to control individual pixels. Each pixel has its own TFT, which allows for precise control over the voltage applied to the liquid crystals. This results in faster response times and better image quality compared to passive-matrix LCDs.
Backlighting provides the necessary light source for LCDs. The quality and type of backlighting can significantly impact the color reproduction of the display. For example, LCDs with LED backlighting can offer a wider color gamut and better energy efficiency.
While LCDs can display very dark colors, achieving true black is challenging. LCDs use backlights that shine through the liquid crystals. Even when a pixel is set to black, some light can still pass through, resulting in a dark gray rather than a true black. Technologies like local dimming are used to reduce backlight bleed and improve black levels.
