Graphic LCD displays are a fundamental technology in the world of digital displays, widely used in various electronic devices to present text, images, and complex graphics. This article explores what graphical LCD displays are, how they work, their types, applications, advantages, and how to implement custom graphics on them. The guide also includes frequently asked questions to deepen your understanding.

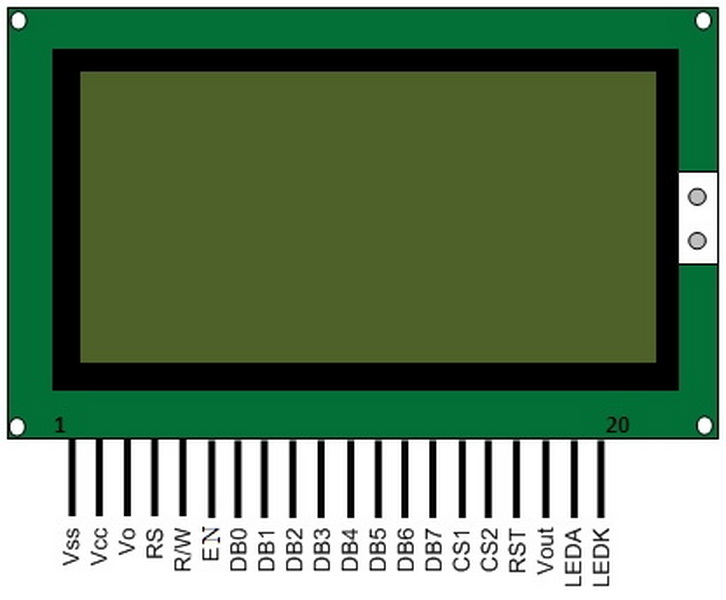

A graphic LCD (Liquid Crystal Display) is a type of display module that can show images, letters, numbers, and other graphical content through the control of individual pixels arranged in a matrix of rows and columns. Unlike character LCDs that display only predefined characters, graphic LCDs provide the flexibility to create custom graphics and detailed visuals by turning each pixel on or off independently.
These displays are typically monochrome, meaning they display graphics in a single color, usually black and white or shades of gray. Although color graphic LCDs exist, traditional graphic LCDs mostly refer to monochrome types, which have been in use for many years and remain popular due to their low power consumption and simplicity.
Graphic LCDs consist of several key components:
- Liquid Crystal Display Panel: The core where pixels are displayed.
- CMOS Driver and Controller: Electronic circuits that control pixel activation.
- Memory: Includes character generation memory and display data memory to store the image or text data.
- Interface: Communication protocols to connect with microcontrollers or processors.
Each pixel in the display can be individually controlled by the software running on the connected microcontroller. The controller sends commands to switch pixels on or off, creating the desired image or text on the screen. For example, a 128 x 64 graphic LCD has 128 pixels horizontally and 64 pixels vertically, each pixel acting like a tiny light that can be lit or unlit independently.

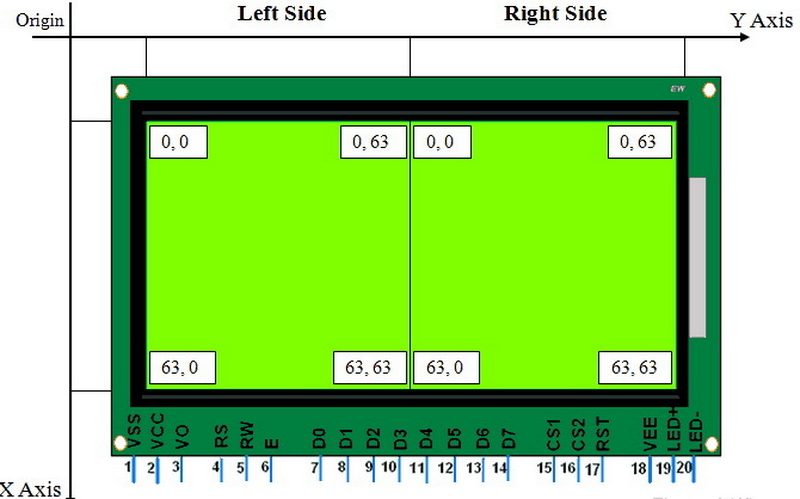

Common interfaces for graphic LCDs include:
- Parallel interfaces (8-bit or 16-bit, using 6800 or 8080 MCU protocols)
- Serial interfaces like SPI (Serial Peripheral Interface)
- I2C (Inter-Integrated Circuit) interface
These interfaces allow the microcontroller to send data and commands to the LCD controller efficiently.
Graphic LCDs can be classified based on several criteria:
- Monochrome Graphic LCD: Displays in a single color, usually black and white.
- Color Graphic LCD: Uses RGB subpixels or color filters to show full-color images but are less common in traditional graphic LCDs.
- Twisted Nematic (TN): Common LCD technology with good response time but limited viewing angles.
- Super Twisted Nematic (STN): Offers better viewing angles and temperature tolerance.
- Film-Compensated STN (FSTN): Enhanced contrast and readability.
- In-Plane Switching (IPS): Superior color reproduction and wide viewing angles, mainly in color displays.
Graphic LCDs come in various resolutions, such as:
- 128×64
- 192×64
- 240×128
- 320×240
Higher resolutions allow for more detailed and sharper images.
Sizes range from small handheld device displays (around 1.9 inches) to larger industrial panels (up to 5.7 inches or more).
As mentioned, interfaces vary from parallel to serial communication methods, affecting speed and complexity of integration.
- Low Power Consumption: Especially monochrome types, suitable for battery-powered devices.
- Cost-Effective: Relatively inexpensive compared to color TFT or OLED displays.
- Good for Simple Graphics: Ideal for embedded systems and industrial applications.
- Wide Range of Sizes and Resolutions: Flexible for various applications.
- Ease of Integration: Supported by many microcontrollers with standard interfaces.
Graphic LCDs are used in many fields, including:
- Consumer Electronics: Watches, calculators, digital readers.
- Industrial Equipment: Instrumentation panels, control systems.
- Automotive Industry: Dashboard displays, GPS navigation interfaces.
- Medical Devices: Portable monitors, diagnostic equipment.
- Embedded Systems: Any device requiring simple graphical output.
Creating and displaying custom images on a graphic LCD involves several steps:
Use graphic editing software such as Microsoft Paint, GIMP, or Photoshop to create a monochrome image matching the resolution of your LCD (e.g., 128×64 pixels). Set the color mode to black and white for compatibility.
The image must be converted into a format the LCD controller understands, usually a monochrome bitmap data array. Tools like LCD Assistant or online converters can generate this code.
Using a microcontroller platform like Arduino, write code to send commands and data to the LCD. Functions typically include:
- Initialization: Setting up the LCD.
- Command Sending: To control LCD behavior.
- Data Sending: To turn pixels on or off.
- Display Function: To render the image data array on the screen.
Upload the code to the microcontroller and observe the image displayed on the LCD. Adjust as necessary for contrast and positioning.
Graphic LCDs operate by manipulating the orientation of liquid crystal molecules to control light passage. When an electric field is applied, the liquid crystals align in a way that either blocks or allows light to pass through, creating visible pixels. This process is controlled by the LCD controller, which sends signals to activate specific pixels based on the image data.
The display's backlight or reflective layer enhances visibility, especially in low-light conditions. The combination of pixel control and backlighting enables graphic LCDs to render detailed images and text clearly.
Graphic LCDs are often compared with other display types such as TFT LCDs, OLEDs, and e-paper displays. Each technology has its strengths and weaknesses:
- TFT LCDs: Offer full color and high resolution but consume more power and are more expensive.
- OLEDs: Provide excellent contrast and color but have shorter lifespans and higher costs.
- E-paper: Extremely low power consumption and excellent readability in sunlight but limited refresh rates and color options.
Graphic LCDs strike a balance by offering low power consumption and sufficient graphical capabilities for many applications.
When integrating a graphic LCD into a project, several factors should be considered:
- Resolution and Size: Choose based on the detail required and physical space available.
- Interface Compatibility: Ensure the microcontroller supports the LCD's communication protocol.
- Power Requirements: Consider battery life and power consumption.
- Environmental Conditions: Temperature range and durability for industrial or outdoor use.
- User Interface Needs: Determine if simple graphics suffice or if color and animation are necessary.
While newer display technologies continue to evolve, graphic LCDs remain relevant due to ongoing improvements:
- Enhanced contrast and viewing angles through advanced liquid crystal materials.
- Integration with touch sensors for interactive displays.
- Lower power consumption through optimized driving methods.
- Increased resolution and color capabilities in hybrid models.
These advancements ensure graphic LCDs continue to serve niche markets effectively.
When working with graphic LCDs, it is important to consider the following practical tips to ensure optimal performance and ease of development:
- Contrast Adjustment: Most graphic LCDs have a contrast control pin or software command. Adjusting contrast is crucial for readability.
- Power Supply Stability: Use a stable power supply to avoid flickering or display errors.
- Proper Initialization: Follow the LCD controller datasheet for correct initialization sequences.
- Memory Management: Efficiently manage the display buffer in microcontroller memory to update graphics smoothly.
- Use of Libraries: Utilize existing libraries and drivers compatible with your microcontroller to simplify development.
Despite their advantages, graphic LCDs can present challenges:
- Ghosting or Image Retention: Sometimes pixels may not turn off completely, causing ghost images.
- Slow Refresh Rates: Large displays or complex graphics can slow down refresh rates.
- Interface Noise: Electrical noise can cause communication errors; proper shielding and grounding help.
- Limited Color Options: Monochrome displays limit the visual appeal for some applications.
Understanding these issues and their solutions can help maintain reliable display performance.
Graphic LCDs, especially monochrome types, are energy-efficient and have a relatively low environmental impact compared to other display technologies. Their long lifespan and low power consumption contribute to sustainability in electronic devices. However, proper disposal and recycling of LCD modules are important to minimize environmental harm due to materials like glass and liquid crystals.
Graphic LCDs are found in many everyday devices and specialized equipment. For instance, in handheld medical devices, graphic LCDs provide clear and concise data visualization, which is critical for patient monitoring. In automotive dashboards, they display speed, fuel levels, and navigation information with clarity and reliability.
In industrial automation, graphic LCDs are used in control panels to show system status, error messages, and operational parameters. Their robustness and low power consumption make them ideal for harsh environments.
Selecting the appropriate graphic LCD for your project involves considering several factors:
- Application Requirements: Determine the type of information to be displayed and the level of detail needed.
- Display Size and Resolution: Larger displays with higher resolution provide more detail but consume more power.
- Interface Compatibility: Ensure the display's interface matches your microcontroller or processor.
- Environmental Conditions: Consider temperature range, humidity, and exposure to sunlight.
- Budget Constraints: Balance features with cost to meet project requirements.
Graphic LCD displays remain a vital technology for displaying text and graphics in a wide range of devices. Their ability to control individual pixels allows for versatile and customizable visual output, making them ideal for embedded systems and simple graphical applications. Despite the rise of color TFT and OLED displays, graphic LCDs offer advantages in power consumption, cost, and ease of integration. Understanding their working principles, types, and how to display custom images empowers developers and engineers to create effective user interfaces for various electronic products.
A character LCD displays predefined characters in fixed positions and cannot display custom graphics, while a graphic LCD controls individual pixels, allowing for custom images, text, and graphics.
Traditional graphic LCDs are mostly monochrome. Color graphic LCDs exist but are less common and often replaced by TFT or OLED displays for full color.
Common resolutions include 128×64, 192×64, 240×128, and 320×240 pixels.
Graphic LCDs can be interfaced via parallel (8 or 16-bit) or serial protocols like SPI or I2C, depending on the LCD controller and microcontroller capabilities.
They are used in embedded systems, industrial controls, automotive dashboards, medical devices, consumer electronics like watches and calculators, and any device needing simple graphical output.
