Liquid Crystal Displays (LCDs) are ubiquitous in modern technology, serving as the visual interface for everything from watches to televisions. Color LCDs, in particular, have become the standard for displaying vibrant and dynamic images. Understanding how they work involves delving into the physics of liquid crystals, polarization, and color filtering.
LCDs operate on the principle of modulating light using liquid crystals. Unlike Cathode Ray Tube (CRT) displays, LCDs do not emit light themselves; instead, they require an external light source[3]. This light is manipulated to create the images we see[3].

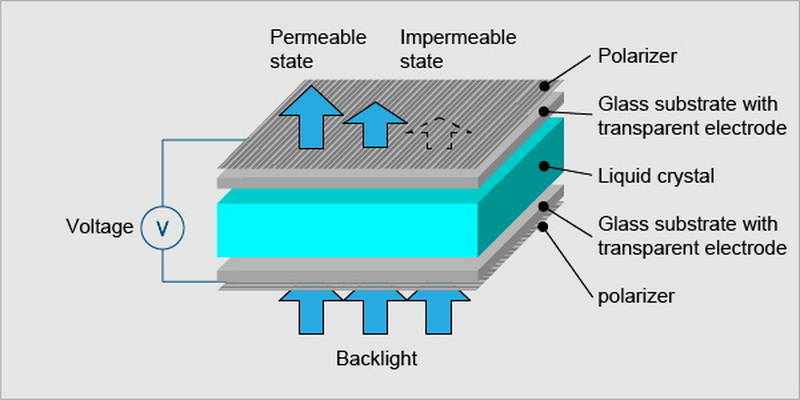

The foundation of LCD technology lies in polarized light. Light is an electromagnetic wave that oscillates in various directions. Polarizing filters allow only light waves oscillating in a specific direction to pass through[3]. LCDs use two polarizing filters oriented at 90 degrees to each other. When light passes through the first filter, it becomes polarized. If there were no liquid crystals between the filters, the second filter would block all the light[5].
Liquid crystals are substances that exhibit properties between those of a conventional liquid and a solid crystal[3]. They can be aligned by an electric field. In an LCD, the liquid crystal molecules are arranged between the two polarizing filters. When no electric field is applied, the liquid crystals align in a twisted structure (typically a twisted nematic or TN arrangement), which rotates the polarization of the light passing through them[5]. This rotation allows the light to pass through the second polarizing filter, and the pixel appears bright.
When an electric field is applied, the liquid crystal molecules untwist and align with the field. This eliminates the rotation of polarized light, and the second filter blocks the light, making the pixel appear dark[5]. By controlling the voltage applied to each pixel, the amount of light transmitted can be precisely controlled, creating different levels of gray[5].
To produce color images, LCDs use a system of red, green, and blue (RGB) subpixels[1][2][7].
Each pixel on a color LCD is composed of three subpixels: one red, one green, and one blue[1][2][7]. Each subpixel has a color filter that allows only that color of light to pass through. By varying the intensity of each subpixel, a wide range of colors can be produced[7]. For instance, if the red and green subpixels are fully illuminated while the blue subpixel is off, the pixel will appear yellow.
The arrangement of subpixels can vary, but the most common arrangement is a horizontal or vertical RGB stripe[7]. The subpixels are placed close enough together that, at a normal viewing distance, the human eye perceives them as a single color[1].

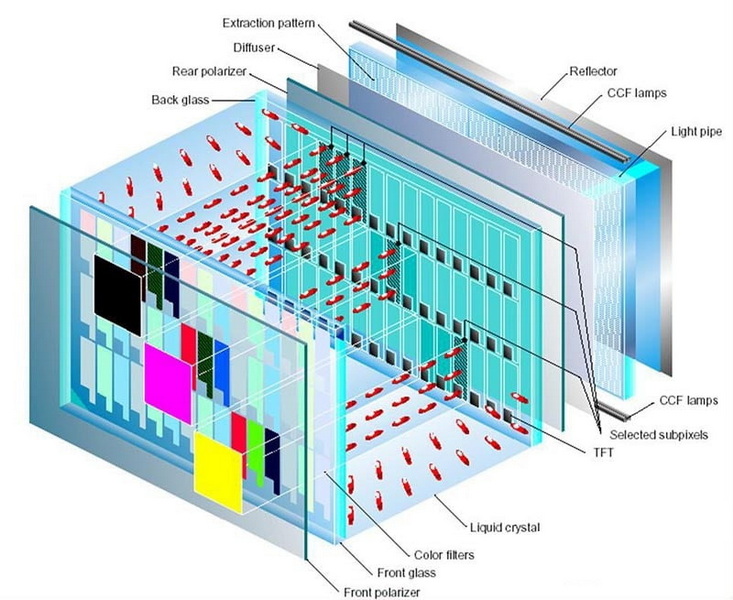

Modern, high-resolution color LCDs typically use an active-matrix structure employing Thin-Film Transistors (TFTs)[5]. A TFT is a small switching transistor and capacitor. One transistor is present for each subpixel. To address a particular pixel, the correct row is switched on, and then a charge is sent down the correct column. This charge is stored in the capacitor, which holds the voltage at the specified level until the next refresh cycle. TFTs allow for faster response times and more precise control over each pixel, resulting in brighter and sharper images compared to passive-matrix displays[5].

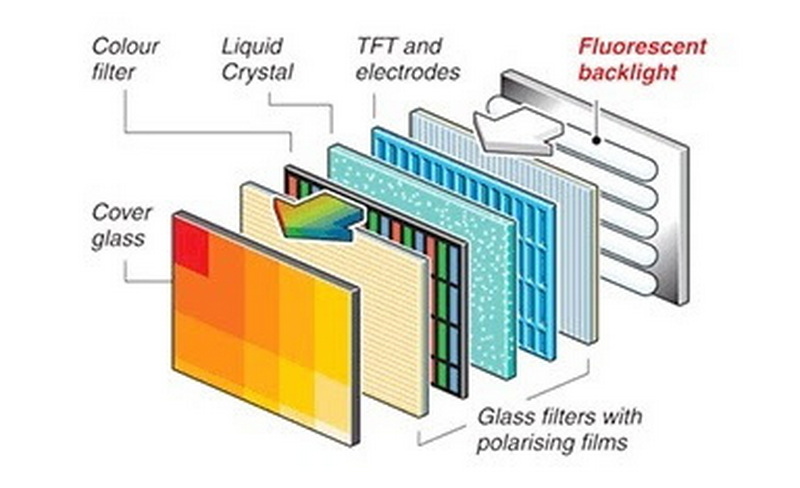

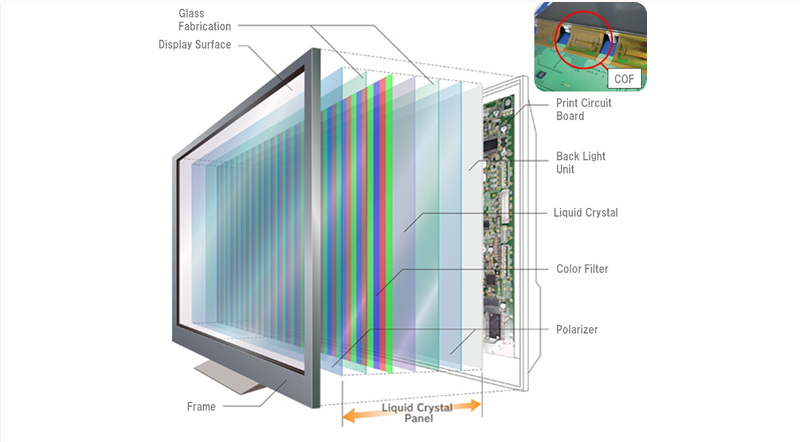

Here's a detailed breakdown of how a color LCD works:
1. Backlight: A backlight provides a white light source behind the LCD panel[2][9]. This light is essential because LCDs do not produce their own light.
2. Polarizing Filter 1: The light from the backlight passes through the first polarizing filter, which polarizes the light in a specific direction[1][5].
3. Liquid Crystal Layer: The polarized light then enters the liquid crystal layer. Depending on the voltage applied to the liquid crystals, they either twist the light (allowing it to pass through the next filter) or untwist it (blocking the light)[3][5].
4. Polarizing Filter 2: The light that passes through the liquid crystal layer reaches the second polarizing filter, which is oriented at 90 degrees to the first. If the light has been twisted by the liquid crystals, it passes through. If not, it is blocked[1][5].
5. Color Filter Layer: The light then passes through the color filter layer, which consists of red, green, and blue subpixels. Each subpixel allows only its respective color to pass through[1][7].
6. Image Creation: By controlling the voltage applied to each subpixel, the intensity of each color can be adjusted. The combination of these colors creates the final image seen on the display[1][2].
LCDs offer several advantages over other display technologies:
- Low Power Consumption: LCDs consume less power compared to CRT displays, making them suitable for portable devices[9].
- Flat Panel Display: The flat panel design allows for slim and lightweight devices[9].
- High Resolution: LCDs can support high resolutions, resulting in sharp and detailed images[2].
- Reduced Eye Strain: LCDs produce less flicker and glare compared to CRT displays, reducing eye strain[9].
Despite their advantages, LCDs also have some drawbacks:
- Limited Viewing Angle: The image quality can degrade when viewed from certain angles.
- Black Levels: Achieving true black can be challenging, as some light may still pass through the liquid crystal layer.
- Response Time: Older LCDs had slower response times, leading to motion blur. Modern LCDs have significantly improved, but this can still be a factor.
LCD technology continues to evolve, with ongoing research and development aimed at improving picture quality, reducing power consumption, and expanding viewing angles. Some emerging trends include:
- Quantum Dot Technology: Quantum dots are used to enhance color reproduction by converting blue light from the backlight into purer red and green light[5].
- Flexible LCDs: Development of flexible LCDs for curved displays and foldable devices.
- Mini-LED Backlights: Using smaller LEDs for the backlight to improve contrast and brightness.
Color LCDs represent a sophisticated blend of physics and engineering. By harnessing the properties of polarized light, liquid crystals, and color filters, these displays can create vibrant and dynamic images with remarkable precision. As technology advances, LCDs will continue to evolve, offering even better performance and new possibilities for display technology.
LCDs work by modulating light using liquid crystals. They require an external light source and use polarized filters and liquid crystals to control the amount of light that passes through each pixel[3].
Color LCDs use a system of red, green, and blue (RGB) subpixels. Each pixel is composed of three subpixels, each with a color filter. By varying the intensity of each subpixel, a wide range of colors can be produced[1][2][7].
A TFT (Thin-Film Transistor) LCD is an active-matrix LCD that uses thin-film transistors to control each subpixel. TFTs allow for faster response times and more precise control over each pixel, resulting in brighter and sharper images[5].
LCDs offer several advantages, including low power consumption, a flat panel design, high resolution, and reduced eye strain[9].
Some limitations of LCD technology include limited viewing angles, difficulty achieving true black levels, and, in older models, slower response times.
