Liquid Crystal Display (LCD) technology is one of the most prevalent display technologies used worldwide, powering devices from smartphones and laptops to televisions and digital signage. To best describe an LCD display, it is essential to understand its fundamental principles, components, types, advantages, and limitations. This comprehensive article explores the nature of LCD displays, how they work, their various types, and practical applications, enriched with detailed explanations to deepen understanding.
An LCD (Liquid Crystal Display) is a flat-panel display technology that uses the light-modulating properties of liquid crystals combined with polarizers to produce images. Unlike light-emitting displays such as LEDs or OLEDs, LCDs do not emit light themselves. Instead, they manipulate light from a backlight to form images on the screen. This characteristic makes LCDs energy-efficient and capable of producing sharp, vibrant visuals.
- Liquid Crystals: These are unique materials that flow like a liquid but have molecular ordering similar to crystals. They twist and align in response to electric fields, controlling light passage.
- Polarizing Filters: Two polarizing glass panels are placed on either side of the liquid crystal layer, oriented at 90 degrees to each other.
- Backlight: Usually composed of LEDs or cold-cathode fluorescent lamps (CCFL), the backlight provides illumination for the display.
- Color Filters: Each pixel is divided into red, green, and blue sub-pixels. By varying light intensity through these filters, millions of colors can be produced.
- Electrodes and Thin-Film Transistors (TFT): Electrodes apply voltage to liquid crystals, while TFTs control individual pixels for precise image rendering.
The working principle of an LCD is based on controlling light passage through liquid crystals. The backlight shines light through the first polarizer, and the liquid crystals twist this polarized light. Depending on the voltage applied, the crystals rotate the light to varying degrees, allowing more or less light to pass through the second polarizer. This modulation of light intensity at each pixel creates the images you see on the screen.
When no voltage is applied, the liquid crystals naturally twist the polarized light, allowing it to pass through the second polarizer and appear bright. When voltage is applied, the crystals align in a way that blocks the light, making the pixel appear dark. By varying the voltage, the display can produce different shades of brightness and color.
1. Backlight Illumination: The backlight emits white light that passes through the first polarizing filter.
2. Liquid Crystal Layer: The light then passes through the liquid crystal layer, where the crystals' orientation determines how much light is twisted.
3. Second Polarizer: The light then encounters the second polarizer, which blocks or allows light depending on its polarization.
4. Color Filters: The light passes through red, green, and blue filters on each pixel, combining to create the desired color.
5. Display Output: The modulated light exits the display, forming the image visible to the viewer.

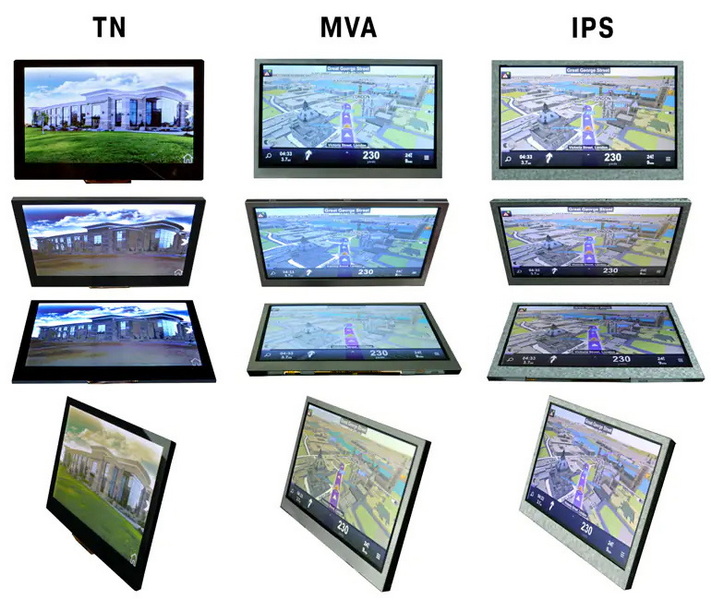

LCD technology has evolved into several types, each optimized for different applications based on factors like color accuracy, viewing angles, response time, and cost.
| Type | Description | Advantages | Disadvantages | Typical Use Cases |
|---|---|---|---|---|
| Twisted Nematic (TN) | The liquid crystals twist 90 degrees to control light. Known for fast response times and low cost. | Fast response, affordable | Limited viewing angles, poorer color accuracy | Gaming monitors, budget devices |
| In-Plane Switching (IPS) | Liquid crystals align parallel to the screen plane, offering superior color and viewing angles. | Excellent color reproduction, wide viewing angles | Higher cost, slower response times | Graphic design, smartphones, TVs |
| Vertical Alignment (VA) | Crystals align vertically, providing better contrast and deeper blacks than TN but slower response. | High contrast, better blacks | Slower response, higher cost | TVs, monitors requiring rich contrast |
These types use the same basic LCD principle but differ in how liquid crystals are aligned and controlled.
TN panels are the oldest and most common type of LCD. They are popular in budget devices due to their low cost and fast response times, making them suitable for gaming where quick pixel transitions are essential. However, TN panels suffer from narrow viewing angles and less accurate color reproduction, which can be a drawback for professional use.
IPS technology was developed to overcome the limitations of TN panels. By aligning liquid crystals parallel to the screen, IPS panels provide much wider viewing angles and more accurate, consistent colors. This makes them ideal for tasks requiring color precision, such as photo editing and graphic design. The trade-off is a generally slower response time and higher cost.
VA panels offer a middle ground between TN and IPS. They provide better contrast ratios and deeper blacks than TN or IPS panels, making them excellent for watching movies and general-purpose use. However, VA panels typically have slower response times and can suffer from color shifting at extreme viewing angles.
- Thin and Lightweight: LCDs are much thinner and lighter than older CRT displays, making them ideal for portable and space-saving devices.
- Low Power Consumption: Since LCDs use a backlight and only modulate light, they consume less power compared to CRTs and plasma displays.
- High Resolution and Sharpness: LCDs can support high-definition resolutions, providing crisp and clear images.
- No Screen Burn-in: Unlike plasma or OLED displays, LCDs are not prone to permanent image retention.
- Wide Availability and Cost-Effectiveness: LCDs are widely manufactured and available at various price points, from budget to premium.
- Reduced Eye Strain: Many modern LCDs include flicker-free technology and blue light filters, which help reduce eye fatigue during prolonged use.
- Limited Viewing Angles: Colors and brightness can shift when viewed from sharp angles, especially in TN panels.
- Motion Blur: Response times can cause blurring in fast-moving images, though this has improved in modern LCDs.
- Backlight Bleed: Uneven backlighting can cause light leakage around edges or corners.
- Fragility: LCD panels can be sensitive to pressure and physical damage.
- Dependence on Backlight: Since liquid crystals do not emit light, LCDs require a backlight, which can increase power use and affect contrast.
- Color Accuracy Limitations: While IPS panels improve color reproduction, LCDs generally cannot match the deep blacks and infinite contrast ratios of OLED displays.
Over time, LCD technology has seen significant advancements aimed at addressing its limitations and enhancing performance:
- LED Backlighting: The replacement of CCFL backlights with LED backlights has improved energy efficiency, brightness, and color gamut.
- Quantum Dot Enhancement: Some LCDs use quantum dots to boost color accuracy and brightness, narrowing the gap with OLED displays.
- Higher Refresh Rates: Modern LCD monitors now support refresh rates of 120Hz, 144Hz, or even 240Hz, reducing motion blur and improving gaming experiences.
- Faster Response Times: Advances in liquid crystal materials and driving electronics have reduced pixel response times, minimizing ghosting effects.
- Curved LCD Panels: Curved LCD screens offer a more immersive viewing experience and reduce distortion at the edges.
- Touchscreen Integration: Many LCDs now incorporate capacitive touch technology, enabling interactive displays for smartphones, tablets, and kiosks.
LCDs are used in a vast array of devices and industries:
- Consumer Electronics: Smartphones, tablets, laptops, TVs, and digital cameras.
- Industrial and Commercial: Instrument panels, digital signage, medical devices.
- Gaming: High-refresh-rate LCD monitors are popular among gamers.
- Education and Business: Interactive whiteboards and smart displays.
- Wearables: Smartwatches and fitness trackers often use small LCDs.
- Automotive Displays: LCDs are widely used in car dashboards, infotainment systems, and rear-seat entertainment.
- Aviation and Aerospace: Cockpit displays and control panels frequently utilize ruggedized LCDs for reliability.
LCD technology is generally considered more environmentally friendly than older CRT displays due to lower power consumption and absence of hazardous materials like lead and phosphors. However, LCDs still contain materials such as mercury in CCFL backlights (now largely replaced by LEDs) and require responsible recycling to prevent environmental harm.
An LCD display is best described as a flat-panel display technology that uses liquid crystals to modulate light from a backlight to create images. It is characterized by its thin profile, energy efficiency, and ability to produce high-resolution, colorful images. Various types of LCDs, such as TN, IPS, and VA, cater to different needs ranging from gaming to professional graphics work. Despite some limitations like viewing angle and motion blur, LCD technology remains dominant in many devices due to its versatility, affordability, and continual improvements. Understanding the mechanics and varieties of LCDs helps consumers and professionals make informed decisions about their display technology needs.
Passive matrix LCDs control pixels using a simple grid of conductors, resulting in slower response times and lower resolution. Active matrix LCDs use thin-film transistors (TFT) at each pixel for faster, more precise control, enabling higher resolution and better image quality.
No, because LCDs rely on backlighting, they cannot completely block light at pixels, resulting in blacks that appear more like dark gray. OLEDs emit light per pixel and can turn off pixels completely, achieving true blacks.
Each pixel is divided into three sub-pixels with red, green, and blue color filters. By controlling the light intensity through each sub-pixel, millions of colors can be produced through additive color mixing.
LCDs modulate light from a backlight instead of generating light via electron beams like CRTs. This results in lower power consumption, especially in portable devices where battery life is critical.
Motion blur is caused by the response time of liquid crystals changing states. When pixels cannot change quickly enough during fast-moving scenes, images appear blurred. Modern LCDs with faster response times reduce this effect.
The quality and type of backlight impact brightness, color accuracy, and contrast. LED backlights offer better energy efficiency and color performance than older CCFL backlights.
Standard LCDs can struggle with visibility in bright sunlight due to glare and limited brightness. Specialized outdoor LCDs with high brightness and anti-reflective coatings are available for such conditions.
LCDs typically have a lifespan ranging from 30,000 to 60,000 hours, depending on usage and backlight type. LED backlights tend to last longer than CCFL backlights.
Minor issues like dead pixels or backlight problems may be repairable, but physical damage to the panel often requires screen replacement.
Future improvements may include better quantum dot integration, flexible LCD panels, and enhanced energy efficiency, continuing to narrow the gap with OLED and other emerging display technologies.
