The SW900 LCD display is a popular e-bike display known for its versatility, clear readouts, and compatibility with various electric bike systems. One common question among users and installers is: What screw size is used for mounting the SW900 LCD display? This article will provide an in-depth guide on the screw size, mounting process, and additional tips for installing and using the SW900 LCD display effectively. We will also include relevant images and videos to help you visualize the process.

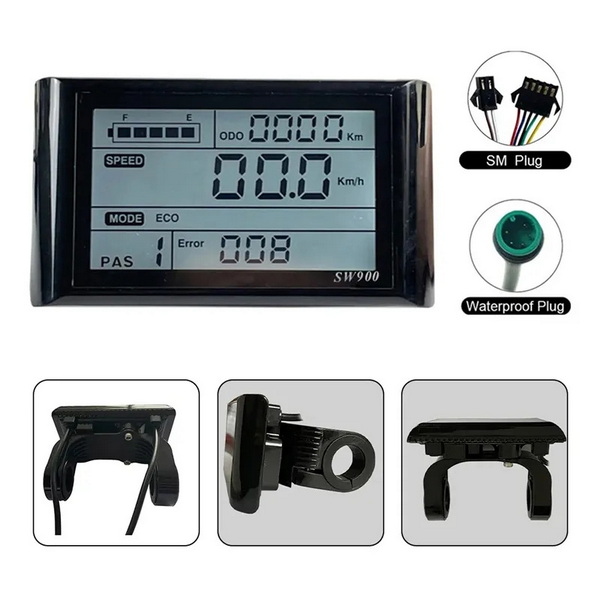

The SW900 LCD display is designed for electric bikes and scooters, offering real-time information such as speed, battery level, trip distance, PAS (Pedal Assist System) levels, and error codes. It supports various voltages (24V, 36V, 48V, and customizable options) and connects via a 5-pin connector to the e-bike controller. The display shell is made of durable ABS plastic, and the screen is covered with high hardness acrylic, comparable to tempered glass in strength.
The SW900 is favored for its affordability, ease of installation, and compatibility with many mid-drive and hub motor systems. Its clear backlit screen makes it easy to read in different lighting conditions, and the intuitive button layout allows riders to switch modes and adjust settings quickly.

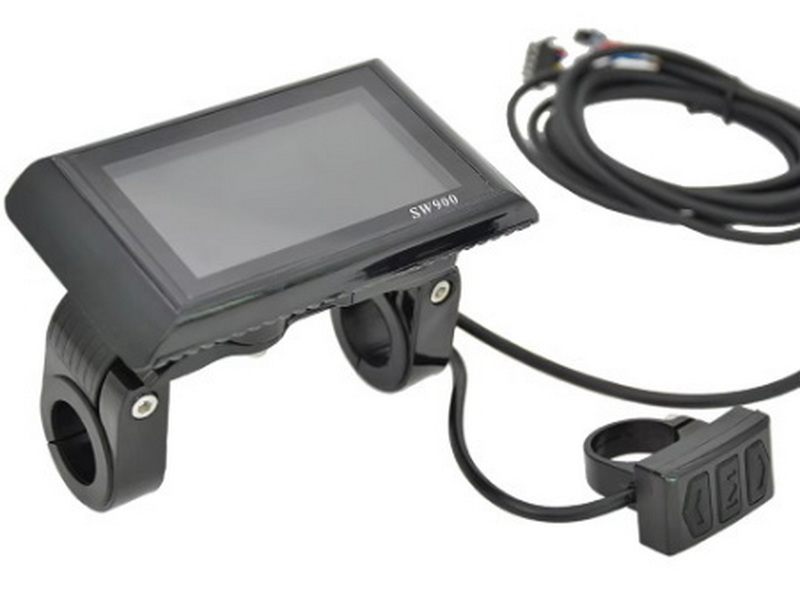

The SW900 LCD display is usually mounted on the e-bike handlebar using a bracket and screws. The mounting bracket is designed to fit handlebars with a diameter of 22.2mm (0.87 inches), which is a common size for many bikes and scooters. Proper mounting ensures the display is secure, visible, and easy to operate during rides.
The mounting bracket typically consists of two parts: a clamp that wraps around the handlebar and a cradle or holder for the display itself. The assembly is held together by screws, which must be the correct size to ensure a snug fit without damaging the components.
The screw size used for mounting the SW900 LCD display bracket is typically M4 screws. These screws are commonly included with the display kit and are used to secure the bracket to the handlebar and the display to the bracket itself.
- Screw Diameter: M4 (4mm)
- Length: Usually between 10mm to 20mm, depending on the thickness of the bracket and handlebar clamp
- Thread Pitch: Standard metric pitch for M4 screws (0.7mm)
Using the correct M4 screws ensures a tight and stable fit without damaging the handlebar or the display bracket. It also prevents issues such as vibration loosening or bracket slipping during rides.
M4 screws are a common size in bicycle and e-bike accessories because they provide a good balance between strength and size. Smaller screws like M3 may not offer enough grip or durability, while larger screws like M5 might be too bulky or heavy for delicate plastic brackets.
- Ensure the handlebar diameter is 22.2mm (standard size for SW900 mounting).
- Clean the handlebar surface where the bracket will be mounted to remove dirt or grease.
- Power off your e-bike before installation to avoid electrical damage.
- Place the mounting bracket around the handlebar.
- Insert the M4 screws into the bracket holes and tighten them evenly using a Phillips or Allen screwdriver.
- Avoid overtightening to prevent cracking the plastic bracket or stripping the screw threads.
- Slide or clip the SW900 display into the bracket's cradle.
- Secure the display to the bracket using the second set of M4 screws, ensuring it sits firmly without wobbling.

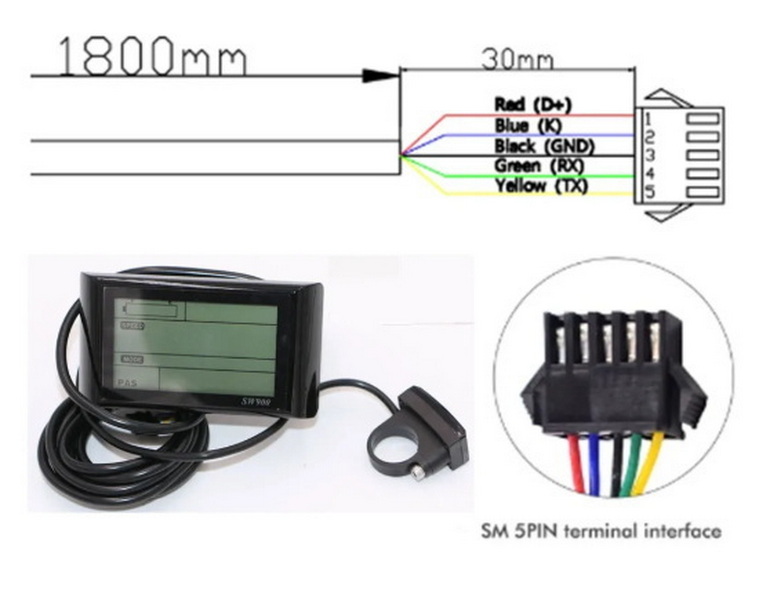

- Plug the 5-pin connector from the display into the controller connector on your e-bike.
- Double-check the wiring colors and connections to avoid errors. The connector is usually keyed to prevent incorrect insertion.
- Tilt the display to a comfortable viewing angle.
- Tighten the screws if the bracket has an adjustable clamp to lock the angle in place.
- Turn on your e-bike and test the display functions, including speed, battery level, and PAS settings.
- Verify that the display responds correctly to button inputs and that all data is displayed properly.
- M4 screws (usually included with the display)
- Phillips or Allen screwdriver (depending on screw head type)
- Adjustable wrench or pliers (optional)
- Cleaning cloth for handlebar
- Electrical tape or cable ties (optional for securing cables)
- Use thread locker: Applying a mild thread locker on the M4 screws can prevent loosening due to vibration during rides.
- Check regularly: Periodically check screw tightness to maintain secure mounting.
- Avoid overtightening: Excessive force can strip threads or crack the plastic bracket.
- Protect cables: Use cable ties or wraps to prevent cable stress or damage at connection points.
- Use rubber or foam padding: Placing a thin rubber or foam strip between the bracket and handlebar can improve grip and reduce vibration.
| Issue | Possible Cause | Solution |
|---|---|---|
| Display loose on handlebar | Screws not tight or wrong size | Tighten M4 screws or replace if needed |
| Display not powering on | Loose connector or power off | Check connector and power source |
| Display flickering or error codes | Poor connection or damaged cable | Re-seat connector, inspect cables |
| Mount bracket slipping | Handlebar diameter mismatch | Confirm 22.2mm handlebar size |
| Screws stripping threads | Overtightening or low-quality screws | Use proper torque and quality screws |
- Keep the screen clean: Use a soft, damp cloth to wipe the acrylic screen. Avoid harsh chemicals or abrasive materials.
- Protect from water: The display has some water resistance but avoid direct water jets or submersion.
- Inspect mounting regularly: Ensure screws and bracket remain secure. Tighten if necessary.
- Store properly: If removing the display, store it in a dry, dust-free place to prevent damage.
- Avoid extreme temperatures: Prolonged exposure to very high or low temperatures can affect display performance.
For users looking to customize or upgrade their SW900 LCD display mounting, several accessories and modifications are available:
- Adjustable Mounting Brackets: Some aftermarket brackets offer more flexible angle adjustments or quick-release mechanisms for easy removal.
- Extended Mount Arms: These allow the display to be positioned further from the handlebar for better visibility or to accommodate additional accessories.
- Protective Covers: Silicone or TPU covers protect the display from scratches and minor impacts.
- Anti-Vibration Mounts: Rubber or silicone dampers reduce vibration transmitted to the display, enhancing durability and readability on rough terrain.
The SW900 LCD display is a reliable and user-friendly e-bike display that requires M4 screws for mounting on standard 22.2mm handlebars. Proper installation using the correct screw size ensures a secure fit and optimal performance. Following the step-by-step guide and maintenance tips will help you enjoy the full functionality of your SW900 display for years to come.
Whether you are a DIY enthusiast or a professional installer, understanding the correct screw size and mounting method is crucial for a safe and durable setup. With the right tools, accessories, and care, your SW900 LCD display will provide accurate and clear information to enhance your electric biking experience.
The bracket is designed for handlebars with a diameter of 22.2mm (0.87 inches), which is a common size for many e-bikes and scooters.
Yes, the display kit typically includes M4 screws for mounting the bracket and display.
It is recommended to use M4 screws to ensure proper fit and avoid damage. Using different sizes may compromise stability.
Use cable ties or electrical tape to secure cables along the handlebar and frame, preventing stress on connectors.
Check all wiring connections, ensure the screws and bracket are secure, and consult the error code guide in the SW900 manual for troubleshooting.
