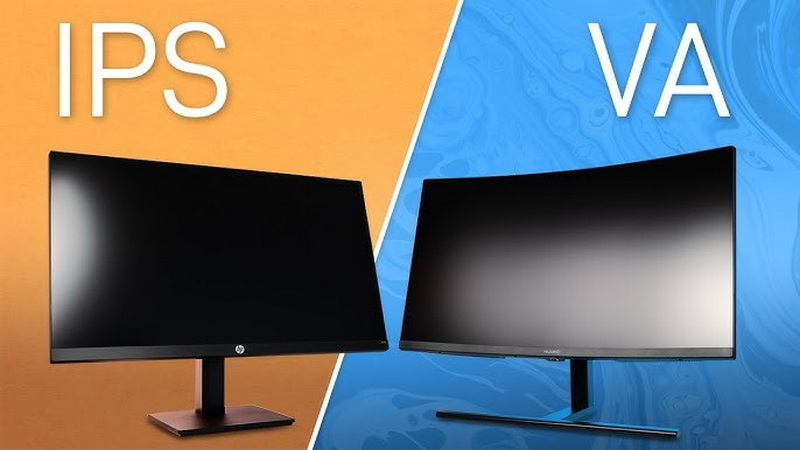

● Visual Comparisons: LCD vs. IPS
● Deep Dive: Panel Types Within LCD Technology
● The Evolution of IPS Technology
● Factors to Consider When Choosing a Display
● Pros and Cons of Each Technology
>> IPS LCD
>> 1. What is the main difference between LCD and IPS displays?
>> 2. Are IPS displays always better than other LCDs?
>> 3. Do IPS displays consume more power than standard LCDs?
>> 4. Why are IPS displays more expensive?
>> 5. Can IPS displays suffer from image retention or burn-in?
In the rapidly evolving world of digital displays, understanding the differences between various screen technologies is essential for making informed purchasing decisions. Two of the most commonly discussed terms are LCD and IPS. While often used interchangeably, these technologies have distinct characteristics that impact color reproduction, viewing angles, response times, and overall user experience. This comprehensive guide will explore the differences between LCD and IPS displays, helping you understand which is best suited for your needs.
Modern electronic devices—from smartphones and tablets to monitors and televisions—rely on advanced display technologies to deliver crisp, vibrant visuals. The two most prevalent display types are LCD (Liquid Crystal Display) and its subcategory, IPS (In-Plane Switching). Understanding how these technologies work and differ is crucial for choosing the right device for your needs.
LCD stands for *Liquid Crystal Display*. It is a flat-panel technology that uses liquid crystals sandwiched between two layers of glass or plastic. When an electric current passes through the crystals, they align to either block or allow light to pass through, creating images on the screen.
- Backlighting: Most LCDs use LED backlights to illuminate the screen, as the liquid crystals themselves do not emit light.
- Color Filters: RGB (red, green, blue) filters are used to create full-color images by manipulating the intensity of light passing through each pixel.
- Panel Types: The main types of LCD panels include TN (Twisted Nematic), VA (Vertical Alignment), and IPS (In-Plane Switching), each with unique properties.
LCD technology revolutionized the display industry by enabling thin, lightweight screens with lower power consumption compared to older CRT monitors. However, not all LCDs are created equal—panel type plays a significant role in determining display quality.
IPS stands for *In-Plane Switching*. It is a specific type of LCD panel technology designed to overcome the limitations of earlier LCD types, especially TN panels.
- Crystal Alignment: In IPS panels, liquid crystals are aligned parallel to the screen, allowing them to move horizontally when voltage is applied.
- Improved Light Transmission: This horizontal movement enables better light transmission, resulting in more accurate colors and wider viewing angles.
IPS technology was developed to address the poor color reproduction and limited viewing angles of TN panels. By aligning the liquid crystals in-plane, IPS panels maintain color fidelity and brightness even when viewed from extreme angles, making them ideal for professional and multimedia applications.
While all IPS displays are a type of LCD, not all LCDs use IPS technology. The primary differences stem from how the liquid crystals are arranged and manipulated.
| Feature | Standard LCD (TN/VA) | IPS LCD (In-Plane Switching) |
|---|---|---|
| Crystal Alignment | Vertical (TN), Perpendicular (VA) | Horizontal, Parallel to the screen |
| Color Reproduction | Limited (TN), Good (VA) | Excellent, vibrant, accurate |
| Viewing Angles | Narrow (TN), Moderate (VA) | Wide (up to 178°) |
| Response Time | Fast (TN), Moderate (VA) | Moderate (improving with new IPS) |
| Contrast Ratio | High (VA), Low (TN) | Good, but not as high as VA |
| Production Cost | Lower (TN), Moderate (VA) | Higher |
| Power Consumption | Lower (TN), Moderate (VA) | Slightly higher |
| Price | Cheapest (TN), Moderate (VA) | Most expensive |
IPS panels deliver richer, more consistent colors compared to standard LCDs, especially when viewed off-center. This makes IPS displays ideal for tasks that require accurate color representation, such as photo editing, graphic design, and watching high-definition videos.
IPS displays maintain color fidelity and brightness even when viewed from extreme angles, unlike TN panels which show color shifting or fading. This is particularly important in collaborative environments or when multiple people are viewing the same screen.
IPS panels often outperform standard LCDs in bright environments, maintaining readability and color accuracy. The superior light transmission of IPS panels helps prevent images from appearing washed out under direct lighting.

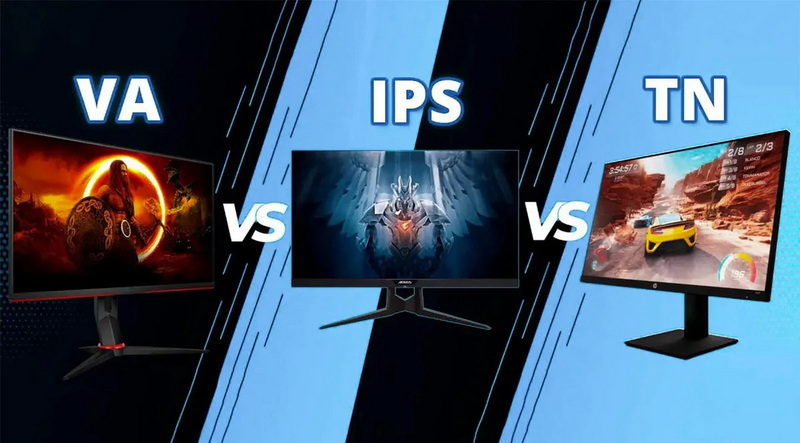

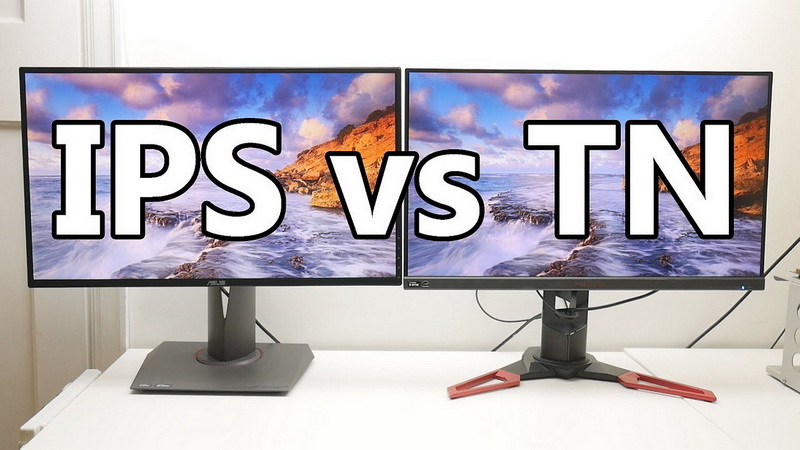

LCD technology encompasses several panel types, each with its own strengths and weaknesses. Understanding these distinctions can help you make a more informed decision.
- Strengths: Fast response times, low production cost, suitable for fast-paced gaming.
- Weaknesses: Narrow viewing angles, poor color reproduction, limited contrast.
- Strengths: High contrast ratios, deeper blacks, better color reproduction than TN.
- Weaknesses: Moderate viewing angles, slower response times compared to TN.
- Strengths: Best color accuracy, widest viewing angles, consistent image quality.
- Weaknesses: Higher manufacturing cost, slightly higher power consumption, blacks may not be as deep as VA.
Since its introduction, IPS technology has undergone significant improvements. Early IPS panels were criticized for slow response times and high costs, but modern advancements have addressed many of these issues.
- Super IPS (S-IPS): Enhanced color accuracy and improved response times.
- Advanced High-Performance IPS (AH-IPS): Better energy efficiency, higher resolution support, and improved brightness.
- Nano IPS: Utilizes a layer of nanoparticles to achieve even greater color accuracy and a wider color gamut.
These innovations have made IPS displays more accessible and suitable for a broader range of applications, from professional monitors to high-end smartphones.
When selecting between standard LCD and IPS displays, consider the following factors:
- Intended Use: Are you gaming, editing photos, watching movies, or using the display for office work?
- Budget: IPS panels tend to be more expensive, but the investment may be worthwhile for color-critical tasks.
- Viewing Environment: If you often share your screen or work in bright environments, IPS offers clear advantages.
- Response Time: Competitive gamers may prefer TN panels for their ultra-fast response times, while most other users benefit from IPS's superior image quality.
- Longevity: IPS panels generally have a longer lifespan and maintain color accuracy over time.
Pros
- Lower production cost
- Faster response times (TN)
- Lower power consumption
- Good for fast-paced gaming (TN)
Cons
- Narrow viewing angles (TN)
- Poor color reproduction (TN)
- Moderate contrast (TN), high contrast (VA)
- Not ideal for color-critical work
Pros
- Exceptional color accuracy and consistency
- Wide viewing angles (up to 178°)
- Better sunlight visibility
- Longer lifespan
- Ideal for professional applications (graphic design, photography)
Cons
- Higher manufacturing cost
- Slightly higher power consumption
- Slower response times (though improving)
- Blacks may appear less deep compared to VA or OLED
- Budget monitors and laptops: TN panels are widely used in affordable devices due to their low cost.
- Entry-level gaming monitors (TN): Their fast response times make them popular among gamers who prioritize speed over color accuracy.
- Office environments with limited color requirements: For tasks like word processing or spreadsheets, TN and VA panels are often sufficient.
- Professional monitors for graphic design, photography, and video editing: Accurate color representation is critical for creative work.
- Smartphones and tablets requiring wide viewing angles: Mobile devices benefit from IPS's consistent image quality regardless of how they are held.
- High-end televisions and premium laptops: Consumers seeking the best visual experience gravitate toward IPS panels.
- Collaborative environments where multiple people view the screen: IPS's wide viewing angles ensure everyone sees the same image quality.
Choosing between a standard LCD and an IPS display depends on your specific needs. If you prioritize color accuracy, wide viewing angles, and superior image quality, IPS is the clear winner. These advantages make IPS displays ideal for creative professionals, media consumption, and collaborative workspaces. However, if you are on a tight budget or require ultra-fast response times for competitive gaming, a standard TN LCD might be more suitable.
In summary, all IPS panels are LCDs, but not all LCDs are IPS. The main difference lies in the arrangement of liquid crystals, which impacts color, viewing angle, and overall performance. As display technology continues to advance, IPS panels are becoming more accessible and affordable, making them the preferred choice for most users seeking the best visual experience.
The main difference is the alignment of liquid crystals. IPS panels align crystals horizontally, providing better color accuracy and wider viewing angles compared to standard LCDs, which use vertical or twisted arrangements.
IPS displays are generally superior in color accuracy and viewing angles. However, TN panels offer faster response times and are more affordable, making them suitable for specific use cases like competitive gaming.
Yes, IPS panels typically consume slightly more power due to their crystal arrangement and need for brighter backlighting, but advancements have minimized this gap.
The manufacturing process for IPS panels is more complex and uses higher-quality materials, resulting in a higher price compared to standard LCDs.
IPS LCDs are less prone to burn-in than OLEDs, but long-term static images can still cause minor image retention. Regular use typically prevents this issue.
