Thin-Film Transistor Liquid Crystal Displays (TFT LCDs) represent a significant advancement in display technology, widely utilized in various devices such as smartphones, tablets, televisions, and computer monitors. This article delves into the intricacies of TFT LCD technology, its operational principles, advantages, applications, recent advancements, and comparisons with other display technologies.
A TFT LCD is an *active matrix* type of liquid-crystal display that employs thin-film transistor technology to enhance image quality and control individual pixels. Each pixel in a TFT LCD is connected to its own transistor, allowing for precise control over the light that passes through the liquid crystal layer. This results in improved image clarity, color accuracy, and faster response times compared to traditional passive matrix displays.

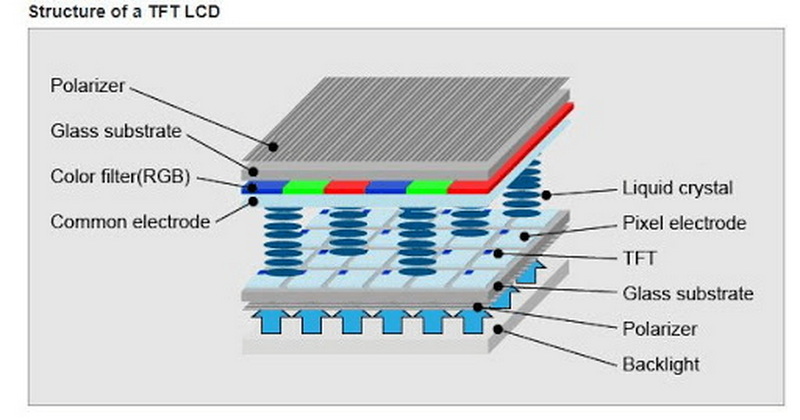

The structure of a TFT LCD consists of multiple layers:
1. Backlight: Usually composed of LEDs, it provides the necessary illumination for the display.
2. Polarizers: Two polarizing filters are placed at the front and back of the liquid crystal layer to control light passage.
3. Glass Substrate with TFT Array: Contains the thin-film transistors that control each pixel.
4. Liquid Crystal Layer: This layer contains liquid crystal molecules that align themselves based on applied electric fields.
5. Color Filters: Typically arranged in RGB (Red, Green, Blue) format to create full-color images.
6. Glass Substrate with Common Electrode: Completes the electrical circuit.
7. Polarizing Film: Further refines the light output.
The combination of these layers allows TFT LCDs to produce vibrant images with high resolution and excellent contrast ratios.
The operation of a TFT LCD can be summarized as follows:
- When no voltage is applied, liquid crystal molecules are aligned parallel to the glass surface, blocking light.
- When voltage is applied, these molecules twist to allow light to pass through. The degree of twisting determines how much light passes through each pixel.
- The transistors control the electric fields applied to each pixel individually, enabling rapid changes in image content without motion blur.
This mechanism allows for high refresh rates and makes TFT LCDs suitable for displaying fast-moving images, such as in video games or movies.
TFT LCDs offer several advantages over traditional display technologies:
- High Resolution: Capable of displaying sharp images with fine details due to individual pixel control.
- Fast Response Times: Quick pixel transitions minimize motion blur, making them ideal for dynamic content.
- Color Accuracy: The use of color filters and precise control over each pixel allows for vibrant colors and excellent contrast ratios.
- Wide Viewing Angles: Many modern TFT displays provide better viewing angles compared to older technologies.
- Energy Efficiency: TFT displays consume less power than older CRT screens, making them suitable for portable devices.
- Durability: Resistant to image retention and burn-in issues.
TFT LCD technology is utilized in various applications across multiple industries:
- Consumer Electronics: Found in smartphones, tablets, laptops, and televisions due to their compact form factor and high-quality visuals.
- Medical Devices: Used in diagnostic imaging and patient monitoring systems where image clarity is critical.
- Automotive Displays: Employed in dashboards and infotainment systems for their reliability and clarity under varying lighting conditions.
- Industrial Equipment: Utilized in control panels and instrumentation where durability and performance are essential.
- Digital Signage: Used for advertising displays due to their ability to present high-quality images and videos effectively.
The field of TFT LCD technology continues to evolve with several recent advancements enhancing their capabilities:
1. Higher Resolutions: 4K and 8K displays are becoming more common, offering incredibly detailed images suitable for professional applications like video editing and medical imaging[1].
2. Improved Color Gamut Technologies: Innovations such as Quantum Dot technology have expanded the color gamut of TFT LCD displays, resulting in more vibrant and accurate color reproduction[4].
3. Flexible Displays: The development of flexible TFT LCD technology has paved the way for foldable smartphones and rollable displays[4].
4. Advanced Touch Integration: Enhancing touch sensitivity and functionality in TFT LCD displays has improved user interaction across devices[1].
5. Energy Efficiency Improvements: New backlight technologies and pixel structures are being developed to reduce power consumption even further[4].
6. Enhanced Durability: Research is focused on creating more robust displays suitable for harsh environments and wearable devices[1].
| Feature | TFT LCD | OLED | CRT |
|---|---|---|---|
| Color Reproduction | Good | Excellent | Good |
| Resolution | High | Very High | Moderate |
| Response Time | Fast | Very Fast | Slow |
| Viewing Angles | Moderate | Wide | Limited |
| Thickness | Thin | Very Thin | Bulky |
| Power Consumption | Low | Moderate | High |
While OLED displays offer superior color reproduction and contrast ratios, they tend to be more expensive. CRT technology has largely been phased out due to its bulkiness and high power consumption compared to modern flat-panel displays like TFT LCDs.
As technology continues to advance, several areas show promise for future developments in TFT LCD technology:
1. Micro-LED Integration: Combining TFT backplanes with Micro-LED technology could improve brightness and efficiency significantly[4].
2. Transparent Displays: Creating see-through TFT LCD screens for augmented reality applications is an exciting area of research[4].
3. Integration with AR/VR Technologies: As augmented reality (AR) and virtual reality (VR) become more prevalent, integrating these technologies with TFT displays will enhance immersive experiences[4].
4. Sustainable Practices: Manufacturers are increasingly focusing on eco-friendly production methods that minimize environmental impact while maintaining performance standards[14].
5. Hybrid Approaches: The potential adoption of hybrid technologies that leverage both TFT LCDs and emerging technologies like OLED could lead to better performance across various applications[14].
TFT LCD technology has revolutionized how we interact with visual content across various devices. Its ability to deliver high-quality images with fast response times makes it a preferred choice for many applications. As technology continues to advance, we can expect further improvements in display quality and efficiency that will enhance our digital experiences across industries.
TFT LCD displays typically have a lifespan ranging from 30,000 to 60,000 hours depending on usage conditions and quality.
Yes, many TFT LCDs are designed with high brightness levels and anti-glare coatings suitable for outdoor environments.
Absolutely! TFT LCDs have fast response times which make them ideal for gaming applications where quick image transitions are essential.
You can connect a TFT LCD to an Arduino using SPI or parallel communication protocols depending on your display model. Libraries such as Adafruit's GFX library can simplify this process.
Active matrix displays (like TFT) have individual transistors controlling each pixel for better performance; passive matrix displays use fewer transistors resulting in slower response times and poorer image quality.
