Liquid Crystal Displays (LCDs) are a cornerstone of modern display technology, widely used in everything from televisions and computer monitors to smartphones and digital watches. The term "liquid crystal" refers to a state of matter that has properties between those of liquids and solid crystals. This unique characteristic allows liquid crystals to manipulate light in ways that are essential for creating images on LCD screens.
Liquid crystals are organic compounds that can flow like a liquid but have a degree of molecular order that gives them properties similar to solids. This dual nature enables them to respond to electric fields, which is crucial for their function in displays.
- Types of Liquid Crystals: The most common type used in LCDs is the *nematic liquid crystal*, which has molecules that are aligned in a parallel fashion but can still flow. When an electric field is applied, these molecules can twist, affecting how light passes through them.
- Other Types: Besides nematic liquid crystals, there are also *smectic* and *cholesteric* liquid crystals, each with distinct properties and applications. Smectic liquid crystals have layered structures, while cholesteric liquid crystals can reflect certain wavelengths of light, leading to color effects.

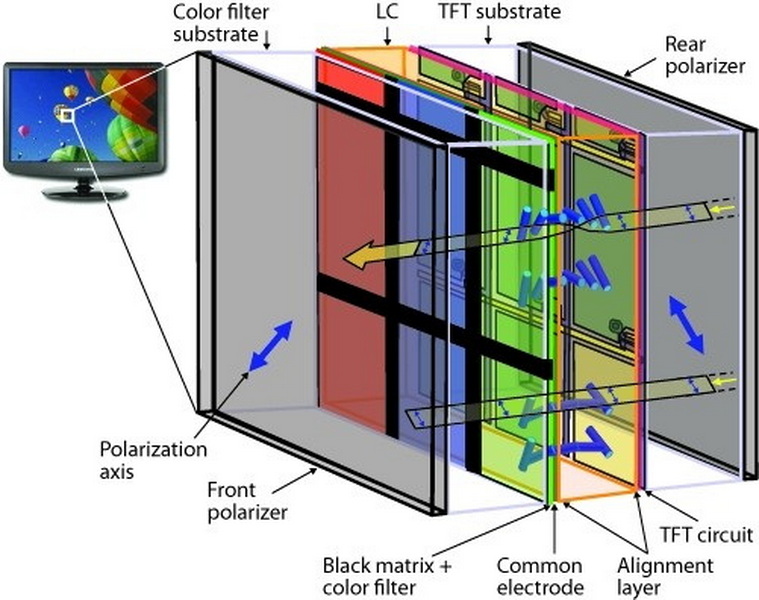

The fundamental operation of an LCD relies on several key components:
1. Backlight: Since liquid crystals do not emit light themselves, a backlight is necessary. This is typically provided by LEDs or fluorescent lamps.

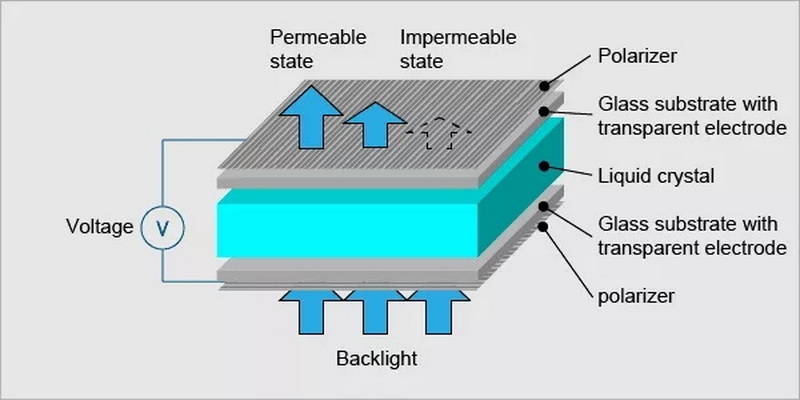

2. Polarizing Filters: There are two polarizing filters positioned at right angles to each other. The first filter allows light waves of a certain orientation to pass through, while the second filter blocks those waves unless they have been altered by the liquid crystals.
3. Liquid Crystal Layer: Sandwiched between the polarizing filters is the liquid crystal layer. When voltage is applied, the orientation of the liquid crystals changes, allowing varying amounts of light to pass through the second filter.
4. Electrodes: Transparent electrodes made from materials like indium tin oxide (ITO) apply the electric field necessary to control the orientation of the liquid crystals.
5. Alignment Layers: These layers help establish the initial orientation of the liquid crystals before any voltage is applied, ensuring consistent performance across the display.
When an LCD is powered on:
- Light from the backlight passes through the first polarizing filter.
- As it reaches the liquid crystal layer, the orientation of the liquid crystals determines how much light can pass through to the second filter.
- If no voltage is applied, the liquid crystals allow light to pass through, creating a bright pixel. When voltage is applied, the crystals twist and block light, resulting in a dark pixel.
This ability to control light at each pixel allows for the creation of images on the screen.
LCDs offer several advantages over older display technologies such as Cathode Ray Tube (CRT) displays:
- Thin and Lightweight: Their flat-panel design makes them easy to mount and transport.
- Energy Efficient: LCDs consume less power than CRTs and other older technologies.
- High Resolution: They can produce sharp images with high resolutions, making them suitable for various applications.
- No Burn-in Issues: Unlike CRTs, LCDs do not suffer from burn-in effects where static images can permanently imprint on the screen.
- Minimal Heat Production: Due to lower power consumption, LCDs produce less heat compared to other display technologies.
Despite their many advantages, LCDs also have some drawbacks:
- Limited Viewing Angles: Some older models may suffer from poor viewing angles where color and brightness degrade when viewed from off-angles.
- Backlight Bleeding: In some cases, uneven backlighting can cause certain areas of the screen to appear brighter than others.
- Lower Contrast Ratios: Compared to OLED displays, LCDs often have lower contrast ratios due to their reliance on backlighting technology.
- Response Time Issues: Although improved over time, some LCDs may still experience motion blur during fast-paced scenes or gaming.
LCDs are used in a wide range of devices, including:
- Televisions
- Computer Monitors
- Smartphones
- Digital Cameras
- Instrument Panels
In addition to these common applications, liquid crystal technology has expanded into innovative areas such as smart windows and augmented reality displays.
Smart windows utilize liquid crystal technology to switch between transparent and opaque states based on electrical input. This application enhances energy efficiency in buildings by controlling sunlight penetration and privacy levels.
In AR devices, high-resolution LCD screens provide users with immersive experiences by overlaying digital information onto real-world views. These displays require rapid refresh rates and low latency for optimal performance.
While LCD technology has dominated the market for many years, newer technologies such as Organic Light Emitting Diodes (OLED) are beginning to replace it due to their superior color reproduction and contrast ratios. However, LCDs remain popular due to their cost-effectiveness and widespread availability.
1. Higher Resolutions: As 4K and 8K content becomes more prevalent, future LCD displays will increase their resolution capabilities.
2. Interactive Features: Future models will incorporate touch controls and gesture recognition for enhanced user interaction.
3. Sustainability Efforts: Manufacturers are focusing on energy-efficient designs and recyclable materials to minimize environmental impact.
4. Flexible Displays: Advances in materials science may lead to thinner and more flexible displays suitable for wearable technology and innovative product designs.
5. Enhanced Performance: Ongoing research aims at improving refresh rates and reducing response times for gaming and high-speed video applications.
In summary, liquid crystals play a vital role in LCD technology by enabling precise control over light transmission. This capability allows for high-quality images across various devices that have become integral parts of our daily lives. As technology continues to evolve with trends toward higher resolutions, interactivity, and sustainability efforts, understanding these fundamental principles will help us appreciate both current and future display innovations.
Liquid crystals are substances that exhibit properties between liquids and solid crystals, allowing them to flow while maintaining some degree of molecular order.
LCD screens work by manipulating light with liquid crystals sandwiched between polarizing filters; when voltage is applied, it changes how light passes through these layers, forming images.
The main components include a backlight, polarizing filters, a liquid crystal layer, electrodes that apply electric fields to control light passage, and alignment layers that ensure consistent performance.
LCDs are thinner, lighter, more energy-efficient, provide higher resolutions, and do not suffer from burn-in issues like CRTs.
While they offer many benefits, LCDs can have restricted viewing angles and may not produce as vibrant colors as newer technologies like OLED.
