Liquid Crystal Display (LCD) technology is ubiquitous in modern electronic devices, from smartphones and computer monitors to televisions and digital instruments. One of the key features that make LCDs so versatile and widely used is their ability to display vibrant colors. This article provides a comprehensive explanation of what LCD display color is, how it is produced, and the technology behind it. We will also discuss color filters, backlighting, color temperature, and the advantages and challenges of LCD color displays.
An LCD, or Liquid Crystal Display, is a flat-panel display technology that uses liquid crystals to control the passage of light and create images. Unlike older cathode ray tube (CRT) displays, LCDs manipulate light rather than emitting it directly. The liquid crystals themselves do not emit light; they act as light modulators that control how much light passes through each pixel on the screen.
Color on an LCD is produced by combining three primary colors of light: red, green, and blue (RGB). Each pixel on an LCD screen is subdivided into three subpixels, each with a color filter corresponding to one of these primary colors. By varying the intensity of light passing through each subpixel, the display can produce a wide range of colors through additive color mixing.

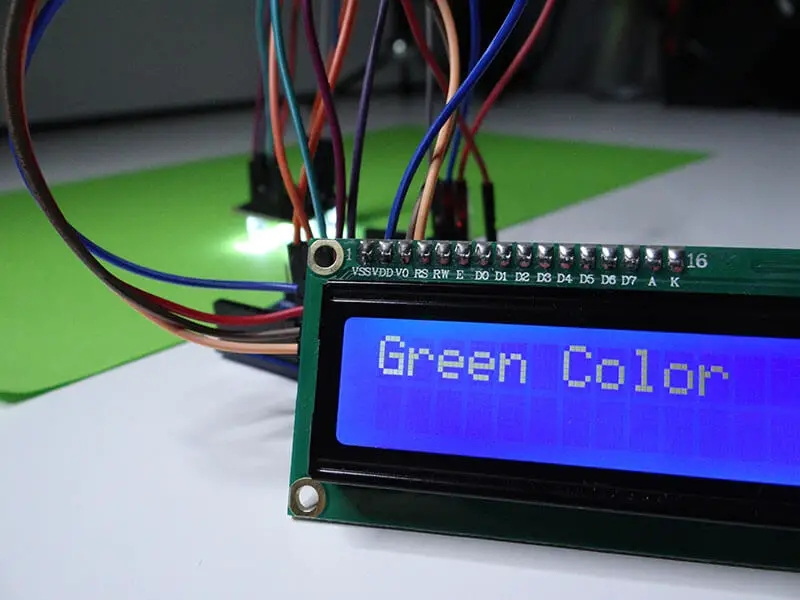

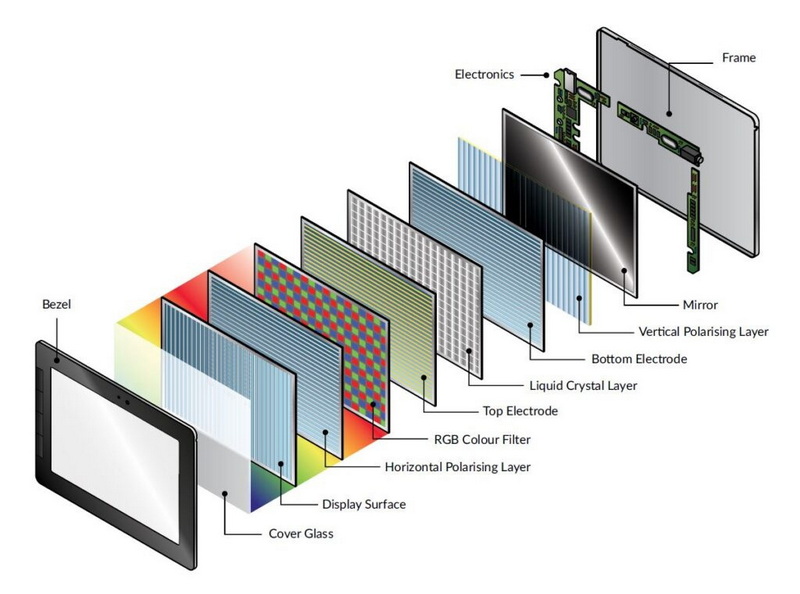

The process involves several key components:
- Backlight: Provides white light that illuminates the screen from behind.
- Liquid Crystal Layer: Controls the amount of light passing through each pixel by twisting or aligning under applied voltage.
- Polarizing Filters: Positioned before and after the liquid crystal layer to control light polarization.
- Color Filters: Positioned in front of the backlight to filter white light into red, green, and blue components.
When the backlight emits white light, it passes through the liquid crystal layer, which modulates the light's intensity based on electrical signals. The light then passes through the color filters, which allow only the desired color components to pass through each subpixel, creating the full-color image seen on the screen.
The color filter is a crucial component in LCD technology for producing color images. It consists of layers that filter the white backlight into red, green, and blue light. These filters are made using photolithography and contain finely ground pigments that determine the color purity and brightness of the display.
The black matrix, a black grid separating the subpixels, enhances contrast by preventing light leakage between adjacent pixels. This matrix was traditionally made from chromium but now often uses carbon-based pigments for environmental reasons.
Backlighting is essential for LCDs because liquid crystals do not emit light themselves. The backlight provides the white light source that the color filters then modify. Different backlighting technologies affect color quality and brightness:
- Cold Cathode Fluorescent Lamps (CCFL): Previously common but largely replaced by LEDs.
- White LED (WLED): The most common backlight today, offering energy efficiency and good brightness.
- RGB LED: Uses separate red, green, and blue LEDs to provide a wider color gamut and more vivid colors, often used in high-end displays.
- Mini-LED: Advanced backlighting with thousands of tiny LEDs for better local dimming and contrast.
Color temperature refers to the hue of the white light emitted by the display, measured in Kelvin (K). It affects the overall color balance of the screen. Lower color temperatures (around 3000K) give a reddish or warm tone, while higher temperatures (up to 9300K) produce a bluish or cool tone.
Most LCD monitors allow users to adjust color temperature to suit different viewing preferences or tasks. The standard color temperature for general use and sRGB color space is approximately 6500K, which balances colors to appear natural to the human eye.
Modern color LCDs typically use an active matrix structure with thin-film transistors (TFTs) controlling individual pixels. Each pixel's subpixels are controlled independently, allowing for precise color control, faster response times, and sharper images. This technology is essential for high-resolution color displays such as computer monitors and televisions.
Besides the standard RGB filter method, some LCDs use field sequential color (FSC) technology, which rapidly cycles red, green, and blue backlights in synchronization with the liquid crystal panel. This can improve light transmission efficiency and reduce power consumption but requires very high refresh rates.
- Thin and Lightweight: LCDs are much thinner and lighter than CRTs.
- Energy Efficient: They consume less power, especially with LED backlighting.
- No Flicker: Unlike CRTs, LCDs provide stable images without flicker.
- Better Image Quality: Higher resolution and better color reproduction.
- Adjustable Color Settings: Users can calibrate color temperature, brightness, and contrast for optimal viewing.
- Color Gamut Limitations: LCDs cannot reproduce all colors visible to the human eye. The color gamut depends on the quality of the color filters and backlighting.
- Viewing Angles: Color and brightness can shift when viewed from sharp angles.
- Response Time: Some LCDs may have slower response times, causing motion blur in fast-moving images.
- Backlight Bleed: Uneven backlighting can cause light leakage, affecting black levels and contrast.
LCD display color is the result of a sophisticated interplay between backlighting, liquid crystals, polarizing filters, and color filters. By controlling how light passes through each pixel's red, green, and blue subpixels, LCDs can produce millions of colors to create vivid, high-quality images. Advances in backlight technology, such as RGB and Mini-LEDs, continue to improve color accuracy and brightness, while user-adjustable color temperature settings allow customization for different viewing needs. Despite some limitations in color gamut and viewing angles, LCD remains a dominant and evolving technology in the display industry.
LCD displays use red, green, and blue (RGB) as the primary colors. Each pixel is divided into three subpixels with these colors, which combine to create the full spectrum of colors visible on the screen.
Color filters are layers that sit in front of the backlight and allow only specific colors of light (red, green, or blue) to pass through each subpixel. They filter the white backlight into the desired colors to produce color images.
Since liquid crystals do not emit light, backlighting provides the necessary illumination. The backlight's white light is filtered through the liquid crystals and color filters to create the colors seen on the display.
Color temperature measures the hue of the white light on the display, expressed in Kelvin. Lower temperatures produce warmer (redder) tones, while higher temperatures produce cooler (bluer) tones. Adjusting color temperature changes the overall color balance of the screen.
Technologies like RGB LED backlighting, Mini-LED backlighting, and active matrix TFT control improve color gamut, brightness, contrast, and response times, enhancing the overall color quality of LCD displays.
