Alphanumeric LCD displays are a foundational component in modern electronics, providing a simple, effective, and highly versatile means of displaying text and basic symbols in a wide variety of devices. This comprehensive guide explores their technology, features, applications, advantages, and integration methods, enriched with visual examples and practical insights for engineers, hobbyists, and product designers.
Alphanumeric LCD displays, also known as character LCDs, are modules designed to show letters, numbers, and basic punctuation. Unlike graphical LCDs, which can render complex images, alphanumeric displays are optimized for presenting readable text in a fixed grid format, making them ideal for status messages, menus, and data readouts in electronic devices.
These displays are found everywhere, from kitchen appliances to industrial equipment, and even in educational kits for learning electronics. Their ability to provide clear, direct information in a compact and energy-efficient format makes them a staple in both consumer and industrial products.

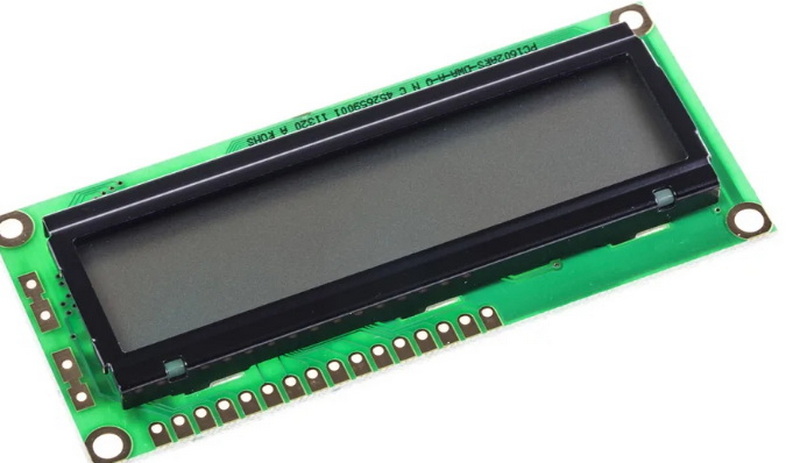

An alphanumeric LCD display operates by manipulating liquid crystals to control the passage of light through a matrix of segments or pixels. Each character position on the display is typically a 5x8 or 5x7 dot matrix, allowing it to render a wide range of characters by selectively activating the appropriate dots.
A built-in controller chip, such as the popular HD44780, interprets data sent from a microcontroller or processor, referencing an internal character map to display the correct symbol. This architecture vastly simplifies programming compared to graphic LCDs, where each pixel must be individually addressed.
When powered, the display's backlight illuminates the liquid crystal layer. The controller receives instructions to display certain characters at specific positions. The liquid crystals twist in response to electrical signals, either blocking or allowing light to pass through, thus forming visible characters.
Alphanumeric LCDs are available in a variety of standard configurations, defined by the number of characters per row and the number of rows. Common formats include:
- 16x2: 16 characters per row, 2 rows (total 32 characters)

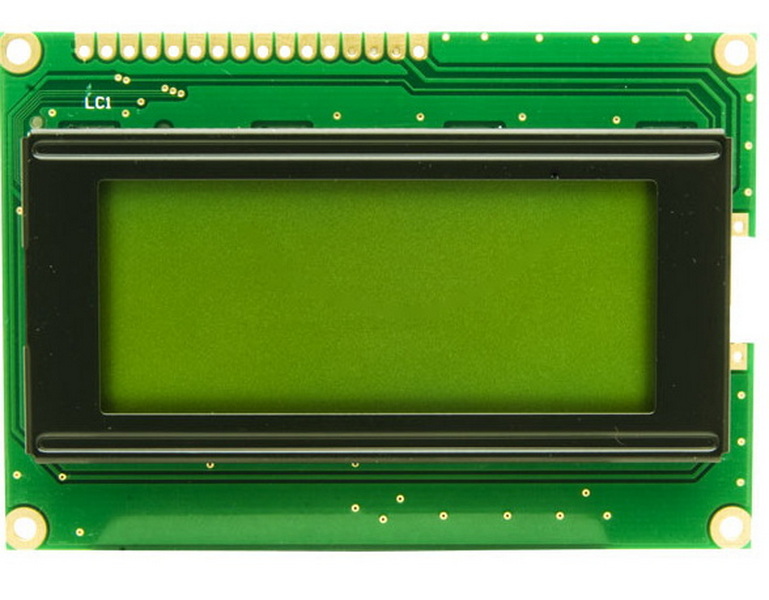

- 20x4: 20 characters per row, 4 rows (total 80 characters)
- 8x2, 16x1, 40x2, 40x4: Other popular sizes for specific use cases
Each character can represent a letter (uppercase or lowercase), number, or punctuation mark. The controller's character table typically supports up to 255 unique characters, with options for different language sets.
These displays often include adjustable contrast and backlight settings, making them suitable for various lighting conditions. The modularity and standardization of these displays mean they can be swapped or upgraded easily in many designs.
Alphanumeric LCDs can be categorized by several criteria:
- Color and Backlighting: Early models used yellow-green or grey backgrounds, but modern versions offer blue, white, and RGB LED backlights for enhanced readability and aesthetic appeal.
- Fluid Types: The display's contrast and viewing angle depend on the liquid crystal fluid used:
- TN (Twisted Nematic): Low cost, fast response, moderate contrast
- STN (Super Twisted Nematic): Improved contrast, broader color options
- FSTN (Film-compensated STN): Highest contrast, black-and-white appearance, higher cost.
- Interface Options: Standard parallel interfaces, I2C, and SPI are available, with I2C and SPI reducing the number of required microcontroller pins.
Some displays are designed for rugged environments, with extended temperature ranges and improved resistance to vibration or moisture. Others are ultra-thin for portable devices, or feature sunlight-readable panels for outdoor applications.
A typical 16x2 alphanumeric LCD module includes:
- Display Panel: The visible area where characters are shown.
- Controller Chip: Manages character rendering and communication.
- Pin Header: Usually 16 pins for power, data, and control signals.
- Backlight LEDs: For improved visibility in various lighting conditions.
Pinout Example (16x2 LCD):
| Pin | Function |
|---|---|
| 1 | Ground (GND) |
| 2 | VCC (+5V) |
| 3 | Contrast (V0) |
| 4 | Register Select |
| 5 | Read/Write |
| 6 | Enable |
| 7-14 | Data (D0-D7) |
| 15 | Backlight + |
| 16 | Backlight - |
The contrast pin allows users to adjust the display's readability, while the backlight pins control illumination. Some modules feature additional pins for advanced functions, such as controlling multiple backlight colors or enabling sleep modes for power savings.
Alphanumeric LCD displays are ubiquitous in both consumer and industrial electronics, including:
- Home appliances (microwaves, washing machines)
- Measurement instruments (multimeters, oscilloscopes)
- Embedded systems (Arduino, Raspberry Pi projects)
- Industrial control panels
- Medical devices
- Clocks, timers, and calculators
- Security systems and access panels
Their reliability, low power consumption, and ease of integration make them a preferred choice for displaying essential information. In industrial settings, they are used for real-time status updates and error messages. In consumer products, they help users navigate menus, set timers, or monitor device status.
Advantages:
- Simple to interface and program
- Low cost and widely available
- Standardized sizes and pinouts
- Built-in character maps for multiple languages
- Low power consumption, suitable for battery-powered devices
- Readable in various lighting conditions with backlighting
- Robust and reliable for long-term use
Limitations:
- Cannot display complex graphics or animations
- Fixed character grid limits layout flexibility
- Limited custom character support (usually up to 8 user-defined symbols at a time)
- Lower contrast and viewing angle compared to OLEDs or TFT displays
- Not suitable for applications requiring high-resolution visuals
Despite these limitations, alphanumeric LCDs excel at their core function: delivering clear, concise textual information in a highly efficient manner.
Connecting an alphanumeric LCD to a microcontroller is straightforward, especially with industry-standard modules. Most displays use a parallel interface, but I2C and SPI adapters are available to minimize pin usage.
Basic Steps:
1. Wiring: Connect power, ground, data, and control pins. For I2C modules, only SDA (data) and SCL (clock) lines are needed, plus power and ground.
2. Programming: Use libraries (such as LiquidCrystal for Arduino) to send commands and data to the display.
3. Initialization: Set display mode (number of lines, character size), clear the screen, and set cursor position.
4. Displaying Text: Send characters or strings to be rendered at the current cursor location.
Most microcontroller development platforms provide robust libraries for LCD interfacing, making it easy to add text output to any project. Advanced users can take direct control of the display's registers for custom features or performance optimization.
Many alphanumeric LCD modules support:
- Custom Characters: Up to 8 user-defined symbols can be created and displayed, useful for icons or foreign language glyphs.
- Backlight Control: Adjust brightness or color for different environments.
- Multiple Language Sets: Select character tables for English, French, German, etc.
- Special Modes: Blinking cursor, scrolling text, and display shifting.
Custom characters are particularly useful for adding application-specific icons, such as battery indicators, arrows, or custom logos. Some advanced modules allow for dynamic switching between character sets or even limited animation effects by rapidly updating custom characters.
When designing a product or project with an alphanumeric LCD, consider the following best practices:
- Readability: Choose a display size and character size appropriate for the viewing distance. Ensure sufficient contrast and backlight brightness.
- User Interface: Organize information logically. Use clear labels and avoid overcrowding the display.
- Power Management: Dim or turn off the backlight when not needed to conserve energy, especially in battery-powered devices.
- Environmental Protection: For outdoor or industrial use, select displays with appropriate sealing, temperature range, and UV resistance.
- Accessibility: Use high-contrast color schemes and avoid relying solely on color to convey information.
Careful planning during the design phase ensures the display enhances the user experience and meets the application's requirements.
Alphanumeric LCDs are generally robust, but issues can arise during installation or operation. Here are some common troubleshooting tips:
- No Display: Check power connections, contrast adjustment, and data wiring.
- Garbled Characters: Verify data timing and initialization sequence in your code.
- Faint or Missing Characters: Adjust the contrast potentiometer or check backlight connections.
- Intermittent Operation: Inspect for loose wires or poor solder joints.
- Environmental Issues: For displays exposed to moisture or dust, use protective enclosures and select modules rated for harsh conditions.
Routine inspection and careful handling during installation can prevent most problems. For long-term reliability, avoid excessive mechanical stress and ensure the display operates within its specified voltage and temperature ranges.
Alphanumeric LCDs come in a variety of shapes, sizes, and colors. Here are some common examples:

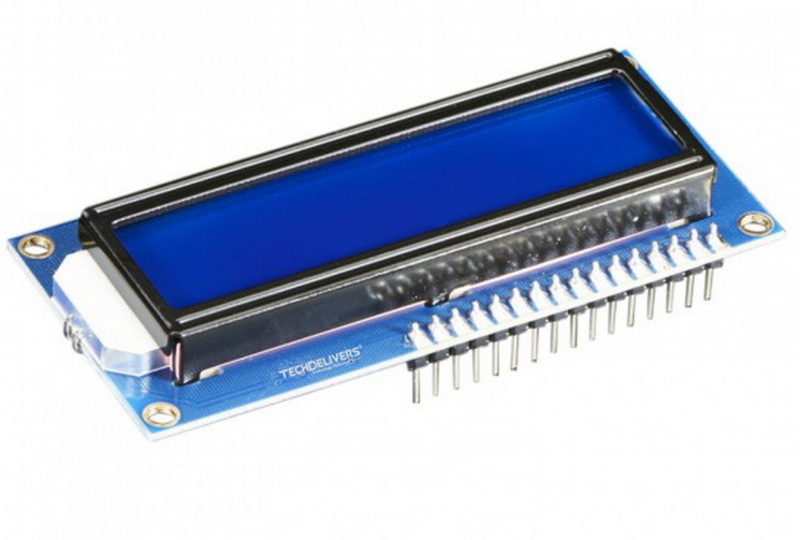

- Standard 16x2 LCD with blue backlight, commonly used in hobbyist projects.
- Pinout diagram for a typical 16x2 LCD module, showing the arrangement of power, data, and control pins.
- Alphanumeric LCD with RGB LED backlighting, allowing for customizable color schemes to match device aesthetics.
- Custom-built large alphanumeric display for visibility across a room, often used in industrial or public information systems.
These visual examples demonstrate the flexibility and adaptability of alphanumeric LCDs in diverse applications.
Alphanumeric LCD displays remain a vital technology for presenting text and data in countless electronic devices. Their simplicity, reliability, and flexibility make them an enduring choice for both hobbyists and professionals. Whether you are building a DIY project, designing an industrial control panel, or developing a consumer appliance, understanding the capabilities and integration methods of alphanumeric LCDs will empower you to create clear, user-friendly interfaces.
As technology continues to evolve, alphanumeric LCDs maintain their relevance by offering a cost-effective, energy-efficient, and easy-to-use solution for text display. Their standardized interfaces and robust design ensure they will continue to play a key role in electronic products for years to come.
An alphanumeric LCD is designed to display fixed-size characters (letters, numbers, symbols) in a grid, using a built-in character map. A graphic LCD, on the other hand, allows control of individual pixels, enabling the display of images, custom fonts, and complex graphics. Alphanumeric LCDs are simpler and easier to program, while graphic LCDs offer greater flexibility but require more complex control logic.
Consider the following factors:
- Number of characters and rows required
- Display size and physical dimensions
- Backlight color and brightness needs
- Interface type (parallel, I2C, SPI)
- Power consumption
- Environmental requirements (temperature range, humidity)
- Budget and availability
Yes, most alphanumeric LCDs support up to 8 custom characters, which can be programmed to display icons, special symbols, or foreign language glyphs. These are defined by specifying the pixel pattern for each custom character and storing them in the display's memory.
Most standard alphanumeric LCD modules operate at 5V DC and consume minimal current, especially when the backlight is off or dimmed. Power consumption increases with brighter backlighting and larger display sizes, but they remain highly efficient compared to other display technologies.
For Arduino, use the LiquidCrystal library and connect the display's pins to the designated digital I/O pins. For Raspberry Pi, use libraries like RPLCD or wiringPi, and connect via GPIO pins. For both platforms, I2C adapters can simplify wiring by reducing the number of required connections.
