Thin-Film Transistor Liquid Crystal Display (TFT LCD) technology is at the heart of modern digital screens, powering everything from smartphones and laptops to industrial equipment and automotive dashboards. But what exactly is a TFT LCD display, how does it work, and why has it become so ubiquitous in our daily lives? This article explores the structure, working principles, advantages, limitations, and applications of TFT LCDs, with detailed explanations, diagrams, and insights to help you grasp the essentials and nuances of this transformative display technology.

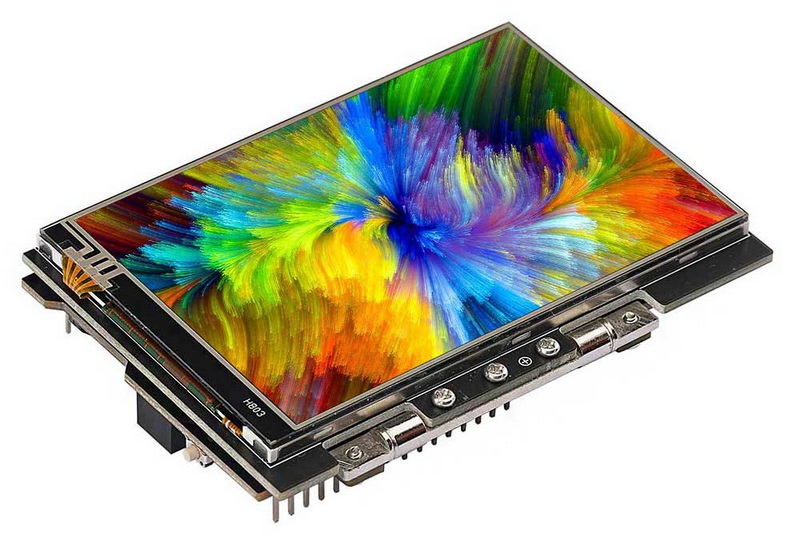

A TFT LCD display is a type of flat-panel display that uses thin-film transistor (TFT) technology to improve the image quality of liquid crystal displays (LCDs). Each pixel on a TFT LCD is controlled by its own dedicated transistor, allowing for precise control of brightness and color, resulting in vivid images and fast response times. This technology is known as active matrix LCD, distinguishing it from older passive matrix designs.
A typical TFT LCD display is a sophisticated sandwich of multiple layers, each playing a unique role in image formation. Understanding these layers is crucial to appreciating how TFT LCDs work.
- Provides the illumination for the display (usually white LEDs).
- Sits at the rear of the display stack and is essential for visibility, as the liquid crystals themselves do not emit light.
- Two polarizers (front and back) control the direction of light passing through the liquid crystal layer.
- These filters ensure that only light with a specific orientation passes through, which is key for light modulation.
- Contains rod-shaped molecules that can align in response to electric fields.
- The orientation of these molecules determines how much light passes through each pixel.
- Liquid crystals can twist or untwist, affecting the polarization of light and thus its passage through the second polarizer.
- Each pixel has its own transistor and capacitor.
- The transistor acts as a switch, controlling the voltage applied to the pixel.
- This layer is fabricated using semiconductor materials deposited onto glass substrates.
- Red, green, and blue (RGB) filters overlay each pixel.
- By combining these colors at varying intensities, the display produces a full spectrum of colors.
- Each pixel is typically divided into three subpixels (one for each color).
- Protects the display and may include a touch-sensitive layer for user interaction.
- The touch panel can be resistive or capacitive, depending on the application.
The operation of a TFT LCD is a marvel of modern engineering, combining optics, electronics, and materials science.
1. Backlight Illumination
The backlight emits white light, which passes through the first polarizer.
2. Pixel Activation
Each pixel is controlled by its own TFT switch. When a voltage is applied to the transistor, it changes the alignment of the liquid crystal molecules in that pixel.
3. Light Modulation
The alignment of the liquid crystals determines how much light can pass through. By twisting or untwisting, the crystals modulate the intensity of light for each pixel.
4. Color Filtering
The modulated light passes through the RGB color filters, creating colored subpixels. By varying the intensity of red, green, and blue, the display can show millions of colors.
5. Image Formation
The combination of all pixels and subpixels forms the final image on the screen.
Each pixel is addressed individually through a matrix of row and column lines. The TFT at each intersection acts as a switch, allowing precise control over each pixel's voltage. This active matrix design is what enables the high refresh rates and image clarity associated with TFT LCDs.
TFT LCDs refresh the image many times per second, typically at rates of 60 Hz or higher. The response time refers to how quickly a pixel can change from one state to another, which is crucial for reducing motion blur in fast-moving images.
TFT LCD technology offers several compelling advantages that have made it the dominant choice for modern displays.
TFT LCDs provide sharp, vibrant images with high contrast and accurate color reproduction. The use of dedicated transistors for each pixel allows for precise control, resulting in crisp text and detailed graphics.
The active matrix design allows for quick pixel switching, reducing motion blur and ghosting. This makes TFT LCDs suitable for video playback, gaming, and other applications requiring smooth motion.
Advanced variants like IPS (In-Plane Switching) further enhance viewing angles, making the display clear from almost any direction. This is particularly important for devices like televisions and monitors that are viewed by multiple people from different positions.
TFT LCDs consume less power than older CRT displays, making them ideal for portable devices. The backlight can be adjusted for brightness, further optimizing power consumption.
Available in a wide range of sizes and resolutions, from tiny smartwatch screens to large television panels. TFT LCDs can be found in both consumer and industrial products.
Many TFT LCDs can integrate resistive or capacitive touch panels for interactive applications. This has enabled the proliferation of touch-based interfaces in smartphones, tablets, and kiosks.
Infographic: Advantages of TFT LCD Displays
- High Resolution
- Bright Colors
- Fast Refresh Rates
- Touch Support
- Thin and Lightweight
- Low Power Consumption
TFT LCDs are everywhere in modern life. Their versatility and performance make them suitable for a vast array of applications.
Smartphones, tablets, laptops, smartwatches, and televisions all rely on TFT LCDs for their primary displays. The technology's high resolution and color accuracy make it ideal for multimedia consumption and productivity.
Control panels, monitoring systems, and machinery interfaces utilize TFT LCDs for their durability and clarity. These displays can be customized for specific industrial requirements, including ruggedized designs for harsh environments.
Dashboard instruments, infotainment systems, and navigation screens in modern vehicles use TFT LCDs for their readability and ability to display dynamic information. High-brightness and wide-temperature-range models are common in automotive applications.
Diagnostic imaging, patient monitoring, and portable medical equipment benefit from the precise image quality and reliability of TFT LCDs. These displays are often designed to meet strict regulatory standards for medical use.
Advertising screens, information kiosks, and public transport displays use large-format TFT LCDs for their visibility and ability to display changing content. These displays are engineered for long-term operation and high brightness.
TFT LCDs are increasingly found in wearable devices, smart home products, and even virtual reality headsets. Their adaptability and ongoing improvements in performance continue to open new application areas.
How does TFT LCD compare to other popular display technologies like passive-matrix LCD and OLED? Here's a quick comparison:
| Feature | TFT LCD (Active Matrix) | Passive Matrix LCD | OLED |
|---|---|---|---|
| Color Vibrancy | High | Low | Very High |
| Response Time | Fast | Slow | Very Fast |
| Power Consumption | Moderate | Low | Varies (low black) |
| Viewing Angle | Wide (with IPS) | Narrow | Very Wide |
| Contrast Ratio | Good | Poor | Excellent |
| Sunlight Readability | Moderate (with mods) | Good | Good (bright) |
| Cost | Moderate | Low | High |
| Lifespan | Long | Long | Shorter |
TFT LCDs strike a balance between performance, cost, and longevity. OLED displays offer superior contrast and flexibility but are more expensive and can suffer from burn-in. Passive-matrix LCDs are cheaper but lack the image quality and speed of TFT LCDs.
While TFT LCDs are highly capable, they do have some drawbacks:
Because TFT LCDs rely on a backlight, achieving true blacks is difficult. Even when a pixel is "off," some light may leak through, reducing contrast compared to self-emissive displays like OLED.
Some TFTs, especially those using TN (Twisted Nematic) panels, suffer from color and contrast shifts at extreme angles. Newer technologies like IPS and VA (Vertical Alignment) address this issue but may increase cost.
TFT LCDs require constant backlighting, which can drain batteries faster than emissive technologies like OLED, especially when displaying dark images.
Standard TFT LCDs can be hard to read in direct sunlight unless equipped with high-brightness backlights or transflective enhancements. Specialized outdoor models are available but may be more expensive.
TFT LCDs are generally more expensive than passive-matrix LCDs, though prices have dropped significantly over time due to manufacturing improvements and economies of scale.
The manufacturing process for TFT LCDs involves chemicals and materials that must be carefully managed to minimize environmental impact. Recycling and disposal of old displays also present challenges.
TFT LCDs can be driven by various microcontrollers and computers, with interfaces including SPI, parallel, LVDS, and HDMI. Here's a basic outline of how to get started:
- SPI: Simple, low pin count, slower speed. Suitable for small, low-resolution displays.
- Parallel: Fast, but requires many pins. Common in medium-sized displays.
- HDMI/LVDS: Used for high-end, high-resolution displays, such as monitors and TVs.

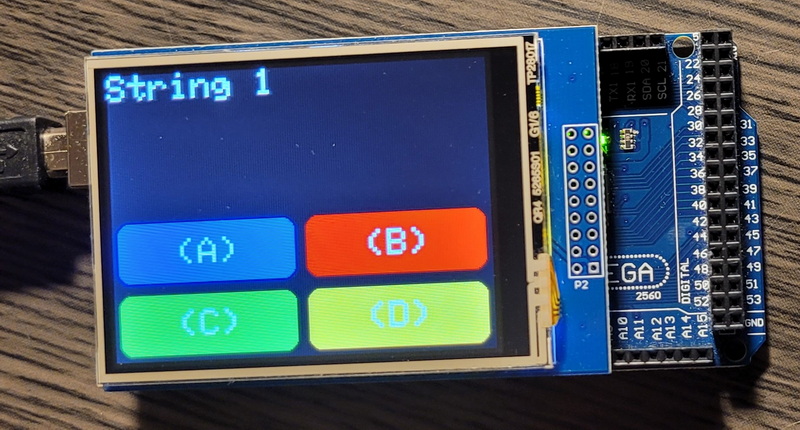

Microcontrollers like Arduino, STM32, or Raspberry Pi can drive small TFT LCDs. For larger or more complex displays, dedicated display driver ICs or graphics controllers are used. Many manufacturers provide libraries and sample code to simplify development.
Images must be prepared in the correct format (such as BMP or RAW) and may be stored on an SD card or loaded directly from memory. The controller sends pixel data to the display, updating the image as needed.
Resistive or capacitive touch panels can be integrated for interactive projects. Touch data is read by the controller and used to trigger actions or navigate menus.
For optimal performance, displays may require calibration for color accuracy, touch sensitivity, and brightness. This is especially important in professional and industrial applications.
TFT LCD technology continues to evolve, with ongoing research and development aimed at overcoming its limitations and expanding its capabilities.
Modern TFT LCDs achieve extremely high pixel densities, enabling ultra-sharp displays for smartphones, tablets, and VR headsets. 4K and even 8K resolutions are now available in consumer products.
Advances in materials and manufacturing have led to flexible and curved TFT LCDs, opening new possibilities for wearable devices, automotive interiors, and innovative product designs.
Technologies like mini-LED and quantum dot backlighting enhance brightness, color accuracy, and contrast, bringing TFT LCDs closer to OLED performance in some respects.
Research into more efficient backlighting, adaptive brightness control, and new liquid crystal materials is reducing the power requirements of TFT LCDs, extending battery life in portable devices.
TFT LCDs are increasingly integrated with sensors, cameras, and advanced touch interfaces, enabling smarter and more interactive devices.
TFT LCD displays have revolutionized the way we interact with digital devices, offering a compelling combination of image quality, speed, versatility, and cost-effectiveness. Their unique structure—combining thin-film transistors, liquid crystals, and color filters—enables precise control over millions of pixels, resulting in vibrant, responsive screens suitable for everything from smartphones to industrial equipment. While they face competition from technologies like OLED, TFT LCDs continue to evolve, with innovations in brightness, touch capability, and energy efficiency ensuring their relevance for years to come. As new applications and form factors emerge, TFT LCDs are poised to remain a cornerstone of display technology for the foreseeable future.
TFT displays can show between 64,000 and 16 million colors, depending on the color depth and interface used. Most modern TFT LCDs support true color (24-bit), allowing for over 16 million distinct colors.
Yes, most TFT LCDs can display video, provided the interface and controller are fast enough to handle the data rate. This makes them suitable for multimedia devices, gaming, and video playback.
Common interfaces include SPI, parallel, LVDS, HDMI, and MIPI. The choice depends on speed, pin count, and application needs. High-resolution displays typically use LVDS, HDMI, or MIPI for faster data transfer.
No, but many models offer resistive or capacitive touch panels as options. Resistive is cheaper and supports single touch; capacitive is more responsive and supports multi-touch. The choice depends on the intended use and budget.
Standard TFT LCDs are not waterproof and can be damaged by moisture. Sunlight readability depends on backlight brightness or use of transflective technology; some models are designed for outdoor use with enhanced brightness and rugged enclosures.
