A laptop is an indispensable tool for modern life, serving as a gateway to work, study, entertainment, and communication. Among the various components that make up a Toshiba laptop, the LCD display cable is one of the most crucial yet vulnerable. When this cable breaks, it can lead to a host of frustrating issues that disrupt your workflow and daily routine. In this comprehensive guide, we will explore what happens when the LCD display cable in a Toshiba laptop breaks, how to recognize the symptoms, the steps for diagnosis and repair, preventative measures, and answers to common questions. By the end of this article, you will have a thorough understanding of this issue and how to address it effectively.
The LCD display cable, often referred to as the video flex cable or ribbon cable, is the essential conduit that connects your laptop's motherboard to the LCD screen. This cable transmits video signals and, in some models, also carries power for the display's backlight. Due to its location—running through the laptop's hinge—the cable is subject to constant bending and flexing every time you open or close the lid. Over time, this repeated motion can cause the cable to wear out, leading to various display problems.

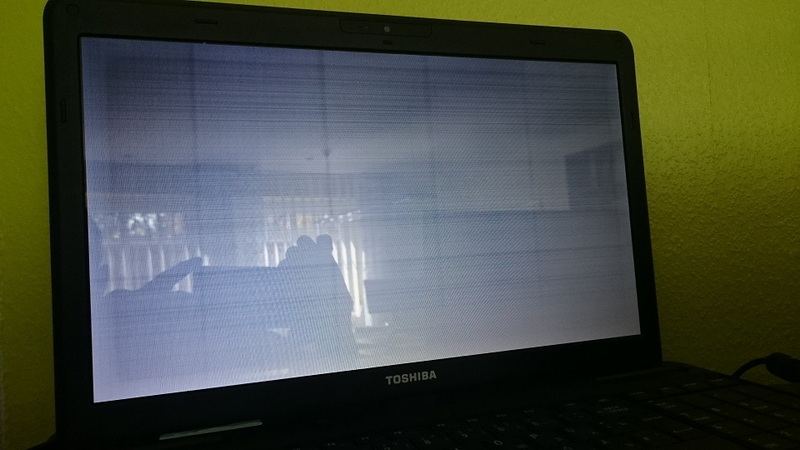

When the LCD display cable in your Toshiba laptop breaks or becomes damaged, several symptoms may manifest. Recognizing these early signs can help you address the issue before it worsens:

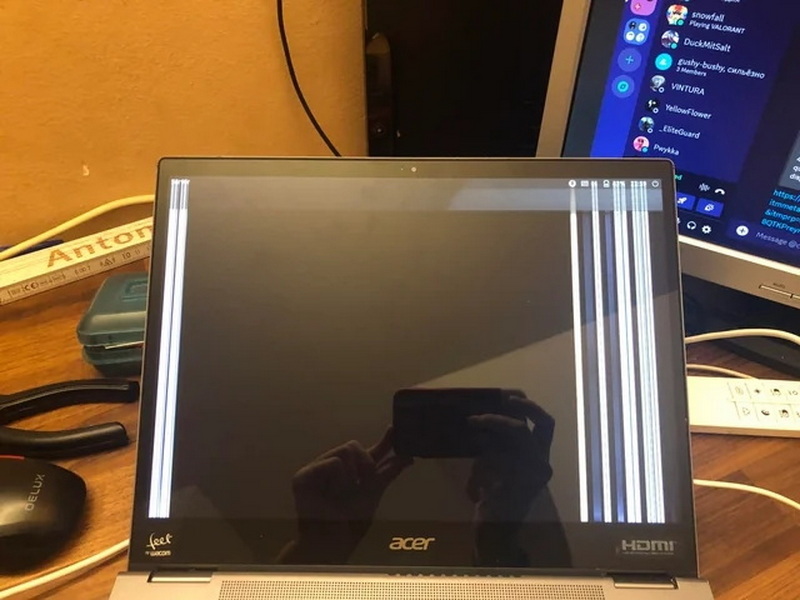

- Screen Flickering: The display may intermittently flash, show horizontal or vertical lines, or exhibit rapid changes in brightness.
- Distorted or Scrambled Images: The screen could display strange colors, static, or patterns that make it difficult to see the actual content.
- Blank or Black Screen: The laptop powers on, but the screen remains completely dark, even though you can hear the fan or see indicator lights.
- Display Works Only at Certain Angles: Adjusting the screen's position may temporarily restore the image, suggesting the cable is making intermittent contact.
- Ghosting or Fading: Portions of the display may appear dim, unresponsive, or show ghost images that linger after moving windows or changing content.
- Random Shutdowns or Freezes: In some cases, a shorted cable can cause the laptop to freeze or shut down unexpectedly.
These symptoms can range from mildly annoying to completely debilitating, depending on the extent of the cable damage.
Understanding why display cables break can help you prevent future issues. The most common reasons include:
- Mechanical Stress: The cable bends each time the laptop lid is opened or closed, causing the internal wires to weaken and eventually break.
- Manufacturing Defects: Poor cable routing or subpar materials can lead to premature failure.
- Accidental Drops or Impacts: Dropping the laptop or subjecting it to physical shocks can damage the cable or its connectors.
- Excessive Force: Forcing the lid open beyond its intended range can stretch or pinch the cable.
- Environmental Factors: Exposure to moisture, heat, or dust can accelerate cable deterioration.
By being mindful of these factors, you can extend the lifespan of your laptop's display cable.
Proper diagnosis is essential before attempting any repairs. Here are some steps you can take to determine if the display cable is the culprit:
Connect your Toshiba laptop to an external monitor using the appropriate port (HDMI, VGA, etc.). If the external display works perfectly while your laptop's screen remains problematic, the issue likely lies with the LCD cable or the screen itself, rather than the graphics card or motherboard.
Gently move the laptop lid back and forth. If the display flickers, changes, or temporarily returns to normal at certain angles, this is a strong indication that the cable is damaged or loose.
If you are comfortable with opening your laptop, carefully remove the bezel and inspect the cable for visible signs of wear, kinks, or loose connections. Sometimes, the cable may be partially disconnected from the motherboard or the LCD panel.
In rare cases, a shorted cable may produce faint crackling or buzzing sounds, indicating electrical arcing or poor contact.
If the screen remains black but you hear the startup chime or see the keyboard lights, the laptop is likely functioning, but the display signal is not reaching the screen.
When the LCD display cable breaks, a variety of issues can occur, ranging from minor annoyances to complete loss of functionality:
- Loss of Video Signal: The most immediate effect is the loss of video transmission to the screen, resulting in a black or blank display.
- Intermittent Connection: The display may work sporadically, depending on the position of the lid or the pressure applied to the hinge area.
- Distorted Images: Broken or frayed wires within the cable can cause corrupted signals, leading to strange colors, lines, or patterns.
- Permanent Damage: In rare cases, a short circuit in the cable can damage the LCD panel or even the motherboard, making repairs more costly.
- Increased Risk of Further Damage: Continuing to use the laptop with a broken cable can exacerbate the problem, potentially affecting other components.
Replacing the display cable in a Toshiba laptop is a delicate process that requires patience and attention to detail. Here's a comprehensive guide to help you through the process:
Before you begin, assemble the necessary tools and parts:
- Small Phillips screwdriver
- Plastic prying tool or guitar pick
- Replacement LCD cable specific to your Toshiba model
- Anti-static wrist strap (recommended)
- Small containers for screws
- Shut down the laptop completely and disconnect it from any power source.
- Remove the battery to prevent accidental short circuits.
- Unscrew the back panel and, if necessary, remove the keyboard to access the internal components.
- Carefully detach the bezel around the screen using a plastic prying tool to avoid damaging the plastic clips.
- Identify the LCD cable running from the motherboard through the hinge to the back of the LCD panel.
- Gently unplug the cable from both the motherboard and the LCD panel. Be careful not to force the connectors, as they are delicate.
- Remove any tape or adhesive securing the cable in place.
- Route the new cable through the hinge, following the original path to prevent pinching or kinking.
- Connect the cable securely to both the motherboard and the LCD panel.
- Use tape or adhesive to hold the cable in place if necessary, ensuring it does not interfere with the hinge movement.
- Carefully reattach the bezel, keyboard, and back panel.
- Insert the battery and power on the laptop.
- Test the display at various angles to ensure the new cable is functioning correctly and the issue is resolved.
- Do Not Force Connectors: Always use gentle pressure when connecting or disconnecting cables.
- Organize Screws: Use a magnetic mat or labeled containers to keep track of screws and prevent loss.
- Double-Check Cable Routing: Incorrect routing can lead to pinching or excessive bending, causing premature failure.
- Test Before Full Reassembly: Power on the laptop with the new cable connected before securing all panels to confirm the repair was successful.
- Work in a Clean, Static-Free Environment: Dust and static electricity can damage sensitive components.
While some wear and tear is inevitable, there are steps you can take to prolong the life of your display cable:
- Open and Close the Lid Gently: Avoid sudden or forceful movements that stress the cable.
- Do Not Overextend the Hinge: Only open the screen as far as designed by the manufacturer.
- Keep the Hinge Area Clean: Dust and debris can increase friction and wear on the cable.
- Avoid Unnecessary Lid Movement: Only close the laptop when necessary, and avoid carrying it by the screen.
- Store the Laptop Properly: Use a padded case and avoid placing heavy objects on top of the laptop.
If you are uncomfortable opening your laptop or the repair process seems too complex, it is wise to consult a professional technician. Some Toshiba models are particularly challenging to disassemble, and improper handling can cause additional damage. A professional can also diagnose related issues, such as problems with the LCD panel or motherboard, ensuring a comprehensive repair.
The cost of repairing a broken LCD display cable varies depending on whether you choose to do it yourself or seek professional help:
- DIY Replacement: A new display cable typically costs between $10 and $25, depending on the model.
- Professional Repair: Labor costs can range from $50 to $150, depending on your location and the complexity of the repair.
Investing in a quality replacement cable and proper tools can save you money in the long run, especially if you are comfortable with basic laptop repairs.
If replacing the display cable does not resolve the issue, consider these possibilities:
- Faulty LCD Panel: The screen itself may be damaged and require replacement.
- Motherboard Issues: Problems with the graphics chip or connectors on the motherboard can mimic cable symptoms.
- Loose Connections: Double-check all connectors to ensure they are fully seated and secure.
- Software Issues: Rarely, display problems can be caused by outdated or corrupt graphics drivers. Update your drivers and check for software conflicts before assuming a hardware fault.
A broken LCD display cable is a common yet manageable issue for Toshiba laptop users. By understanding the symptoms, causes, and repair process, you can address the problem efficiently and restore your laptop to full functionality. Regular maintenance, gentle handling, and prompt repairs can help prevent future cable failures, ensuring your laptop remains a reliable companion for years to come. Whether you choose to tackle the repair yourself or seek professional assistance, being informed empowers you to make the best decision for your needs.
Common signs include flickering, distorted images, a blank screen, or the display only working at certain angles. You might also notice ghosting, fading, or random shutdowns.
It is important to use a cable that matches your laptop's exact model and serial number. Cables may look similar but can have different pin configurations or lengths, leading to compatibility issues.
Using a laptop with a broken cable can cause further damage to the screen or motherboard. It is best to replace the cable as soon as possible to prevent additional problems.
Connect your laptop to an external monitor. If the external display works, the issue is likely with the cable or screen, not the motherboard or graphics card. Further inspection may be needed to determine which component is at fault.
Basic tools include a small Phillips screwdriver, a plastic prying tool, and the correct replacement cable for your model. An anti-static wrist strap is also recommended to protect sensitive components.
