In the rapidly evolving world of display technology, transflective LCD displays have carved a unique niche. These displays blend the best features of transmissive and reflective LCDs, offering exceptional visibility in both bright sunlight and low-light environments. Their ability to adapt to diverse lighting conditions makes them indispensable in a wide range of devices—especially those used outdoors or in portable applications. This article explores the technology behind transflective LCD displays, their advantages, and the many devices that rely on them for optimal performance.
Transflective LCD displays are a hybrid technology that merges the characteristics of transmissive and reflective LCDs. The term "transflective" is a portmanteau of "transmissive" and "reflective," indicating the display's ability to both transmit and reflect light.
A transflective LCD contains a special optical layer called a "transflector." This layer allows some light to pass through (from a backlight) while reflecting ambient light. As a result, the display remains readable in direct sunlight (using reflected light) and in darkness or low-light conditions (using the backlight).
This dual functionality makes transflective LCDs uniquely suited for devices that must operate reliably in a wide range of lighting environments, from bright outdoor sunlight to dim indoor settings.
Transflective LCDs operate in two primary modes:
- Transmissive Mode: The backlight illuminates the display, ideal for indoor or low-light environments. In this mode, light passes through the LCD layers and the transflector, allowing the user to see the screen clearly even in darkness.
- Reflective Mode: Ambient light is reflected by the transflector, making the screen visible even in bright sunlight without the need for backlighting. This reflection reduces glare and enhances readability outdoors.
The transflector layer is semi-transparent and partially reflective, striking a balance between these two modes. When the environment is bright, the display can rely on reflected light, saving energy by dimming or turning off the backlight. Conversely, in darker settings, the backlight activates to maintain visibility.
This adaptability is the core advantage of transflective LCD displays, enabling devices to perform well in diverse lighting conditions without compromising battery life or readability.
Transflective LCD displays offer several significant benefits:
- Excellent Sunlight Readability: The reflective mode enables clear visibility in direct sunlight, making them perfect for outdoor use. Unlike transmissive LCDs, which often wash out in bright light, transflective displays maintain contrast and clarity.
- Energy Efficiency: By leveraging ambient light, the display can reduce or turn off the backlight, saving power and extending battery life—crucial for portable and wearable devices.
- Wide Viewing Angles: Many transflective LCDs offer consistent visibility from various angles, ensuring information is accessible to multiple viewers.
- Adaptability: These displays automatically adjust to changing lighting conditions, providing optimal viewing experiences indoors and outdoors.
- Durability: Transflective LCDs are often used in ruggedized devices designed for harsh environments, thanks to their robust performance and reliability.
- Reduced Eye Strain: The natural reflection of ambient light in bright conditions reduces glare and eye fatigue, enhancing user comfort during prolonged use.

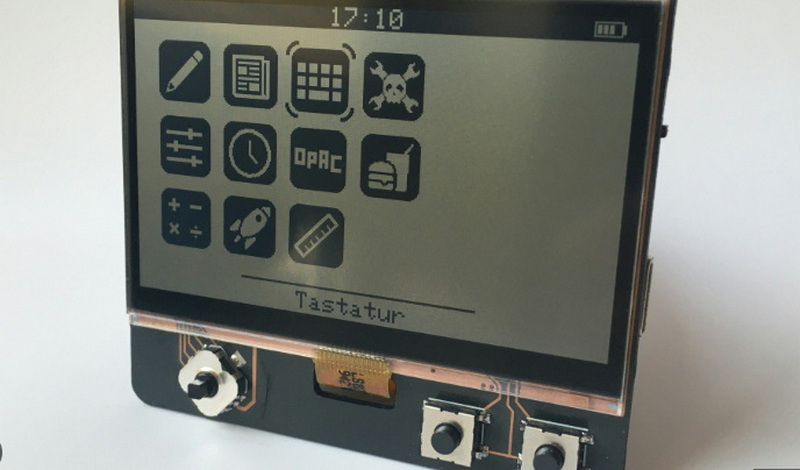

Wearable technology demands displays that are readable outdoors and energy-efficient to maximize battery life. Smartwatches and fitness trackers frequently use transflective LCD displays because they offer clear visibility in sunlight without draining the battery.
- Smartwatches: Brands like Pebble and Amazfit have popularized transflective LCDs in their models. These watches allow users to check time and notifications easily during outdoor activities like running or cycling.
- Fitness Trackers: Devices designed for outdoor sports benefit from transflective displays, enabling users to monitor heart rate, distance, and other metrics in bright sunlight.
- E-Readers: Some e-readers integrate transflective LCD technology to mimic the readability of paper in sunlight while offering backlit reading at night.
- Personal Digital Assistants (PDAs): Earlier PDAs and some modern handhelds use transflective screens for visibility in diverse environments.
- Navigation Devices: GPS units and handheld navigation tools often rely on transflective LCDs for clear maps and directions outdoors, critical for hikers, drivers, and field workers.

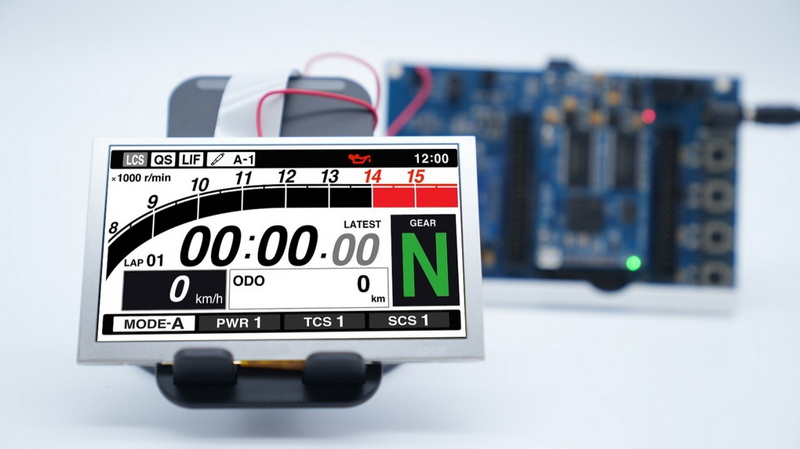

- Dashboard Displays: Many automotive instrument panels and infotainment systems utilize transflective LCD displays to ensure critical information remains visible regardless of lighting conditions, whether under direct sunlight or at night.
- EV Charging Stations: As electric vehicles become more common, charging stations with transflective LCDs offer easy-to-read interfaces in outdoor settings, improving user experience.
- Industrial Control Panels: Factories and field equipment often use transflective LCD displays because they perform reliably indoors and outdoors, even in harsh lighting or dusty environments.
- Medical Devices: Portable medical instruments such as blood glucose meters and patient monitors benefit from transflective screens to guarantee clear readings in variable lighting, crucial for fieldwork and emergencies.
- Marine and Military Equipment: Navigation systems, communication devices, and control panels in marine and military applications demand displays that withstand extreme conditions and remain readable in bright sunlight, making transflective LCDs ideal.
- Rugged Handhelds: Devices used in construction, surveying, and field data collection frequently use transflective displays to ensure visibility and durability in tough environments.
- Mobile Phones: Some mobile phones, especially those targeting outdoor enthusiasts, use transflective LCD displays for all-weather usability.
- Game Consoles: Handheld gaming devices sometimes incorporate transflective screens to enhance playability outdoors.
| Feature | Transmissive LCD | Reflective LCD | Transflective LCD Display |
|---|---|---|---|
| Sunlight Readability | Poor | Excellent | Excellent |
| Indoor Visibility | Excellent | Poor | Excellent |
| Power Consumption | High | Low | Low to Medium |
| Color Quality | High | Low | Medium |
| Application Flexibility | Low | Low | High |
| Typical Devices | TVs, Monitors | Calculators | Wearables, Automotive, Industrial |
The demand for transflective LCD displays is expected to grow as devices increasingly require versatile, energy-efficient screens suitable for varied lighting conditions. Future advancements may include:
- Improved Color Reproduction: New materials and display layers could enhance color vibrancy without sacrificing sunlight readability.
- Flexible and Transparent Displays: Integration of transflective technology into flexible or transparent screens for wearable and augmented reality devices.
- Lower Power Consumption: Further optimization of backlighting and reflective layers to extend battery life in portable devices.
- Higher Resolution and Touch Sensitivity: As user interfaces become more sophisticated, transflective LCDs will evolve to support higher resolutions and more responsive touchscreens.
These innovations will broaden the scope of devices that can benefit from transflective LCD technology, making it a cornerstone of future display solutions.
Transflective LCD displays have become an essential technology in modern device design, especially for products that demand readability and energy efficiency across diverse lighting environments. Their unique ability to operate in both transmissive and reflective modes makes them the display of choice for wearables, portable electronics, automotive systems, industrial controls, and rugged outdoor equipment. As technology advances and the demand for versatile, durable, and power-efficient displays grows, transflective LCD displays will continue to play a pivotal role in shaping the future of human-device interaction.
A transflective LCD display combines transmissive and reflective properties, using a special layer to transmit backlight in low light and reflect ambient light in bright conditions. This dual-mode operation ensures excellent visibility both indoors and outdoors.
Transflective LCD displays are preferred outdoors because they remain readable in direct sunlight by reflecting ambient light, eliminating glare and reducing the need for high-power backlighting.
Many smartwatches and fitness trackers, such as the Pebble and Amazfit Stratos, use transflective LCD displays for their superior sunlight readability and battery efficiency.
Yes, transflective LCD displays are highly energy efficient. They can operate without the backlight in bright environments, significantly reducing power consumption and extending battery life.
The main limitations include lower color depth and contrast compared to fully transmissive LCDs. However, their adaptability and energy savings often outweigh these drawbacks in outdoor and portable applications.
