The 16x2 LCD display module is one of the most widely used components in electronics and embedded systems. Its versatility, ease of use, and affordability make it a favorite among hobbyists and professionals alike. Understanding the key specifications in a 16x2 LCD display module datasheet is crucial for anyone looking to integrate this component into their projects. This article will delve into the essential specifications, features, and functionalities of the 16x2 LCD display module, providing you with a comprehensive overview.
The term "16x2" refers to the display's ability to show 16 characters per line across two lines, totaling 32 characters. Each character is formed by a grid of pixels, typically arranged in a 5x8 matrix. This means that each character comprises 5 columns and 8 rows of pixels.
- Character Capacity: 32 characters (16 characters x 2 lines)
- Pixel Matrix: Each character is represented in a 5x8 pixel format.
- Controller: Most commonly uses the HD44780 controller.
- Backlight Options: Available in various colors such as blue and green.
The pin configuration of the 16x2 LCD module is crucial for its operation. The module typically has 16 pins, each serving specific functions:
| Pin Number | Function | Description |
|---|---|---|
| 1 | VSS (Ground) | Ground connection |
| 2 | VDD (+5V) | Power supply (typically +5V) |
| 3 | V0 (Contrast Control) | Adjusts display contrast |
| 4 | RS (Register Select) | Selects command or data register |
| 5 | R/W (Read/Write) | Determines read or write operation |
| 6 | E (Enable) | Activates the display for reading/writing |
| 7-14 | D0-D7 (Data Pins) | Data pins for sending data to the display |
| 15 | LED+ | Positive terminal for backlight LED |
| 16 | LED- | Negative terminal for backlight LED |
Understanding the electrical specifications is vital for proper integration into your circuits:
- Operating Voltage: Typically between 4.7V and 5.3V.
- Current Consumption: Approximately 1mA without backlight; higher when backlight is on.
- Temperature Range: Can operate between -20°C and +70°C.
The display characteristics provide insights into how the module will perform visually:
- Display Type: Alphanumeric character display.
- Brightness: Varies based on backlight color and intensity.
- Viewing Angle: Typically around 60 degrees from the normal viewing position.
The LCD can operate in two modes:
1. 4-bit Mode: Uses only four data pins to communicate, saving GPIO pins on microcontrollers.
2. 8-bit Mode: Utilizes all eight data pins for full communication.

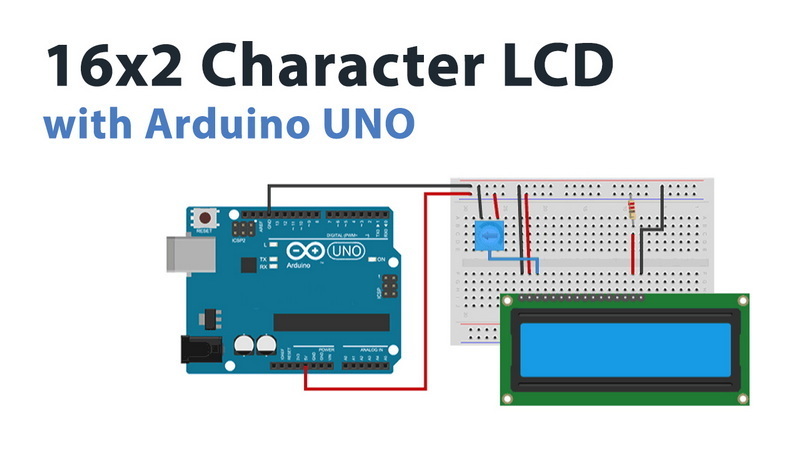

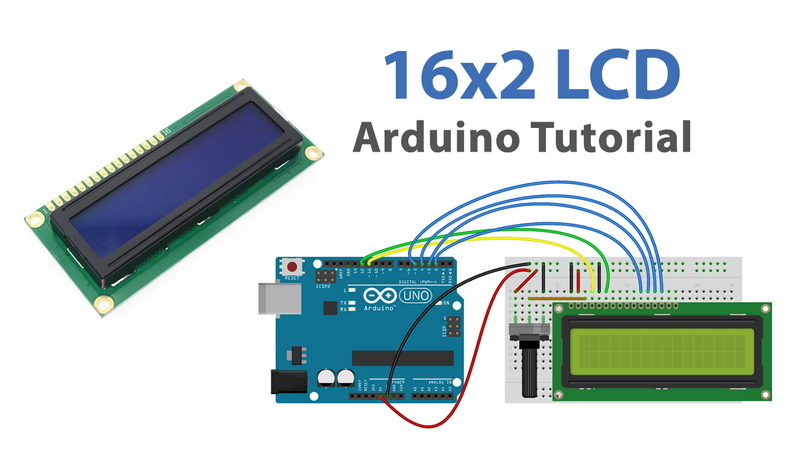

Interfacing a 16x2 LCD with microcontrollers like Arduino is straightforward.
One of the unique features of the 16x2 LCD is its ability to display custom characters. This is done by writing pixel patterns to a special memory area called Character Generator RAM (CGRAM). Each custom character can be defined using an array of bytes representing pixel states.
The applications of the 16x2 LCD are vast:
- Embedded Systems: Used in various embedded applications for displaying information.
- Home Appliances: Commonly found in microwaves, washing machines, and other appliances.
- DIY Projects: Popular among hobbyists for creating interactive displays.
In summary, understanding the specifications outlined in a datasheet for a 16x2 LCD display module is essential for successful integration into projects. From pin configurations to electrical characteristics and operational modes, each specification plays a crucial role in ensuring optimal performance. The versatility of this module makes it an invaluable component in both professional and hobbyist applications.
"16x2" indicates that the display can show up to 16 characters per line across two lines.
The HD44780 controller is commonly used in most standard 16x2 LCD modules.
You can adjust the contrast using a potentiometer connected to pin V0 (contrast control).
Yes, you can define custom characters by writing pixel patterns to CGRAM.
Common applications include embedded systems, home appliances, and DIY electronics projects.
