The LCD display module 16x2 is a type of liquid crystal display that can show 16 characters per line on two lines, totaling 32 characters. Each character is formed by a 5x8 pixel matrix, providing clear and legible output for various applications.
The LCD display module 16x2 consists of several key components:
1. LCD screen
2. Controller IC (usually HD44780)
4. Pins for power and data communication
One of the most significant advantages of the LCD display module 16x2 is its compact size. Despite its small footprint, it can display a substantial amount of information, making it ideal for space-constrained applications.
The LCD display module 16x2 is known for its energy efficiency. It typically operates on a 5V power supply and consumes minimal current, making it suitable for battery-powered devices and energy-conscious applications.
The LCD display module 16x2 can be easily interfaced with various microcontrollers, including Arduino, Raspberry Pi, and PIC microcontrollers. This compatibility makes it a popular choice for hobbyists and professionals alike.
The LCD display module 16x2 supports both 4-bit and 8-bit operating modes. The 4-bit mode allows for fewer connections, saving precious I/O pins on the microcontroller, while the 8-bit mode offers faster data transfer.
Most LCD display modules 16x2 come with a built-in controller, typically the HD44780 or a compatible variant. This controller simplifies the communication process between the microcontroller and the display.
The LCD display module 16x2 allows for the creation and display of custom characters. This feature enables developers to create unique symbols or icons for their specific applications.
Many LCD display modules 16x2 come with LED backlights, available in various colors such as blue, green, or white. The backlight enhances readability in low-light conditions and adds aesthetic appeal to projects.
The LCD display module 16x2 operates on the principle of liquid crystal technology. When an electric current is applied to the liquid crystals, they align in a way that either blocks or allows light to pass through, creating visible characters on the screen.
The built-in controller manages the complex task of driving the individual pixels based on the input received from the microcontroller. This abstraction simplifies the process of displaying information for the end-user.

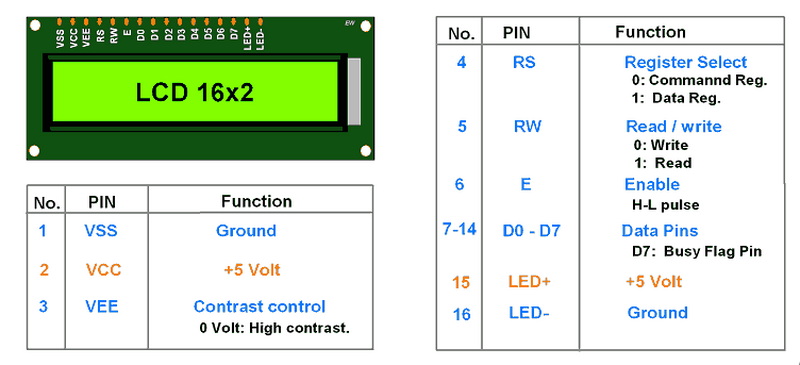

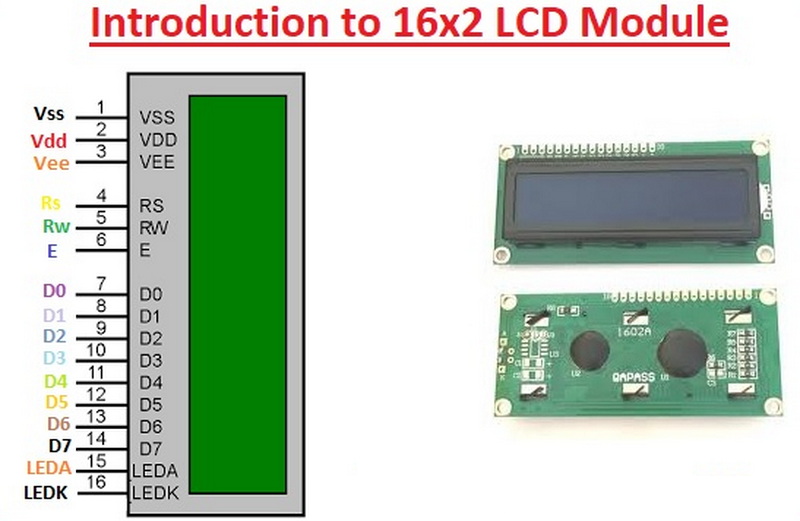

Understanding the pinout of the LCD display module 16x2 is crucial for proper interfacing. Here's a breakdown of the typical 16-pin configuration:
1. VSS: Ground
2. VDD: +5V power supply
3. V0: Contrast adjustment
4. RS: Register Select (0: Command, 1: Data)
5. R/W: Read/Write (0: Write, 1: Read)
6. E: Enable
7-14. D0-D7: Data pins (4-bit or 8-bit mode)
15. A: Backlight Anode
16. K: Backlight Cathode
One of the most popular ways to use the LCD display module 16x2 is by interfacing it with an Arduino board.
The versatility of the LCD display module 16x2 makes it suitable for a wide range of applications:
1. Home Automation Systems
2. Industrial Control Panels
3. Electronic Test Equipment
4. Digital Clocks and Timers
5. Vending Machines
6. Educational Kits and Projects
7. Medical Devices
8. Automotive Displays
The LCD display module 16x2 allows for the creation of custom characters, which can be useful for displaying unique symbols or icons.
To reduce the number of pins used on your microcontroller, you can use an I2C adapter with the LCD display module 16x2. This allows you to control the LCD using only two pins:
While the LCD display module 16x2 is popular, it's essential to understand how it compares to other display technologies:
Feature | LCD 16x2 | OLED | TFT LCD |
---|---|---|---|
Resolution | Low | High | High |
Power Consumption | Low | Medium | High |
Viewing Angle | Limited | Wide | Wide |
Cost | Low | Medium | High |
Color | Monochrome | Full Color | Full Color |
To ensure the longevity and proper functioning of your LCD display module 16x2:
1. Avoid exposing it to extreme temperatures
2. Clean the display gently with a soft, dry cloth
3. Check connections regularly for loose wires
4. Use appropriate voltage levels to prevent damage
Common issues and solutions:
- No display: Check power connections and contrast adjustment
- Garbled text: Verify data pin connections and timing
- Dim display: Adjust backlight or check power supply
While newer technologies like OLED and e-ink displays are gaining popularity, the LCD display module 16x2 remains relevant due to its simplicity, low cost, and reliability. Future developments may include:
1. Improved energy efficiency
2. Enhanced viewing angles
3. Integration with touch interfaces
4. Flexible and transparent displays
The LCD display module 16x2 is a versatile, cost-effective, and user-friendly display solution that continues to be widely used in various electronic applications. Its key features, including low power consumption, easy interfacing, and customization options, make it an excellent choice for both beginners and experienced developers.
As technology advances, the LCD display module 16x2 may evolve to meet new demands, but its fundamental principles and widespread adoption ensure that it will remain a valuable component in the world of electronics for years to come.
The main difference between 4-bit and 8-bit mode lies in the number of data pins used for communication:
- 4-bit mode: Uses only 4 data pins (D4-D7), requiring two cycles to send a byte of data. It saves I/O pins on the microcontroller but is slightly slower.
- 8-bit mode: Uses all 8 data pins (D0-D7), allowing a full byte to be sent in one cycle. It's faster but requires more connections.
To adjust the contrast on an LCD display module 16x2:
1. Locate the V0 (contrast adjustment) pin.
2. Connect a 10k potentiometer between VCC and GND.
3. Connect the wiper (middle pin) of the potentiometer to the V0 pin.
4. Rotate the potentiometer to adjust the contrast until the display is clearly visible.
Yes, you can use an LCD display module 16x2 with 3.3V microcontrollers, but you need to consider the following:
1. Use a level shifter for the data and control lines if the LCD requires 5V logic levels.
2. Ensure the LCD can operate at 3.3V (some modules are designed for this).
3. If using a 5V LCD, power it separately with 5V and use a resistor divider network for the backlight.
Most LCD display modules 16x2 allow you to create up to 8 custom characters. These characters are stored in the LCD's CGRAM (Character Generator RAM) and can be accessed using character codes 0-7.
The lifespan of an LCD display module 16x2 can vary depending on usage and environmental conditions, but typically:
- The LCD panel itself can last 50,000 to 100,000 hours of operation.
- The backlight (if LED) can last 20,000 to 50,000 hours.
- Proper care and operation within specified temperature ranges can extend the lifespan.
