The LCD Module ST 10300 is a versatile component widely used in various electronic projects, from simple displays to complex embedded systems. However, like any electronic device, it can encounter issues that may hinder its performance. This article aims to guide you through troubleshooting common problems associated with the LCD Module ST 10300, ensuring you can keep your projects running smoothly.

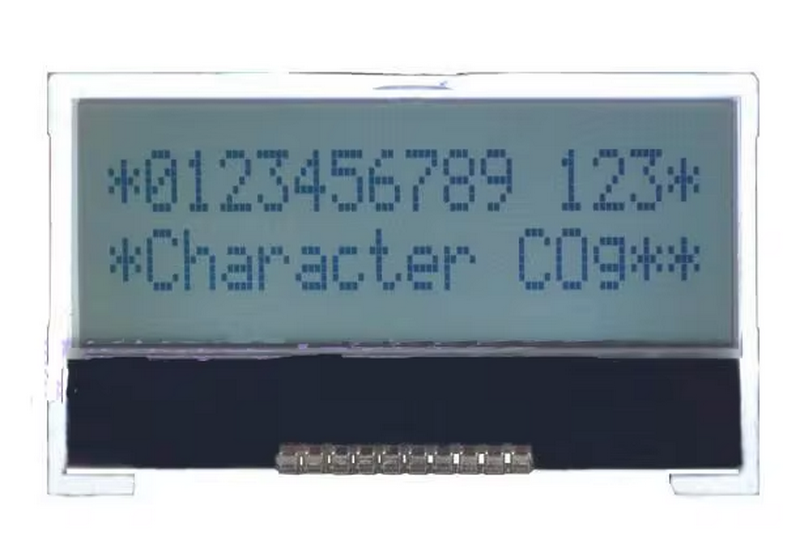

Before diving into troubleshooting, it's essential to understand the basic functionality and components of the LCD Module ST 10300. This module typically features a character-based display, which can show alphanumeric characters and symbols. It operates using a controller, often the Hitachi HD44780 or equivalent, which manages the display's operations.
The module connects to microcontrollers via data pins and control signals, allowing users to send commands and data for display.
Here are some common problems users may face when working with the LCD Module ST 10300:
- No Display: The screen remains blank despite being powered on.
- Faded Characters: Characters appear dim or difficult to read.
- Incorrect Character Display: The module displays garbled or incorrect characters.
- Screen Flickering: The display intermittently flickers or shows unstable images.
- Unresponsive Interface: Commands sent to the module do not produce any visible results.
If your LCD Module ST 10300 shows no display, follow these steps:
- Check Power Supply: Ensure that the module is correctly powered. Measure the voltage at the Vcc and Vss pins to confirm they are within specifications (usually around 5V).
- Inspect Connections: Loose or faulty connections can lead to a blank display. Check all wiring and solder joints for integrity.
- Verify Initialization Code: Ensure that your microcontroller is sending the correct initialization commands to the LCD. A common mistake is missing or incorrect command sequences.
Faded characters can be frustrating but are often easy to fix:
- Adjust Contrast: Many LCD modules have a contrast adjustment potentiometer. Turn this pot slowly while observing the display until optimal contrast is achieved.
- Check Backlight: If your module has a backlight, ensure it is functioning correctly. A burnt-out backlight can make characters appear faded.
If your module displays incorrect characters, consider these solutions:
- Data Pin Configuration: Double-check that you have configured your data pins correctly (8-bit or 4-bit mode). Incorrect configurations can lead to misinterpretation of data.
- Command Timing: Ensure that there is sufficient delay between commands as specified in the datasheet. Lack of timing can cause the controller to miss commands.
Flickering screens can be indicative of several issues:
- Signal Integrity: Check for loose connections or damaged wires that may disrupt signal integrity.
- Power Supply Stability: Ensure that your power supply is stable and providing consistent voltage levels.
If your interface seems unresponsive:
- Test Command Sequence: Verify that you are sending commands in the correct sequence as per the module's protocol.
- Microcontroller Functionality: Test your microcontroller separately to ensure it functions correctly and is capable of sending signals.
Troubleshooting issues with the LCD Module ST 10300 can seem daunting at first, but by following systematic steps and understanding common pitfalls, you can quickly resolve most problems. Regular maintenance and proper setup will ensure that your projects run smoothly and efficiently.
Ensure that you check your power supply connections and measure voltage at Vcc and Vss pins. If there's no voltage, inspect your power source and connections for faults.
Adjust the contrast using the onboard potentiometer, and ensure that any backlighting is functioning properly.
Garbled text often results from incorrect data pin configurations or timing issues with command sequences sent from your microcontroller.
In many cases, if connections are loose or damaged, they can be repaired by re-soldering or replacing faulty components. However, severe damage may require a replacement module.
To reset your LCD module, simply power it off and then back on again. You may also need to reinitialize it by sending the appropriate commands after powering it up.
