Creating an LCD monitor display involves a complex process that includes both the manufacturing of the LCD panel itself and the assembly of the monitor. This article will guide you through the steps involved in making an LCD monitor display, from the initial stages of LCD panel production to the final assembly and testing of the monitor.
The manufacturing of LCD panels is a highly intricate process that requires precision and cleanliness. It involves several key steps:
1. Substrate Preparation: The process begins with preparing the glass substrates, which are cleaned to remove any impurities. This step is crucial as any dust or contaminants can affect the quality of the display.
2. Thin Film Transistors (TFT) Fabrication: The array substrate is coated with indium tin oxide (ITO) and then a layer of amorphous silicon (a-Si) is deposited to form thin film transistors (TFTs). These TFTs act as switches that control the orientation of liquid crystals.
3. Color Filter Fabrication: The color filter substrate is coated with a black matrix and red, green, and blue color filters are applied using photolithography. This process ensures that each pixel can display a wide range of colors.
4. Liquid Crystal Alignment: Both substrates undergo a liquid crystal alignment process to ensure proper display functionality. This alignment is crucial for achieving high contrast ratios and viewing angles.
5. Liquid Crystal Injection and Sealing: The substrates are aligned, and liquid crystal material is injected into the gap between them, which is then sealed. This step requires precise control to prevent air bubbles from forming.
6. Polarizer Attachment: Polarizers are attached to the outer surfaces of the LCD screen to control light polarization. This enhances the display's visibility by reducing glare.
7. Backlighting: For LCDs requiring backlighting, a backlight module is attached behind the LCD panel. This module typically consists of LEDs or CCFLs (Cold-Cathode Fluorescent Lamps) to provide uniform illumination.
Once the LCD panels are manufactured, they are sent to assembly lines for monitor construction. Here's an overview of the assembly process:
1. LCD Panel Preparation: The LCD panel is removed from its packaging and placed face up on a work surface. This step involves handling the panel with care to avoid any damage.
2. Inverter PCB Attachment: An inverter PCB is attached to the back of the LCD panel using an electric drill. The inverter PCB is responsible for converting DC power to AC for the backlight.
3. Metal Frame Installation: A protective metal frame is placed over the LCD panel. This frame provides structural support and helps in dissipating heat generated by the backlight.
4. Bezel Assembly: The front bezel is prepared with cushioning material, and the LCD panel is inserted into it. The bezel is designed to fit snugly around the panel, ensuring a seamless appearance.
5. PCB Installation: The power PCB and main PCB are added to the monitor. These boards contain the necessary electronics for controlling the display and managing input signals.
6. Automated Screw Insertion: A robotic arm inserts screws into the monitor using RFID tags and CCD cameras for precision. This step ensures that all components are securely fastened.
7. Cable Connection: Flexible flat cables connect the power board and main controller. These cables carry signals and power between different components of the monitor.
8. Shielding Plate Installation: A shielding plate is attached to protect against electromagnetic interference (EMI). This is crucial for ensuring that the monitor complies with regulatory standards and does not interfere with other electronic devices.
9. Back Cover Attachment: The back cover is attached to complete the base unit assembly. This cover provides additional protection and helps in maintaining the monitor's aesthetic appeal.
10. Stand Attachment: The final step involves attaching the stand to the monitor. The stand is designed to provide stability and flexibility, allowing users to adjust the monitor's position as needed.

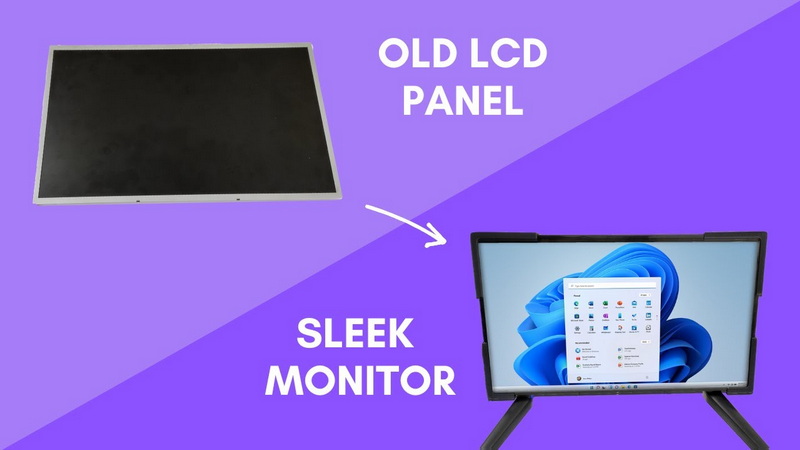

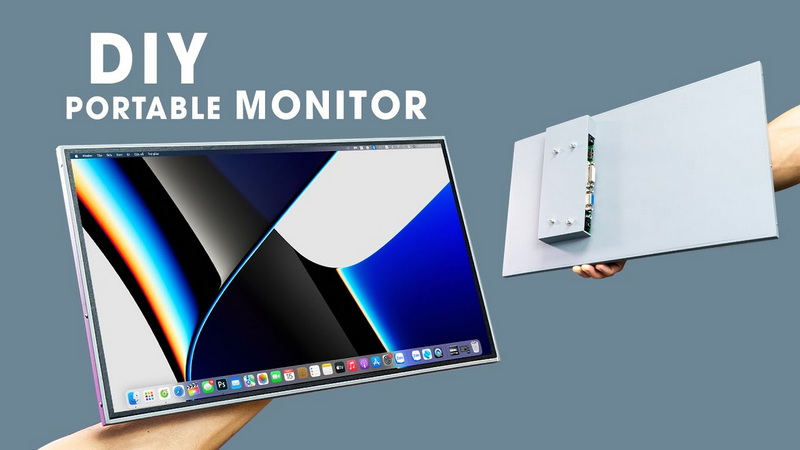

For those interested in DIY projects, converting an old laptop LCD into a monitor is a feasible option. Here's a simplified guide:
1. Remove the LCD Panel: Carefully remove the LCD panel from the laptop casing. This requires patience and care to avoid damaging the panel or its connections.

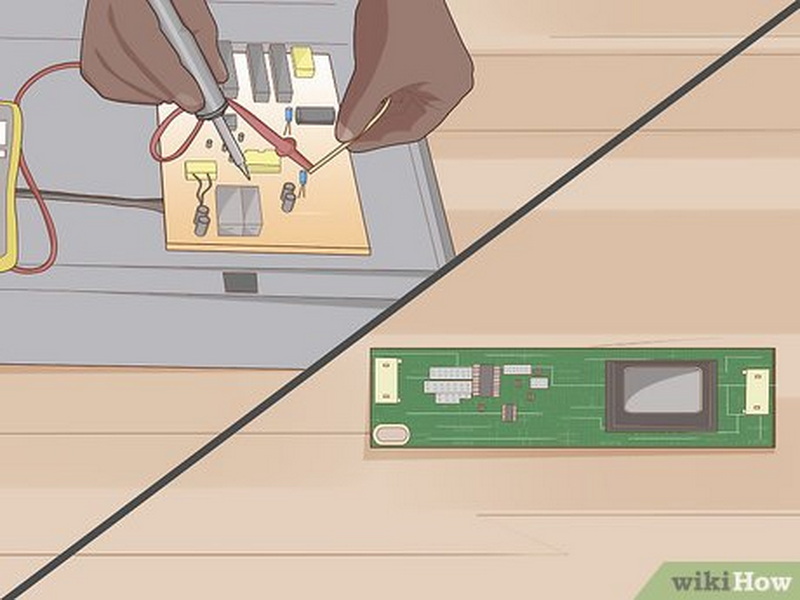

2. Acquire an LCD Control Board: Purchase an LCD control board compatible with your panel. This board will handle the signal processing and control functions for the display.
3. Connect Cables: Connect the LVDS cable and power wires to the new inverter and control board. Ensure that all connections are secure to prevent signal loss or electrical issues.
4. Add a VGA Cable: Connect a VGA cable to the control board and another computer for display. This allows you to use the LCD panel as a monitor for another device.
5. Attach a Stand: Use materials like wood or metal to create a stand for the LCD panel. This stand should be sturdy enough to support the weight of the panel and provide stability.
Despite advancements in technology, LCD manufacturing still faces several challenges:
- Yield Management: Ensuring high yield rates is crucial to reduce waste and lower production costs. Any defects during the manufacturing process can significantly impact profitability.
- Environmental Concerns: The production process involves chemicals and materials that must be handled and disposed of responsibly to minimize environmental impact.
- Technological Advancements: Keeping pace with technological advancements, such as OLED displays, requires continuous innovation and investment in research and development.
The future of LCD technology is evolving with advancements in display quality, energy efficiency, and design flexibility. Innovations such as quantum dot technology and micro-LED displays are expected to further enhance display performance and efficiency.
Manufacturing and assembling an LCD monitor display is a complex process that involves both precision engineering and careful assembly. From the production of the LCD panel to the final assembly of the monitor, each step requires attention to detail and quality control. For those interested in DIY projects, converting old LCD panels into functional monitors can be a rewarding experience. As technology continues to evolve, we can expect even more sophisticated and efficient display solutions in the future.
- Answer: The primary components include the array substrate, color filter substrate, liquid crystal material, polarizers, and backlighting (if required).
- Answer: The assembly involves attaching an inverter PCB, metal frame, bezel, PCBs, and cables, followed by automated screw insertion and shielding plate installation.
- Answer: Yes, by using an LCD control board and connecting it to a power source and another computer via a VGA cable.
- Answer: Polarizers control the polarization of light passing through the liquid crystal layer, enhancing display quality.
- Answer: Key steps include substrate preparation, TFT fabrication, color filter fabrication, liquid crystal alignment, injection, and sealing, followed by polarizer attachment and backlighting.
- Answer: Environmental concerns require responsible handling and disposal of chemicals and materials used in the manufacturing process to minimize ecological impact.
- Answer: Future developments include advancements in quantum dot technology and micro-LED displays, which promise improved display performance and efficiency.
- Answer: The industry faces challenges in maintaining high yield rates to reduce waste and lower production costs, which is crucial for profitability.
- Answer: Technological innovation requires continuous investment in research and development to keep pace with advancements and stay competitive in the market.
- Answer: Automation, such as robotic arms for screw insertion, enhances precision and efficiency during the assembly process, ensuring consistent quality and reducing labor costs.
