Installing an LCD display with an Arduino board is a straightforward process that enhances the visual output of your projects. This guide will walk you through the steps to connect and program an LCD display using Arduino, including the necessary hardware, wiring diagrams, and programming libraries.
LCD displays are widely used in Arduino projects due to their simplicity and effectiveness in displaying text and basic characters. They are ideal for beginners and experienced users alike, making them one of the first displays people use when starting with Arduino boards. The ease of integration and the ability to display dynamic information make LCDs a staple in many DIY projects, from simple weather stations to complex automation systems.

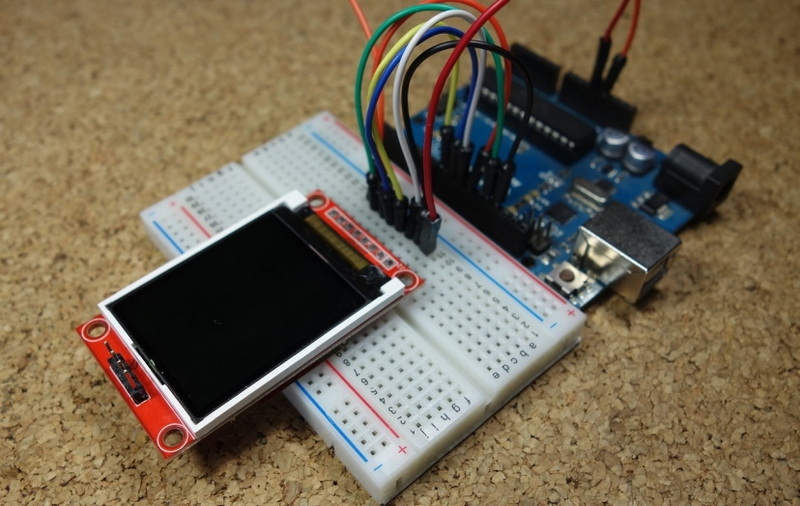

To connect an LCD display to an Arduino, you will need the following components:
- Arduino Board: Uno, Nano, or Mega (or any other compatible microcontroller). The choice of board depends on the complexity of your project and the number of pins required.
- LCD Module: Typically a 16×2 for basic text or a 20×4 for more space. Larger displays like 40×4 are also available for more complex projects.
- Potentiometer (10kΩ): For adjusting the LCD contrast. This is crucial for optimizing the visibility of the text on the display.
- Jumper Wires: Enough to connect everything securely. It's advisable to use different colors for better organization.
- Breadboard: For organizing the connections. This helps keep your project tidy and easier to debug.
- Resistor (220Ω): For controlling the backlight brightness. This resistor helps manage power consumption and ensures the backlight doesn't burn out.
- Pin Headers: To solder onto the LCD display pins. This step is necessary if your LCD doesn't already have headers attached.
Before connecting the LCD to your Arduino, you may need to solder a pin header to the LCD's pins. This makes it easier to connect the LCD to a breadboard. Ensure that the soldering is clean and secure to prevent any short circuits.
For a standard 16×2 LCD using the Hitachi HD44780 driver, you will typically connect it in 4-bit mode. This requires six digital pins from the Arduino.
- LCD VSS Pin to Arduino GND.
- LCD VDD Pin to Arduino 5V.
- LCD RS Pin to Arduino Digital Pin 12.
- LCD R/W Pin to Arduino GND. This pin is grounded to prevent writing to the display.
- LCD Enable Pin to Arduino Digital Pin 11.
- LCD D4 Pin to Arduino Digital Pin 5.
- LCD D5 Pin to Arduino Digital Pin 4.
- LCD D6 Pin to Arduino Digital Pin 3.
- LCD D7 Pin to Arduino Digital Pin 2.
Additionally, connect a 10kΩ potentiometer to adjust the contrast and a 220Ω resistor for the backlight. The potentiometer should be connected between VCC and GND, with the middle pin connected to the VO pin of the LCD.
To program the LCD, you will use the LiquidCrystal library, which comes pre-installed with the Arduino IDE. This library simplifies the process of controlling the LCD by providing functions to print text, scroll text, and create custom characters. The library is well-documented and includes examples to help you get started quickly.

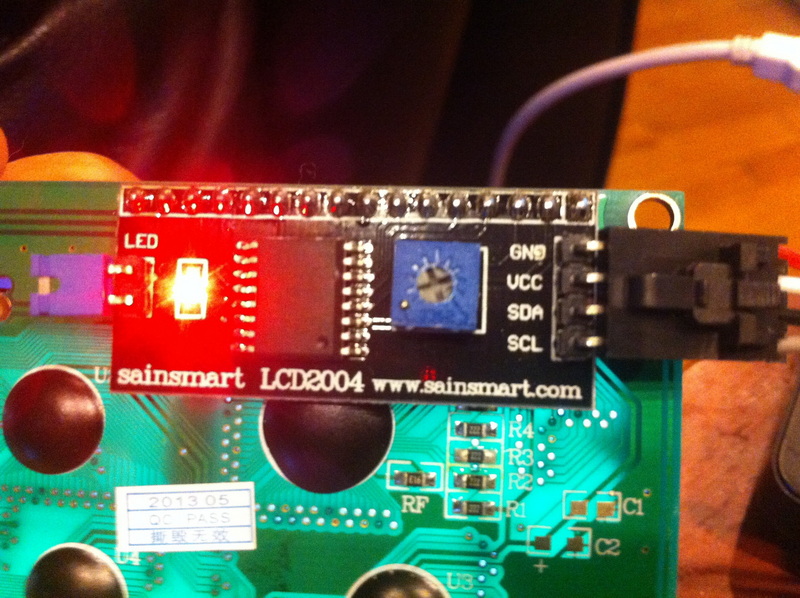

I2C LCD displays simplify the wiring process by requiring only four connections: GND, VCC, SDA, and SCL.
- GND to Arduino GND.
- VCC to Arduino 5V.
- SDA to Arduino A4 (Uno & Nano).
- SCL to Arduino A5 (Uno & Nano).
You will need to install the LiquidCrystal_I2C library for I2C displays. This library is similar to the LiquidCrystal library but is designed specifically for I2C communication.
I2C LCDs offer several advantages over traditional LCDs:
- Reduced Wiring: With fewer connections, the setup is cleaner and less prone to errors.
- Flexibility: I2C allows for multiple devices to share the same bus, making it easier to add more components to your project.
- Simplified Setup: The reduced number of connections makes it easier for beginners to set up their projects.
- Display Not Turning On: Check the backlight connections and ensure the resistor is correctly connected. Also, verify that power is being supplied to the display.
- Text Not Displaying: Verify that the RS pin is connected to the correct digital pin and that the LiquidCrystal library is properly included. Ensure that the contrast is adjusted correctly using the potentiometer.
- Contrast Issues: Adjust the potentiometer to improve visibility. If the text is still not visible, check the wiring and ensure that the VO pin is connected correctly.
Once you have mastered the basics of using LCD displays with Arduino, you can move on to more complex projects:
- Weather Stations: Use an LCD to display temperature, humidity, and other environmental data.
- Automation Systems: Use LCDs to display status messages or instructions in automated systems.
- Interactive Displays: Create interactive displays that respond to user input, such as buttons or sensors.
Installing an LCD display with Arduino is a straightforward process that enhances the visual output of your projects. By following the steps outlined in this guide, you can easily connect and program both standard and I2C LCD displays. Whether you're a beginner or an experienced user, LCDs offer a versatile way to add visual feedback to your Arduino projects.
A 16×2 LCD can display 16 characters per line across two lines, while a 20×4 LCD can display 20 characters per line across four lines, offering more space for text.
Use a potentiometer connected to the VO pin of the LCD to adjust the contrast. Typically, a 10kΩ potentiometer is used.
You need to install the LiquidCrystal_I2C library for I2C displays.
Yes, LCD displays can be used with other microcontrollers like ESP32, provided you have the appropriate libraries and wiring setup.
Check the backlight connections, ensure the resistor is correctly connected, and verify that power is being supplied to the display.
