Calculators are essential tools for everyday calculations, but over time, their LCD displays can become faded, cloudy, or difficult to read. This issue often arises due to aging or damage to the reflective film behind the LCD. In this article, we will explore methods to restore clarity to your calculator's LCD display, including using silver or white spray paint and aluminum tape. We will also discuss troubleshooting steps for common LCD problems.
LCD displays on calculators can degrade over time, leading to reduced visibility, especially in low-light conditions. The primary cause is usually the deterioration of the reflective material behind the LCD. This material helps reflect light back through the display, enhancing visibility. When it becomes discolored or damaged, the display appears cloudy or faded.
One effective method to restore the LCD display is by applying a reflective coating using silver or white spray paint. This method involves disassembling the calculator, removing the old reflective material, and applying a new coat.
- Sharp knife
- Screwdriver
- Double-sided tape
- Silver or white spray paint
- Hot air blower
- Scrap paper
1. Disassemble the Calculator: Remove the screws and take off the back cover. If necessary, remove the battery. Be careful not to damage any internal components.

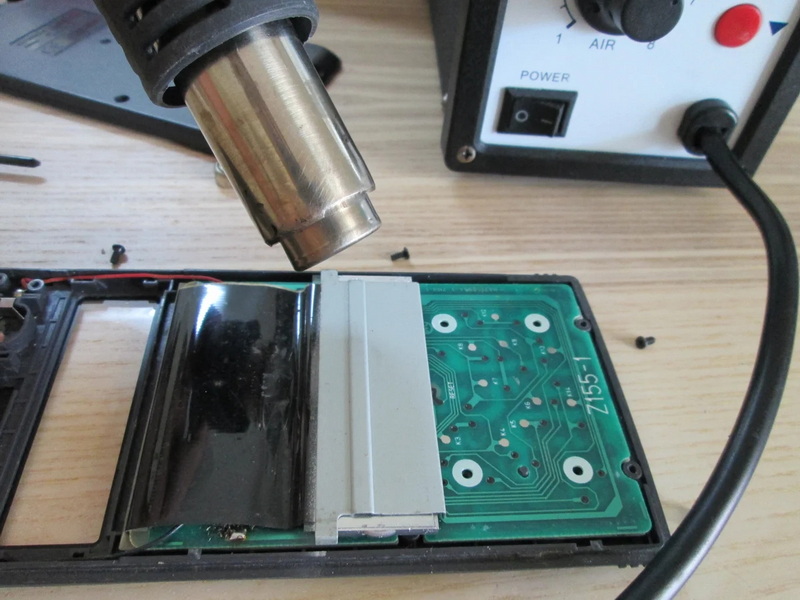

2. Remove the Metal Protector: Use a hot air blower to melt the glue holding the metal protector in place. Be cautious not to damage the flexible cable.

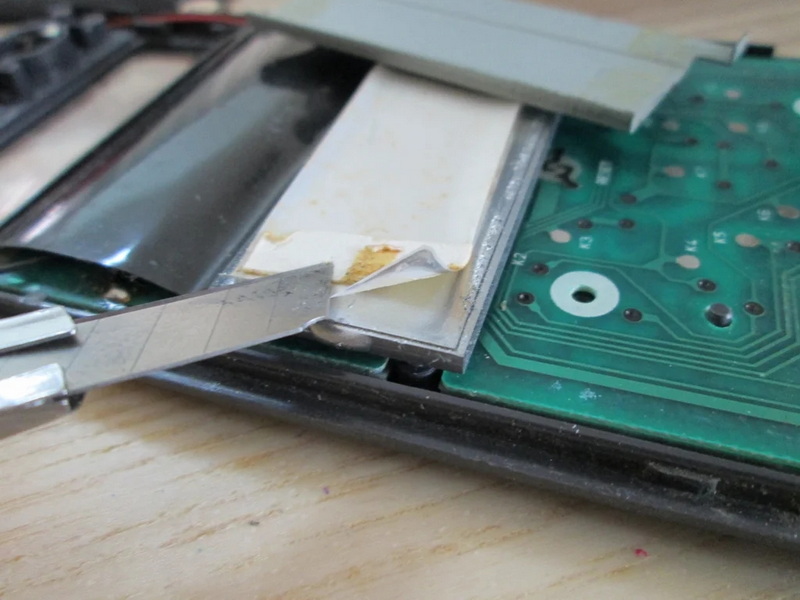

3. Remove the Old Reflector: Carefully peel off the old reflective material using a sharp knife. Ensure you do not scratch the LCD surface.
4. Clean the Surface: Ensure the area is free from dust and glue residue. Use a soft cloth to wipe away any remaining debris.
5. Apply Spray Paint: Mask the calculator and spray the reflective area with silver or white paint. Let it dry completely. It might be helpful to apply multiple thin coats rather than one thick coat to avoid drips.
6. Reassemble: Use double-sided tape to secure the metal protector and reassemble the calculator. Make sure all screws are tightened securely.
Another quick fix involves using non-conductive aluminum tape to enhance the reflectivity of the LCD display. This method is simpler and requires fewer tools.
- Calculator with a bad LCD screen
- Non-conductive aluminum tape
- Scissors or sharp blades
- Cotton swabs
- Diluted rubbing alcohol or lens cleaner (optional)
- Soft cloth
- Plastic opening tool (optional)
1. Preparation: Ensure the calculator is powered off and remove any batteries.
2. Remove the Plastic Cover: Use a plastic opening tool or screwdriver to remove the back cover. Be gentle to avoid damaging the plastic.
3. Peel Off the Damaged Sticker: Gently remove the damaged reflective sticker. If it is stuck, use a little heat from a hair dryer to loosen the adhesive.
4. Assess the LCD Screen: Check for any visible damage or residue. Clean the area with a cotton swab and diluted rubbing alcohol if necessary.
5. Cut Aluminum Tape: Cut a piece of aluminum tape slightly larger than the damaged area. Ensure it is not too large, as excess tape can interfere with the calculator's operation.
6. Clean the LCD Screen: Use a cotton swab with diluted rubbing alcohol to clean the surface. This step helps ensure good adhesion of the tape.
7. Apply Aluminum Tape: Place the tape over the damaged area and press firmly. Ensure there are no air bubbles or wrinkles.
8. Trim Excess Tape: Use scissors to trim any excess tape. Be careful not to cut too close to the edges of the LCD.
9. Test the Calculator: Reinsert batteries and turn on the calculator to check if the display has improved.
Besides reflectivity issues, LCD displays can also suffer from connectivity problems or physical damage. Here are some troubleshooting steps for common issues:
1. Dead Rows or Columns: This is often due to faulty connections between the LCD and the main circuit board. Use a hot-air gun and a pencil eraser to gently clean and reconnect the ribbon cable.
2. Cloudy or Discolored Display: This can be due to a damaged reflective sticker or physical damage to the LCD. Use the methods described above to address these issues.
3. Invisible Characters: Sometimes, characters may not display fully. Check the connectors and ensure they are securely attached. If the issue persists, it might be a problem with the LCD itself.
For more complex issues, such as a completely blank screen or erratic behavior, you may need to delve deeper into the calculator's electronics. Here are some advanced troubleshooting techniques:
1. Check Power Supply: Ensure the batteries are not dead or corroded. Try using new batteries or cleaning the battery contacts.
2. Inspect Circuit Board: Look for signs of physical damage, such as burn marks or broken components. If you find any damage, it might be necessary to replace the circuit board.
3. Use a Multimeter: If you have experience with electronics, use a multimeter to check for voltage drops or short circuits.
To extend the life of your calculator's LCD display, consider these preventive measures:
1. Avoid Direct Sunlight: Direct sunlight can cause the reflective material to degrade faster. Keep your calculator away from direct sunlight.
2. Clean Regularly: Use a soft cloth to wipe down the display regularly. Avoid using harsh chemicals or abrasive materials.
3. Store Properly: When not in use, store your calculator in a cool, dry place. Avoid stacking heavy objects on top of it.
When repairing your calculator's LCD, there are several common mistakes to avoid:
1. Overheating: Be cautious when using a hot air blower to avoid overheating the components.
2. Physical Damage: Handle the LCD and other components gently to prevent scratches or cracks.
3. Incorrect Assembly: Ensure all parts are properly aligned and secured during reassembly.
For those interested in exploring more DIY projects or learning about electronics, here are some additional tips:
1. Learn Basic Electronics: Understanding basic electronics can help you troubleshoot and repair more complex issues.
2. Use Protective Gear: Always wear protective gear like gloves and safety glasses when working with electronics.
3. Join DIY Communities: Participating in DIY forums or communities can provide valuable insights and resources for future projects.
Restoring the clarity of an LCD display on a calculator can be achieved through simple DIY methods. Whether you choose to use silver or white spray paint or aluminum tape, these techniques can significantly improve the readability of your calculator's display. Always ensure you handle the components with care to avoid further damage. By following these steps and tips, you can extend the life of your calculator and maintain its functionality.
Preventing LCD fading involves keeping the calculator away from direct sunlight and extreme temperatures. Regularly cleaning the display can also help maintain its clarity.
Yes, you can experiment with other reflective materials, but ensure they are non-conductive to avoid damaging the LCD.
The time required depends on the method. Using aluminum tape is quicker, taking about 30 minutes, while applying spray paint may take longer due to drying time.
If the LCD is cracked or physically damaged, it may be more challenging to repair and might require professional assistance or replacement.
While the principles can be applied to other LCD devices, the specific steps may vary depending on the device's design and construction.
