The HD44780 is a widely used LCD controller in various electronic projects due to its simplicity and cost-effectiveness. It supports monochrome LCDs with up to 80 alphanumeric characters and symbols, making it ideal for displaying text-based information. This article will guide you through the process of using an LCD with the HD44780 controller, including setup, connections, and basic operations.

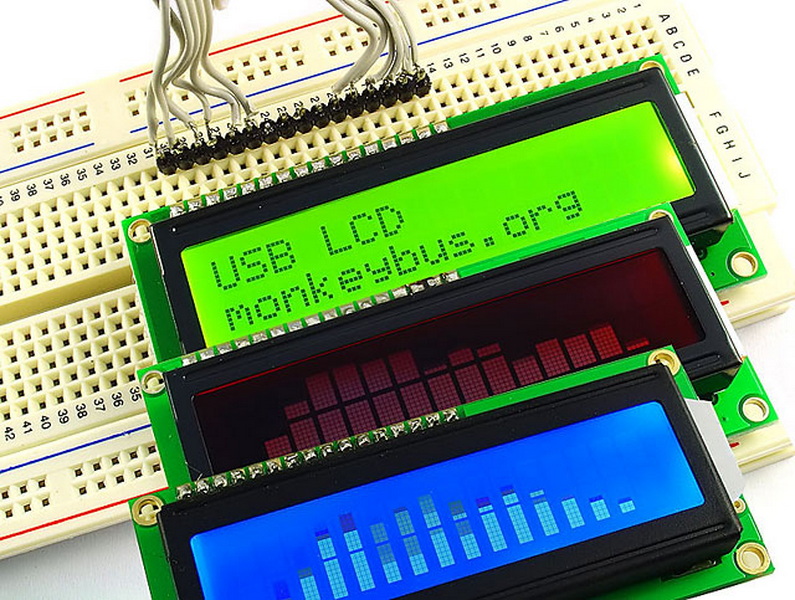

HD44780 LCDs are available in different sizes, such as 16x02, 20x02, 20x04, and 40x02. These displays are commonly used in projects requiring simple text output, like clocks, weather stations, or status displays. The HD44780 controller allows for custom character creation and basic scrolling functions.
- Display Sizes: Various sizes available, including 16x02 and 20x04.
- Custom Characters: Ability to create custom characters using the CGRAM.
- Scrolling: Supports horizontal scrolling of text.
- Backlight: Some models come with a backlight for visibility in low light conditions.
To start using an HD44780 LCD, you need to set it up properly. This involves connecting the display to a microcontroller or using it with simple components like switches.
The LCD requires power and contrast adjustment for optimal visibility. A potentiometer is typically used to adjust the contrast by varying the voltage at the V0 pin. Proper contrast adjustment is crucial for clear text display.
The HD44780 LCD has several control lines:
- RS (Register Select): Determines whether data is a command or text.
- R/W (Read/Write): Controls whether data is being read or written.
- E (Enable): Enables the LCD to read data.
- D4-D7: Data lines for sending commands or text.
Connecting an HD44780 LCD to an Arduino board is straightforward but requires several pins. The 4-bit mode is commonly used, which requires seven I/O pins from the Arduino. This setup allows for efficient communication between the Arduino and the LCD.
To simplify connections, an I2C adapter can be used, reducing the number of pins needed to just four: VCC, GND, SDA, and SCL. This method is more convenient for projects with limited pin availability. The I2C adapter converts the parallel data from the HD44780 into serial data, making it easier to manage connections.
Once connected, you can perform basic operations like writing text, creating custom characters, and scrolling text.
Text can be written to the LCD by setting the cursor position and sending the text data. This involves sending commands to specify the line and character position where the text should appear.
Custom characters can be created using the CGRAM (Character Generator RAM) of the HD44780 controller. This feature allows users to design unique symbols or icons that can be displayed on the LCD.
Text can be scrolled horizontally across the display using built-in scrolling functions. This is useful for displaying long messages or dynamic information.
Beyond basic operations, HD44780 LCDs can be used for more complex tasks, such as displaying dynamic data from sensors or creating interactive interfaces with buttons.
HD44780 LCDs can display real-time data from sensors, such as temperature or humidity readings. This makes them useful for environmental monitoring systems or weather stations.
By integrating buttons or other input devices, you can create interactive interfaces where users can navigate through menus or input data directly.
When working with HD44780 LCDs, ensure that the contrast is properly adjusted for visibility. Also, verify that all connections are secure and correct. Common issues include incorrect pin connections or insufficient power supply.
The HD44780 LCD is a versatile and cost-effective solution for displaying text-based information in electronic projects. Its ease of use and compatibility with various microcontrollers make it a popular choice among hobbyists and professionals alike.
HD44780 LCDs are available in various sizes, including 16x02, 20x02, 20x04, and 40x02. These sizes refer to the number of characters and lines the display can show.
Contrast is adjusted using a potentiometer connected to the V0 pin of the LCD. Turning the potentiometer changes the voltage at V0, which affects the display's visibility.
Yes, you can use an HD44780 LCD without a microcontroller by connecting it directly to switches and simple components. However, this setup is more complex and less common.
The I2C adapter simplifies connections by reducing the number of pins needed from the microcontroller. It allows control of the LCD using just four pins: VCC, GND, SDA, and SCL.
Custom characters are created by accessing the CGRAM (Character Generator RAM) of the HD44780 controller. This involves sending specific commands to define the character's appearance.
