Displaying temperature readings on an LCD screen using a Raspberry Pi is a fun and educational project that combines electronics, programming, and practical application. This guide will walk you through the steps to connect a temperature sensor to your Raspberry Pi and display the readings on an LCD screen.
Before we begin, let's introduce the key components involved in this project:
- Raspberry Pi: A small, affordable, and highly capable single-board computer. It's perfect for learning programming and electronics.
- DS18B20 Temperature Sensor: A digital temperature sensor that provides accurate readings. It's widely used in various applications due to its reliability and ease of use.
- LCD Display: A simple display screen to show the temperature readings. For this project, a 16x2 LCD display is commonly used.
- Breadboard and Jumper Wires: For connecting components. They help keep the circuit organized and easy to modify.
- Resistors: Used for pull-up resistors in the circuit. A 4.7kΩ resistor is typically used with the DS18B20 sensor.
The Raspberry Pi comes in various models, but for this project, any model with GPIO pins will work, such as the Raspberry Pi 3 or Raspberry Pi 4. The Raspberry Pi 4 offers more processing power and memory, making it a good choice if you plan to expand your project.
The DS18B20 is a popular choice for temperature sensing due to its accuracy and ease of use. It communicates over a one-wire protocol, making it simple to connect to the Raspberry Pi. This sensor can measure temperatures from -55°C to 125°C, which covers most environmental conditions.
For this project, a 16x2 LCD display is commonly used. It's inexpensive and easy to interface with the Raspberry Pi. The display can show two lines of text, each containing up to 16 characters. This is sufficient for displaying temperature readings along with a brief description.
Before connecting any hardware, ensure your Raspberry Pi is set up and running. You can use the official Raspberry Pi OS for this project. The OS provides a user-friendly interface and supports a wide range of programming languages, including Python, which is commonly used for Raspberry Pi projects.
To connect the DS18B20 sensor to your Raspberry Pi:
1. Connect Pin 1 (GND) to any GND pin on the Raspberry Pi.
2. Connect Pin 2 (DQ) to GPIO Pin 4.
3. Connect Pin 3 (VCC) to a 3.3V pin.
4. Place a 4.7kΩ resistor between Pin 2 and Pin 3 for pull-up. This resistor ensures stable communication between the sensor and the Raspberry Pi.
For the LCD display:
1. VCC to 5V on the Raspberry Pi.
2. GND to GND on the Raspberry Pi.
3. SCL to GPIO Pin 5 (SCL).
4. SDA to GPIO Pin 2 (SDA).
However, if your LCD uses a different pinout (e.g., a 4-bit interface), you'll need to adjust the connections accordingly. Some LCDs may require additional pins for backlight control or button inputs.
To read temperature data and display it on the LCD, you'll need to install necessary libraries on your Raspberry Pi. For the DS18B20, you'll typically use the `w1-gpio` and `w1-therm` kernel modules. These modules enable the Raspberry Pi to communicate with the DS18B20 sensor. For the LCD, libraries like `RPLCD` can be used. These libraries simplify the process of sending data to the LCD display.

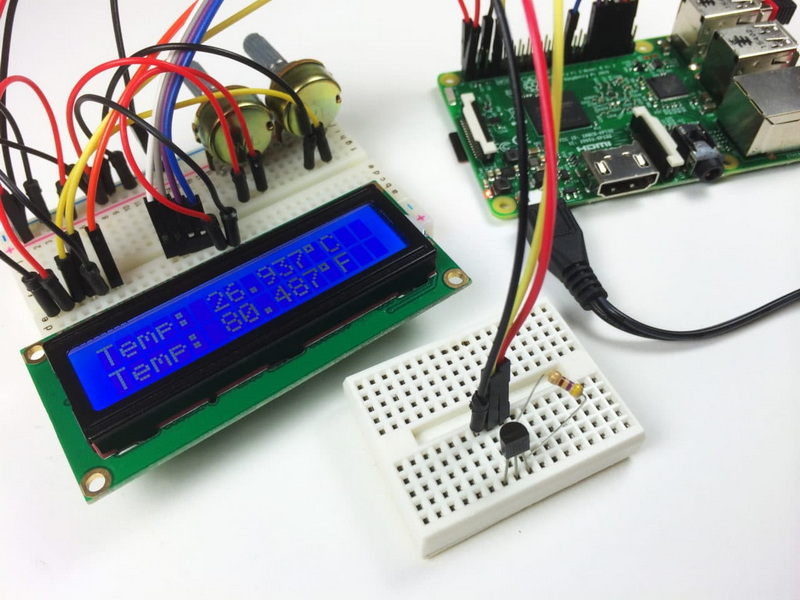

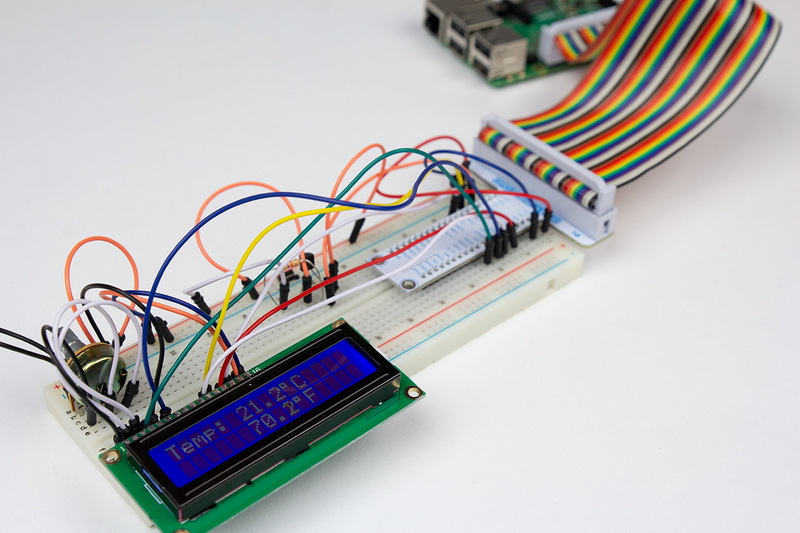

Once everything is connected and the software is set up, you can write a Python script to read the temperature from the DS18B20 and display it on the LCD. Python is a great language for beginners and offers extensive support for Raspberry Pi projects.
- Incorrect Connections: Double-check all connections to ensure they match the diagrams. Incorrect connections can lead to faulty readings or no readings at all.
- Sensor Not Detected: Ensure the kernel modules are loaded and the sensor is properly connected. If the sensor is not detected, check the pull-up resistor and the GPIO pin connections.
- LCD Not Displaying: Check the LCD's power supply and data connections. Ensure that the backlight is turned on if your LCD has this feature.
You can expand your project by adding a humidity sensor like the DHT11 or DHT22. These sensors provide both temperature and humidity readings, which can be displayed on the LCD.
Using Python's web development frameworks like Flask or Django, you can create a web interface to monitor temperature readings remotely. This allows you to access your project from any device connected to the same network.
If you prefer a more advanced display, consider using an OLED display. OLED displays offer better contrast and can be more energy-efficient. However, they might require additional libraries and setup.
You can automate tasks based on temperature readings. For example, you can trigger an email or notification when the temperature exceeds a certain threshold. This can be useful for monitoring environments like greenhouses or server rooms.
If your temperature readings are incorrect, check the sensor's placement and ensure it's not exposed to direct sunlight or heat sources. Also, verify that the sensor is properly connected to the Raspberry Pi.
Yes, you can use multiple DS18B20 sensors with the Raspberry Pi. Each sensor has a unique address, allowing you to read data from multiple sensors simultaneously.
To improve accuracy, ensure the sensor is placed in a stable environment and away from heat sources. Regularly calibrate the sensor if possible.
Check the power supply to the LCD and ensure that the data connections are secure. If the issue persists, try adjusting the contrast or backlight settings.
Yes, but ensure all components are weather-resistant. Use protective enclosures for the Raspberry Pi and LCD, and choose sensors that are suitable for outdoor conditions.
Displaying temperature on an LCD using a Raspberry Pi is a rewarding project that teaches you about electronics, programming, and problem-solving. With the right components and a bit of patience, you can create a functional temperature display system. This project can be expanded in various ways, making it a great starting point for more complex IoT projects.
The DS18B20 is highly recommended due to its accuracy and ease of use.
Yes, but ensure they are compatible with the Raspberry Pi's GPIO pins and have the necessary libraries available.
Check the power supply, data connections, and ensure the correct library is installed.
Yes, you can modify the script to display additional data such as humidity or time.
Ensure the kernel modules are loaded and the sensor is properly connected to the GPIO pins.
