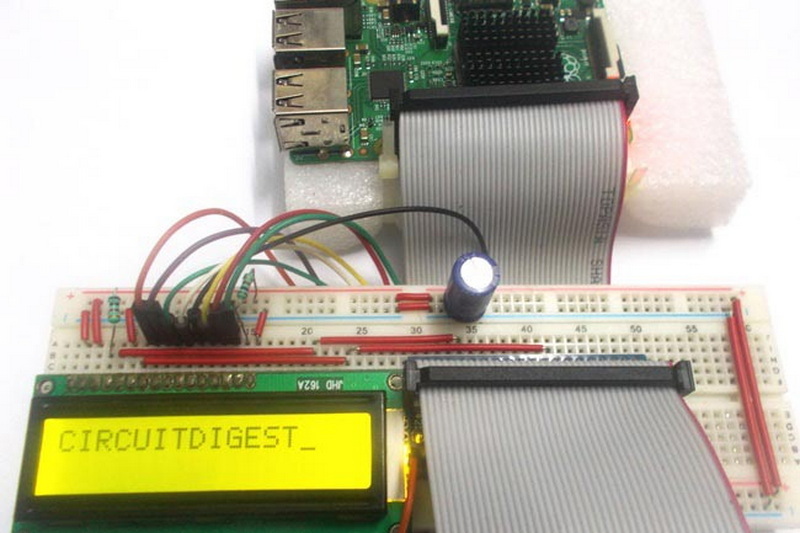

Displaying content on an LCD screen using a Raspberry Pi is a versatile project that can enhance various applications, from simple text displays to interactive interfaces. This guide will walk you through the process of connecting an LCD display to a Raspberry Pi and displaying content, including images and text. We will also cover common issues and provide solutions.
LCD displays are widely used in electronic devices due to their low power consumption and high visibility. The Raspberry Pi, a small, affordable computer, is ideal for projects requiring a compact computing solution. Combining these two components can create interactive and engaging projects.
When selecting an LCD display for your Raspberry Pi project, consider the following factors:
- Size and Resolution: Common sizes include 16x2, 20x4, and larger touchscreens like 3.5 inches.
- Interface: I2C, SPI, or parallel interfaces are available. I2C is convenient for simple text displays, while SPI is often used for more complex graphics.
- Backlight: Ensure the display has a backlight for better visibility.
1. Character LCDs: These are the most common type, displaying text in a grid format. They are easy to use and require minimal setup.
2. Graphic LCDs: These displays can show images and complex graphics, making them suitable for more advanced projects.
3. TFT LCDs: These are color displays often used in touchscreens and are ideal for interactive applications.

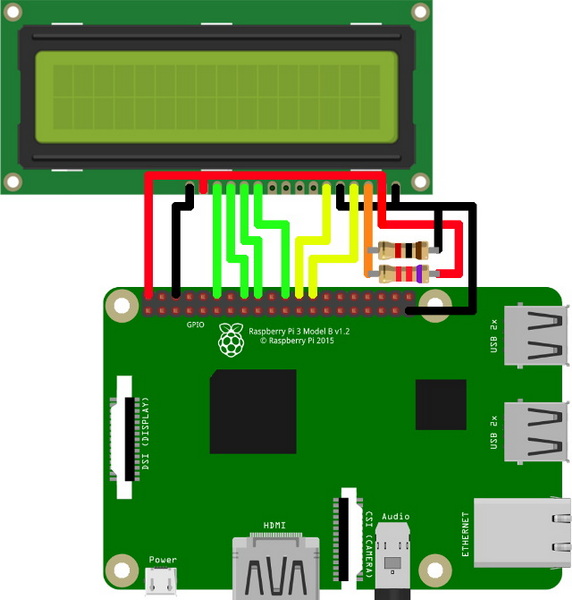

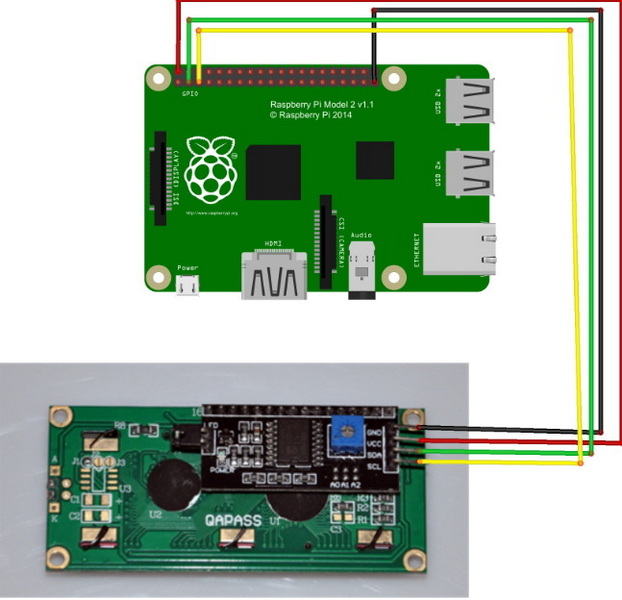

The I2C interface simplifies connections by requiring only four wires: VCC, GND, SDA, and SCL.
1. Hardware Setup:
- Connect VCC to a 5V pin on the Raspberry Pi.
- Connect GND to a ground pin.
- Connect SDA to GPIO2.
- Connect SCL to GPIO3.
2. Identify I2C Address:
Use the command `i2cdetect -y 1` in the terminal to find the I2C address of your device. Common addresses include `0x27`.
3. Software Setup:
Install necessary libraries and write scripts to interact with the LCD.
SPI interfaces are more complex but offer faster data transfer rates.
1. Hardware Setup:
- Connect VCC to a 3.3V pin.
- Connect GND to a ground pin.
- Connect MOSI to GPIO10.
- Connect MISO to GPIO9 (if required).
- Connect SCK to GPIO11.
- Connect CS to GPIO8 or another available GPIO pin.
2. Software Setup:
Install SPI libraries and configure the display using scripts.
1. Install Libraries: Use libraries like `smbus` for I2C or `spidev` for SPI.
2. Write Script: Initialize the LCD object and use methods like `putstr()` to display text.
Displaying images on an LCD requires converting the image to a compatible format and using libraries like `Pillow` for image processing.
1. Convert Images: Use tools to convert images into formats compatible with your LCD.
2. Write Script: Use libraries to draw the image on the LCD.
- Scrolling Text: Use loops to scroll text across the display.
- Animated Graphics: Create simple animations by rapidly changing images.
- Problem: Text is not visible.
- Solution: Adjust the contrast potentiometer on the back of the LCD.
- Problem: Display does not turn on.
- Solution: Check wiring connections and ensure power is supplied correctly.
- Problem: Text or images do not appear.
- Solution: Verify I2C or SPI addresses and ensure libraries are properly installed.
1. Check Power Supply: Ensure that the display is receiving the correct voltage.
2. Verify Connections: Double-check all connections to the Raspberry Pi.
3. Update Software: Make sure all libraries and software are up-to-date.
- Touchscreens: Use touchscreens to create interactive menus or games.
- Sensors Integration: Combine LCD displays with sensors to display real-time data.
- Status Displays: Use LCDs to display status updates from home automation systems.
- Control Panels: Create control panels with LCD displays to manage devices remotely.
Connecting an LCD display to a Raspberry Pi is a rewarding project that can enhance various applications. By following the steps outlined in this guide, you can successfully display text and images on your LCD screen. Remember to adjust the contrast for optimal visibility and troubleshoot any connection or software issues that arise.
The best size depends on your project needs. For simple text displays, a 16x2 LCD is sufficient, while larger touchscreens like 3.5 inches are ideal for interactive interfaces.
Use a small screwdriver to turn the potentiometer located on the back of the LCD until the text is clearly visible.
You will need libraries like `Pillow` for image processing and either `smbus` for I2C or `spidev` for SPI interfaces.
No, images must be converted to a format compatible with your LCD display. Tools like image converters can help with this process.
Check that the power connections are correct and ensure that the backlight is enabled.
