Displaying messages on an LCD (Liquid Crystal Display) using an Arduino is a fundamental skill for anyone interested in electronics and programming. This guide will walk you through the process, including wiring, coding, and troubleshooting, while providing plenty of visuals and examples to enhance your understanding.
Before diving into the practical aspects, it's essential to understand what an LCD is and how it works. An LCD is a flat-panel display technology that uses liquid crystals to produce images. In the context of Arduino projects, the most common type is the 16x2 LCD, which can display two lines of text with 16 characters each.
- Pins: A typical 16x2 LCD has 16 pins for connecting to the Arduino.
- Backlight: Most LCDs come with a backlight that enhances visibility.
- Contrast Control: A potentiometer is often used to adjust the display contrast.
To get started, you'll need the following components:
- Arduino Uno or any compatible board
- 16x2 LCD display
- Potentiometer (10kΩ recommended)
- Breadboard and jumper wires
- USB cable for programming the Arduino
The wiring diagram below illustrates how to connect the LCD to your Arduino.
| LCD Pin | Function | Arduino Pin |
|---|---|---|
| 1 | Ground (VSS) | GND |
| 2 | Power (VDD) | 5V |
| 3 | Contrast (V0) | Middle pin of Potentiometer |
| 4 | Register Select | Pin 12 |
| 5 | Read/Write (R/W) | GND |
| 6 | Enable (E) | Pin 11 |
| 7 | Data Pin D0 | Not used |
| 8 | Data Pin D1 | Not used |
| 9 | Data Pin D2 | Not used |
| 10 | Data Pin D3 | Not used |
| 11 | Data Pin D4 | Pin 5 |
| 12 | Data Pin D5 | Pin 4 |
| 13 | Data Pin D6 | Pin 3 |
| 14 | Data Pin D7 | Pin 2 |
| 15 | Backlight (+) | +5V |
| 16 | Backlight (-) | GND |
Now that you have your hardware set up, it's time to write some code. The following example demonstrates how to display "Hello, World!" on your LCD.
1. Open the Arduino IDE.
2. Copy and paste the code above into a new sketch.
3. Connect your Arduino board to your computer via USB.
4. Select your board type and port from the Tools menu.
5. Click on the upload button.
Once uploaded successfully, you should see "Hello, World!" displayed on your LCD.
If your LCD doesn't display anything or shows unexpected results, consider these common issues:
- Incorrect Wiring: Double-check all connections against the wiring diagram.
- Contrast Adjustment: Use the potentiometer to adjust contrast; if set too low, nothing will be visible.
- Power Supply: Ensure that your Arduino is powered correctly.
- Library Issues: Make sure you have included the correct libraries in your sketch.
Once you're comfortable displaying basic messages, you can explore more advanced features:
- Scrolling Text: You can create scrolling text effects by manipulating cursor positions.
- Custom Characters: The LiquidCrystal library allows you to create custom characters for more personalized displays.
Experimenting with Arduino LCD displays opens the door to a world of creative and functional projects. Here are some exciting ideas to inspire your next build:
A digital clock is a classic yet rewarding project that combines practicality with creativity. Using an Arduino board, an RTC DS1307 module, and a 16×2 LCD display, you can create a real-time clock that shows both the time and date.
Using an Arduino LCD to display real-time sensor data like temperature and humidity makes your project interactive. By integrating a DHT11 sensor with an Arduino and an LCD display, you can monitor environmental conditions effectively.
This project involves creating a countdown timer using buttons and an LCD. It's perfect for timing tasks in kitchens or labs, providing a visual countdown that can be easily monitored.
Enhance gaming experiences by using an Arduino with an LCD display as a leaderboard or quiz interface. This setup allows players to see scores or questions clearly while interacting with buttons.
Combine pushbuttons with an LCD display to create an interactive vending machine. Users can select products by pressing buttons while receiving instructions and feedback displayed on the screen.
For those looking for more advanced visual displays, consider using graphical LCDs (GLCDs). These displays allow you to showcase images and more complex graphics beyond simple text. With libraries available for controlling these displays, you can create engaging interfaces for various applications.
Creating custom graphics on a GLCD using Arduino can be quite rewarding. You can design unique images or animations that enhance user interaction in your projects. By utilizing software like Microsoft Paint and converting images into data arrays compatible with your GLCD library, you can showcase personalized graphics easily.
As you become more familiar with using an Arduino with an LCD, there are numerous advanced techniques you can explore which will not only enhance your skills but also improve your projects significantly.

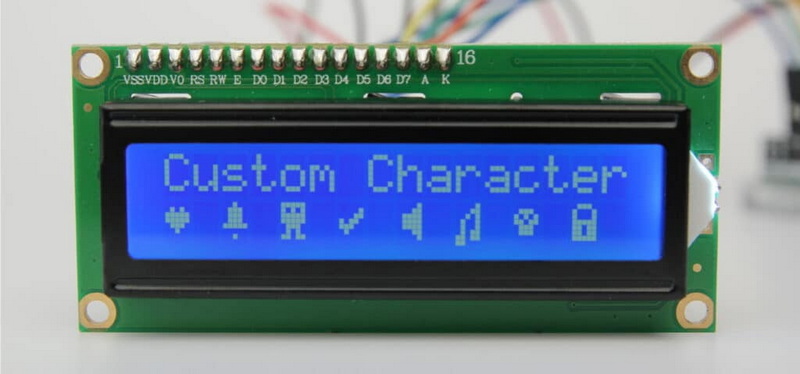

One exciting feature of many character-based LCDs is their ability to create custom characters. This capability allows users to design unique symbols or icons that can be displayed alongside standard text messages. For instance:
- You could create weather icons such as sun or cloud symbols.
- Design unique logos or symbols relevant to specific applications like home automation controls.
To create custom characters:
1. Define a byte array representing each pixel in an 8x8 grid.
2. Use `createChar()` function from the LiquidCrystal library to store this character in memory.
3. Call `setCursor()` followed by `write()` function to display it on-screen.
This flexibility allows for more visually appealing displays tailored specifically for user needs.
Another engaging feature available on many character-based displays is scrolling text functionality. This feature is particularly useful when displaying longer messages that exceed one line of text capacity on standard displays like the 16x2 model:
1. Use `setCursor()` function to position where text starts.
2. Implement a loop that shifts characters leftward across rows until they disappear off-screen.
3. Add delays between shifts for smooth scrolling effects.
This technique not only enhances readability but also adds dynamic elements to otherwise static displays.

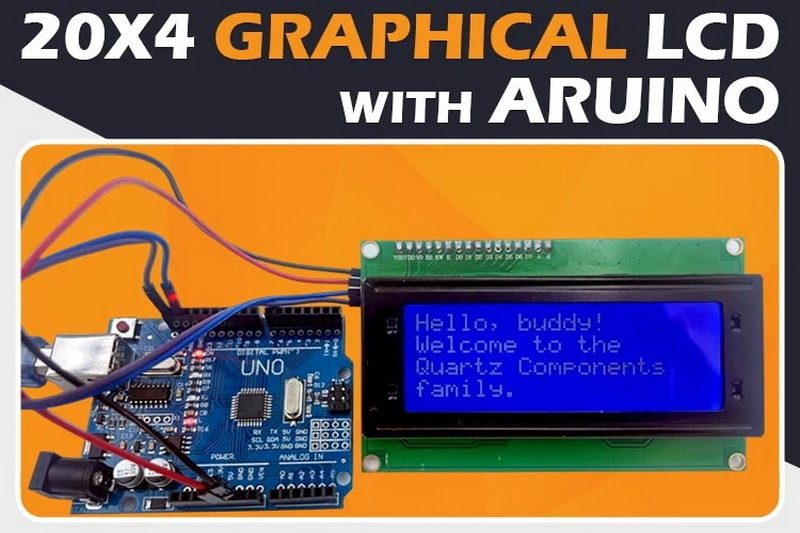

For those looking for simpler wiring solutions without sacrificing functionality, consider utilizing I2C (Inter-Integrated Circuit) interfaces when working with larger displays like a 20x4 model or multiple devices simultaneously:
1. Connect only two data pins (SDA and SCL) along with power connections instead of multiple digital pins.
2. Use libraries designed specifically for I2C communication such as `LiquidCrystal_I2C`.
3. Address multiple devices easily by assigning unique addresses during setup.
This approach simplifies connections significantly while allowing users greater flexibility in project design without cluttered breadboards full of wires!
Integrating sensors into your projects opens up endless possibilities for real-time data monitoring displayed directly on your screen:
- Temperature sensors (like DHT11 or DS18B20) allow users instant feedback about ambient conditions.
- Light sensors (like LDR) could help automate lighting systems based on current brightness levels detected nearby.
By combining these sensors' outputs displayed through an easily readable interface via their respective libraries alongside existing code structures already established within previous tutorials mentioned earlier—your projects become not only functional but also immensely informative!
Displaying messages on an LCD using Arduino is a straightforward yet rewarding project that lays the foundation for more complex applications in electronics. With practice and experimentation, you can enhance your projects by integrating various sensors and controlling them through displayed messages.
You primarily need the `LiquidCrystal` library which comes pre-installed with the Arduino IDE.
Yes, you can use various types of displays such as OLEDs and TFTs. Each type may require different libraries and wiring configurations.
The contrast can be adjusted using a potentiometer connected to pin V0 of the LCD.
This usually indicates that it has not been initialized properly or there is an issue with wiring. Check connections and ensure that you are using the correct code.
Yes, but you will need to manage their addresses carefully if they are using I2C or ensure that they are wired correctly if using parallel connections.
