Introduction

Liquid Crystal Displays (LCDs) are versatile components widely used in electronics projects to display text, numbers, and custom characters. This comprehensive guide will walk you through the process of displaying characters on an LCD, from basic setup to advanced techniques.

Understanding LCD Basics

LCDs come in various sizes, with the 16x2 (16 characters across, 2 rows) being one of the most common. These displays typically use the Hitachi HD44780 controller or a compatible variant, which provides a standardized interface for character LCDs.

LCD Pinout and Connections

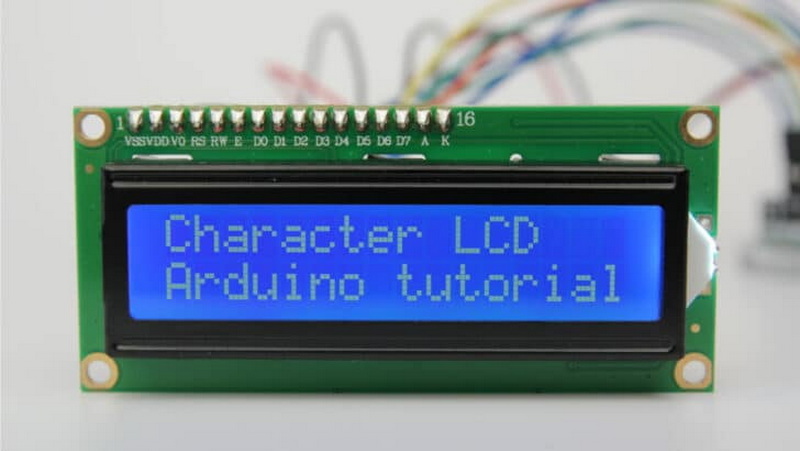

Before diving into displaying characters, it's crucial to understand the LCD pinout:

- VSS: Ground

- VDD: 5V power supply

- V0: Contrast adjustment

- RS: Register Select (0: Instruction, 1: Data)

- R/W: Read/Write (0: Write, 1: Read)

- E: Enable

- D0-D7: Data pins (4-bit or 8-bit mode)

- A: Anode (backlight +)

- K: Cathode (backlight -)

Setting Up the LCD

To begin displaying characters, you'll need to properly connect the LCD to your microcontroller (e.g., Arduino, Raspberry Pi) and initialize it in your code. Here's a general setup process:

1. Connect the LCD pins to your microcontroller

2. Include the necessary library in your code

3. Initialize the LCD object

4. Set the cursor position

5. Send characters to display

Displaying Built-in Characters

LCDs come with a built-in character set stored in the Character Generator ROM (CGROM). These include alphanumeric characters, punctuation marks, and some special symbols.

To display these characters:

1. Set the cursor position using `lcd.setCursor(column, row)`

2. Use `lcd.print()` to send characters or strings

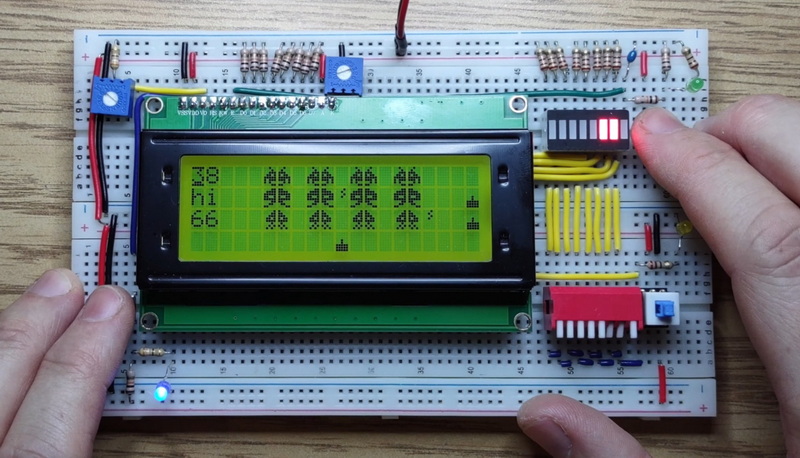

Creating and Displaying Custom Characters

One of the most exciting features of character LCDs is the ability to create and display custom characters. This is done by defining pixel patterns and storing them in the Character Generator RAM (CGRAM).

Steps to Create Custom Characters:

1. Design your character on a 5x8 pixel grid

2. Convert the design to binary, then to decimal or hexadecimal

3. Create a byte array representing the character

4. Use `lcd.createChar()` to store the character in CGRAM

5. Display the custom character using `lcd.write()`

For instance, you could create a smiley face, heart symbol, or any other icon that fits within the 5x8 grid.

Advanced Techniques

Scrolling Text

For messages longer than the LCD's width, implement text scrolling:

1. Use `lcd.scrollDisplayLeft()` or `lcd.scrollDisplayRight()`

2. Implement a delay between scrolls for readability

Blinking Characters

Create attention-grabbing displays by making characters blink:

1. Display the character

2. Clear the character position

3. Add a short delay

4. Repeat the process

Animations

Combine custom characters and timing to create simple animations:

1. Design multiple frames as custom characters

2. Cycle through the frames with appropriate delays

Troubleshooting Common Issues

When working with LCDs, you might encounter some common problems:

1. Blank display: Check contrast adjustment and connections

2. Garbled characters: Verify correct initialization and data transmission

3. Missing lines: Ensure proper voltage levels and timing

Enhancing LCD Functionality

I2C Adapters

Reduce pin usage by employing an I2C adapter for your LCD:

This simplifies wiring and frees up pins on your microcontroller.

Backlight Control

Implement dynamic backlight control for power saving or user feedback:

1. Connect the backlight pins to a PWM-capable pin on your microcontroller

2. Use PWM to adjust brightness levels

Real-world Applications

LCDs find applications in various projects:

- Weather stations

- Digital clocks

- Menu systems for electronic devices

- Status displays for IoT projects

Conclusion

Mastering the art of displaying characters on an LCD opens up a world of possibilities for your electronics projects. From simple text output to custom characters and animations, LCDs provide a versatile and user-friendly interface. By understanding the basics of LCD operation, pinout, and programming techniques, you can create informative and engaging displays for a wide range of applications.

Remember to experiment with different character designs, animations, and integration methods to make the most of your LCD in your next project. With practice, you'll be able to create complex and interactive displays that enhance the functionality and appeal of your electronic creations.

Frequently Asked Questions (FAQ)

1: How do I adjust the contrast on my LCD?

1. Locate the contrast adjustment pin (V0) on your LCD.

2. Connect a 10k potentiometer between VCC and GND.

3. Connect the wiper of the potentiometer to the V0 pin.

4. Adjust the potentiometer to find the optimal contrast setting.

2: Can I display non-English characters on my LCD?

1. Yes, many LCDs support various character sets, including Japanese, Cyrillic, and others.

2. Check your LCD's datasheet for supported character sets.

3. Use the appropriate character codes or custom characters to display non-English text.

3: How many custom characters can I create for my LCD?

1. Most character LCDs based on the HD44780 controller support up to 8 custom characters.

2. These characters are stored in the CGRAM (Character Generator RAM).

3. You can redefine these characters as needed during program execution.

4: Why is my LCD displaying strange symbols instead of the intended text?

1. This issue often occurs due to incorrect initialization or data transmission.

2. Double-check your wiring and ensure all connections are secure.

3. Verify that you're using the correct library and initialization parameters for your LCD model.

5: How can I make my LCD more energy-efficient?

1. Implement sleep modes when the display is not in use.

2. Use the backlight only when necessary, or dim it in low-light conditions.

3. Consider using a more efficient LCD controller or an OLED display for very low power applications.
