In today's digital age, televisions have become an integral part of our homes, providing entertainment and information. However, when display issues arise, it can be frustrating and disruptive to our viewing experience. This comprehensive guide will walk you through the process of diagnosing and troubleshooting common display problems in LED and LCD TVs, helping you identify the root cause and potentially save money on unnecessary repairs.
Before diving into the diagnostic process, it's essential to understand the basics of LED and LCD TV displays. LCD (Liquid Crystal Display) TVs use a backlight to illuminate the liquid crystals that form the image. LED (Light Emitting Diode) TVs are actually a type of LCD TV that uses LED lights as the backlight source instead of traditional fluorescent lamps.
Display problems can manifest in various ways. Some of the most common issues include:
1. Black screen or no picture
2. Distorted or blurry image
3. Vertical or horizontal lines on the screen

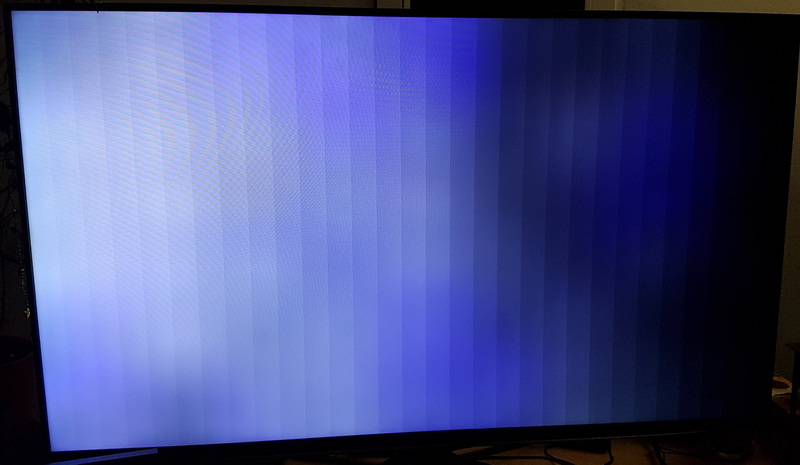

4. Color problems or tinting
5. Flickering or intermittent display
6. Dead pixels or bright spots
Start with a thorough visual inspection of your TV:
- Check for physical damage to the screen
- Ensure all cables are securely connected
- Look for any visible issues with the display when the TV is on
Often, a simple power cycle can resolve many display issues:
1. Turn off the TV
2. Unplug it from the power source
3. Wait for 2 minutes
4. Plug it back in and turn it on
Verify that the correct input source is selected and that your external devices are functioning properly:
- Test different HDMI ports
- Try alternative input sources (cable box, gaming console, etc.)
- Use known working devices to rule out external source issues
Many modern TVs have built-in diagnostic tools:
1. Access your TV's settings menu
2. Look for "Support" or "Self Diagnosis" options
3. Run the picture test to identify potential issues

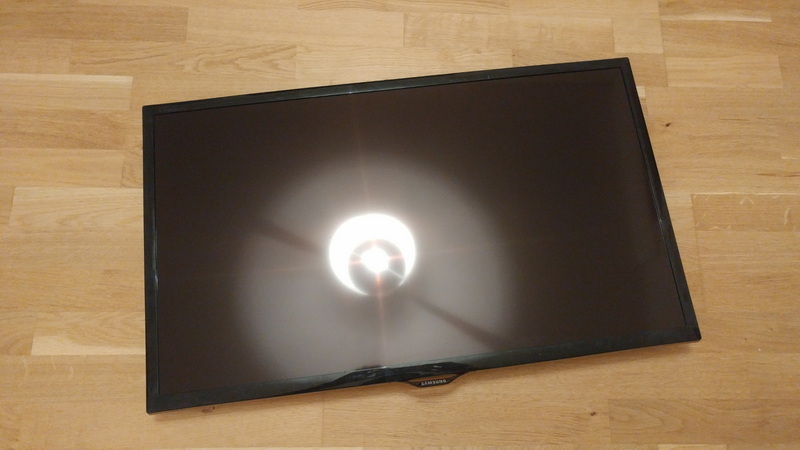

For TVs with no picture but sound:
1. Turn off all lights in the room
2. Shine a flashlight close to the screen while the TV is on
3. Look for a faint image, which indicates a backlight problem
Outdated software can sometimes cause display issues:
1. Access your TV's settings menu
2. Look for "Software Update" or similar option
3. If available, install the latest update
As a last resort before considering hardware issues:
1. Access your TV's settings menu
2. Find the "Factory Reset" or "Reset to Default" option
3. Follow the prompts to reset your TV
For those comfortable with electronics:
1. Unplug the TV and remove the back panel
2. Set your multimeter to the diode test setting
3. Test individual LED backlights for continuity
4. Mark any faulty LEDs for potential replacement
The T-Con (Timing Controller) board can cause various display issues:
1. Unplug the TV and remove the back panel
2. Locate the T-Con board (usually near the display panel)
3. Check for loose connections or visible damage
4. Reseat any loose cables
1. Perform the backlight check mentioned earlier
2. If you see a faint image, the backlight system is likely faulty
3. No image could indicate a problem with the main board or T-Con board
1. Gently tap the sides of the TV to see if the lines change or disappear
2. If they do, it could indicate a loose internal connection
3. Persistent lines often point to a faulty T-Con board or panel issue
1. Check your TV's color settings in the menu
2. Try different picture modes
3. If issues persist across all inputs, it may be a panel or main board problem
1. Check all cable connections
2. Try a different HDMI cable if applicable
3. Persistent flickering could indicate power supply or backlight issues
While many issues can be diagnosed and sometimes fixed at home, some problems require professional expertise:
- Physical damage to the screen
- Issues persisting after trying all troubleshooting steps
- Internal component failures identified through advanced diagnostics
To avoid future display issues:
1. Keep your TV in a well-ventilated area
2. Clean the screen gently with appropriate materials
3. Protect your TV from power surges
4. Regularly update the TV's software
Diagnosing TV display issues can be a complex process, but by following this guide, you can identify many common problems and potentially resolve them without professional help. Remember to always prioritize safety when working with electronic devices and don't hesitate to seek expert assistance for complex issues or if you're unsure about any step in the diagnostic process.
A failing backlight often manifests as a dark or dim screen, even when the TV is on. To check, turn off the lights in the room and shine a flashlight close to the screen while the TV is powered on. If you can see a faint image, it's likely a backlight issue.
Dead pixels can be caused by manufacturing defects, physical damage, or electrical faults within the display panel. They appear as small, unlit dots on the screen that don't change color or brightness.
In some cases, yes. Software updates can resolve certain display problems, especially those related to color calibration, image processing, or compatibility with external devices. Always keep your TV's firmware up to date.
For casual viewers, annual calibration is usually sufficient. However, if you're a videophile or use your TV for professional purposes, you might want to calibrate more frequently, perhaps every six months or after any major changes to your viewing environment.
The decision to repair an old TV depends on several factors, including the cost of repair versus replacement, the age of the TV, and the specific issue. Generally, if the repair cost exceeds 50% of the price of a new TV with similar features, it's often more economical to replace the unit.
