LCD displays are versatile components widely used in various electronic projects. While they come with a set of predefined characters, creating custom characters can add a unique touch to your projects. This comprehensive guide will walk you through the process of designing and implementing your own characters on LCD displays, providing you with the knowledge and skills to enhance your Arduino projects.
LCD (Liquid Crystal Display) screens are popular output devices in electronics projects. They typically come in various sizes, with 16x2 and 20x4 being common configurations. These displays use a grid of pixels to form characters and symbols.
Each character on an LCD is typically represented by a 5x8 pixel grid. This grid allows for the creation of standard alphanumeric characters as well as custom symbols.

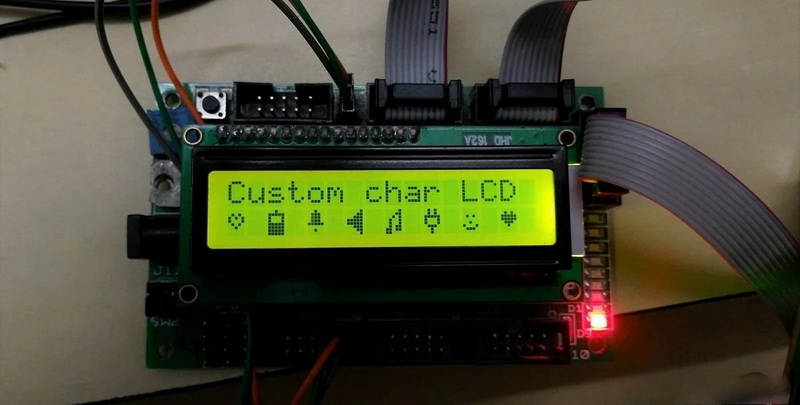

Custom characters are user-defined symbols that can be displayed on an LCD screen. These characters are stored in the LCD's Character Generator RAM (CGRAM) and can be recalled and displayed just like any built-in character.
Creating custom characters involves defining which pixels in the 5x8 grid should be turned on or off to form the desired shape.
Several online tools can help you design custom characters for LCD displays. These tools provide a visual interface where you can click on pixels to create your character and generate the corresponding code.
One popular tool is the "LCD Custom Character Generator" by Omerk:
This tool allows you to visually design your character and provides the necessary code to implement it in your Arduino project.
Start by sketching your character on paper or using a digital drawing tool. Remember that you have a 5x8 grid to work with, so keep your design simple and recognizable.
Transfer your design to an online LCD character generator. Click on the pixels you want to activate to form your character.
Once you're satisfied with your design, the character generator will provide you with the code representing your custom character. This code is typically an array of 8 bytes, each representing a row of the character.
In your Arduino sketch, define the custom character using the generated code:
cpp
byte customChar[] = {
B00100,
B01010,
B10001,
B10001,
B10001,
B01010,
B00100,
B00000
};
Use the `createChar()` function to store your custom character in the LCD's memory, then use `write()` to display it:
cpp
lcd.createChar(0, customChar);
lcd.write(byte(0));
By designing multiple custom characters and displaying them in sequence, you can create simple animations on your LCD display.
You can create larger symbols or icons by combining multiple custom characters. This technique allows you to overcome the 5x8 pixel limitation of a single character.
Custom characters can be used in various projects to enhance user interfaces and display unique information:
1. Battery level indicators
2. Signal strength meters
3. Custom emoji for mood trackers
4. Simplified weather icons
5. Game elements for LCD-based games
1. Keep it simple: The 5x8 grid limits detail, so focus on clear, recognizable shapes.
2. Test visibility: Ensure your character is easily visible on the actual LCD screen.
3. Consider negative space: Sometimes, what you don't light up is as important as what you do.
4. Plan for animations: If creating animated sequences, design characters that flow well from one to the next.
5. Optimize memory usage: Remember that you're limited to 8 custom characters at a time in most LCD controllers.
When working with custom characters, you might encounter some challenges. Here are solutions to common problems:
1. Characters not displaying: Ensure you've correctly created and written the character to the LCD.
2. Distorted characters: Double-check your byte array for any errors in the binary representation.
3. Characters changing unexpectedly: Make sure you're not overwriting character slots unintentionally.
4. Limited number of custom characters: Most LCD controllers only allow 8 custom characters at a time. Plan your usage accordingly.
Let's look at a practical application of custom characters in a weather station project. By creating custom icons for various weather conditions, we can display weather information more intuitively.
In this example, custom characters are used to represent sun, clouds, rain, and temperature trends, providing a clear visual representation of weather data.
As technology advances, we may see LCD displays with higher resolution grids for custom characters, allowing for more detailed and complex designs. Additionally, color LCD displays are becoming more accessible for hobbyist projects, opening up new possibilities for custom character design and implementation.
Creating custom characters for LCD displays is a powerful technique that can significantly enhance the user interface of your Arduino projects. By understanding the principles behind custom character creation and following the steps outlined in this guide, you can add a personal touch to your displays and create more intuitive and engaging interfaces for your electronic projects.
Remember that practice makes perfect. Don't be afraid to experiment with different designs and applications. The more you work with custom characters, the more creative and efficient you'll become in their implementation.
Most standard LCD controllers allow you to create up to 8 custom characters at a time. These characters are stored in the LCD's CGRAM (Character Generator RAM). If you need more than 8 custom characters in your project, you'll need to manage them by overwriting existing custom characters as needed.
Standard character LCD displays are typically monochrome and don't support color. However, if you're using a color LCD display (like those with RGB backlights or graphical LCDs), you may be able to display custom characters or graphics in different colors. The exact method would depend on the specific display and controller you're using.
To create animations with custom characters, you can design a series of characters that represent different frames of the animation. Then, in your code, you can display these characters in sequence with a small delay between each frame. This creates the illusion of movement or change. Remember that you're limited to 8 custom characters at a time, so complex animations might require clever character reuse or overwriting.
When creating custom characters, it's important to be mindful of potential copyright issues, especially if you're recreating existing logos or trademarked symbols. For personal projects, this is usually not a concern. However, if you're developing a commercial product or something that will be widely distributed, it's best to create original designs or ensure you have the right to use any symbols you're recreating.
The custom characters you create are typically stored in the LCD's CGRAM, which is volatile memory. This means the characters are lost when power is removed from the display. To have your custom characters appear each time your device starts up, you need to recreate them in your setup code. Some advanced LCD controllers might offer non-volatile memory for custom characters, but this is not common in standard hobby-grade LCDs.
