Connecting an LCD display to an 8051 microcontroller is a fundamental skill in embedded systems development. This comprehensive guide will walk you through the process of interfacing a 16x2 LCD with an 8051 microcontroller, providing detailed instructions, circuit diagrams, and practical examples. By the end of this article, you'll have a solid understanding of how to integrate these two components and create interactive displays for your projects.
The 8051 microcontroller is a popular 8-bit microcontroller developed by Intel. It has been widely used in various applications due to its versatility and ease of programming. The 8051 family includes several variants, but for this guide, we'll focus on the AT89S52, which is a common and readily available version.
The AT89S52 features 8K bytes of flash memory, 256 bytes of RAM, 32 I/O lines, three 16-bit timers/counters, a six-vector two-level interrupt architecture, a full-duplex serial port, and on-chip oscillator and clock circuitry. These features make it an excellent choice for many embedded applications, including LCD interfacing.
A 16x2 LCD (Liquid Crystal Display) is an alphanumeric display module capable of showing 16 characters across 2 lines. It's a cost-effective and easy-to-use display solution for embedded projects. The LCD module typically has 16 pins, including power supply, contrast adjustment, control pins, and data pins.
The 16x2 LCD uses the HD44780 controller, which is a standard interface for character-based LCDs. This controller allows the LCD to be operated in either 4-bit or 8-bit mode, providing flexibility in connection options.

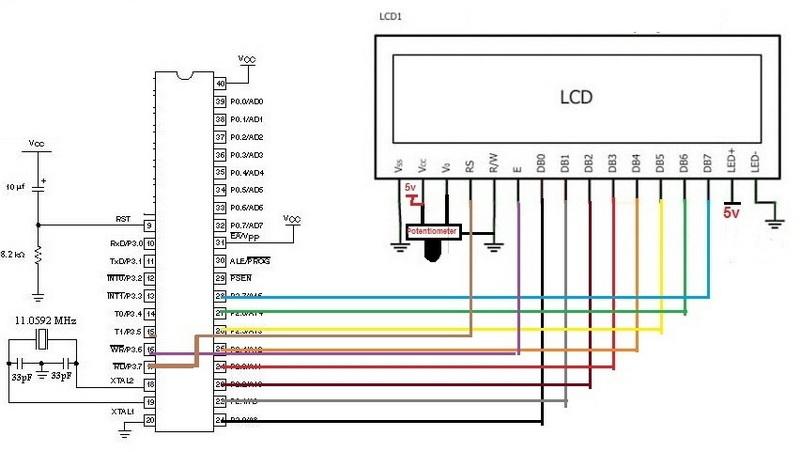

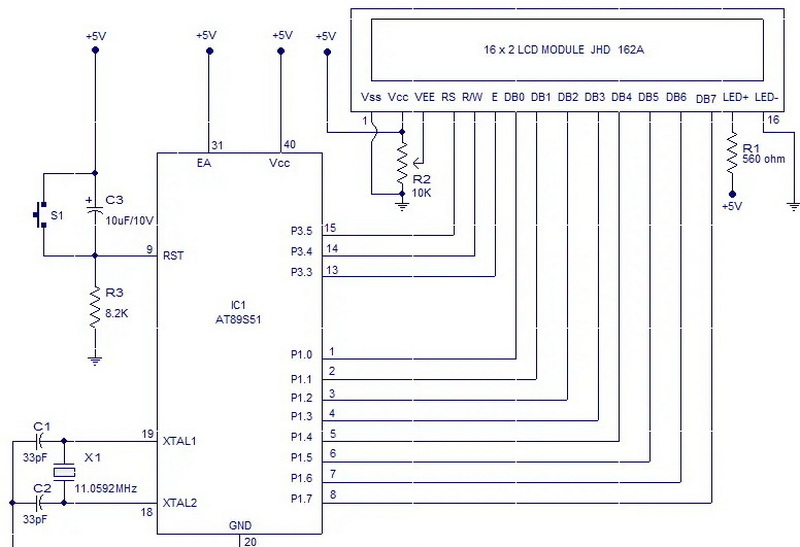

To connect the LCD display to the 8051 microcontroller, follow these steps:
1. Power supply connections:
- Connect VSS (Pin 1) of the LCD to ground
- Connect VDD (Pin 2) of the LCD to +5V
- Connect VEE (Pin 3) of the LCD to a 10K potentiometer for contrast adjustment
2. Control pin connections:
- Connect RS (Pin 4) of the LCD to P3.2 of the 8051
- Connect RW (Pin 5) of the LCD to ground (we'll only be writing to the LCD)
- Connect E (Pin 6) of the LCD to P3.3 of the 8051
3. Data pin connections:
- Connect D0-D7 (Pins 7-14) of the LCD to P2.0-P2.7 of the 8051 respectively
4. Backlight connections (optional):
- Connect LED+ (Pin 15) to +5V through a current-limiting resistor
- Connect LED- (Pin 16) to ground
Before we dive into the software implementation, it's crucial to understand some of the basic commands used to control the LCD. These commands are sent to the LCD with the RS pin set to low, indicating that the data on the bus is a command rather than display data.
Some common LCD commands include:
- 0x01: Clear display
- 0x02: Return cursor to home position
- 0x04: Decrement cursor (shift cursor to left)
- 0x06: Increment cursor (shift cursor to right)
- 0x0C: Display on, cursor off
- 0x0E: Display on, cursor on
- 0x10: Shift cursor position to left
- 0x14: Shift cursor position to right
- 0x80: Force cursor to beginning of 1st line
- 0xC0: Force cursor to beginning of 2nd line
Understanding these commands will help you control the LCD more effectively in your projects.
Now that we have the hardware connected and understand the basic commands, let's look at how to program the 8051 to communicate with the LCD. We'll be using C programming language for this example.
The software implementation typically involves creating several functions to handle different aspects of LCD control:
1. A delay function to create necessary timing delays
2. A function to send commands to the LCD
3. A function to send data to be displayed on the LCD
4. An initialization function to set up the LCD
5. A function to display strings on the LCD
These functions work together to provide a high-level interface for controlling the LCD. For example, to display "Hello, World!" on the LCD, you would first call the initialization function, then use the string display function to show the message.
The 16x2 LCD allows you to create and display custom characters. This feature is particularly useful when you need to display special symbols or create simple graphics. The LCD has a Character Generator RAM (CGRAM) that can store up to eight custom characters.
To create a custom character, you need to:
1. Send a command to set the CGRAM address
2. Send the bitmap data for the character (8 bytes for each character)
3. Return to normal operation and display the custom character using its CGRAM address (0-7)
Custom characters can be used to create simple animations, display unique symbols, or create user interface elements that aren't available in the standard character set.
Creating a scrolling text effect can make your display more dynamic and allow you to show messages longer than 16 characters. To implement scrolling text, you can:
1. Start with the text positioned off the right edge of the screen
2. Display the visible portion of the text
3. Clear the display
4. Shift the text one position to the left
5. Repeat steps 2-4 until the entire message has scrolled across the screen
This technique can be used to create marquee-style displays or to show long messages on the limited 16x2 display.
If you encounter issues while interfacing the LCD with the 8051, consider the following:
1. Check all connections carefully. A single misconnection can prevent the LCD from working.
2. Ensure proper contrast adjustment using the potentiometer connected to VEE.
3. Verify that the LCD is receiving proper power supply (5V).
4. Double-check the code for any syntax errors or logical mistakes.
5. Use an oscilloscope to verify the timing of control signals if possible.
Common issues include:
- Blank display: This could be due to improper contrast adjustment or incorrect initialization.
- Garbled characters: This might indicate incorrect data pin connections or timing issues.
- No response: Check power connections and make sure the enable (E) pin is being pulsed correctly.
Interfacing an LCD with an 8051 microcontroller opens up a wide range of practical applications:
1. Digital thermometer: Display temperature readings from a sensor. You can connect a temperature sensor like the LM35 to an ADC input of the 8051, convert the reading to a temperature value, and display it on the LCD.
2. Digital clock: Show current time and date. This project would involve using the 8051's timer interrupts to keep track of time and updating the display periodically.
3. Calculator: Create a simple calculator with keypad input and LCD output. This project would combine LCD interfacing with keypad interfacing, allowing users to input numbers and operations and see the results on the LCD.
4. Menu-based system: Implement a user interface for various settings or options. This could be used in appliances, industrial controls, or any system that requires user interaction.
5. Data logger: Display readings from various sensors in real-time. This could be used in environmental monitoring systems, industrial process control, or scientific experiments.
6. Game console: Create simple games like Tic-Tac-Toe or Snake, using buttons for input and the LCD for display.
7. Home automation display: Show the status of various home systems like temperature, humidity, or security sensors.
8. Voltage or current meter: Connect appropriate sensors to the 8051's ADC inputs and display the readings on the LCD.
9. Frequency counter: Use the 8051's counter inputs to measure frequency and display the results on the LCD.
10. Serial data display: Use the 8051's UART to receive data from a computer or another device and display it on the LCD.
Once you've mastered the basics of LCD interfacing with the 8051, there are several directions you can explore to expand your knowledge:
1. Graphical LCDs: Move beyond character LCDs to graphical LCDs that allow you to display images and more complex user interfaces.
2. Touch screens: Combine LCD technology with touch input for more interactive projects.
3. OLED displays: Explore OLED technology, which offers higher contrast and lower power consumption compared to traditional LCDs.
4. Multiple displays: Learn how to control multiple LCDs from a single microcontroller.
5. Advanced microcontrollers: Apply your LCD interfacing knowledge to more powerful microcontrollers like ARM-based systems.
6. Communication protocols: Integrate your LCD projects with various communication protocols like I2C, SPI, or UART for more complex systems.
7. Real-time operating systems (RTOS): Learn how to use an RTOS with your 8051 projects for more efficient multitasking and resource management.
Interfacing an LCD display with an 8051 microcontroller is a valuable skill in embedded systems development. This guide has provided you with the knowledge and tools to connect these components, program them, and create interactive displays for your projects. By mastering this interface, you'll be able to add visual feedback to your embedded systems, enhancing their functionality and user experience.
The combination of the versatile 8051 microcontroller and the user-friendly 16x2 LCD opens up a world of possibilities for creating informative and interactive embedded systems. Whether you're building a simple thermometer, a complex control system, or anything in between, the skills you've learned here will serve as a strong foundation for your future projects.
As you continue to explore the world of embedded systems, remember that practice is key. Try out different projects, experiment with various sensors and inputs, and don't be afraid to push the boundaries of what you can create with these simple yet powerful components.
The RS (Register Select) pin on the LCD is used to distinguish between command and data inputs. When RS is low (0), the input is treated as a command (e.g., clear screen, move cursor). When RS is high (1), the input is treated as data to be displayed on the LCD.
Yes, you can use a different port on the 8051 for data pins. However, you'll need to modify your code accordingly. For example, if you use Port 1 instead of Port 2, you would need to update your code to reflect this change. The flexibility of pin assignment allows you to optimize your design based on your specific project requirements.
To display numeric values, you'll need to convert them to strings first. Most C compilers for the 8051 provide functions like sprintf() that allow you to format numeric values into strings. Once you have the numeric value as a string, you can display it using your LCD string display function.
The 8-bit mode uses all 8 data pins (D0-D7) of the LCD, allowing for faster data transfer but requiring more connections. The 4-bit mode uses only 4 data pins (D4-D7), reducing the number of required connections at the cost of slightly slower data transfer and more complex programming. 4-bit mode is useful when you need to conserve I/O pins on your microcontroller.
You can create simple animations by defining multiple custom characters and displaying them in sequence with appropriate delays. For more complex animations, you can use bitmap images and update the display frequently. However, keep in mind that the refresh rate of the LCD is limited, so rapid animations may not be smooth. Careful timing and efficient use of custom characters can help create effective animations within the limitations of the LCD.
