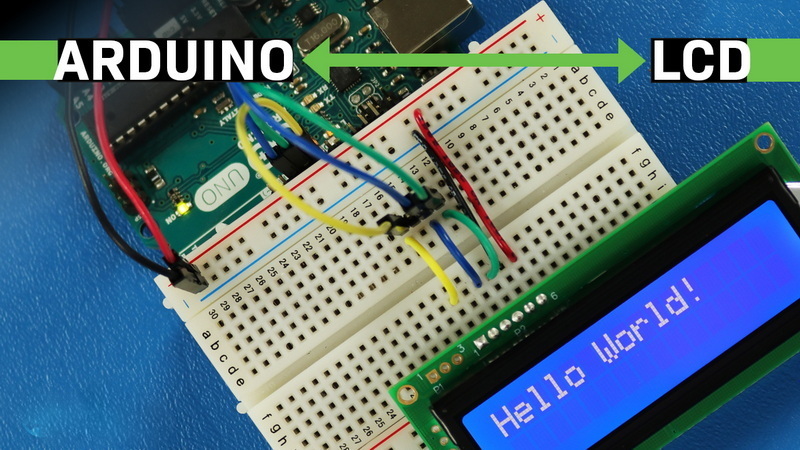

Connecting an LCD display to an Arduino is a fundamental skill for anyone interested in electronics and programming. LCDs (Liquid Crystal Displays) are widely used in various projects to display information, making them invaluable tools for hobbyists and professionals alike. This guide will walk you through the process of connecting a standard 16x2 LCD to an Arduino, explaining the necessary components, wiring, and considerations for successful implementation.
LCDs are popular due to their ability to display text and simple graphics. The 16x2 LCD can show 16 characters per line and has two lines, making it suitable for displaying messages or sensor data.
- Character Display: Shows alphanumeric characters.
- Backlight: Many models come with a backlight for visibility in low-light conditions.
- Interface: Typically uses a parallel interface with multiple pins for control.
Before starting the connection process, gather the following components:
- Arduino Board (e.g., Arduino Uno)
- 16x2 LCD Display
- Breadboard
- Jumper Wires
- 10k Ohm Potentiometer (for contrast adjustment)
- 220 Ohm Resistor (for backlight)
To connect the LCD to the Arduino, refer to the following wiring diagram. Each pin on the LCD must be connected to specific pins on the Arduino.
| LCD Pin | Function | Arduino Pin |
|---|---|---|
| 1 | Ground (VSS) | GND |
| 2 | Power (VDD) | 5V |
| 3 | Contrast (VO) | Middle pin of potentiometer |
| 4 | Register Select (RS) | Digital Pin 12 |
| 5 | Read/Write (RW) | GND |
| 6 | Enable (E) | Digital Pin 11 |
| 7 | Data Pin D0 | Not used |
| 8 | Data Pin D1 | Not used |
| 9 | Data Pin D2 | Not used |
| 10 | Data Pin D3 | Not used |
| 11 | Data Pin D4 | Digital Pin 5 |
| 12 | Data Pin D5 | Digital Pin 4 |
| 13 | Data Pin D6 | Digital Pin 3 |
| 14 | Data Pin D7 | Digital Pin 2 |
| 15 | Backlight (+) | +5V |
| 16 | Backlight (-) | GND |
1. Prepare the Breadboard: Place your Arduino and LCD on a breadboard.
2. Connect Power: Connect the VSS pin of the LCD to GND on the Arduino and VDD pin to the +5V pin.
3. Set Up Contrast Control: Use a potentiometer to adjust the contrast. Connect one end to GND, the other to +5V, and the middle pin to VO on the LCD.
4. Connect Control Pins:
- RS pin connects to Digital Pin 12.
- RW pin connects to GND.
- Enable pin connects to Digital Pin 11.
5. Connect Data Pins:
- Connect data pins D4-D7 of the LCD to Digital Pins 5, 4, 3, and 2 respectively on the Arduino.
6. Backlight Connection: Use a resistor for the backlight by connecting it from pin 15 (+) to +5V and pin 16 (-) to GND.
Once your connections are made, you will need to program your Arduino using the LiquidCrystal library. This library simplifies controlling the LCD by providing functions for displaying text and controlling cursor position.
While this guide does not include code snippets, you can find numerous examples online that demonstrate how to initialize your display and print messages.
After wiring and programming your Arduino:
1. Upload your code.
2. Power up your Arduino.
3. Adjust the potentiometer until you can see characters displayed clearly on the screen.
- No Display: Check all connections; ensure that power is supplied correctly.
- Faded Characters: Adjust the contrast using the potentiometer.
- Garbage Characters: This usually indicates incorrect wiring or issues with code initialization.
For those looking for a more efficient way of connecting an LCD display, consider using an I2C adapter. This method reduces wiring complexity by allowing you to connect only four wires instead of sixteen:
1. Connections:
- Connect VCC from I2C module to +5V on Arduino.
- Connect GND from I2C module to GND on Arduino.
- Connect SDA from I2C module to A4 on Arduino.
- Connect SCL from I2C module to A5 on Arduino.
2. Library Requirement: You will need a different library called `LiquidCrystal_I2C` which simplifies communication even further.
3. Benefits of I2C:
- Fewer wires mean less clutter.
- Easier troubleshooting due to reduced complexity.
- Ability to connect multiple devices using only two wires (SDA and SCL).
LCD displays can be utilized in various projects beyond just displaying static text. Here are some interesting applications:
- Weather Station: Display temperature, humidity, and other weather data collected from sensors.
- Digital Clock: Show time using real-time clock modules alongside an LCD.
- Interactive Menu Systems: Create menus for selecting options using buttons or rotary encoders displayed on an LCD screen.
- Sensor Readouts: Use with sensors like ultrasonic distance sensors or gas sensors to display real-time readings.
Once you are comfortable with basic operations, consider exploring advanced features such as:
- Custom Characters: Create custom symbols or icons that can be displayed alongside standard characters by defining them in your code.
- Scrolling Text: Implement scrolling text features for displaying longer messages that exceed one line of display capacity.
- User Input Handling: Integrate push buttons or rotary encoders for user input that can change what is displayed based on user interaction.
Connecting an LCD display to an Arduino is a straightforward process that opens up many possibilities for interactive projects. With just a few components and some basic programming knowledge, you can create displays for various applications ranging from simple text messages to complex user interfaces.
By understanding both standard connections and advanced options like I2C communication, you can enhance your projects significantly while keeping wiring neat and manageable. The skills learned here will serve as a foundation for more complex electronics projects in your journey as a maker or engineer.
You can use various types of LCDs with Arduino, including character displays like the standard 16x2 and graphical displays like TFT screens. Ensure compatibility with libraries available in the Arduino IDE.
Yes, a potentiometer is typically used to adjust the contrast of your display, ensuring that characters are visible under different lighting conditions.
Yes, you can connect multiple LCDs by using additional pins or multiplexing techniques; however, managing multiple displays will require more complex programming.
You can control backlight brightness by using a PWM-enabled pin connected through a transistor or by adjusting resistance in series with the backlight circuit.
The most commonly used library is `LiquidCrystal`, which supports various character-based displays. For graphical displays, libraries like `Adafruit_GFX` may be required depending on your specific model.
