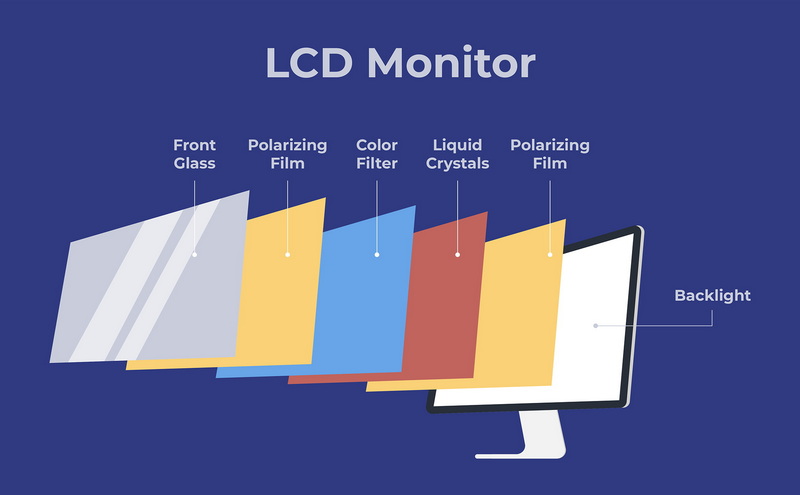

Checking the voltage of an LCD panel is a crucial skill for anyone involved in electronics repair, particularly for those working with televisions and computer monitors. This guide will walk you through the process of testing LCD panel voltages, providing you with the knowledge and techniques needed to diagnose and troubleshoot display issues effectively.
Before diving into the testing process, it's essential to understand the various voltages present in an LCD panel. These voltages are responsible for powering different components and ensuring the proper functioning of the display.
1. VCC (Panel VCC): This is the main power supply voltage for the panel, typically ranging from 3.3V to 12V, with 12V being the most common[1].
2. VGH (Gate-High Voltage): Usually between 20V to 30V, this voltage is crucial for driving the TFT gates[1].
3. VGL (Gate-Low Voltage): Ranging from -5V to -11V, this negative voltage is also essential for TFT gate operation[1].
4. AVDD: This voltage powers the source drivers and typically measures between 12V to 18V[5].
5. VCOM: The common voltage, usually between 5V to 7V, is critical for proper image display[5].
6. VDD/VDDT: A logic voltage, typically around 3.3V, used for various control functions[5].
To check LCD panel voltages accurately, you'll need the following tools:
1. Digital Multimeter (DMM)
2. Insulated probes
3. Magnifying glass (for identifying small connection points)
4. Anti-static wrist strap (to prevent electrostatic discharge)
Before beginning any testing, ensure the device is unplugged and any residual charge has been discharged. Always wear an anti-static wrist strap to prevent damage to sensitive components.
The Timing Controller (T-Con) board is typically where you'll find the connection points for various panel voltages. It's usually located near the edge of the panel.
Using the panel's schematic or service manual, identify the test points for each voltage you need to check. If you don't have access to these documents, look for labeled points on the board itself.
Set your digital multimeter to measure DC voltage. Start with the highest range (usually 20V or 50V) to avoid damaging the meter if voltages are higher than expected.
Connect the black (negative) probe of your multimeter to a known ground point on the panel or T-Con board.
Carefully touch the red (positive) probe to each voltage test point, starting with VCC:
- VCC: Should read around 12V (or the specified panel voltage)[1]
- VGH: Expect a reading between 20V to 30V[1]
- VGL: Look for a negative voltage between -5V to -11V[1]
- AVDD: Should measure between 12V to 18V[5]
- VCOM: Expect a reading between 5V to 7V[5]
- VDD/VDDT: Should be around 3.3V[5]
Note down the voltage readings for each point tested. Compare these with the expected values from the service manual or standard ranges.
If any voltages are significantly off from the expected values, this could indicate a problem with the power supply, T-Con board, or the panel itself.
Understanding how voltage issues manifest in display problems can help you diagnose issues more quickly:
1. No backlight: Check VCC and AVDD voltages
2. Distorted colors or no picture: Verify VGH and VGL voltages
3. Flickering or unstable image: Examine VCOM voltage
4. No display at all: Check all voltages, starting with VCC and VDD
For more complex issues, you may need to employ advanced testing techniques:
An oscilloscope can help you visualize voltage waveforms, which is particularly useful for checking PWM signals or detecting voltage fluctuations that a multimeter might miss.
Some voltage issues only appear when the panel is operating. In these cases, you may need to test voltages while the display is powered on and displaying an image. Exercise extreme caution when working with live circuits.
For a visual guide on how to check LCD panel voltages, watch this informative video:
This video demonstrates the practical aspects of testing panel voltages and can help reinforce the concepts discussed in this guide.
If you encounter voltage discrepancies during your testing, here are some steps to troubleshoot:
1. Check power supply: Ensure the main power supply is functioning correctly and providing the expected voltages.
2. Inspect T-Con board: Look for visible damage, burnt components, or swollen capacitors on the T-Con board.
3. Test voltage regulators: If specific voltages are off, the corresponding voltage regulator may be faulty.
4. Check for short circuits: Use your multimeter's continuity test to check for unexpected connections between voltage rails.
5. Examine flex cables: Ensure all flex cables connecting the T-Con board to the panel are securely attached and undamaged.
To ensure accurate results and maintain safety, follow these best practices:
1. Always use insulated probes and wear safety glasses.
2. Double-check your multimeter's settings before each measurement.
3. Be gentle when probing test points to avoid damaging delicate components.
4. Keep your work area clean and well-lit to avoid accidental short circuits.
5. Document your findings thoroughly for future reference.
Mastering the art of checking LCD panel voltages is an invaluable skill for electronics technicians and enthusiasts alike. By following this comprehensive guide, you'll be well-equipped to diagnose and troubleshoot a wide range of LCD panel issues. Remember that practice and experience will enhance your ability to interpret voltage readings and identify problems quickly.
As technology evolves, staying updated with the latest panel technologies and their voltage requirements will be crucial. Continue to learn and adapt your testing techniques to remain effective in your diagnostic and repair work.
The most common cause of LCD panel voltage issues is typically a faulty power supply unit. This can result in incorrect voltages being supplied to the panel, leading to various display problems such as no picture, distorted images, or flickering.
It's recommended to calibrate your multimeter at least once a year for general use. However, if you're frequently testing sensitive electronics like LCD panels, consider calibrating every six months or before any critical measurements to ensure the highest accuracy.
While it's possible to test voltages on a powered device, it's generally not recommended due to safety concerns and the risk of accidental short circuits. If you must test while powered on, use extreme caution, ensure proper insulation, and consider using a differential probe for added safety.
If you can't find a schematic for your specific panel, look for common voltage test points labeled on the T-Con board itself. You can also research similar models or consult online forums for guidance. As a last resort, carefully trace the circuits to identify key voltage points.
While software tools can't directly measure voltages, some diagnostic software can help identify display issues that may be related to voltage problems. These tools often provide test patterns and pixel tests that can reveal symptoms of voltage-related issues, guiding your physical testing efforts.
