Liquid Crystal Displays (LCDs) are widely used in various devices, from computers and televisions to handheld gadgets. One crucial aspect of their functionality is power consumption, specifically the amount of current they draw, measured in amps. Understanding how much current an LCD display consumes can help users make informed decisions regarding power supply requirements, battery life, and overall energy efficiency.
An LCD is a flat-panel display technology that utilizes liquid crystals to modulate light. These displays are known for their thin profile and ability to produce high-quality images with low power consumption compared to older technologies like Cathode Ray Tubes (CRTs). The basic structure of an LCD includes:
- Liquid Crystals: These materials change their optical properties when an electric field is applied.
- Electrodes: Transparent electrodes allow light to pass through and control the liquid crystals.
- Backlight: Most LCDs require a backlight (usually LEDs) to illuminate the display since liquid crystals do not emit light by themselves.
The current draw of an LCD can vary significantly based on its type, size, and usage conditions. Here's a breakdown of typical current consumption for various types of LCD displays:
- Without Backlight: Approximately 1 mA
- With Backlight: Typically around 20 mA to 160 mA, depending on the design and specific model.

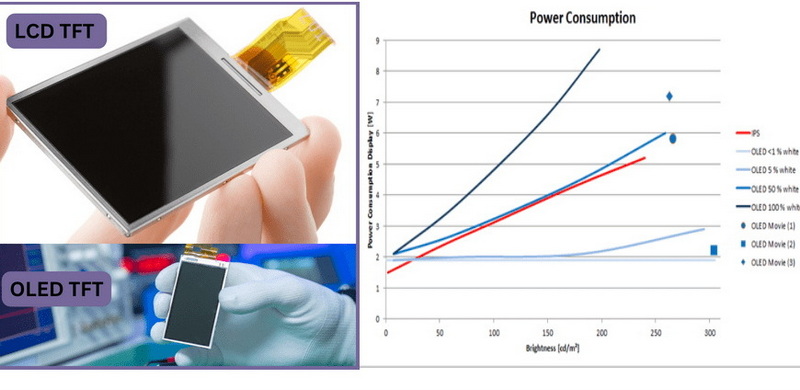

TFT (Thin Film Transistor) displays are commonly used in smartphones and tablets. Their power consumption can vary widely based on size and resolution.
- Typical Current Draw: Around 20 mA to 120 mA when active, depending on the brightness settings and whether the backlight is on.
E-paper displays are gaining popularity due to their extremely low power consumption when displaying static images.
- Current Draw: Less than 1 mA when displaying a static image, but they require power for refreshing the image.
Several factors influence how much current an LCD display will draw:
- Brightness Settings: Higher brightness settings increase power consumption significantly.
- Backlight Usage: The backlight is a major contributor to overall power usage. Turning off or dimming the backlight can lead to substantial savings in current draw.
- Display Content: The complexity of the displayed content can also affect power consumption. For example, displaying bright white screens typically consumes more power than darker screens due to the nature of backlighting.
To calculate the total power consumption of an LCD display, you can use the formula:
Power Watts =Voltage Volts ×Current Amps
For instance, if you have a 5V display that draws 100 mA:
Power=5V×0.1A=0.5W
Here are some practical examples illustrating how much current different types of displays draw during operation:
- A standard 16x2 character LCD may consume about 1 mA without backlight and up to 160 mA with full brightness on the backlight.
- A typical TFT display might draw around 60 mA while showing vibrant colors but could drop significantly when displaying darker images or when in sleep mode.
When designing devices that utilize LCDs, energy efficiency is paramount, especially for battery-powered applications. Here are some strategies to minimize current draw:
- Use Low-Power Modes: Many modern displays come with low-power modes that reduce current draw when full brightness is not necessary.
- Optimize Backlight Usage: Implementing adaptive brightness control can help adjust backlight levels based on ambient light conditions.
- Choose Efficient Display Technologies: Technologies such as e-paper or OLED may provide better energy efficiency for specific applications compared to traditional LCDs.
The size and resolution of an LCD significantly impact its power consumption. Larger screens typically require more backlighting, which increases overall energy use. Additionally, higher resolutions mean more pixels need to be illuminated, further contributing to higher current draw.
- Larger displays necessitate larger or more numerous LED backlights, which directly correlates with increased power consumption.
- For example, a standard 24-inch monitor may consume between 20 to 30 watts, while a larger 32-inch monitor could consume up to 50 watts or more depending on its specifications[4].
- Higher resolution screens often require more processing power and backlighting. For instance, a Full HD (FHD) monitor will generally consume more than a standard HD monitor due to the increased number of pixels being lit.
- The transmittance ratio also plays a role; as resolution increases within the same physical screen size, the effective light transmission decreases due to more pixels occupying space[1].
Backlighting is one of the most significant contributors to an LCD's overall energy consumption. Different technologies used for backlighting can lead to varying levels of efficiency:
- LED-backlit displays are generally more energy-efficient than those using Cold Cathode Fluorescent Lamps (CCFL). LED technology allows for better control over brightness levels and can be turned off in areas where light is not needed.
- CCFL technology tends to consume more power since it requires constant operation regardless of screen content.
The color displayed on an LCD screen can also influence its power usage. Generally:
- Bright colors like white require more energy because they necessitate full backlighting.
- Darker colors can lead to reduced energy consumption since less light is needed from the backlight; however, this effect varies by technology used.
To illustrate these concepts further, here are some real-life examples based on measurements taken from various monitors:
| Monitor Type | Power Consumption (Watts) |
|---|---|
| Standard 24-inch LCD | 20 - 30 |
| High-end Gaming Monitor | Up to 65 |
| Large Commercial Display | Up to 150 |
These examples showcase how different applications and technologies affect overall power consumption.
Understanding how much current an LCD display draws is essential for optimizing power usage in electronic devices. By considering factors such as display type, brightness settings, resolution, and content displayed, users can make informed decisions that enhance battery life and overall energy efficiency.
Typically, a standard 16x2 character LCD draws about 1 mA without backlight and can go up to 160 mA with the backlight on.
Factors include brightness settings, backlight usage, display content complexity, and specific model characteristics.
Use the formula: Power (Watts) = Voltage (Volts) × Current (Amps). For example, a 5V display drawing 100 mA uses 0.5W of power.
Yes, e-paper displays consume significantly less power when displaying static images and are ideal for battery-operated devices.
The backlight is a major contributor to overall power usage; turning it off or dimming it can lead to substantial savings in current draw.
