OLED (Organic Light Emitting Diode) screens have revolutionized the display industry with their superior image quality, energy efficiency, and flexibility. These screens are used in a wide range of devices, from smartphones and televisions to wearable technology and automotive displays. The manufacturing process of OLED screens involves several complex steps, including substrate preparation, organic layer deposition, and encapsulation. In this article, we will delve into the details of how OLED screens are made and explore their innovative applications.
A simple OLED consists of several layers:
1. Substrate: This is the base material, typically glass or plastic.
2. Anode: The positive electrode, often made of indium tin oxide (ITO).
3. Organic Layers: These include the hole injection layer, hole transport layer, emissive layer, electron transport layer, and electron injection layer.
4. Cathode: The negative electrode, usually made of a metal alloy.
5. Encapsulation Layer: Protects the OLED from moisture and oxygen.
The process begins with a substrate, which is cleaned and prepared for the deposition of the anode. ITO is commonly used as the anode due to its high conductivity and transparency.
ITO is deposited onto the substrate using techniques such as sputtering. This layer serves as the anode and is crucial for the injection of holes into the organic layers.
The organic layers are deposited using various methods, including vacuum thermal evaporation and solution-based processes like inkjet printing. The emissive layer is responsible for light emission when electrons and holes recombine.
The cathode is deposited on top of the organic layers. This is typically done using vacuum thermal evaporation to ensure a thin, uniform layer.
To protect the OLED from moisture and oxygen, an encapsulation layer is applied. This can be done using glass, thin-film encapsulation, or metal lid encapsulation.
Flexible OLEDs can be bent or folded, making them ideal for wearable devices and foldable smartphones. Transparent OLEDs are used in applications like optical fingerprint scanners and smart windows.
These TVs can be rolled up when not in use, offering a unique viewing experience and space-saving design.

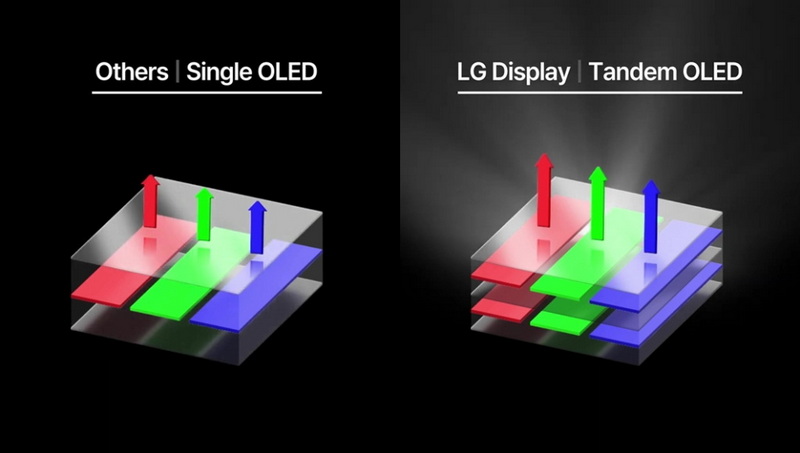

Enhanced fabrication methods have significantly improved the efficiency and quality of OLED displays. Key technologies include improved backplane designs, maskless OLED production processes, and tandem (stacked) OLED devices. These methods contribute to higher brightness and longer lifespans for OLED displays, making them ideal for various applications, from smartphones to automotive displays[1].
The integration of AI in OLED production has revolutionized the manufacturing process. AI-driven material discovery and process optimization have led to significant improvements in both efficiency and performance. This has enabled the development of next-generation OLED emitters and innovative display architectures, further enhancing the capabilities of OLED technology[1][5].
eLEAP is an innovative OLED technology that eliminates the need for traditional metal masks in the manufacturing process. It leverages photolithography to deposit organic materials, resulting in a higher aperture ratio and improved efficiency. eLEAP displays achieve a 60% aperture ratio, doubling the light-emitting area compared to conventional OLEDs. This technology also offers a threefold increase in lifespan and twice the brightness, making it suitable for high-definition displays[2][7].
One of the primary challenges in scaling OLED production is the high cost of advanced materials. Materials like indium tin oxide (ITO) are not only expensive but also rare, driving up the cost of production. Researchers are actively exploring alternative materials and methods to reduce these costs[1][3].
Achieving high yields in OLED production is another significant challenge. The manufacturing process requires a high level of precision, and even a small defect can render a large section of the substrate useless. To improve yields, manufacturers are focusing on tighter process control and significant particle reductions to minimize the number of "killer defects"[1].
Manufacturing defects are a major hurdle in scaling OLED production. These defects can arise from various factors, including environmental conditions and material interactions during the fabrication process. To mitigate these issues, manufacturers are developing new encapsulation technologies and advanced sealing techniques[1].
OLEDs are highly advantageous for wearable devices and virtual reality headsets due to their flexible and lightweight nature. As OLED production volumes increase and costs come down, their use in applications like curved VR headsets, smart eyewear, and foldable wearables is projected to grow exponentially[3].
AI will continue to play a crucial role in optimizing OLED manufacturing processes. By analyzing real-time data, AI systems can identify anomalies and suggest improvements, significantly enhancing manufacturing speed and accuracy[5].

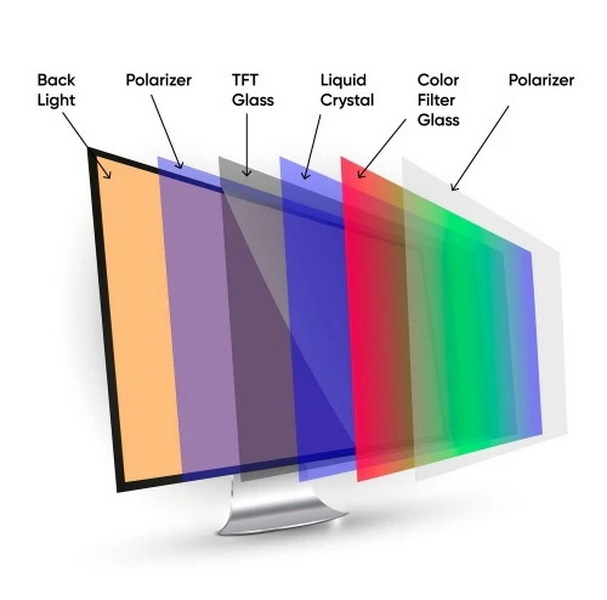

OLED technology offers several advantages over traditional LCDs:
- Superior Image Quality: Wider viewing angles, higher contrast ratios, and more accurate colors.
- Energy Efficiency: OLED pixels emit their own light, reducing power consumption.
- Faster Response Times: Smoother motion and reduced motion blur.
OLED screens have transformed the display industry with their unique features and applications. Understanding the manufacturing process and innovative technologies behind OLEDs provides insights into their potential and future developments.
An OLED screen consists of a substrate, an anode, organic layers (including emissive layers), a cathode, and an encapsulation layer.
OLEDs emit light when electrons and holes recombine in the emissive layer, releasing energy as photons.
OLEDs offer superior image quality, energy efficiency, and faster response times compared to LCDs.
Flexible OLEDs are used in wearable devices, foldable smartphones, and other applications where flexibility is beneficial.
Encapsulation protects OLEDs from moisture and oxygen, which can cause degradation and reduce lifespan.
