Views: 222 Author: Tina Publish Time: 2025-02-08 Origin: Site
Content Menu
● The Integrated iSight Camera: A Closer Look
● Step-by-Step Guide to Upgrading the Camera
>> 1. Gather the Necessary Tools:
>> 4. Access the Camera Module:
>> 5. Remove the Old Camera Module:
>> 6. Install the New Camera Module:
● Troubleshooting Common Issues
● Alternative Solutions: External Webcams
● The Legacy of the Apple Cinema Display
>> Modern Alternatives and Considerations
● The Future of Display Technology
● FAQ
>> 1. Can I upgrade the camera in my 27 LED Cinema Display?
>> 2. What tools do I need to upgrade the camera?
>> 3. Will the upgraded camera work with my Mac?
>> 4. What resolution will the upgraded camera support?
>> 5. Where can I find a replacement camera module?

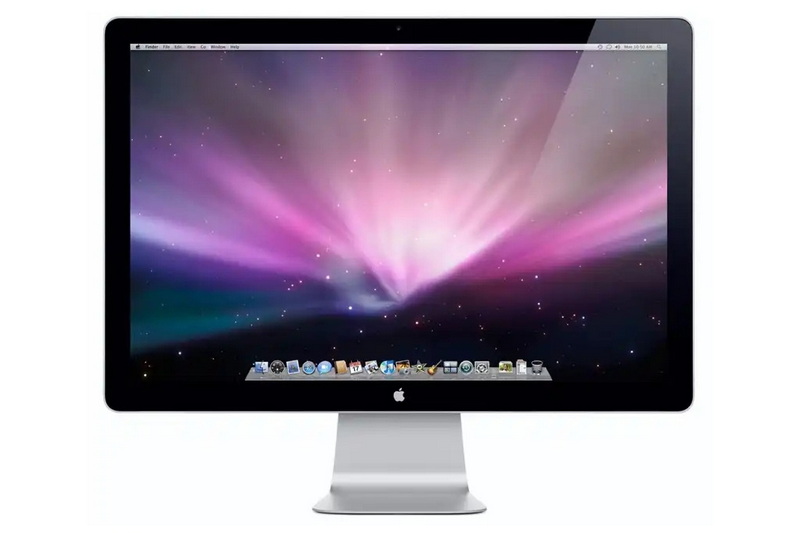

The Apple Cinema Display is a series of flat-panel computer monitors designed, manufactured, and sold by Apple Inc. from 1999 to 2011. These displays were known for their sleek design, high image quality, and integration with Apple's ecosystem. One of the more popular models was the 27-inch LED Cinema Display, released in 2010. A key feature of this model was its inclusion of a built-in iSight camera and microphone, making it a convenient all-in-one solution for video conferencing and communication.
To understand the significance of the iSight camera in the 27-inch LED Cinema Display, it's important to consider the evolution of Apple's display technology. Apple has consistently prioritized design and user experience, and their displays have been no exception.
- Early LCD Cinema Displays (1999-2004): These early models focused on bringing LCD technology to the forefront with sleek designs and high image quality. They did not include built-in cameras.
- Aluminum Cinema Displays (2004-2008): These displays featured an aluminum enclosure and further improved image quality. Still, no integrated cameras were included in these models.
- LED Cinema Display (2008-2010): This marked a significant shift with the introduction of LED backlighting, resulting in brighter and more energy-efficient displays. The 24-inch LED Cinema Display did not have a built-in camera.
- 27-inch LED Cinema Display (2010): This model was a game-changer, integrating an iSight camera, microphone, and speakers into a single unit. This made it an ideal solution for users who wanted a clean and clutter-free workspace.
- Thunderbolt Display (2011-2016): The Thunderbolt Display replaced the LED Cinema Display and included a Thunderbolt port, allowing for high-speed data transfer and display connectivity. This model also retained the built-in FaceTime HD camera.
The iSight camera integrated into the 27-inch LED Cinema Display was a notable feature for its time. While its specifications may seem dated by today's standards, it provided a convenient and reliable solution for video conferencing and communication.
- Resolution: The original iSight camera featured a resolution of 640x480 pixels, which was standard for webcams at the time.
- Image Quality: While not as sharp as modern HD cameras, the iSight provided decent image quality for video calls and basic recording.
- Microphone: The integrated microphone offered clear audio capture, reducing the need for an external microphone.
- Integration: The seamless integration with macOS made it easy to use the iSight camera with applications like FaceTime, Photo Booth, and iMovie.
While the built-in iSight camera was adequate for basic video conferencing, many users found its image quality lacking, especially as higher-resolution cameras became more common. Upgrading the camera can significantly improve the user experience and bring the display up to modern standards.
- Improved Image Quality: Upgrading to a 720p or 1080p camera can result in sharper and more detailed video, making video calls more enjoyable.
- Better Low-Light Performance: Newer camera modules often have better low-light performance, which can be beneficial in dimly lit environments.
- Enhanced Features: Some camera modules may offer additional features such as autofocus, wider field of view, and improved color accuracy.
Upgrading the camera in a 27-inch LED Cinema Display is a relatively straightforward process that can be completed with basic tools and some patience. Here's a step-by-step guide:
- Suction cups
- Torx screwdriver set (T10)
- Plastic opening tools (or similar non-marring tools)
- Needle-nose pliers
- Replacement camera module
- Power off the display and disconnect all cables.
- Place the display face up on a soft, clean surface to prevent scratches.
- Attach the suction cups to the front glass, near the corners.
- Gently pull on the suction cups while using plastic opening tools to pry the glass away from the frame.
- The glass is held in place by magnets, so it should come off relatively easily.
- Once the front glass is removed, you will see the internal components of the display.
- Locate the camera module at the top center of the display.
- Use the Torx screwdriver to remove the two T10 screws that secure the camera module to the chassis.
- Carefully disconnect the camera cable from the back of the module using needle-nose pliers.
- Connect the cable to the back of the new camera module.
- Align the new camera module with the mounting holes and secure it with the T10 screws.
- Carefully align the front glass with the frame and press it into place.
- The magnets should snap the glass back into position.
- Reconnect the display to your computer and power it on.
- Open FaceTime or another video conferencing application to test the new camera.
While the camera upgrade process is generally straightforward, some users may encounter issues. Here are some common problems and their solutions:
Camera Not Recognized:
- Ensure that the camera cable is securely connected to the module.
- Try restarting your computer.
- Check System Preferences > Sound > Input to ensure that the camera is selected.
Poor Image Quality:
- Make sure the camera lens is clean.
- Adjust the lighting in your environment.
- Verify that the camera is set to the correct resolution in your video conferencing application.
Display Not Powering On:
- Double-check all internal connections to ensure they are secure.
- Inspect the power cable and power adapter for any damage.
If you're not comfortable disassembling your display to upgrade the camera, an external webcam is a viable alternative. Modern webcams offer excellent image quality and features, and they can be easily connected to your computer via USB.
- Logitech Brio: A high-end webcam with 4K resolution, HDR, and advanced features like facial recognition and background replacement.
- Razer Kiyo: A webcam with a built-in ring light, ideal for improving lighting in video calls.
- Microsoft LifeCam Studio: A reliable and affordable webcam with 1080p resolution and autofocus.
The Apple Cinema Display holds a special place in the history of display technology. Its sleek design, high image quality, and integration with Apple's ecosystem made it a popular choice among creative professionals and enthusiasts alike. While it has been discontinued for many years, it remains a sought-after display for those who appreciate its timeless design and functionality.
While the 27-inch LED Cinema Display remains a capable monitor, modern displays offer several advantages in terms of resolution, color accuracy, and features. If you're considering upgrading your display, here are some alternatives to consider:
- Apple Studio Display: Apple's current 27-inch display features a 5K Retina display, a built-in A13 Bionic chip, and a 12MP Ultra Wide camera with Center Stage.
- LG UltraFine 5K Display: A high-quality 27-inch display with 5K resolution and Thunderbolt 3 connectivity.
- Dell UltraSharp U2720Q: A 27-inch 4K display with excellent color accuracy and a wide range of connectivity options.
These modern displays offer significant improvements in image quality and features compared to the 27-inch LED Cinema Display, but they also come at a higher price point.
Display technology continues to evolve at a rapid pace. We can expect to see further advancements in resolution, color accuracy, refresh rates, and display technologies in the years to come.
- MicroLED: This technology offers superior contrast, brightness, and energy efficiency compared to traditional LCD and OLED displays.
- Mini-LED: A more affordable alternative to MicroLED, Mini-LED displays offer improved contrast and brightness compared to traditional LCD displays.
- High Refresh Rates: Displays with high refresh rates (120Hz or higher) provide smoother and more responsive motion, making them ideal for gaming and other fast-paced applications.
The 27-inch LED Cinema Display with its built-in iSight camera represented a significant step forward in integrated display technology. While the original camera's specifications might seem dated by today's standards, the option to upgrade it provides a way to modernize this classic display. Whether you choose to upgrade the camera module or opt for an external webcam, the 27-inch LED Cinema Display remains a viable option for those who appreciate its design and functionality.
Yes, it is possible to upgrade the camera. Users have successfully replaced the original 640x480 iSight camera with a 720p FaceTime HD camera from a newer 27" Thunderbolt Display or 2011 iMac.
To perform the upgrade, you will need a suction cup kit to remove the front glass, a Torx driver kit to remove the screws holding the camera in place, and a pair of needle-nose pliers to disconnect the camera cable.
Yes, the upgraded camera should work seamlessly with your Mac. The system will recognize the new camera as if it were in its original monitor, as both cameras communicate over USB 2.0.
The upgraded camera (720p FaceTime HD camera) supports a resolution of 1280x720, which is a noticeable improvement over the original 640x480 camera.
You can find replacement camera modules on eBay or other online marketplaces.
