Liquid Crystal Displays (LCDs) have revolutionized how we interact with technology, serving as the primary visual interface for countless devices. Traditionally, LCDs depend on backlights to illuminate the display, making the content visible. However, a new wave of LCD technology is emerging that eliminates the need for backlights, presenting distinct advantages in power consumption, visibility in bright environments, and design flexibility. This article provides an in-depth look at the world of LCDs without backlights, exploring their technological underpinnings, benefits, applications, limitations, and future prospects.
Before we delve into the specifics of LCDs without backlights, it's crucial to have a solid understanding of LCD technology in general. LCDs are passive matrix display devices, meaning they modulate light rather than emit it directly. They consist of several essential layers that work together to create an image:
- Polarizing Filters: These filters are positioned at the front and rear of the display, controlling the direction of light waves passing through. They ensure that light is polarized in a specific orientation, which is essential for the liquid crystals to function correctly. Typically, the front and rear filters are aligned at 90 degrees.
- Glass Substrates: These are transparent glass panels that provide a rigid and protective support structure for the other layers of the LCD. The inner surfaces of the glass substrates are coated with transparent electrodes.
- Transparent Electrodes: These electrodes, typically made of indium tin oxide (ITO), are patterned on the inner surfaces of the glass substrates. They apply an electric field to the liquid crystal layer, controlling the alignment of the liquid crystal molecules in specific areas of the display.
- Liquid Crystal Layer: This is the core of the display, consisting of liquid crystal molecules sandwiched between the glass substrates. These molecules have the unique property of aligning themselves in response to an electric field. When no electric field is applied, the molecules are in a natural state, allowing light to pass through. When an electric field is applied, the molecules twist or align, blocking light from passing through.
- Color Filters (for color LCDs): In color LCDs, a layer of color filters is positioned behind the liquid crystal layer. These filters consist of tiny red, green, and blue subpixels, which, when combined in varying intensities, can produce a full spectrum of colors.
- Backlight Unit (BLU) (in traditional LCDs): In traditional transmissive LCDs, the backlight unit is positioned behind all the other layers. This unit emits white light that passes through the polarizing filters, liquid crystal layer, and color filters to create the visible image. The backlight is typically composed of cold cathode fluorescent lamps (CCFLs) or light-emitting diodes (LEDs).
- Reflector (in Reflective LCDs): In reflective LCDs the Backlight Unit is replaced with a reflector. This unit is positioned behind all the other layers. This reflects the ambient light that passes through polarizing filters, liquid crystal layer, and color filters to create the visible image.
In a traditional LCD with a backlight, the backlight unit emits light that travels through the various layers. The liquid crystals act as tiny shutters, either blocking or allowing light to pass through in specific areas, creating the image.
LCDs can be broadly categorized into three main types based on how they use light:

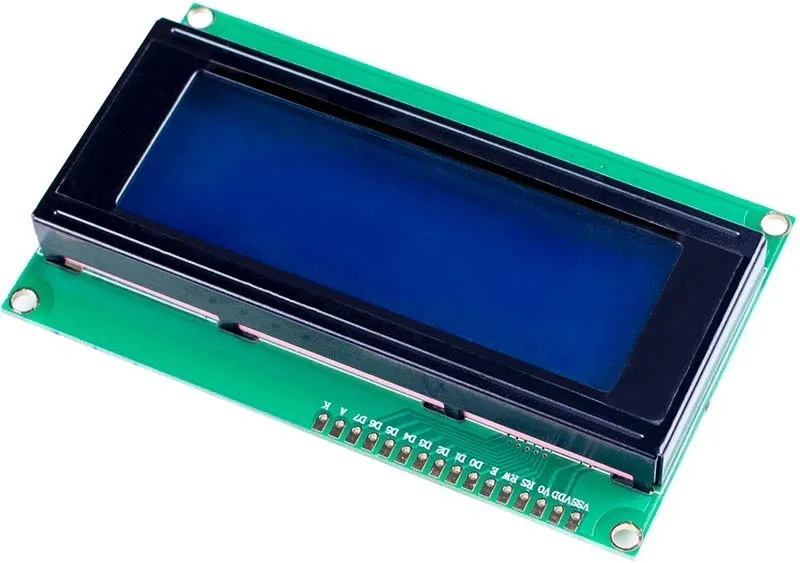

- Transmissive LCDs: These are the most common type of LCD and require a backlight to function. The backlight emits light from behind the display, which passes through the liquid crystal layer and color filters to create the image. Transmissive LCDs offer excellent color reproduction and brightness, making them suitable for applications like televisions, computer monitors, and smartphones. However, they consume more power due to the backlight.

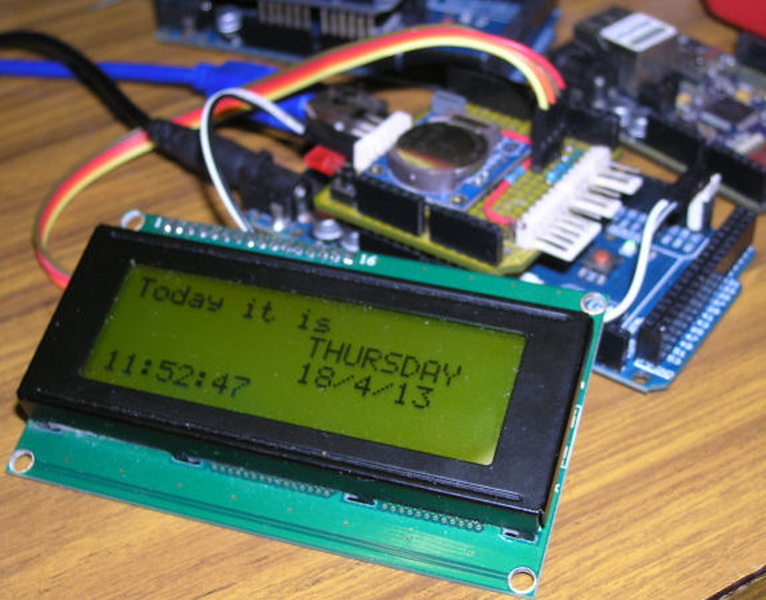

- Reflective LCDs: These LCDs do not have a backlight. Instead, they rely on ambient light that is reflected off a reflective layer behind the liquid crystal layer. The liquid crystals control which areas of the reflective layer are visible, creating the image. Reflective LCDs are incredibly energy-efficient because they don't need a backlight, but they require external light to be visible. Their contrast and color reproduction are typically limited compared to transmissive LCDs.
- Transflective LCDs: These LCDs combine the properties of both transmissive and reflective LCDs. They have a backlight and a partially reflective layer. In bright ambient light, the reflective layer provides visibility, while in low-light conditions, the backlight can be activated to illuminate the display. Transflective LCDs offer a compromise between power consumption and visibility, making them suitable for devices used in various lighting environments.
The evolution toward LCDs without backlights has been primarily driven by two key factors:
- Energy Efficiency: Backlights are one of the most power-hungry components in an LCD system, especially in larger displays. Eliminating the backlight can significantly reduce energy consumption, which is crucial for battery-powered devices like e-readers, smartwatches, and portable medical equipment.
- Improved Outdoor Visibility: Traditional LCDs with backlights often suffer from poor visibility in direct sunlight. The bright sunlight washes out the display, making it difficult to read the content. Reflective LCDs, on the other hand, perform exceptionally well in bright ambient light because the stronger the ambient light, the brighter and clearer the display becomes.
Reflective LCDs have been around for decades, used in simple devices like calculators and digital watches. However, early reflective LCDs had limited color capabilities, low contrast, and slow response times. Recent advances in materials science, liquid crystal technology, and display manufacturing have led to the development of more advanced reflective LCDs that offer significantly improved performance.
LCDs without backlights, primarily reflective LCDs, operate by harnessing ambient light to illuminate the display. Instead of a backlight, these displays have a reflective layer positioned behind the liquid crystal layer. This reflective layer bounces external light back toward the viewer. The liquid crystals control which portions of the reflective layer are visible, thereby creating the image.
Several key technologies and design elements enable LCDs without backlights to function effectively:
- Highly Reflective Layers: The reflective layer is a critical component. It is typically made of a highly reflective material such as aluminum or silver. Advanced manufacturing techniques are used to create reflective layers with a smooth surface and high reflectivity, maximizing the amount of light reflected back to the viewer.
- Optimized Liquid Crystal Materials: The liquid crystal materials used in reflective LCDs are carefully selected and optimized for high contrast ratio and fast response times. These materials must be able to switch quickly and efficiently between transparent and opaque states to create crisp, clear images.
- Advanced Polarizer Technology: The polarizers used in reflective LCDs are designed to minimize light loss and maximize contrast. These polarizers are often multi-layered and incorporate anti-glare coatings to reduce reflections from the display surface.
- Ambient Light Sensors and Adaptive Control: Some advanced reflective LCDs incorporate ambient light sensors that detect the surrounding light levels. The display's contrast and brightness are automatically adjusted based on the ambient light, ensuring optimal visibility in various lighting conditions.
- Front Lighting: Some reflective LCDs also use front lighting, which is similar to a sidelight that shines on the display surface. This front lighting can improve visibility in low-light conditions without consuming as much power as a traditional backlight.
LCDs without backlights offer a compelling set of advantages over traditional backlit LCDs:
- Unmatched Energy Efficiency: This is the most significant advantage. By eliminating the backlight, reflective LCDs consume a fraction of the power of transmissive LCDs. This makes them ideal for battery-powered devices where long battery life is essential.
- Superior Outdoor Visibility: Reflective LCDs excel in direct sunlight. The brighter the ambient light, the brighter and clearer the display becomes. This makes them perfect for outdoor applications where visibility is critical.
- Slim and Lightweight Design: Without the bulky backlight unit, reflective LCDs can be made thinner and lighter. This is particularly important for portable devices where size and weight are a concern.
- Potentially Reduced Eye Strain: Some users find that reflective LCDs are more comfortable to view for extended periods. Since they do not emit direct light into the eyes like backlit displays, they may reduce eye strain and fatigue.
- Lower Manufacturing Cost: In certain cases, the elimination of the backlight can reduce the overall manufacturing cost of the display. However, this depends on the specific technology and materials used.
- Wider Viewing Angle: With the advent of new multi-domain vertically aligned (MVA) LCD technology, displays without backlights can have a wider viewing angle.
LCDs without backlights are finding applications in various industries and devices:
- E-Readers: E-readers like the Amazon Kindle and Kobo utilize e-ink technology, a type of electrophoretic display that shares similarities with reflective LCDs. E-ink displays provide a paper-like reading experience with excellent battery life and sunlight readability.
- Smartwatches and Wearable Devices: Many smartwatches and fitness trackers use reflective LCDs to maximize battery life. These displays allow users to view the time, notifications, and other information even in bright sunlight without significantly draining the battery.
- Industrial Handheld Devices: Handheld computers, data collectors, and barcode scanners used in industrial and logistics applications often employ reflective LCDs for their ruggedness, energy efficiency, and outdoor visibility.
- Outdoor Digital Signage: Reflective LCDs are being used in outdoor digital signs to reduce energy consumption and improve visibility in sunlight. These signs can display information and advertisements without the need for a power-hungry backlight.
- Medical Devices: Portable medical devices such as blood glucose meters, patient monitors, and infusion pumps can benefit from the low power consumption and sunlight readability of reflective LCDs.
- Electronic Shelf Labels (ESL): ESL's use a small LCD screen that can be easily updated wirelessly, and because they're reflective, they only need a tiny battery to maintain the display for years.
Despite their advantages, LCDs without backlights also have some limitations and challenges:
- Lower Contrast and Color Gamut: Compared to transmissive LCDs, reflective LCDs typically have lower contrast ratios and a narrower color gamut. This can result in images that appear less vibrant and have less detail.
- Dependency on Ambient Light: Reflective LCDs require sufficient ambient light to be visible. In dark or low-light conditions, they can be difficult or impossible to read without an external light source.
- Slower Response Times: Some reflective LCD technologies have slower response times than transmissive LCDs, which can result in motion blur when displaying fast-moving content.
- Viewing Angle Limitations: The viewing angle of some reflective LCDs can be limited, meaning that the image may appear distorted or faded when viewed from certain angles.
- Durability and Ruggedness: Some reflective LCD technologies may be more susceptible to damage from impacts or scratches than transmissive LCDs.
The technology behind LCDs without backlights is constantly evolving, with ongoing research and development efforts focused on addressing the limitations and enhancing the performance. Some key trends and innovations in this area include:
- Advanced Reflective Layer Materials: Researchers are exploring new materials and manufacturing techniques to create reflective layers with higher reflectivity, smoother surfaces, and improved durability.
- Bistable Liquid Crystal Technology: Bistable LCDs require power only when the image is changed, not to maintain it. These LCDs use about 1% of the power of traditional LCDs, but have a slower refresh rate.
- Quantum Dot Enhancement Films (QDEF): QDEF technology uses quantum dots to enhance the color gamut and brightness of reflective LCDs. Quantum dots are nanoscale semiconductor crystals that emit light of specific wavelengths when excited by light or electricity.
- Micro Lens Arrays: Micro lens arrays are being used to focus ambient light onto the reflective layer, increasing the display's brightness and contrast.
- Integration with Flexible Substrates: Researchers are exploring the integration of reflective LCDs with flexible substrates, enabling the creation of flexible and foldable displays.
LCDs without backlights represent a significant advancement in display technology, offering compelling advantages in terms of energy efficiency, outdoor visibility, and design flexibility. While they have some limitations compared to traditional backlit LCDs, ongoing innovations are continuously improving their performance and expanding their applications. As battery life becomes increasingly critical for portable devices and outdoor visibility remains a challenge for many displays, LCDs without backlights are poised to play an increasingly important role in the future of display technology.
LCDs without backlights offer several benefits, including significantly reduced power consumption, enhanced visibility in direct sunlight, a slimmer and lighter design, and potentially reduced eye strain.
They use ambient light reflected off a special layer behind the liquid crystals. The crystals control which parts of the reflective layer are visible, forming the image.
They are commonly used in e-readers, smartwatches, industrial handheld devices, outdoor digital signage, medical devices, and electronic shelf labels.
The primary drawbacks include lower contrast ratios, a narrower color gamut, and dependency on ambient light for visibility.
Future innovations include advanced reflective layer materials, quantum dot enhancement films, integration with flexible substrates, and micro lens arrays to enhance brightness and contrast.
